DTC 97: Accelerometer ("G" Sensor) Circuit Shorted To Ground

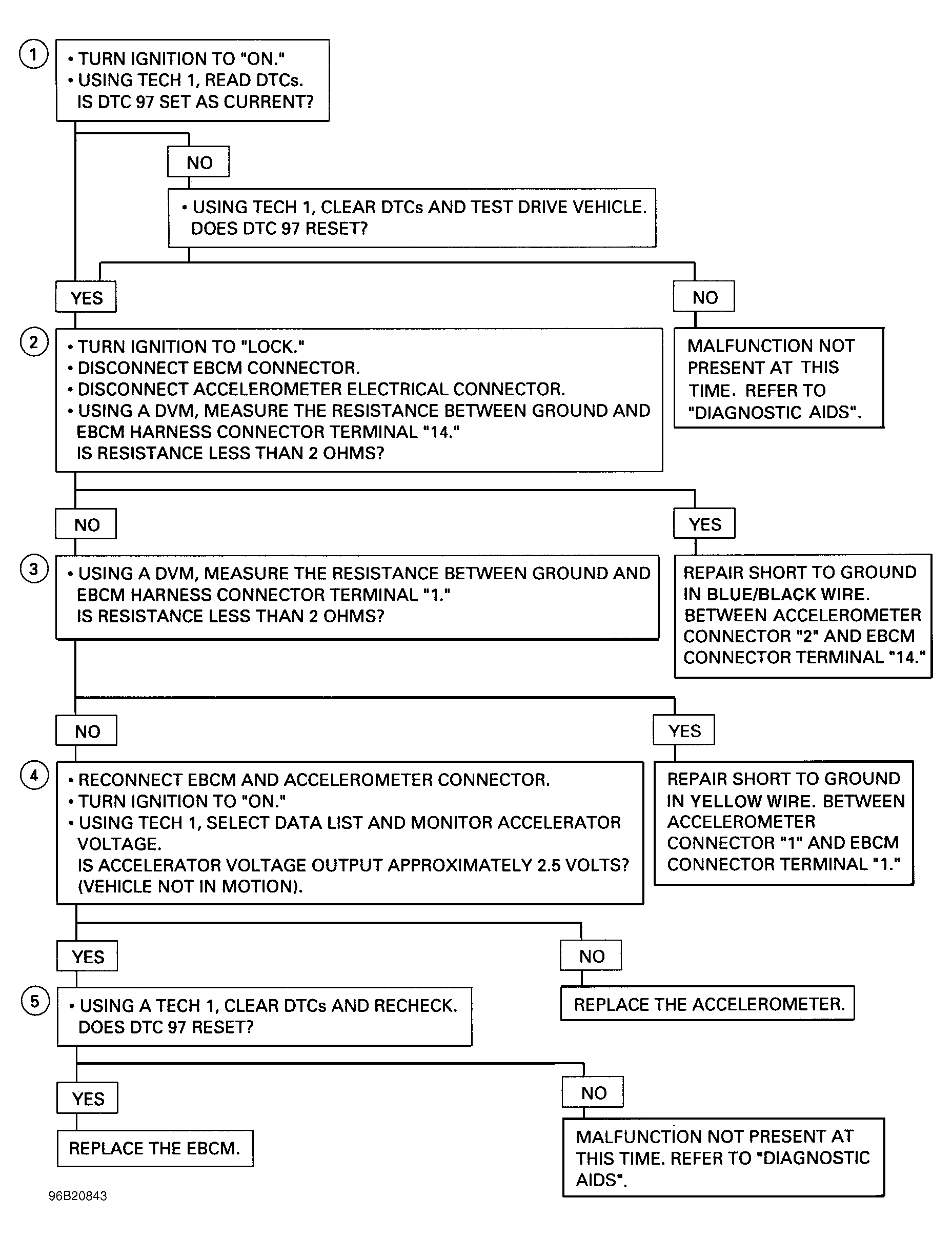

Fig 1: DTC 97: Accelerometer ("G" Sensor) Circuit Shorted To Ground

G96B20843

Courtesy of ISUZU MOTOR CO.
