DTC 63: Right Front Motor Circuit Shorted To Battery

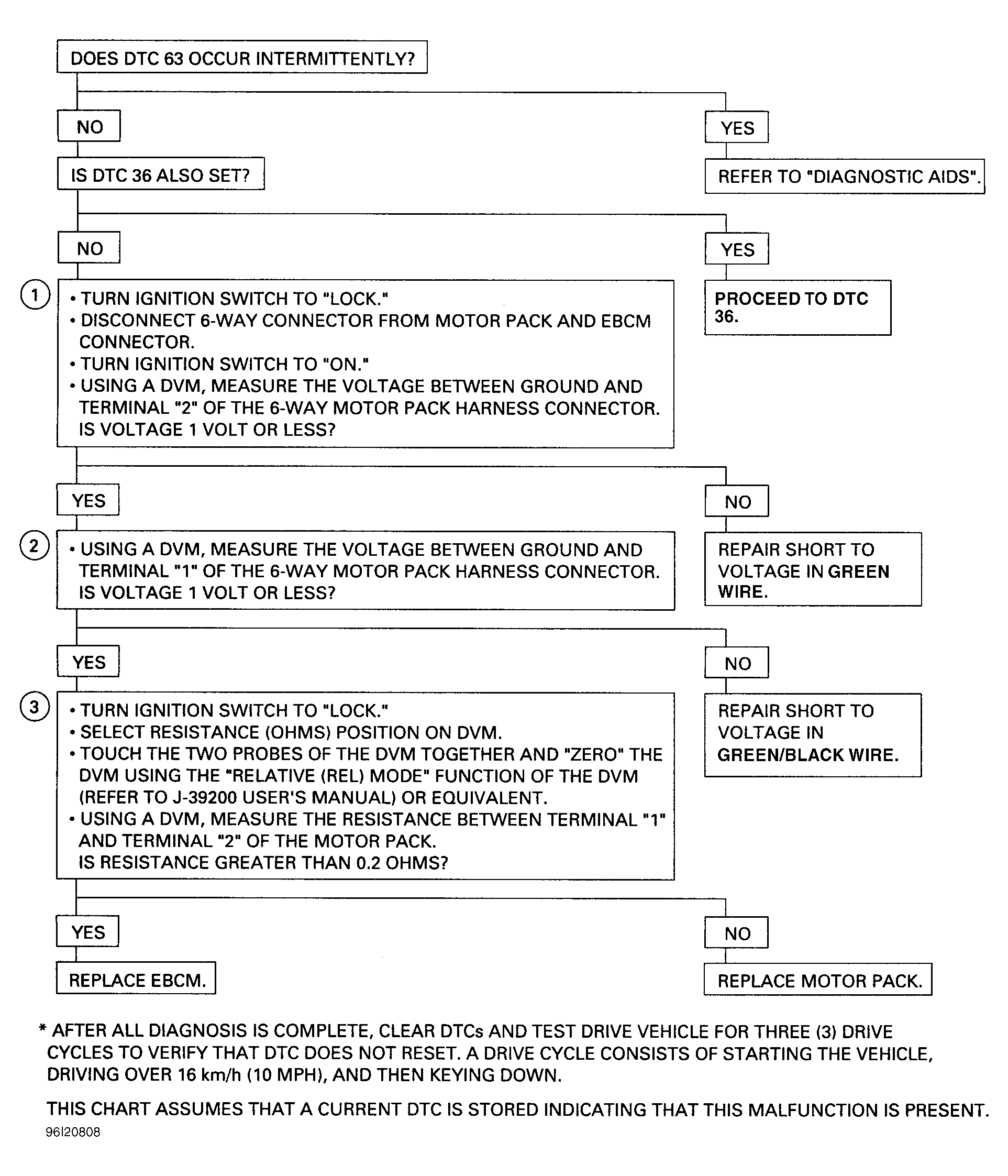

Fig 1: DTC 63: Right Front Motor Circuit Shorted To Battery

G96I20808

Courtesy of ISUZU MOTOR CO.
