DTC 58: Left Front Motor Circuit Shorted To Battery

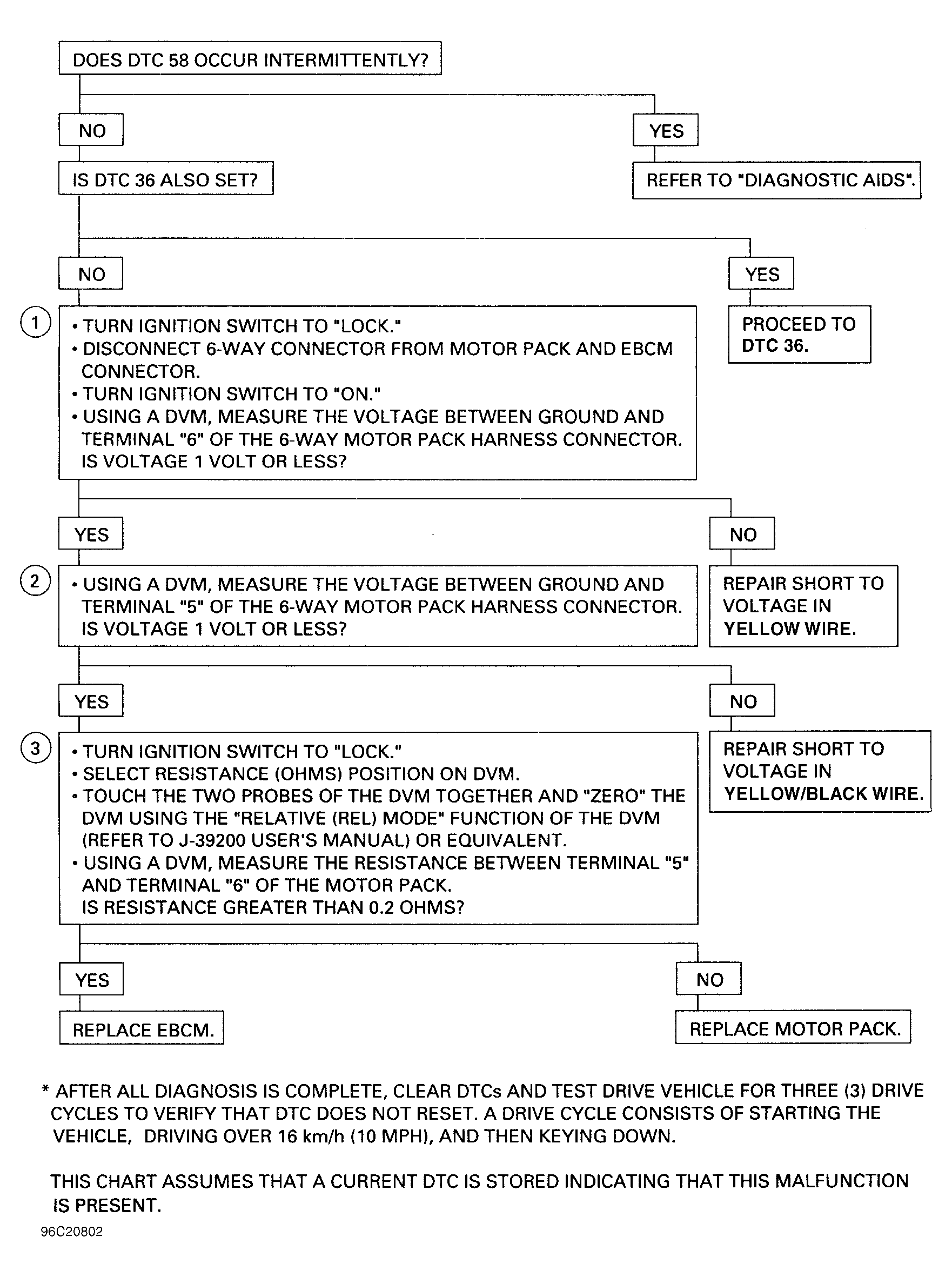

Fig 1: DTC 58: Left Front Motor Circuit Shorted To Battery

G96C20802

Courtesy of ISUZU MOTOR CO.
