DTC 47: Left Front Motor Free Spins
DTC 47: Left Front Motor Free Spins

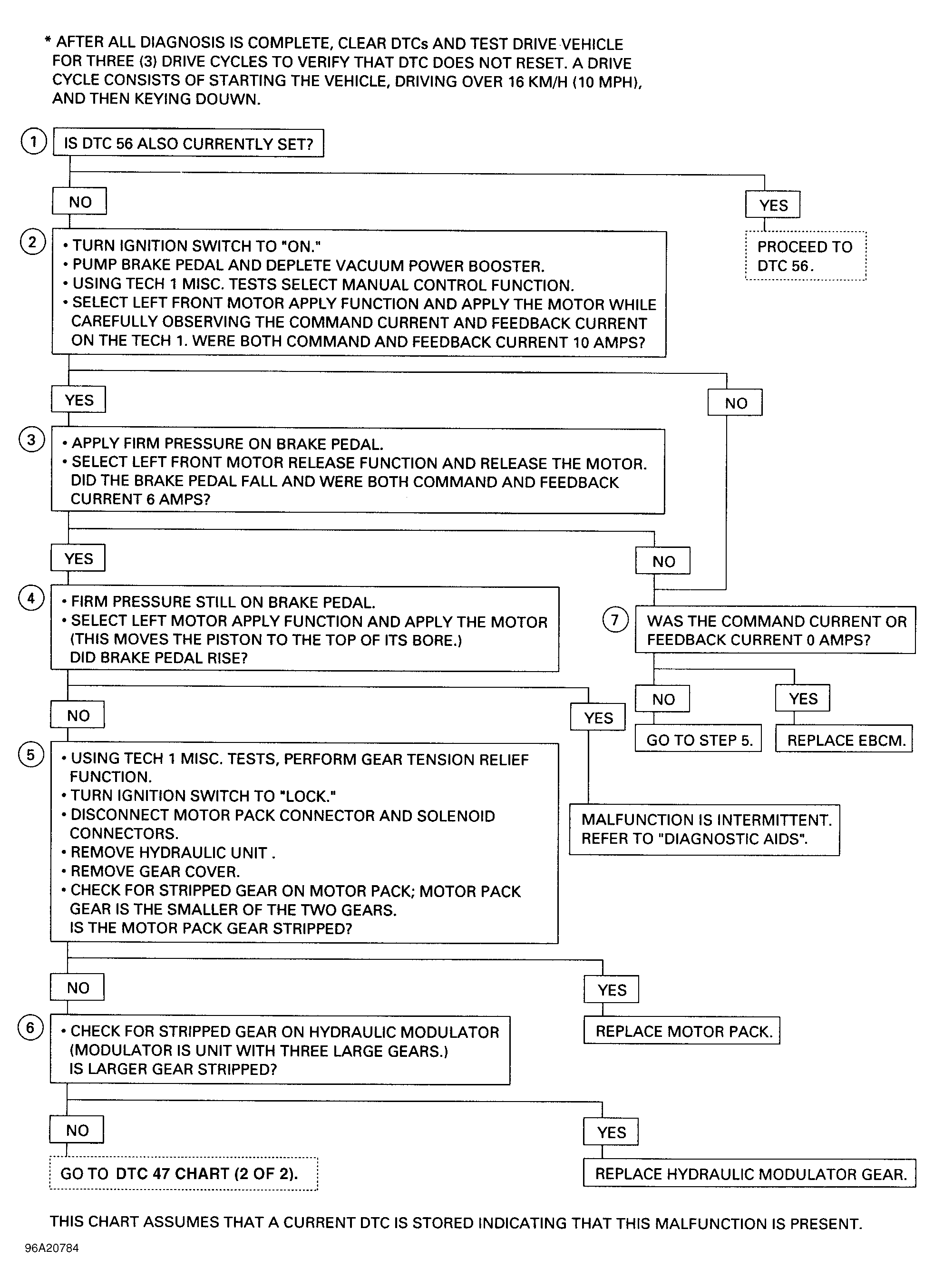

Fig 1: DTC 47: Left Front Motor Free Spins (1 Of 2)
Courtesy of ISUZU MOTOR CO.

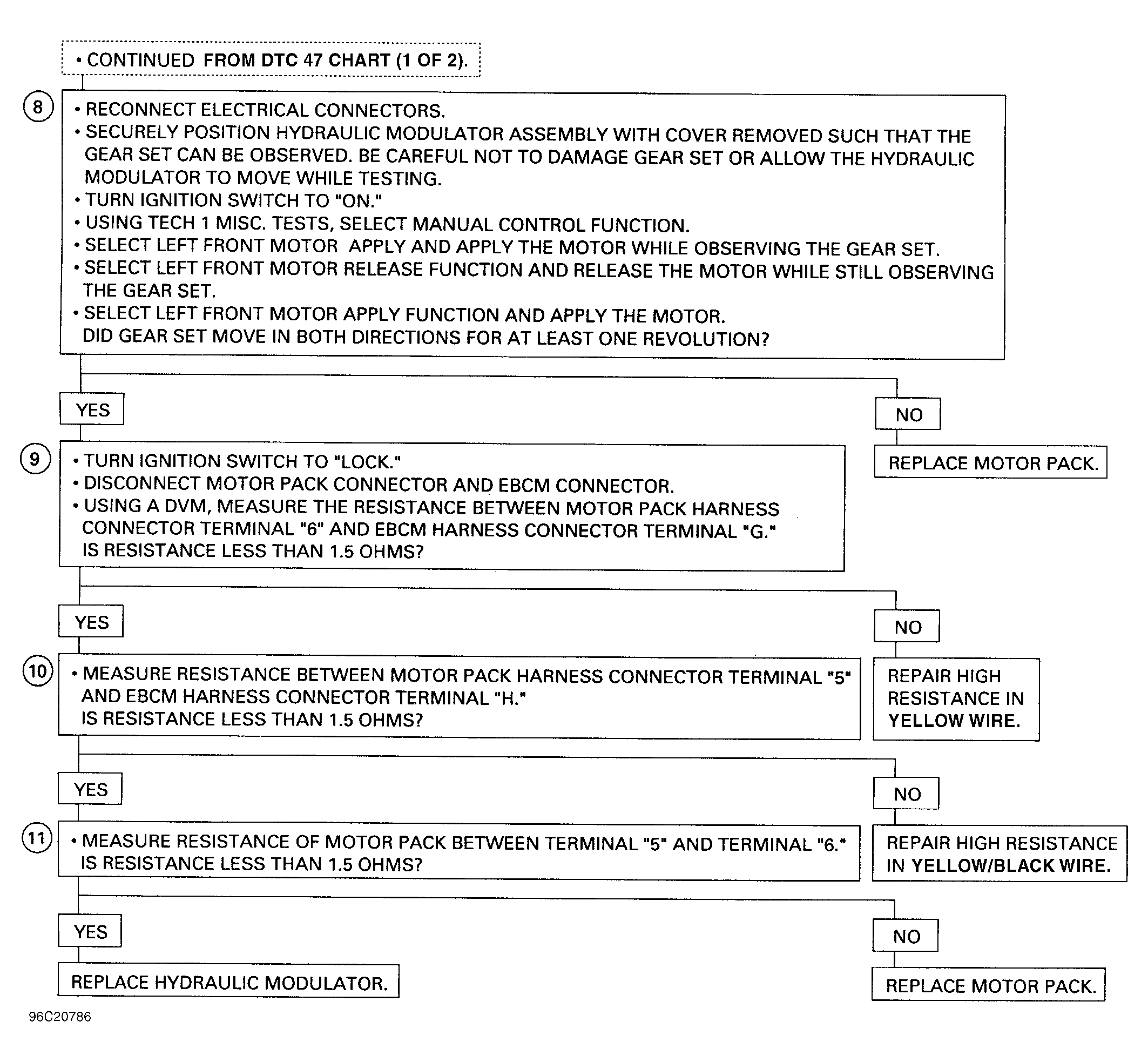

Fig 2: DTC 47: Left Front Motor Free Spins (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
