DTC 32: Left Front Wheel Speed Sensor Circuit Open Or Shorted To Ground/Battery

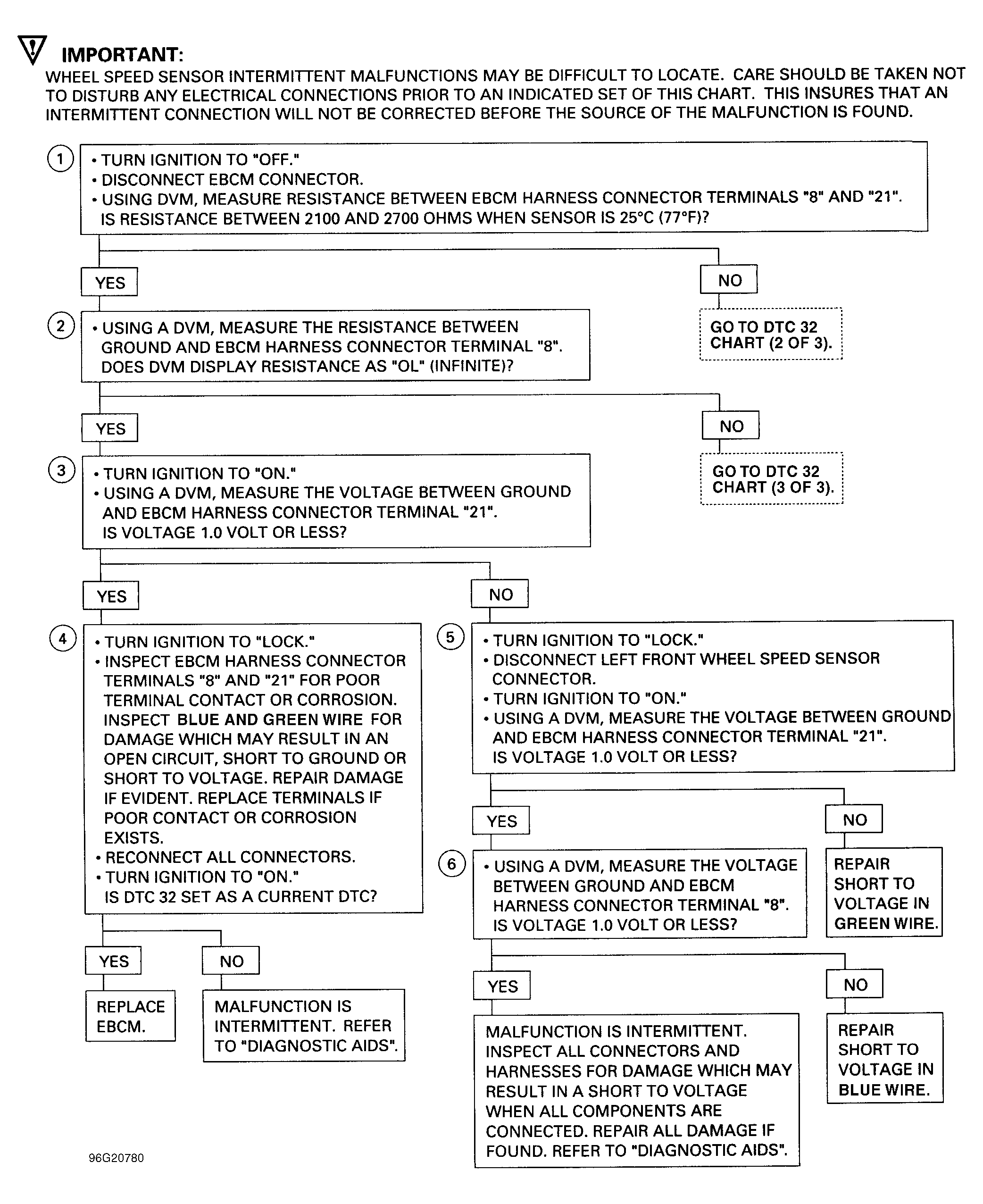

Fig 1: DTC 32: Left Front Wheel Speed Sensor Circuit Open Or Shorted To Ground/Battery (1 Of 3)

Courtesy of ISUZU MOTOR CO.

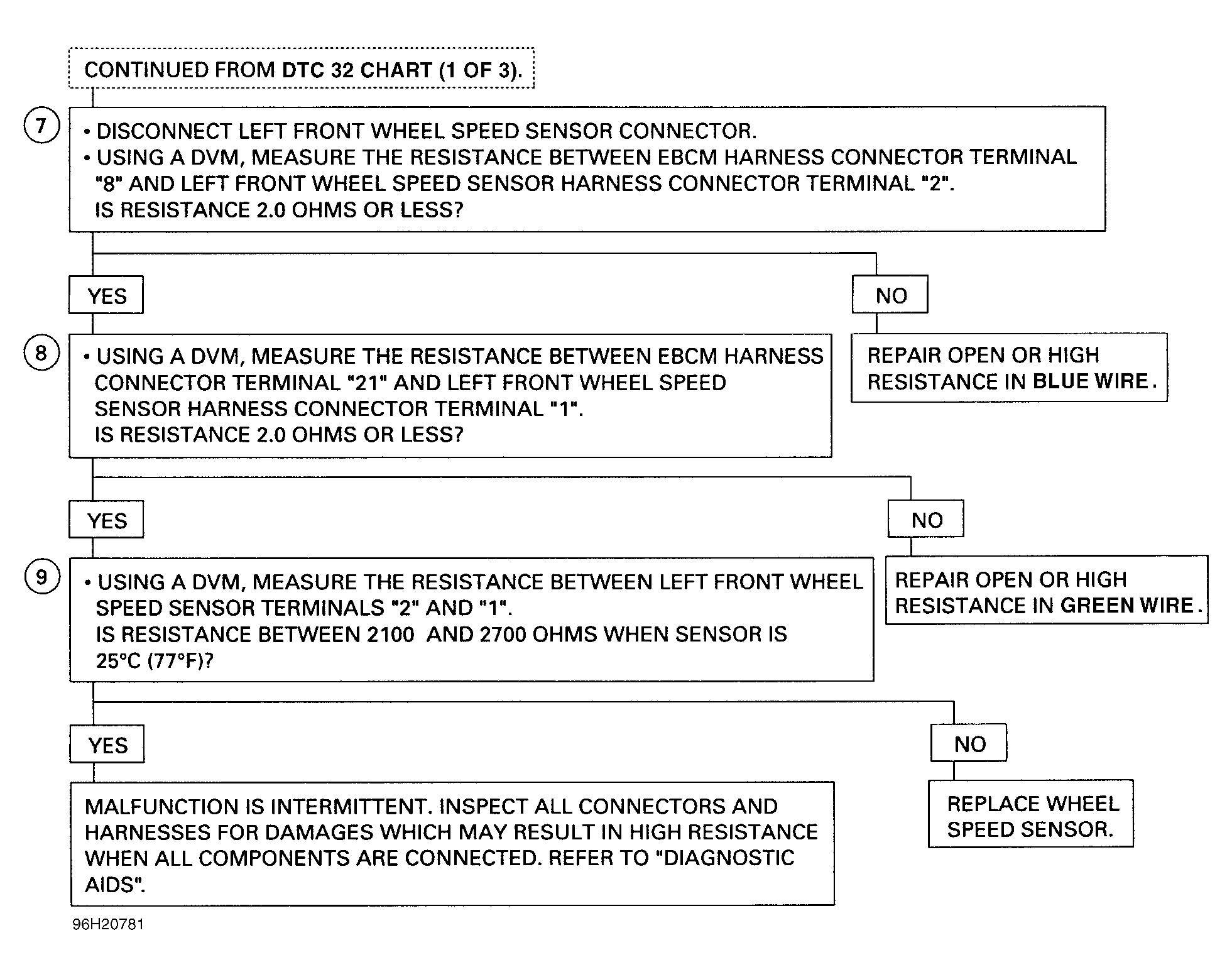

Fig 2: DTC 32: Left Front Wheel Speed Sensor Circuit Open Or Shorted To Ground/Battery (2 Of 3)

Courtesy of ISUZU MOTOR CO.

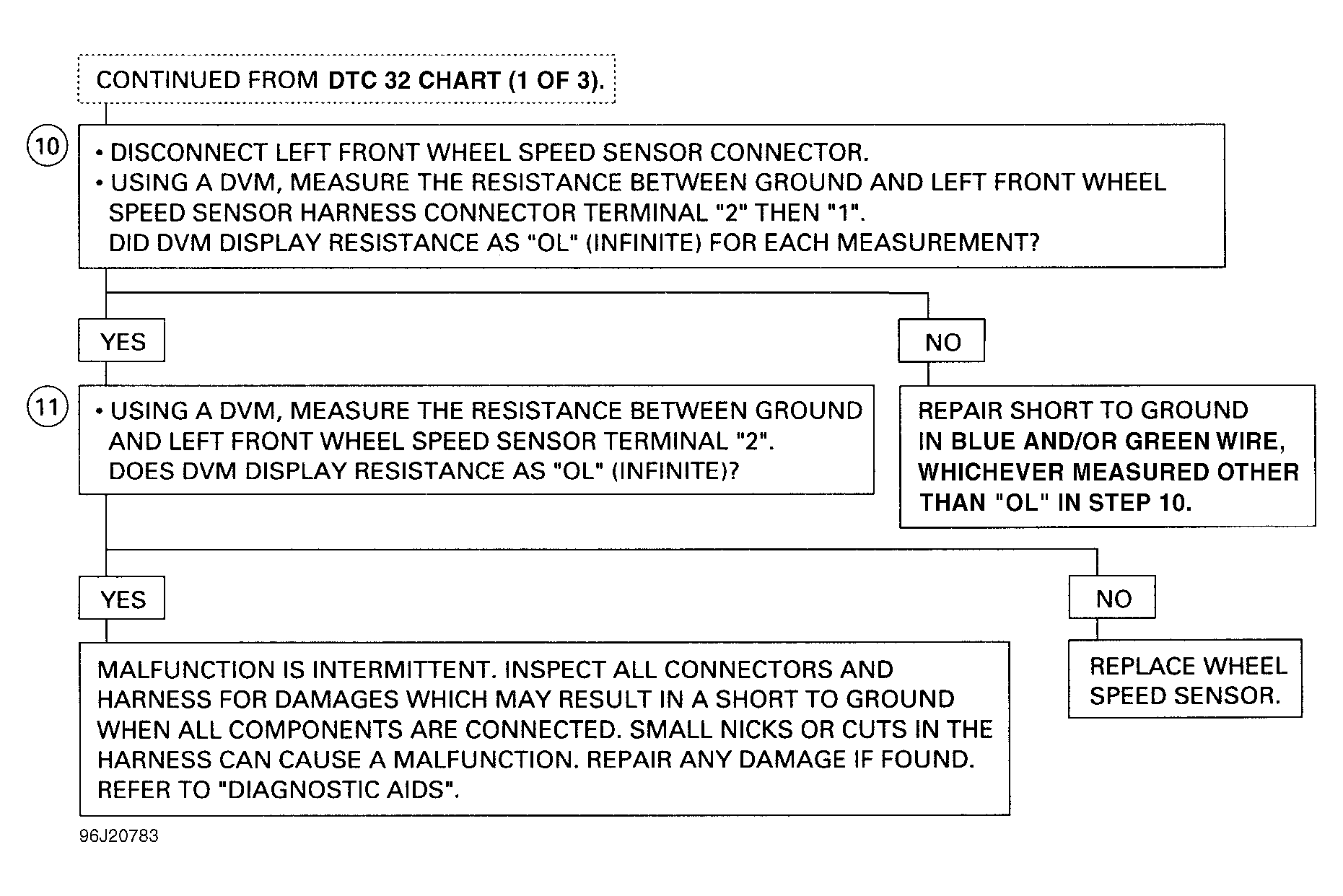

Fig 3: DTC 32: Left Front Wheel Speed Sensor Circuit Open Or Shorted To Ground/Battery (3 Of 3)

Courtesy of ISUZU MOTOR CO.
