DTC 28: Rear Excessive Wheel Speed Variation

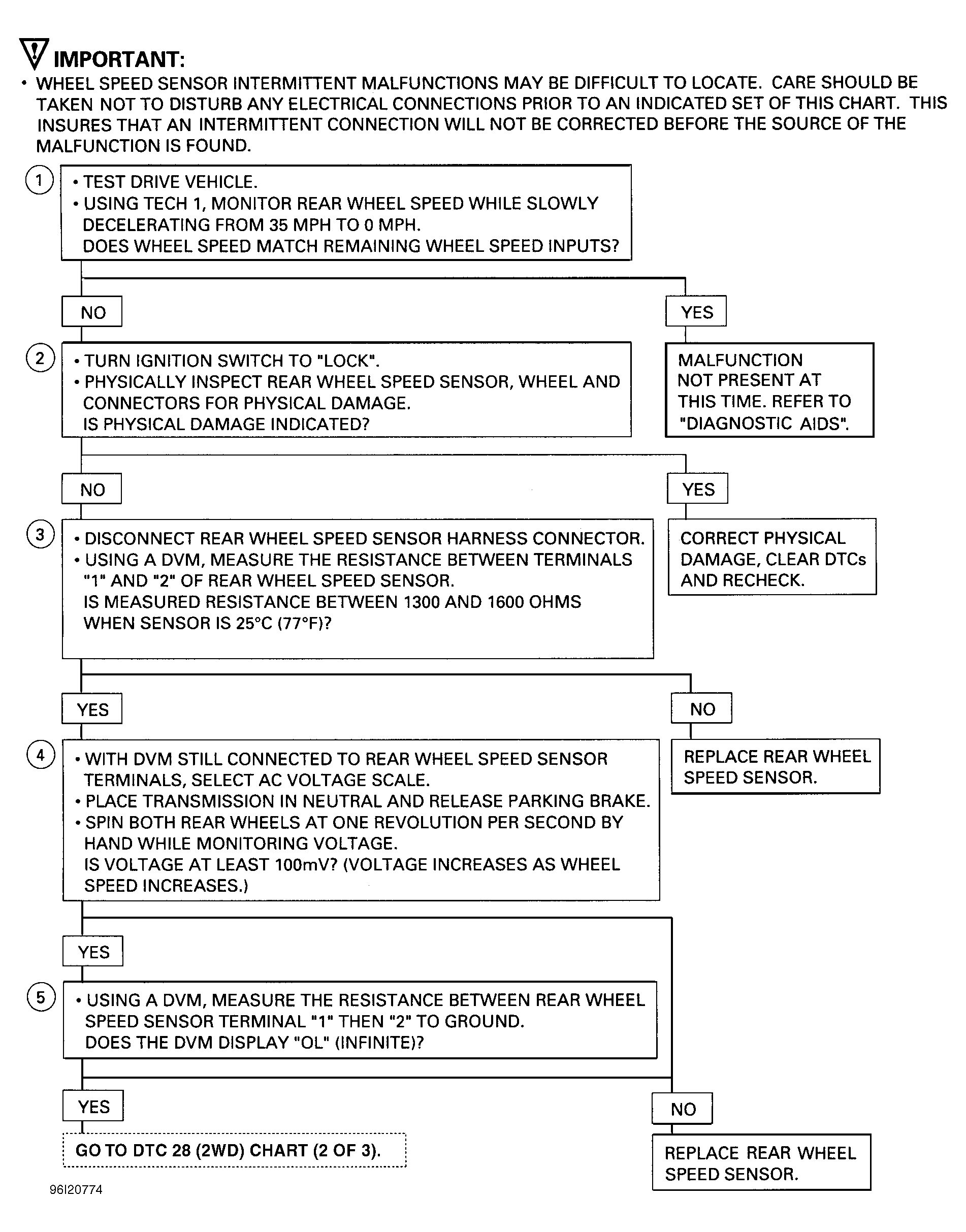

Fig 1: DTC 28: Rear Excessive Wheel Speed Variation (1 Of 3)

Courtesy of ISUZU MOTOR CO.

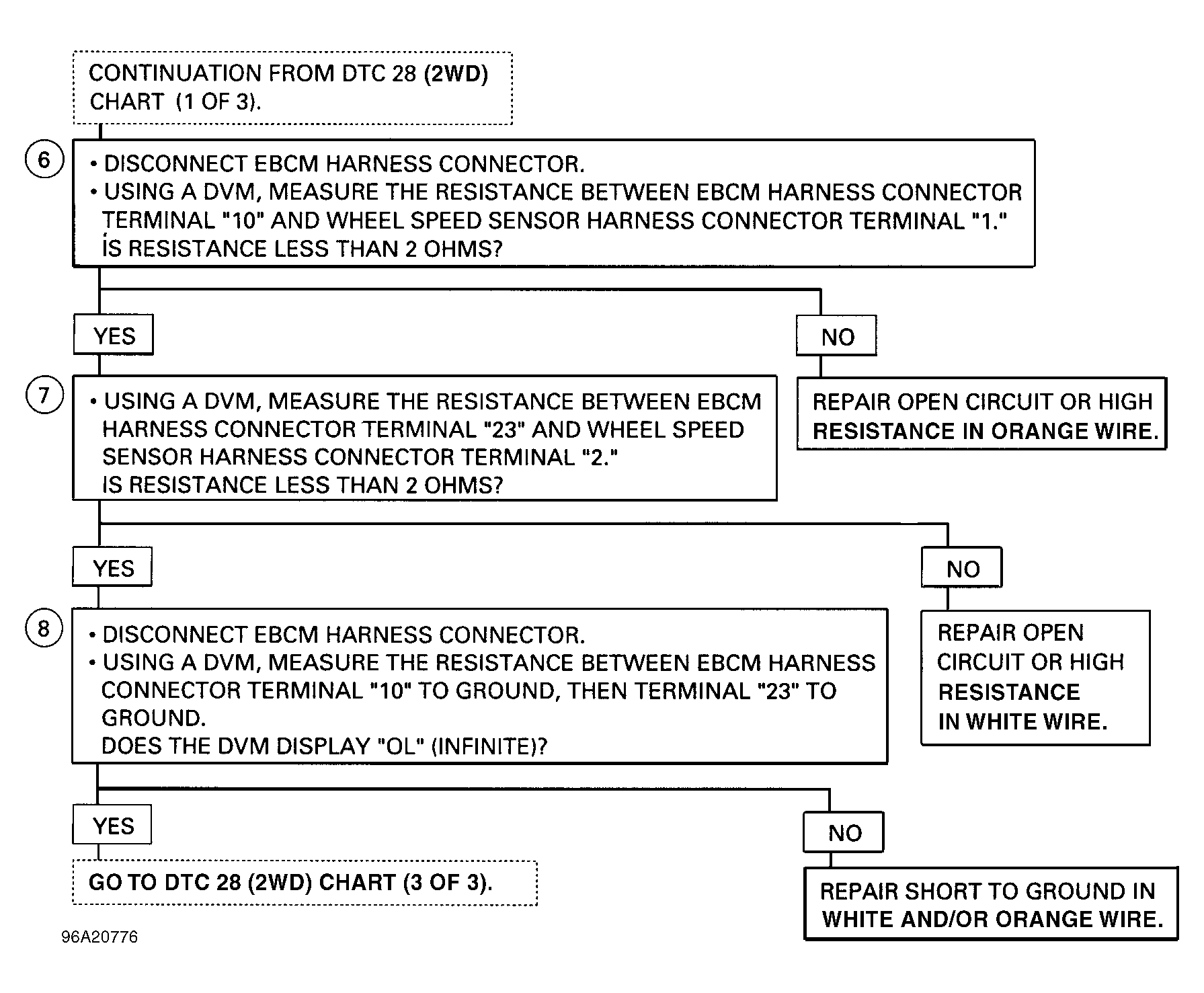

Fig 2: DTC 28: Rear Excessive Wheel Speed Variation (2 Of 3)

Courtesy of ISUZU MOTOR CO.

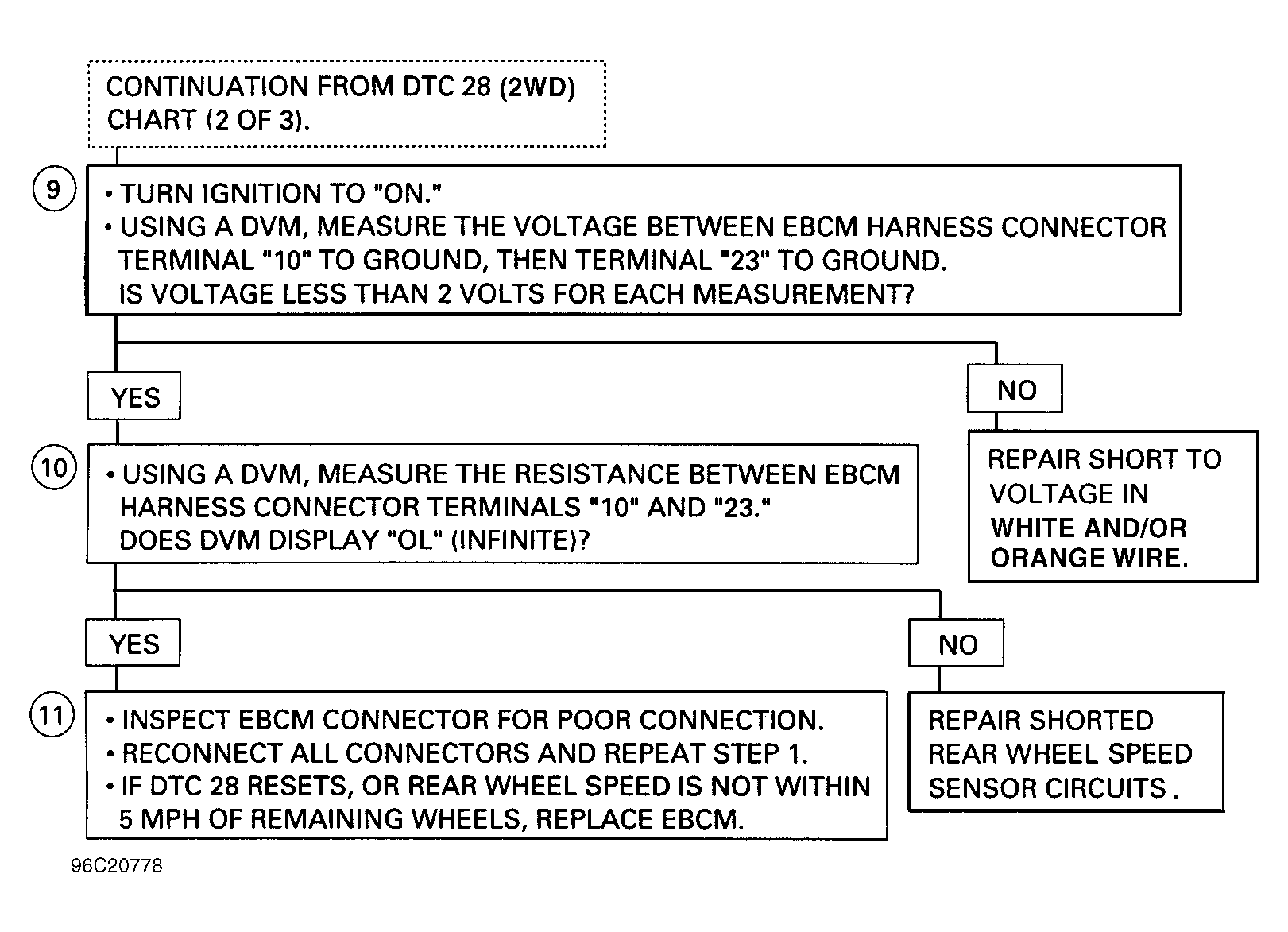

Fig 3: DTC 28: Rear Excessive Wheel Speed Variation (3 Of 3)

Courtesy of ISUZU MOTOR CO.

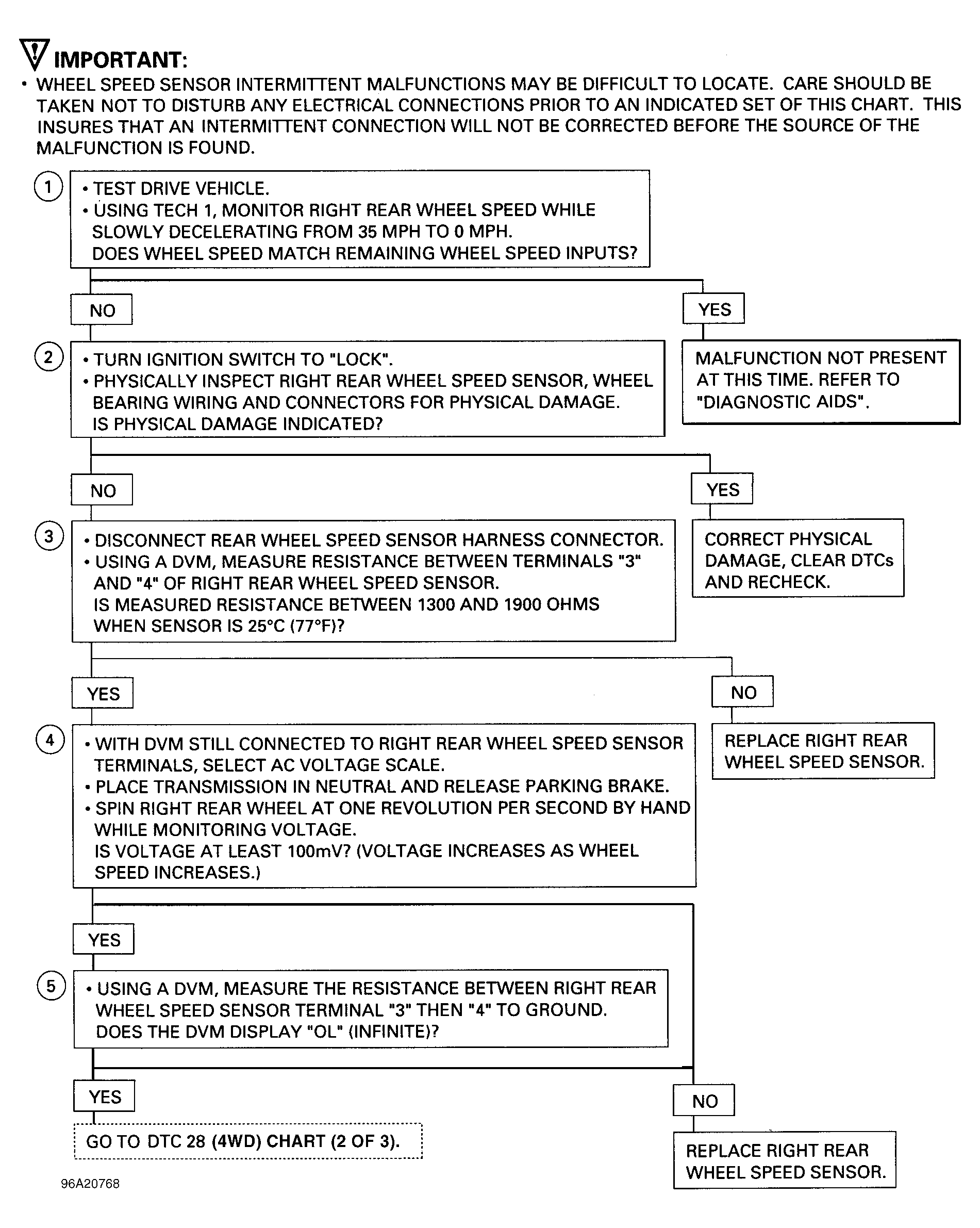

Fig 4: DTC 28: Right Rear Excessive Wheel Speed Variation (1 Of 3)

Courtesy of ISUZU MOTOR CO.

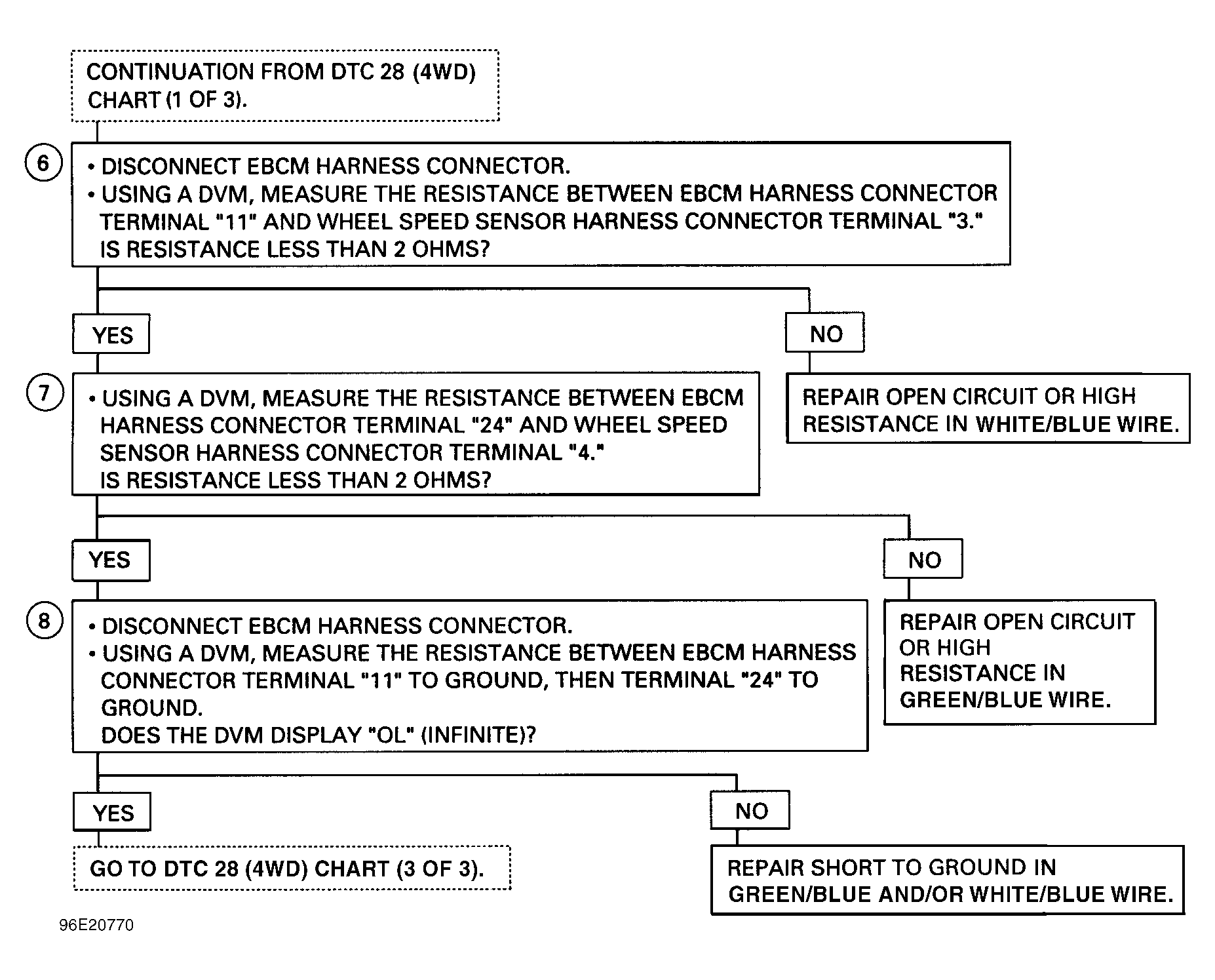

Fig 5: DTC 28: Right Rear Excessive Wheel Speed Variation (2 Of 3)

Courtesy of ISUZU MOTOR CO.

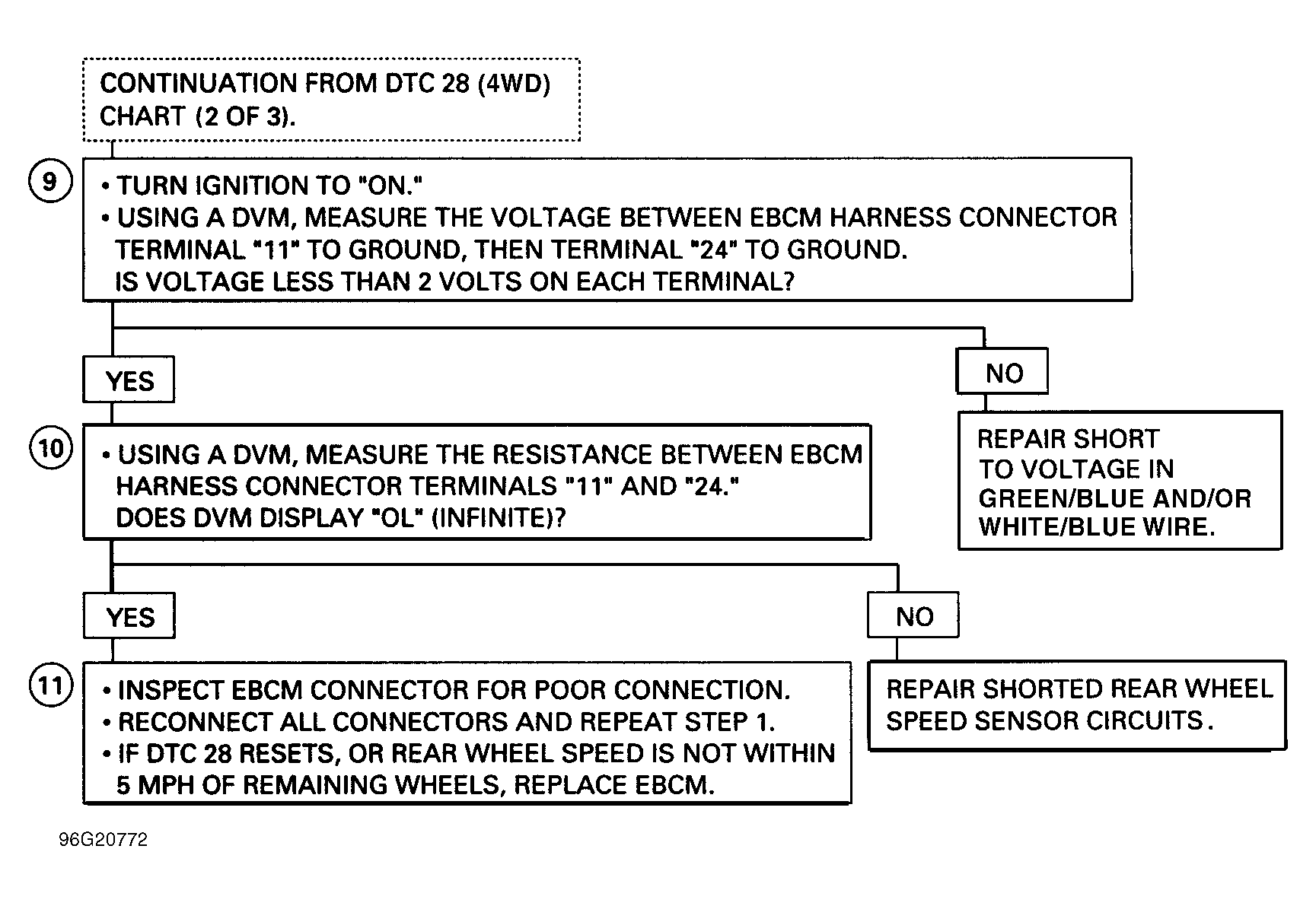

Fig 6: DTC 28: Right Rear Excessive Wheel Speed Variation (3 Of 3)

Courtesy of ISUZU MOTOR CO.
