Home >> Isuzu >> 1997 >> Rodeo LS, 2.6 E >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.6L >> Circuit Testing >> DTC P1406 - EGR Valve Pintle Position Circuit >> Notes

DTC P1406 - EGR Valve Pintle Position Circuit: Notes

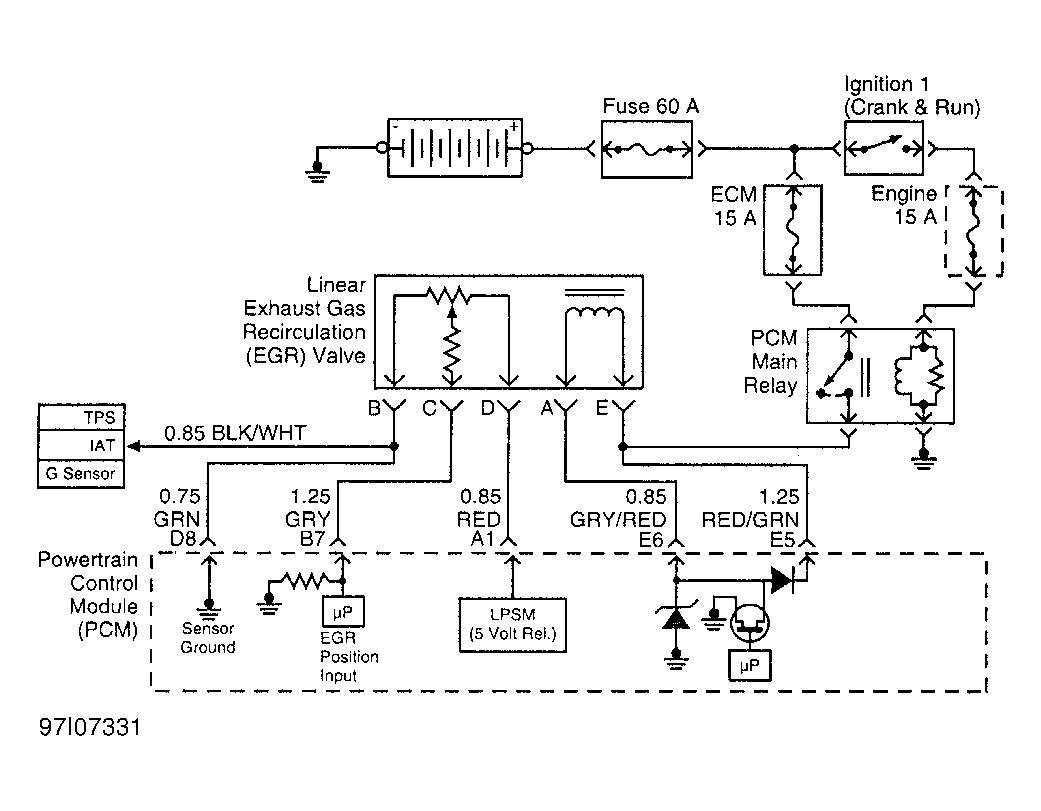

Fig 1: EGR Valve Pintle Position Circuit

G97I07331

Courtesy of ISUZU MOTOR CO.
