Anti-Lock Brake System: Wiring Diagram

Fig 1: Anti-Lock Brake System Wiring Diagram (1998 Odyssey & Isuzu Oasis - 1 Of 2)

Fig 2: ABS Control Unit Connector Terminal Identification (1997 Odyssey - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: ABS Control Unit Connector Terminal Identification (1997 Odyssey - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

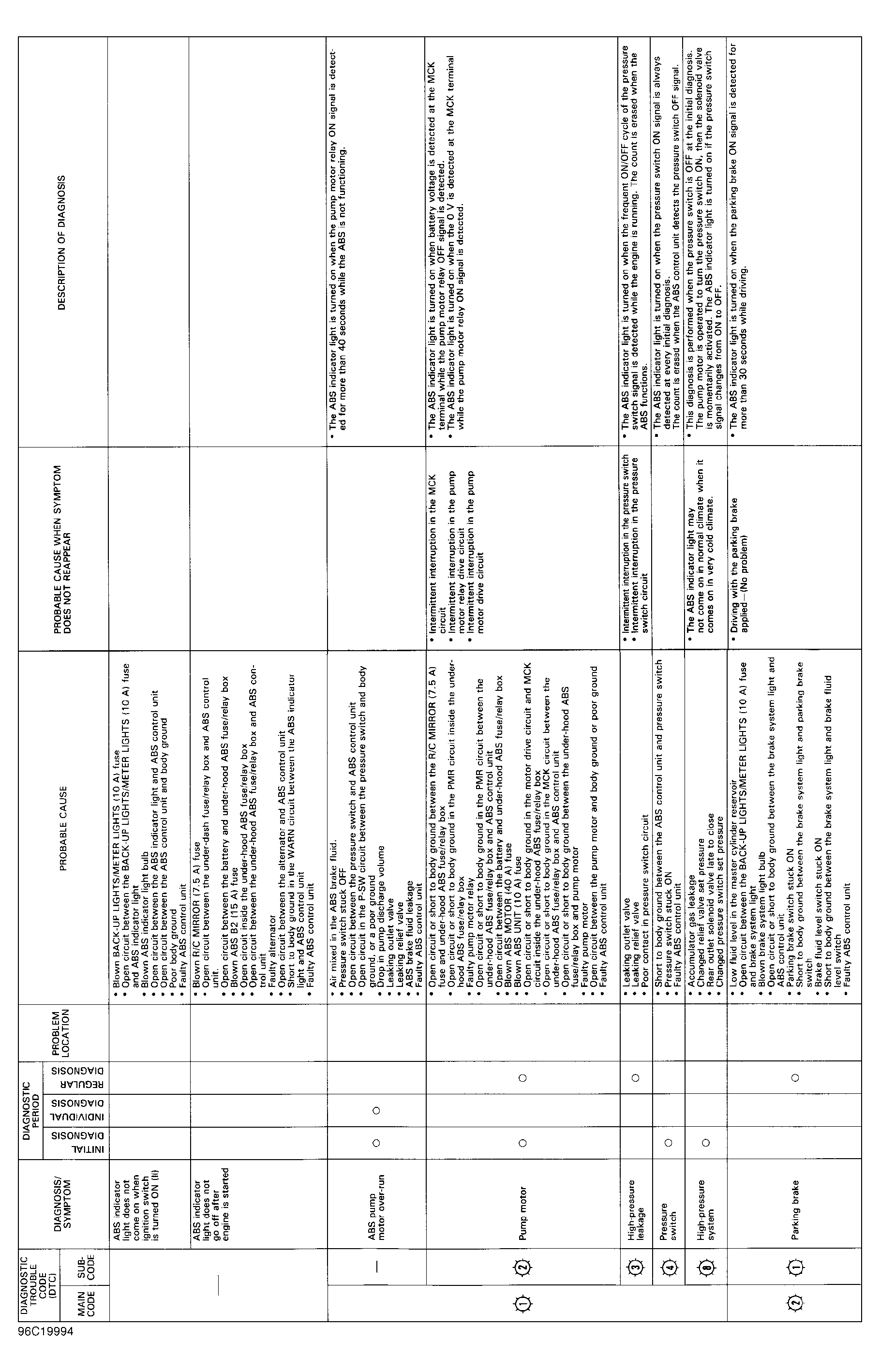

Fig 4: Self-Diagnostics & DTC Diagnosis Chart (1997 Odyssey - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

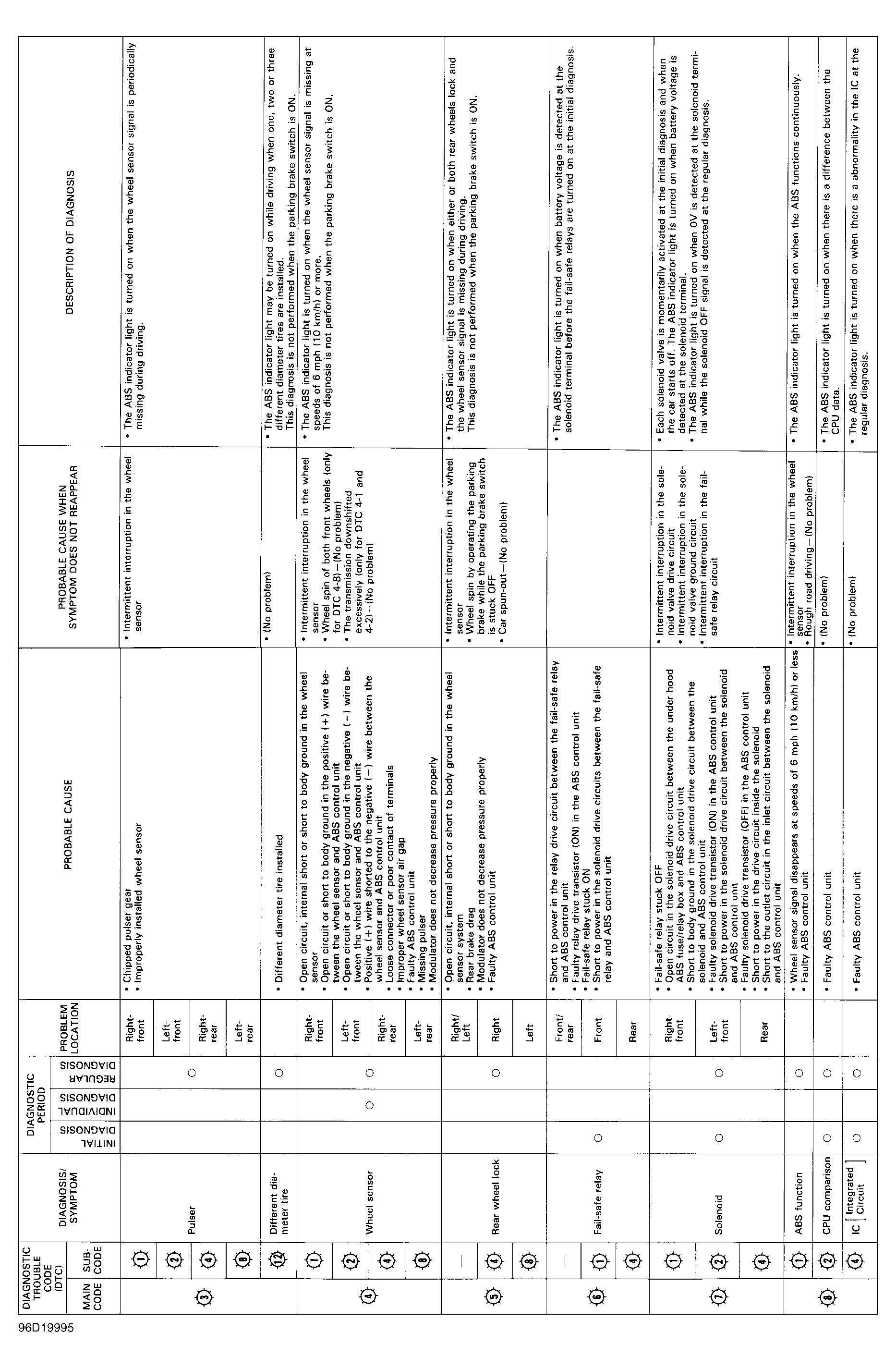

Fig 5: Self-Diagnostics & DTC Diagnosis Chart (1997 Odyssey - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
