Abs Self-Diagnostic Flow Charts

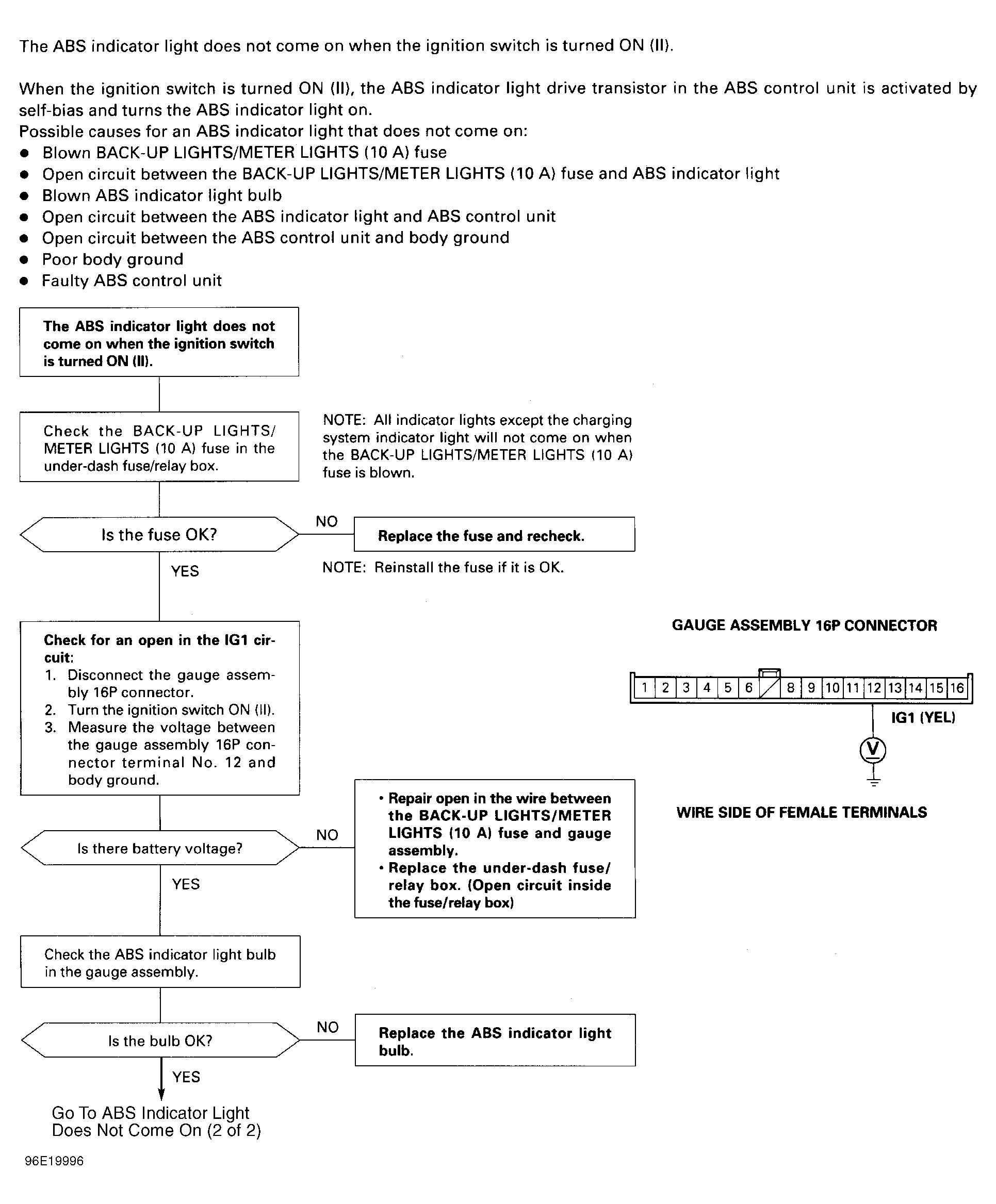

Fig 1: ABS INDICATOR LIGHT DOES NOT COME ON (1 OF 2)

G96E19996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

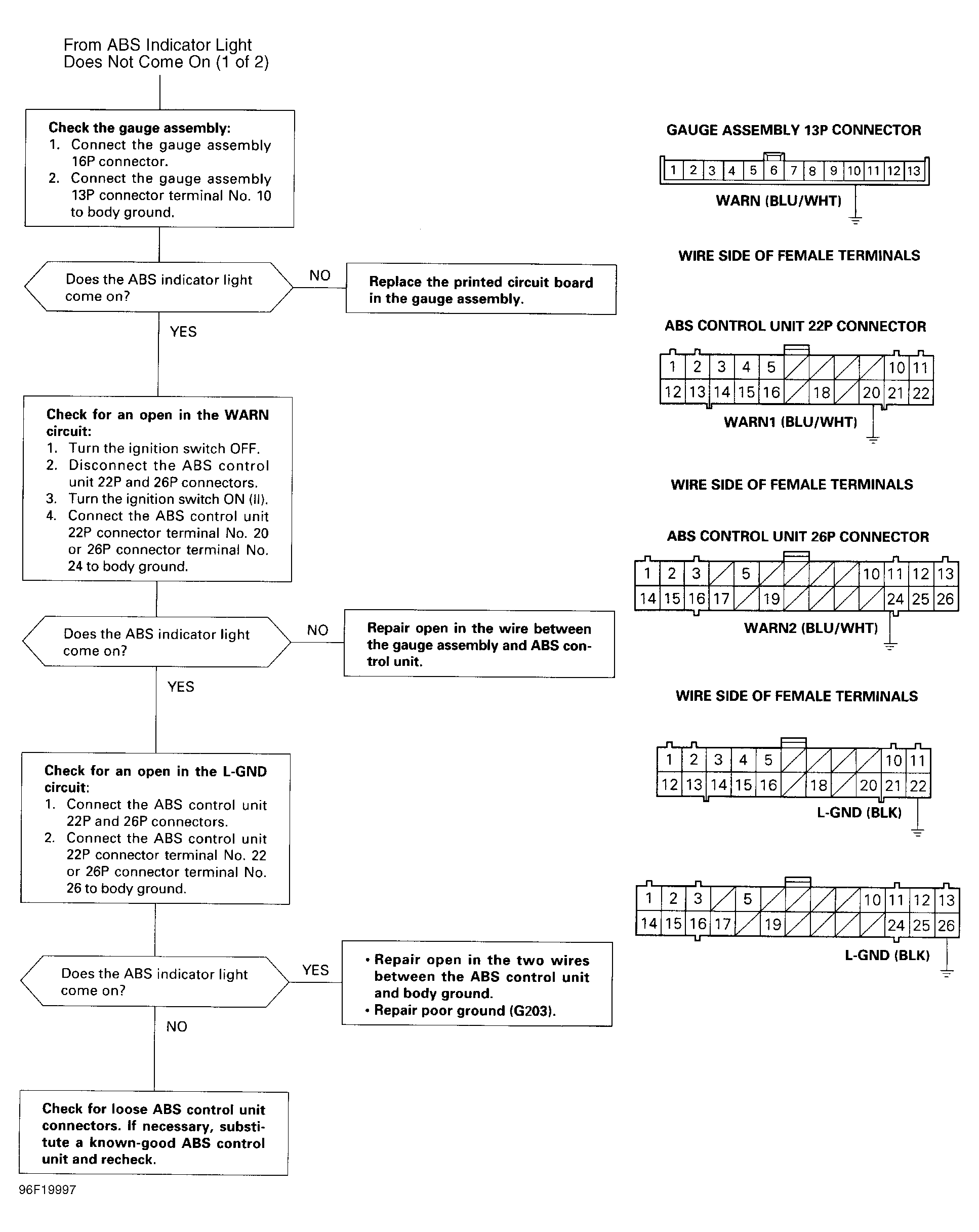

Fig 2: ABS INDICATOR LIGHT DOES NOT COME ON (2 OF 2)

G96F19997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

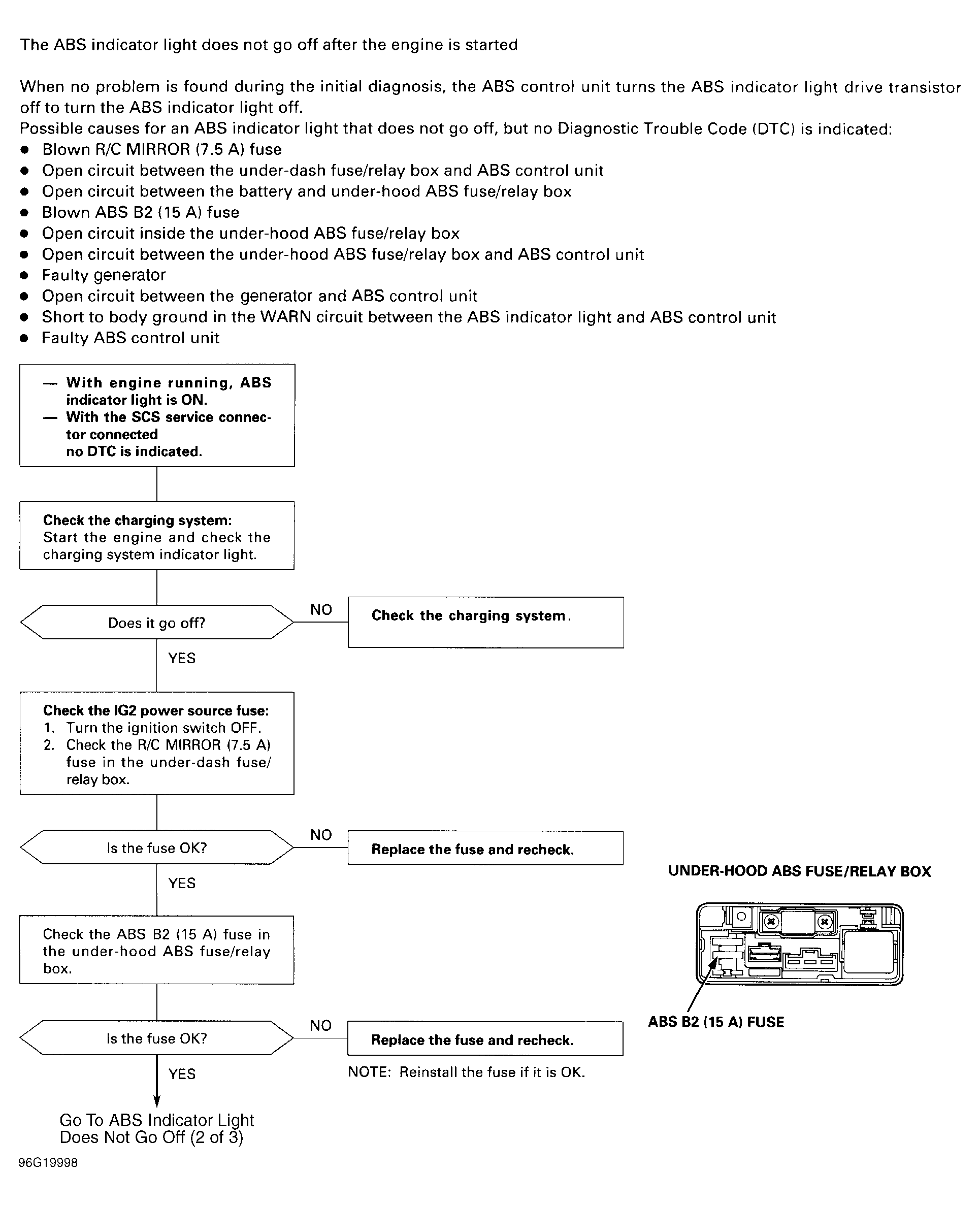

Fig 3: ABS INDICATOR LIGHT DOES NOT GO OFF (1 OF 3)

G96G19998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

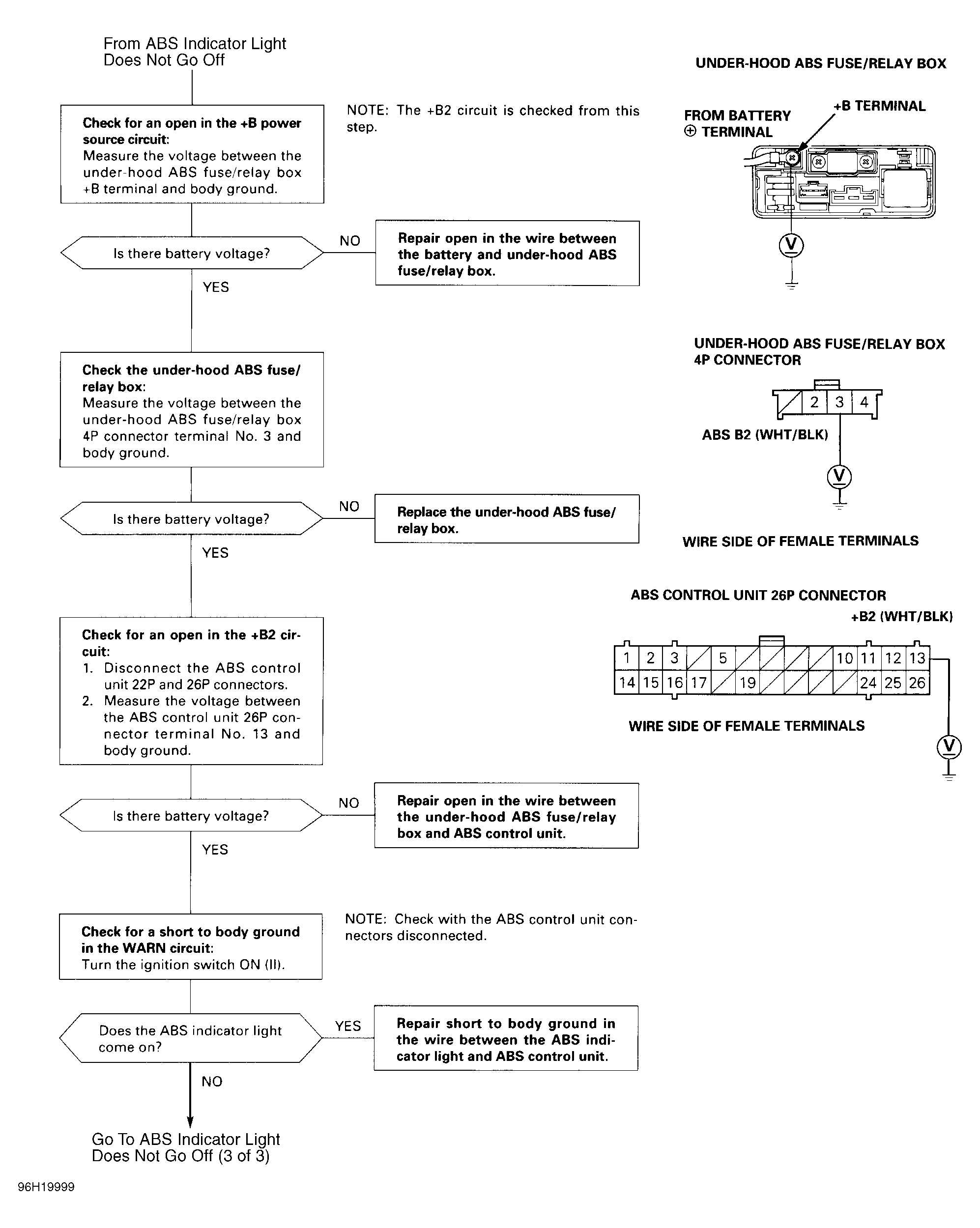

Fig 4: ABS INDICATOR LIGHT DOES NOT GO OFF (2 OF 3)

G96H19999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

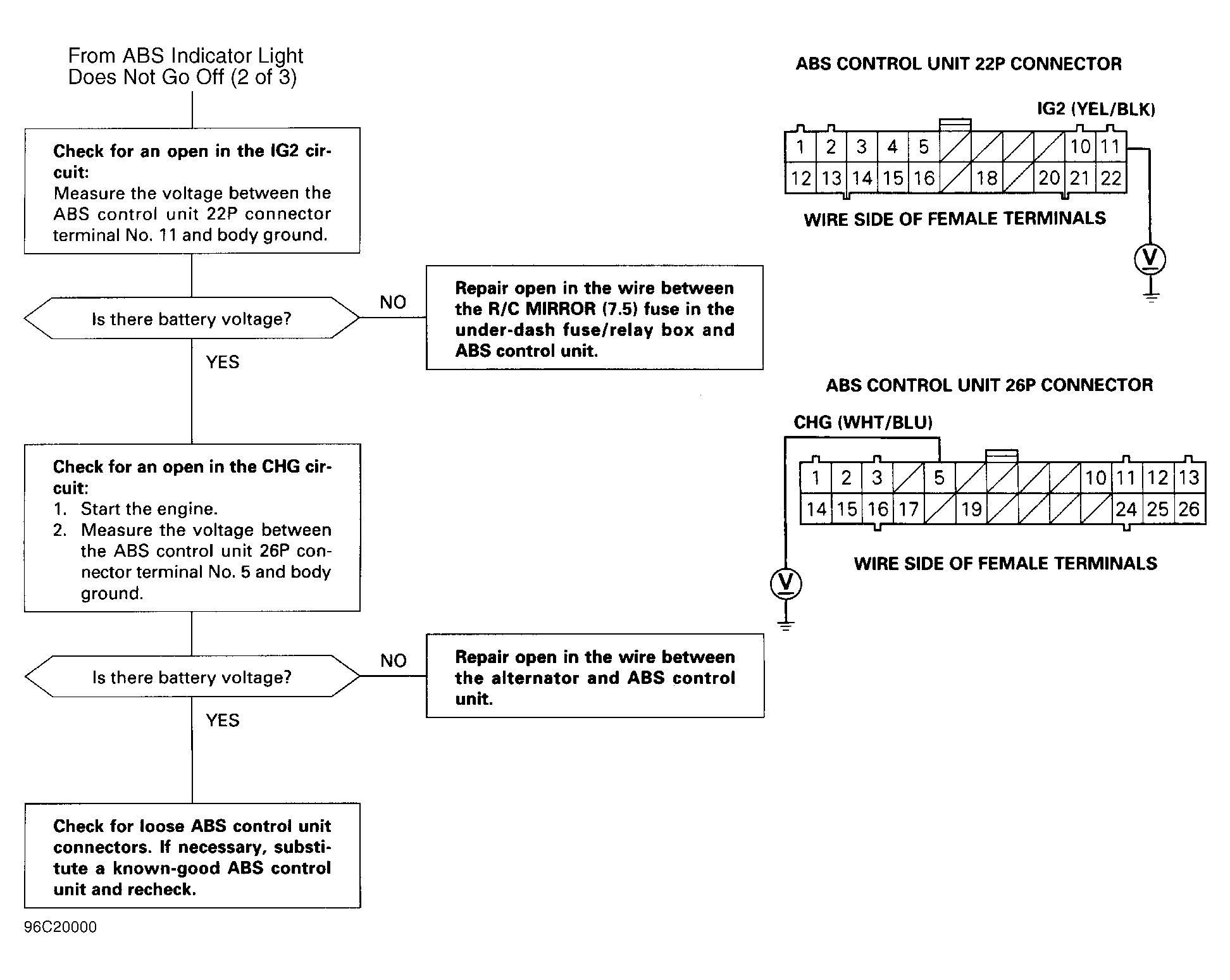

Fig 5: ABS INDICATOR LIGHT DOES NOT G O OFF (3 OF 3) Courtesy of American Honda Motor Co., Inc.

G96C20000

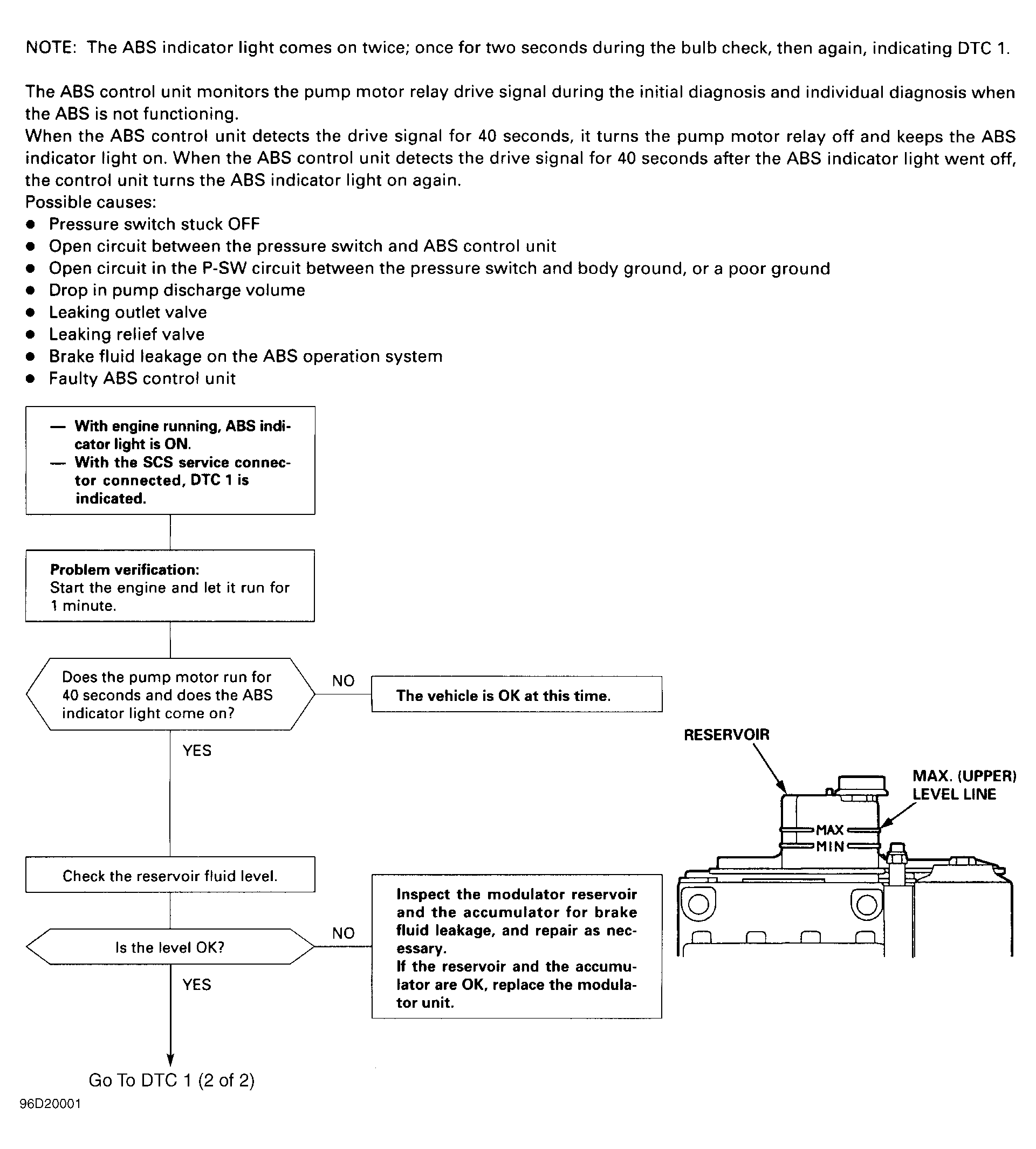

Fig 6: DTC 1: PUMP MOTOR OVERRUN (1 OF 2)

G96D20001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

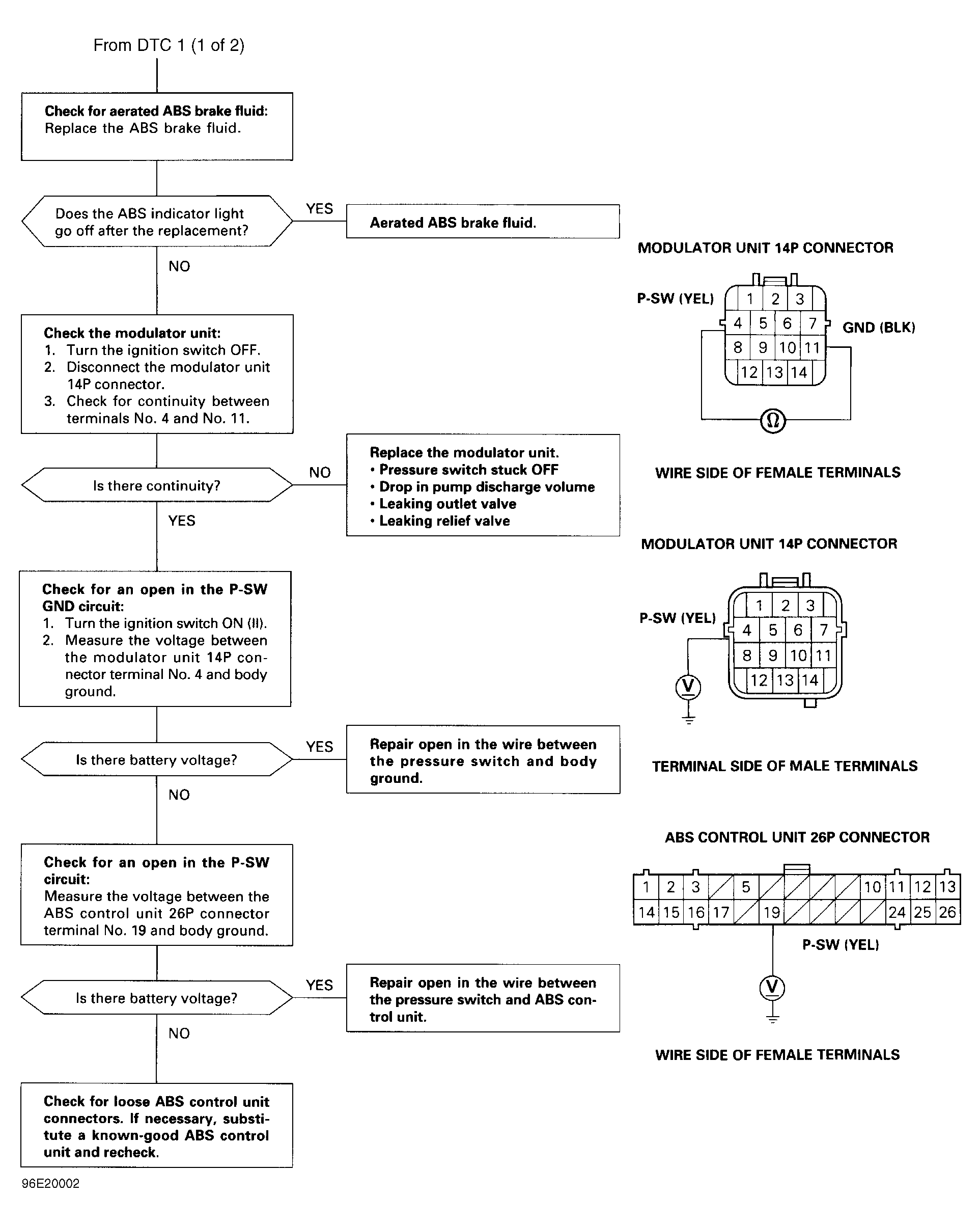

Fig 7: DTC 1: PUMP MOTOR OVERRUN (2 OF 2)

G96E20002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

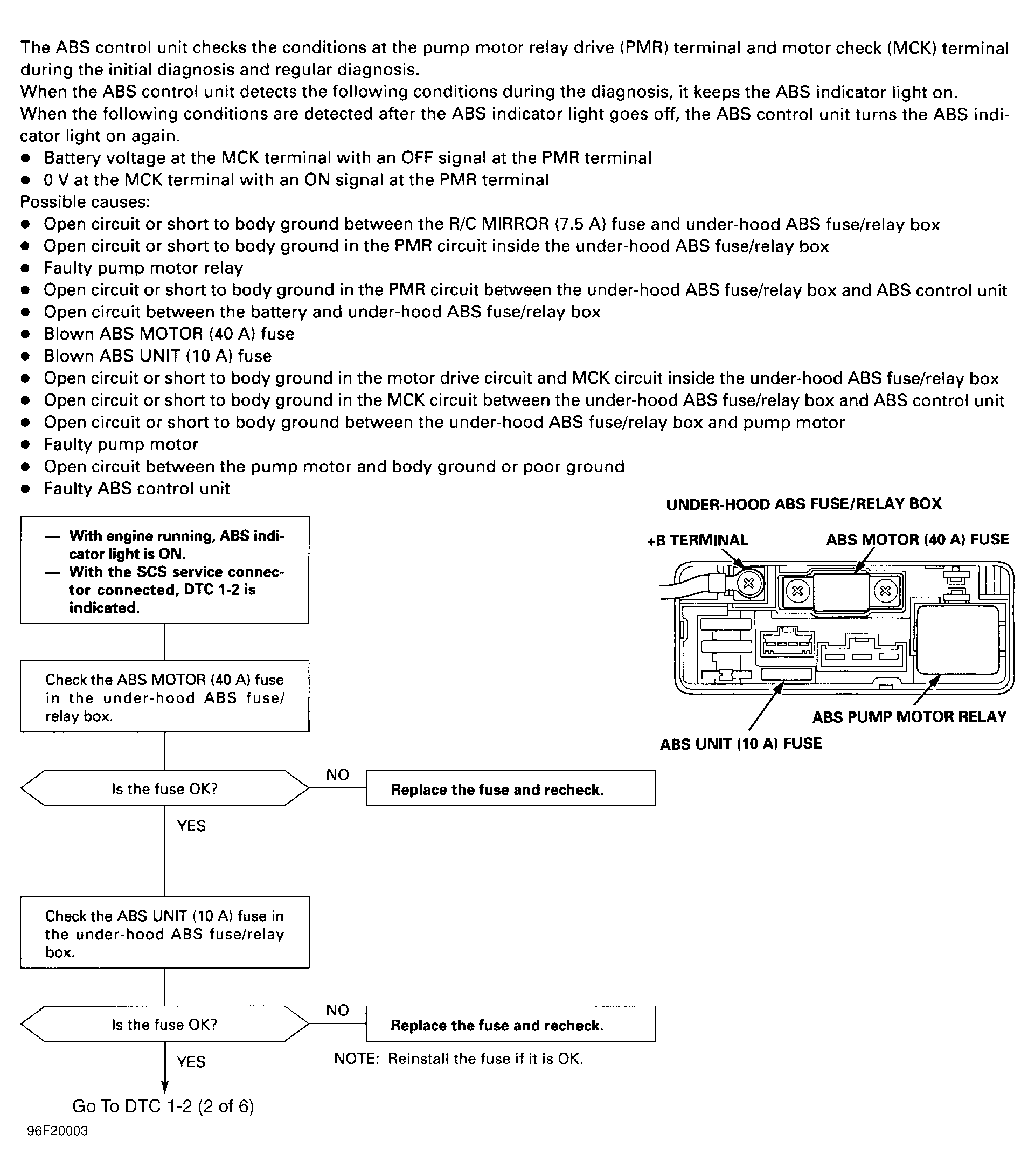

Fig 8: DTC 1-2: PUMP MOTOR CIRCUIT (1 OF 6)

G96F20003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

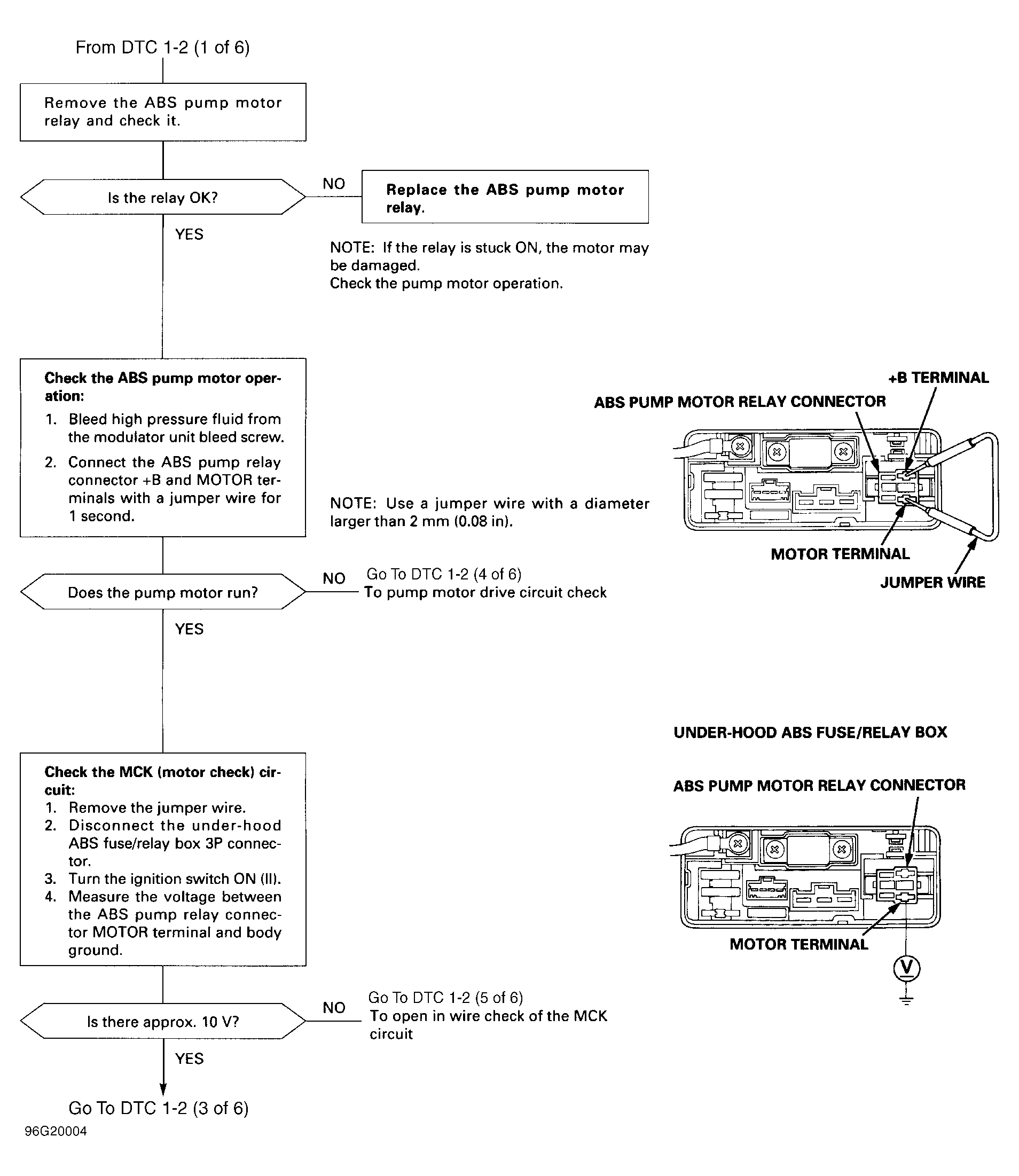

Fig 9: DTC 1-2: PUMP MOTOR CIRCUIT (2 OF 6)

G96G20004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

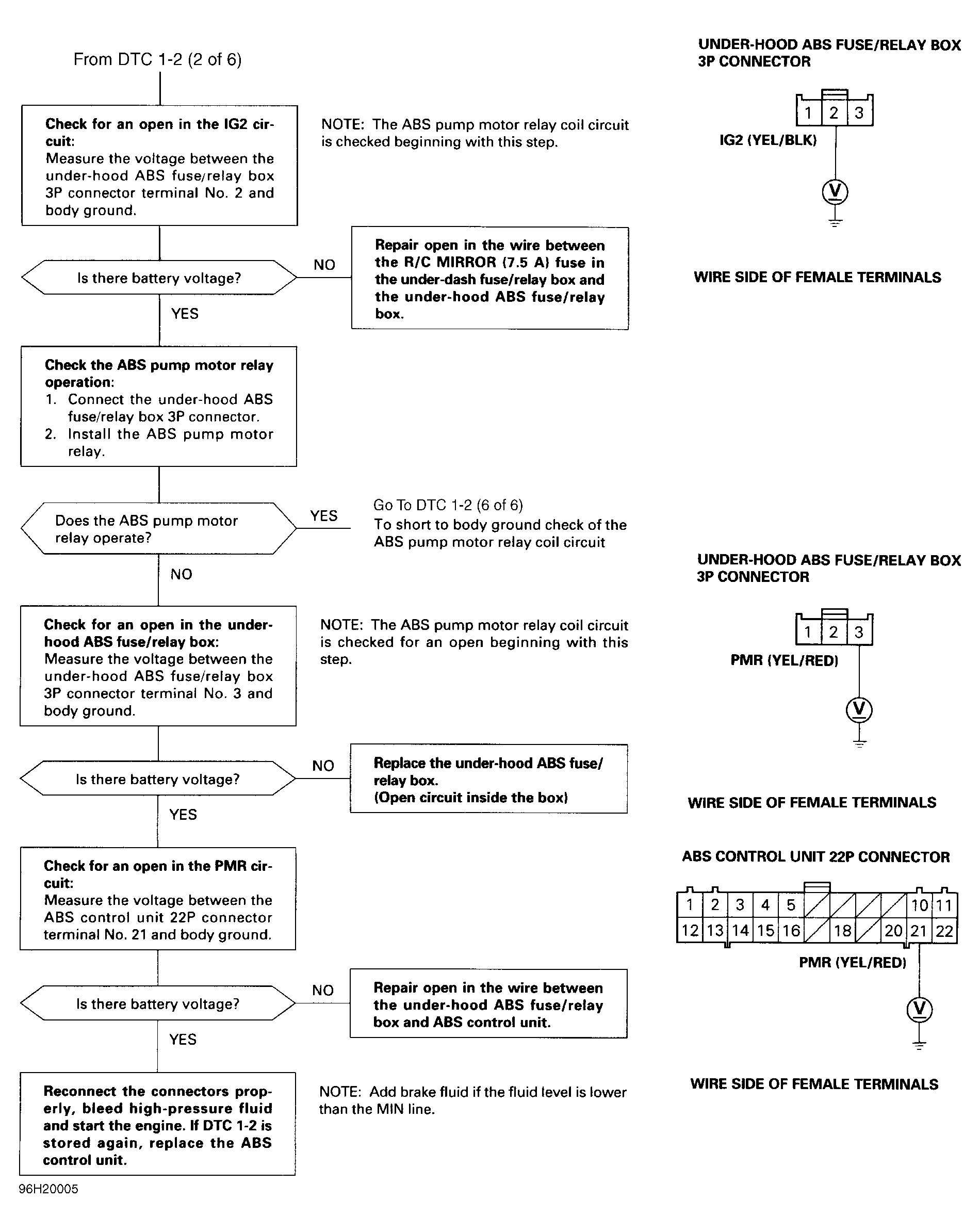

Fig 10: DTC 1-2: PUMP MOTOR CIRCUIT (3 OF 6)

G96H20005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

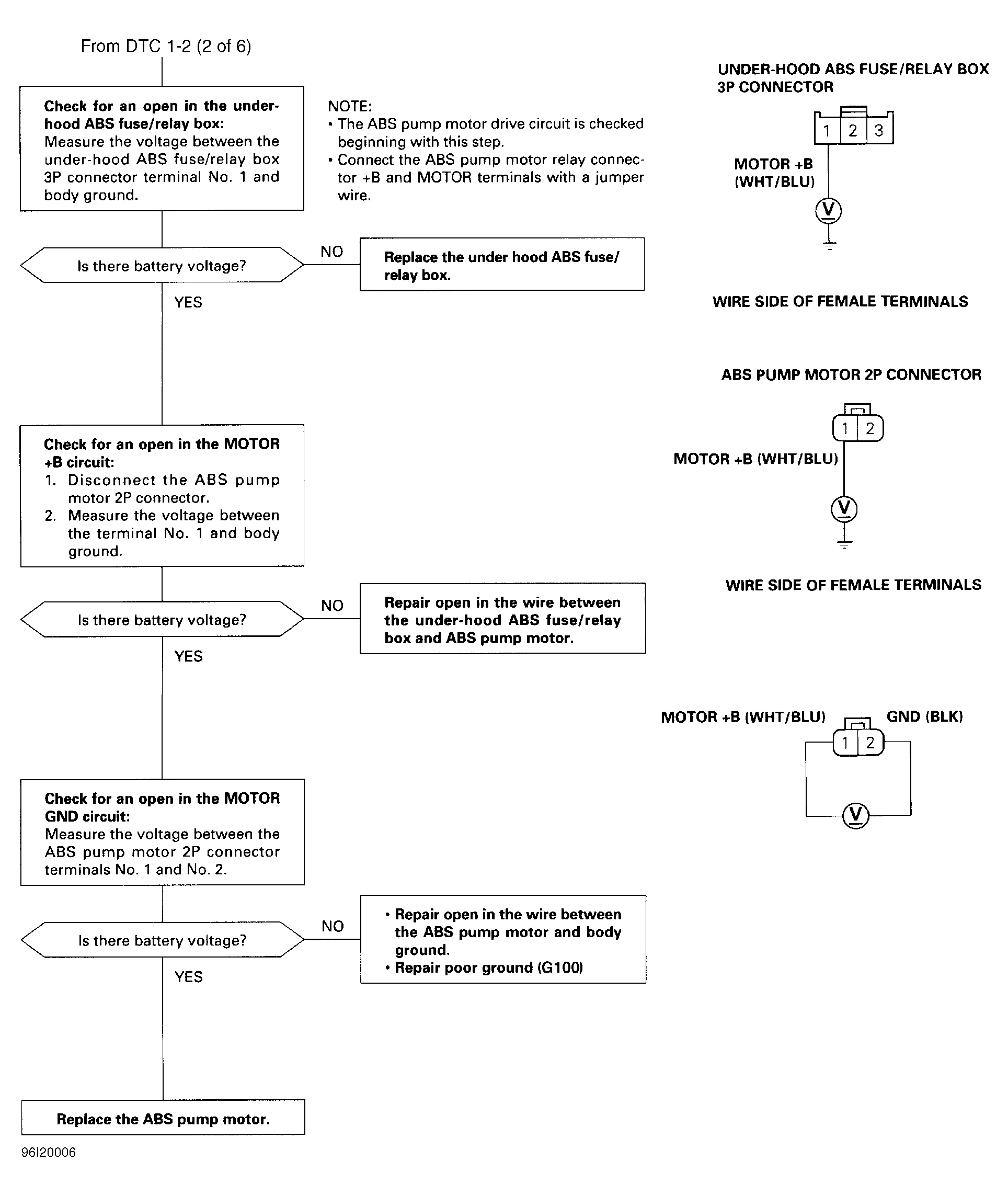

Fig 11: DTC 1-2: PUMP MOTOR CIRCUIT (4 OF 6)

G96I20006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

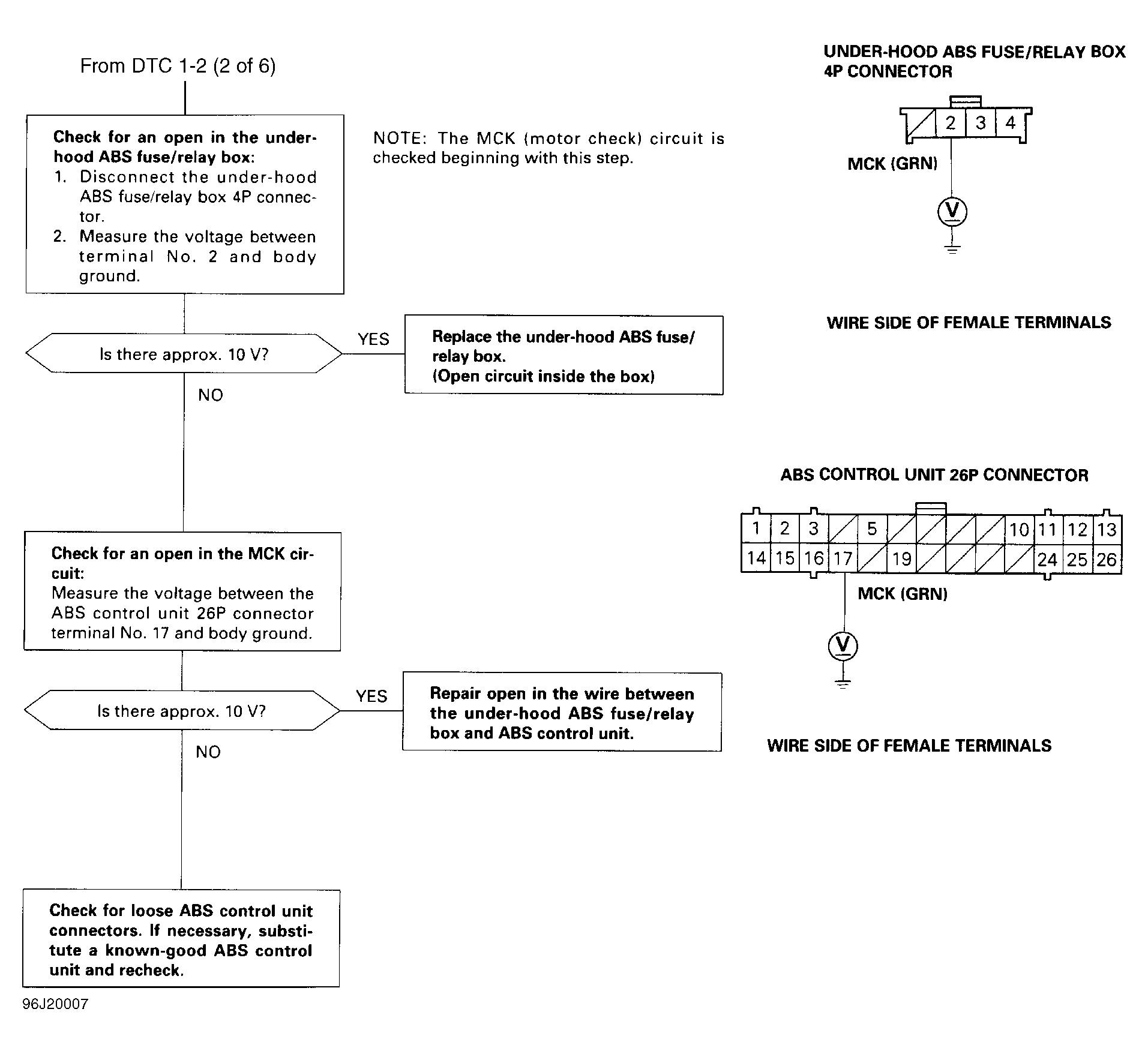

Fig 12: DTC 1-2: PUMP MOTOR CIRCUIT (5 OF 6)

G96J20007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

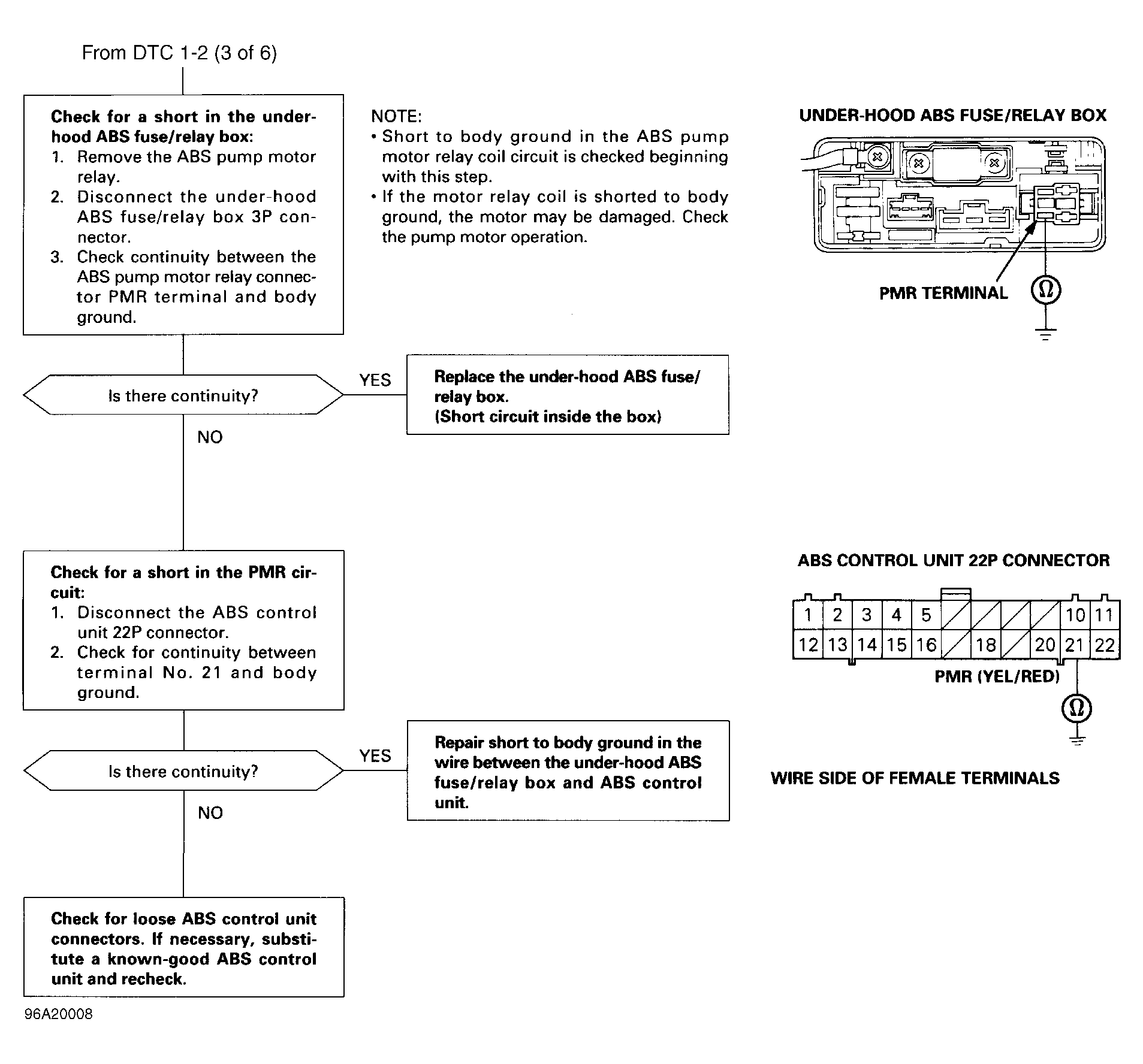

Fig 13: DTC 1-2: PUMP MOTOR CIRCUIT (6 OF 6)

G96A20008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

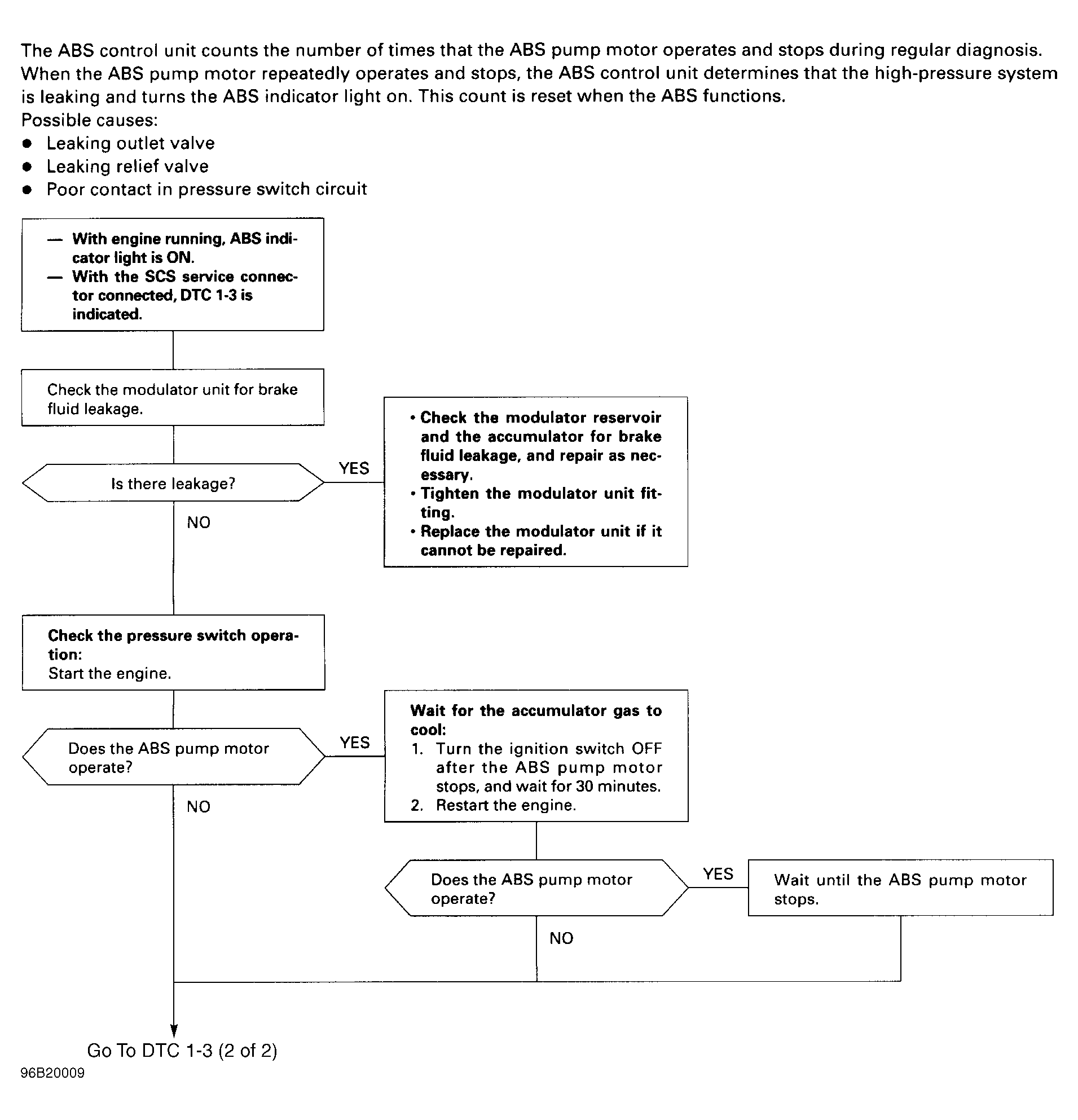

Fig 14: DTC 1-3: HIGH PRESSURE LEAKAGE (1 OF 2)

G96B20009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

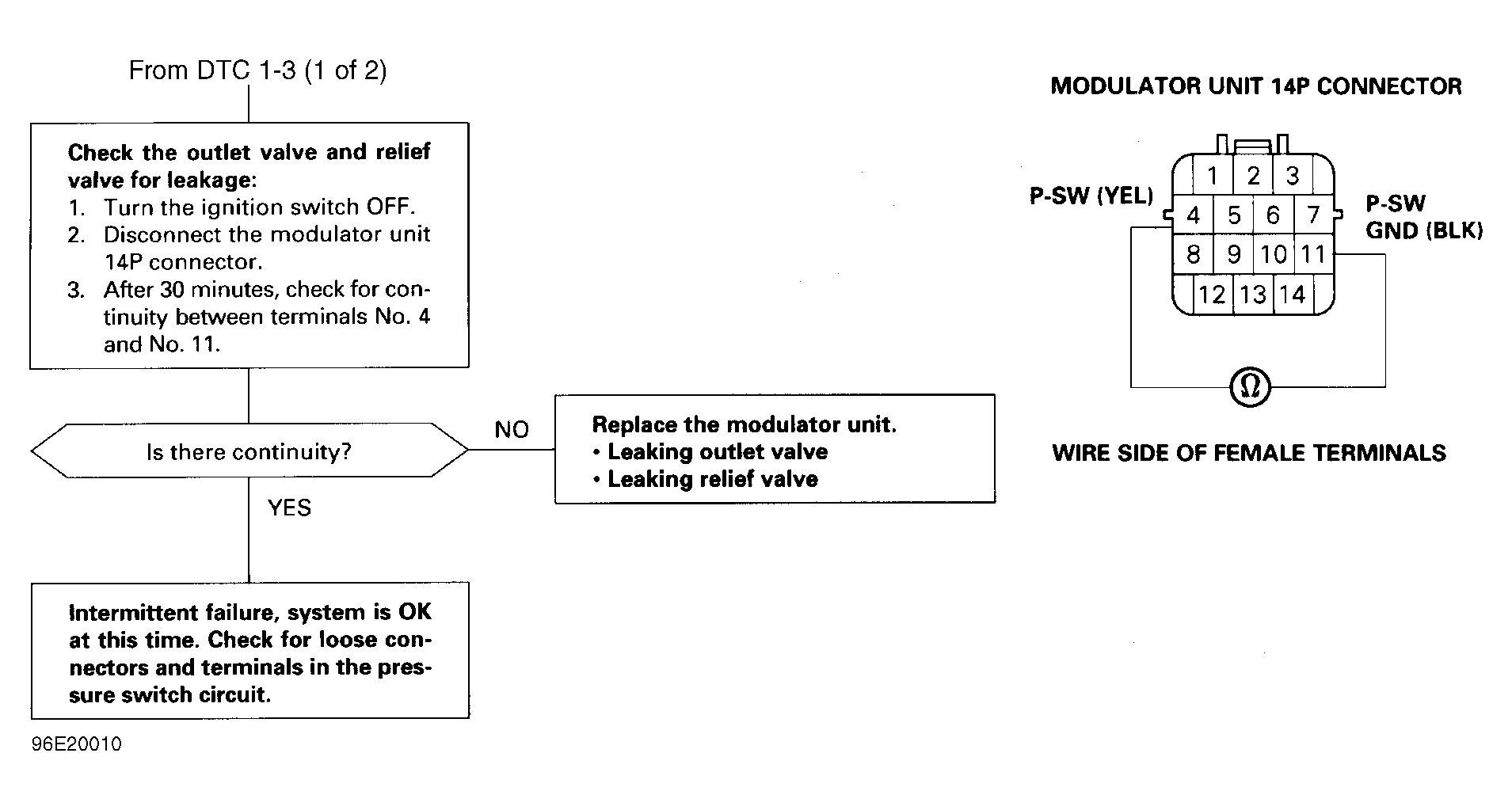

Fig 15: DTC 1-3: HIGH PRESSURE LEAKAGE (2 OF 2)

G96E20010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

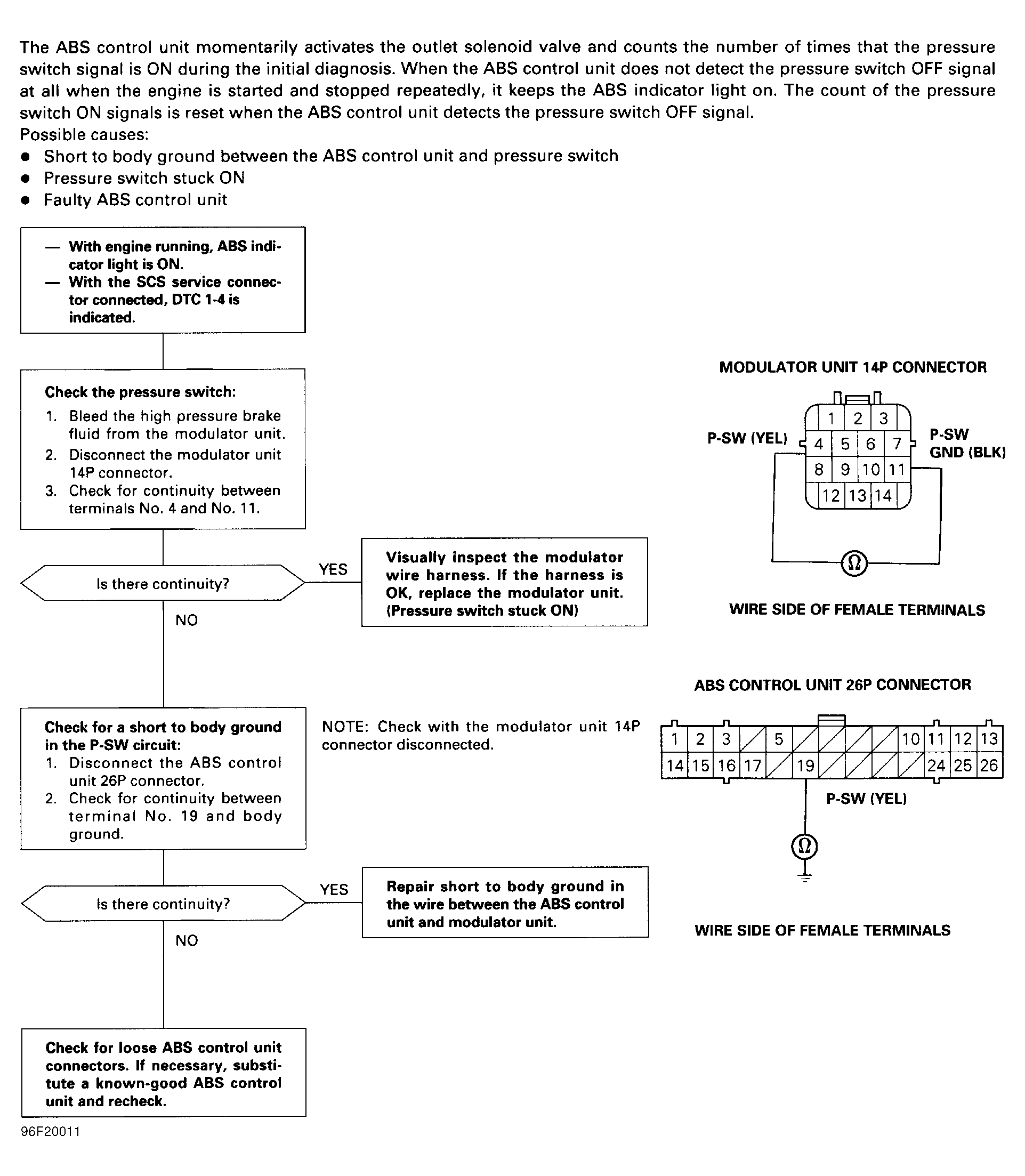

Fig 16: DTC 1-4: PRESSURE SWITCH CIRCUIT

G96F20011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

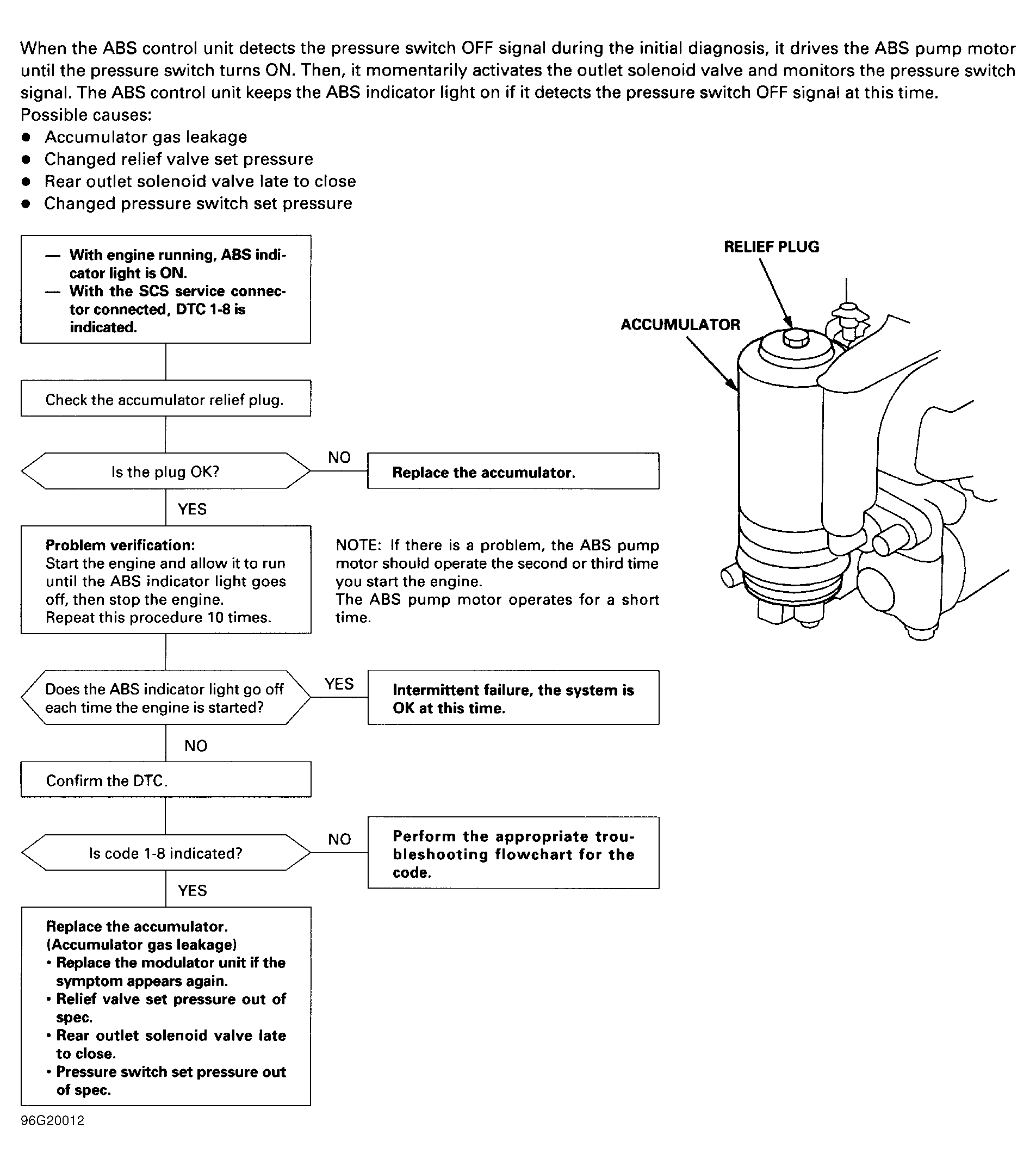

Fig 17: DTC 1-8: ACCUMULATOR GAS LEAKAGE

G96G20012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

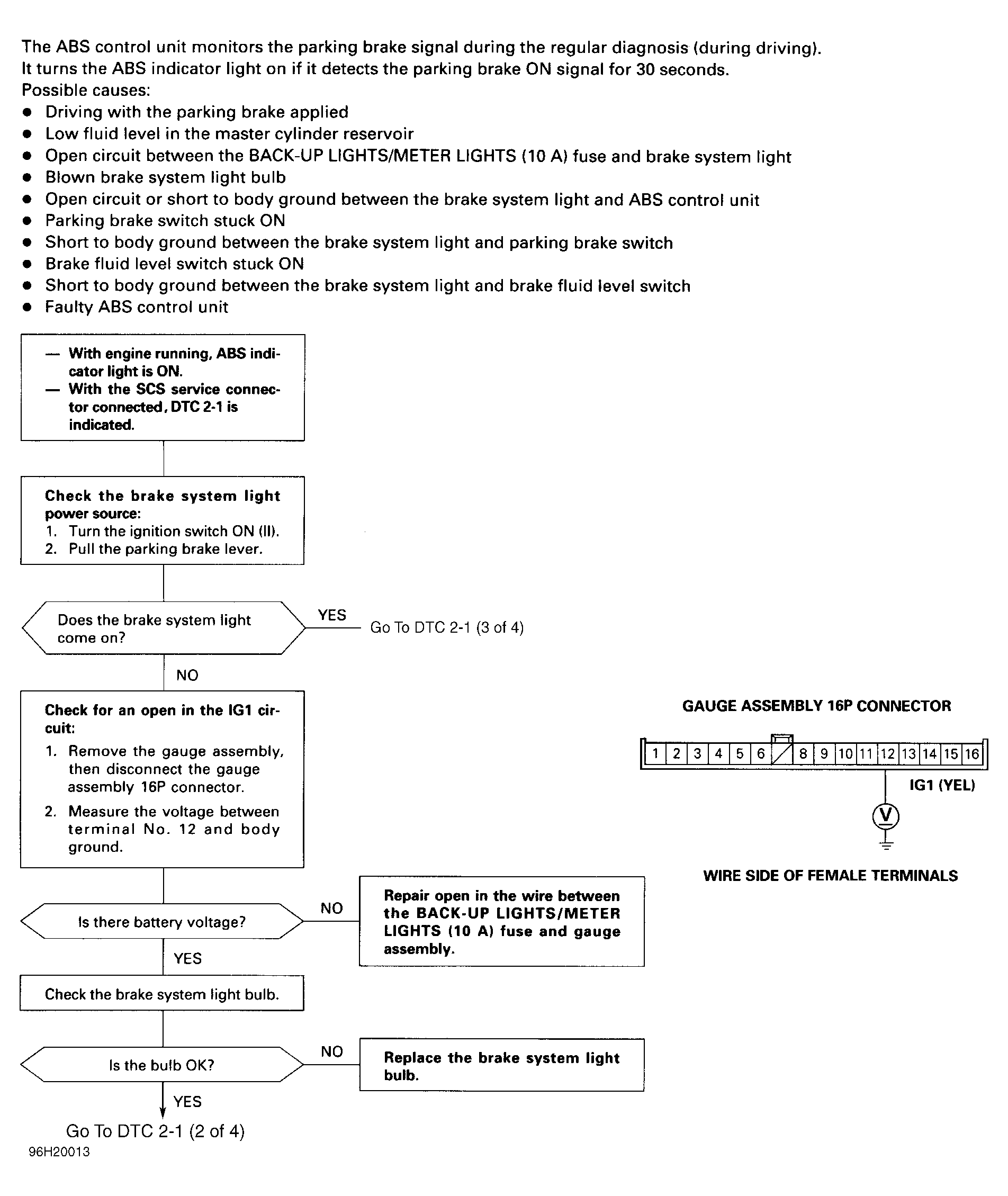

Fig 18: DTC 2-1: PARKING BRAKE SWITCH & CIRCUIT (1 OF 4)

G96H20013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

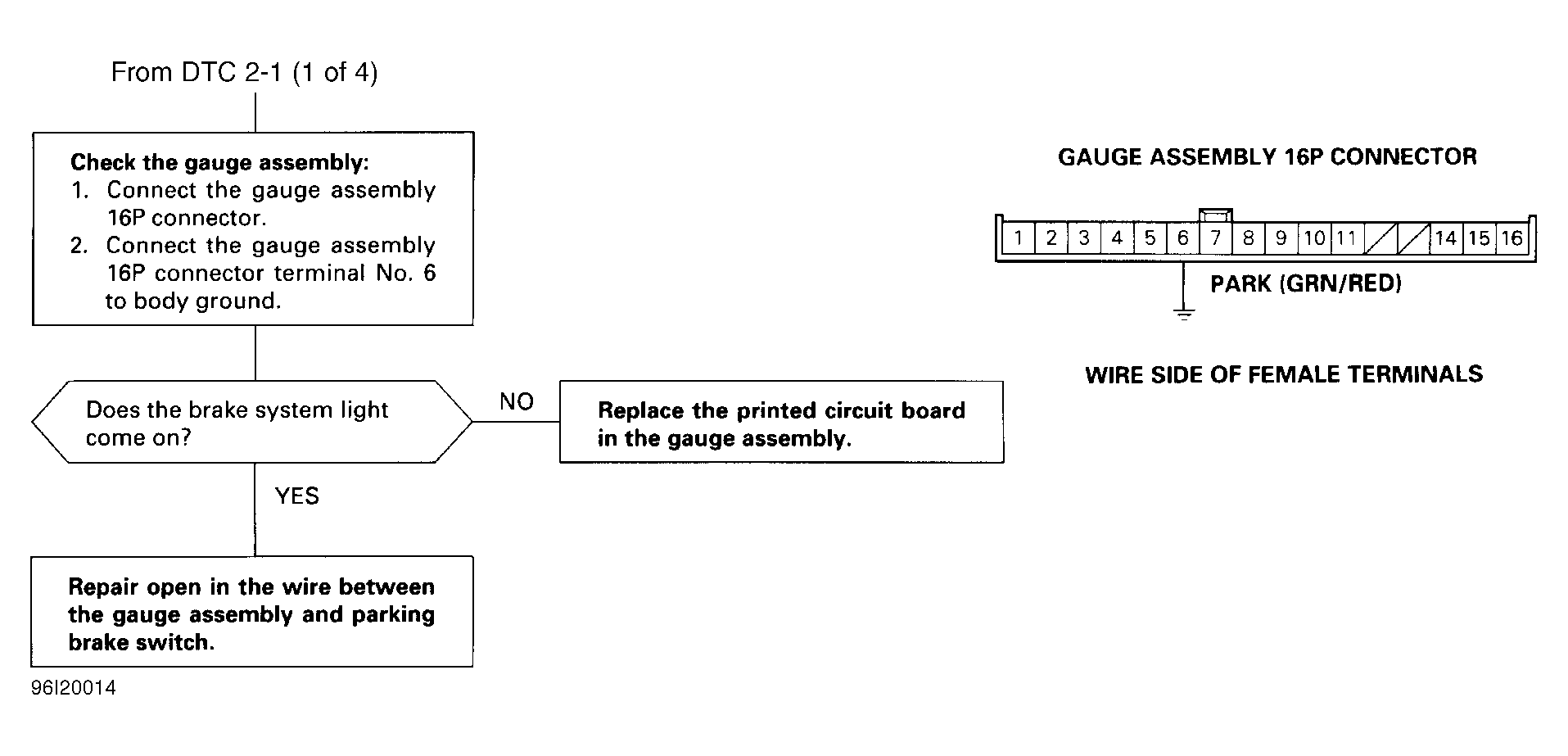

Fig 19: DTC 2-1: PARKING BRAKE SWITCH & CIRCUIT (2 OF 4)

G96I20014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

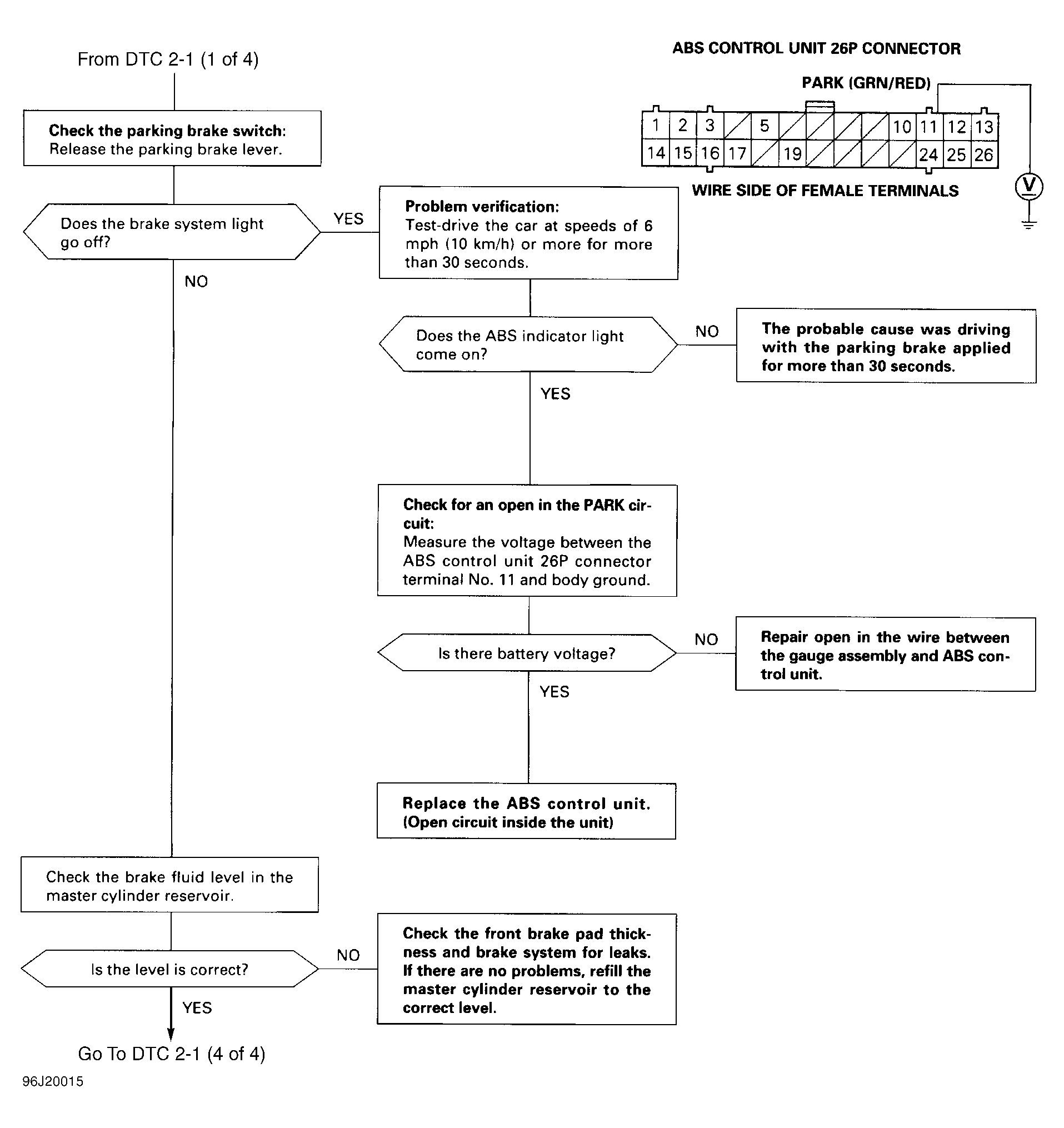

Fig 20: DTC 2-1: PARKING BRAKE SWITCH & CIRCUIT (3 OF 4)

G96J20015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

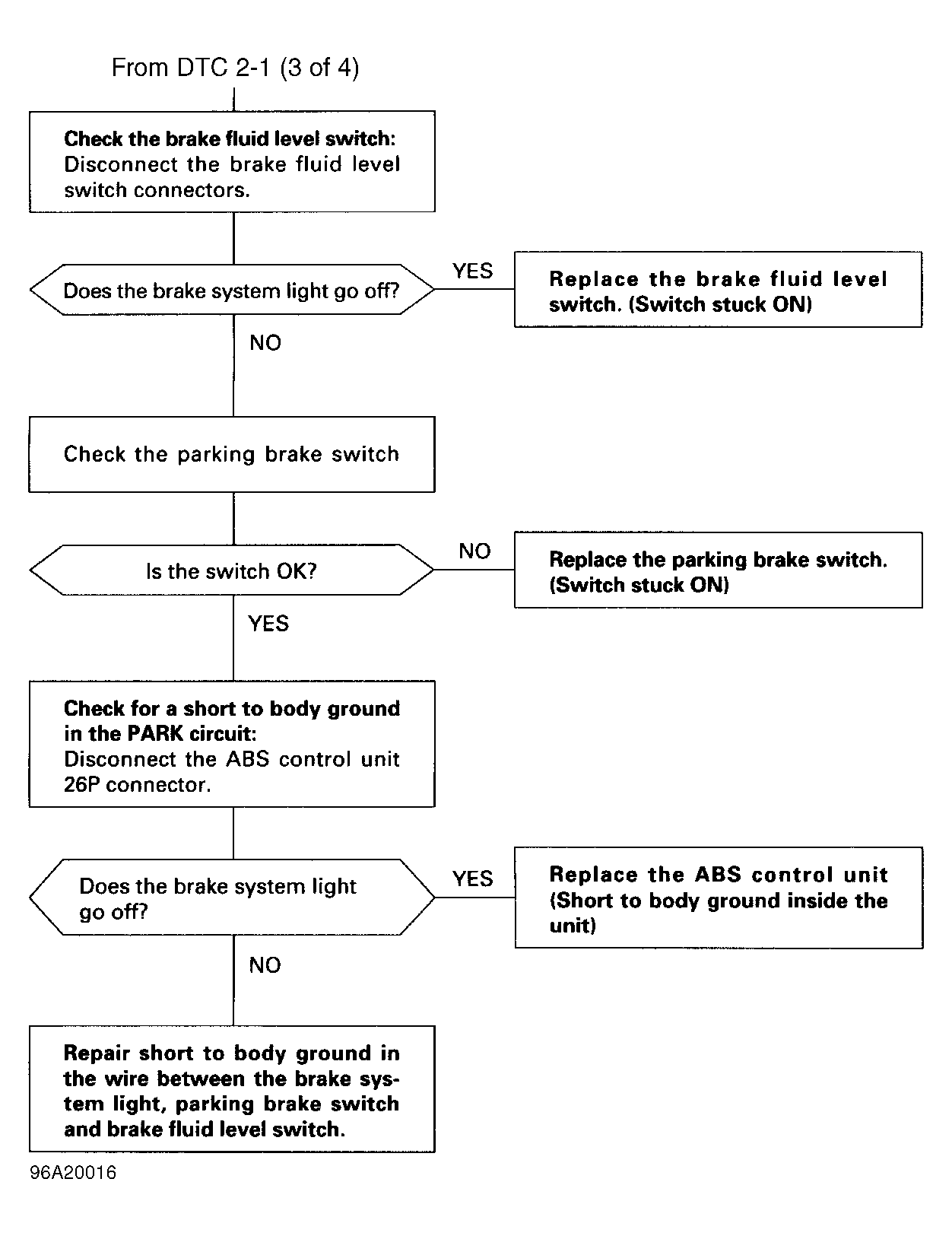

Fig 21: DTC 2-1: PARKING BRAKE SWITCH & CIRCUIT (4 OF 4)

G96A20016

Courtesy of AMERICAN HONDA MOTOR CO., INC.

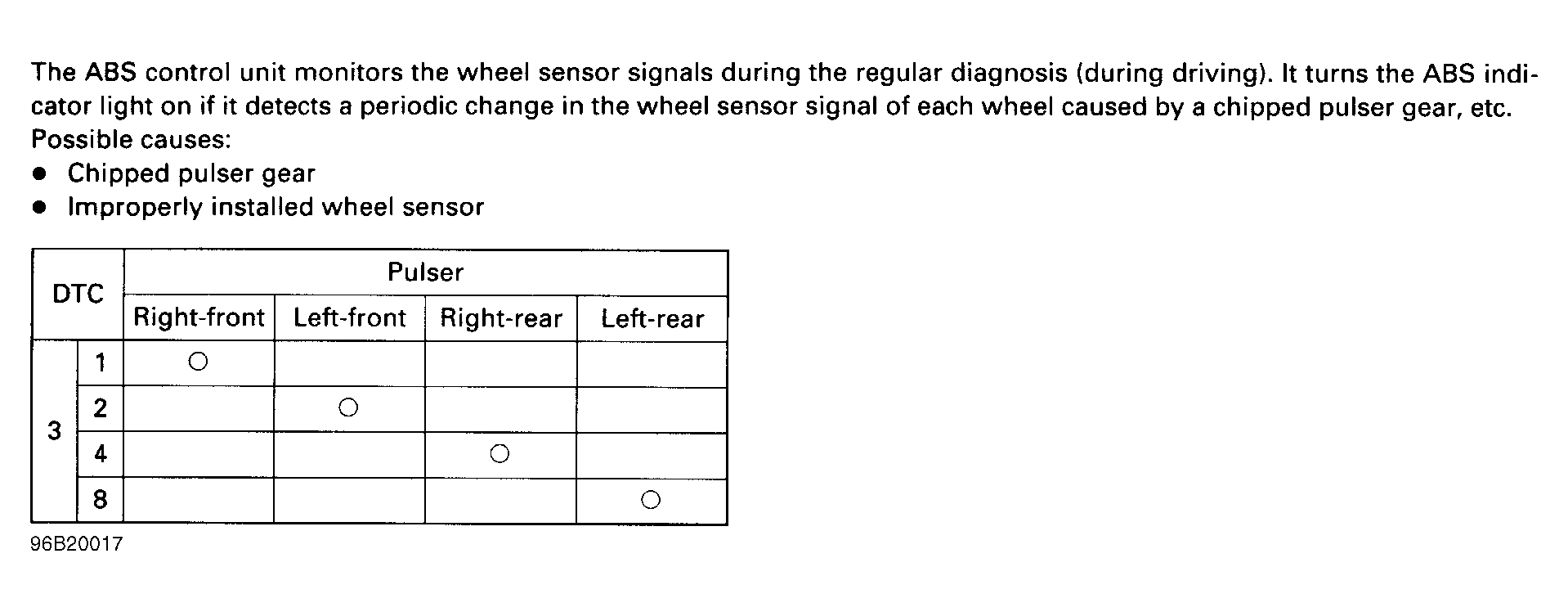

Fig 22: DTCS 3-1, 3-2, 3-4 & 3-8: WHEEL SENSOR/PULSER GEAR DAMAGE

G96B20017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: DTC 3-12: DIFFERENT DIAMETER TIRES

G96C20018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

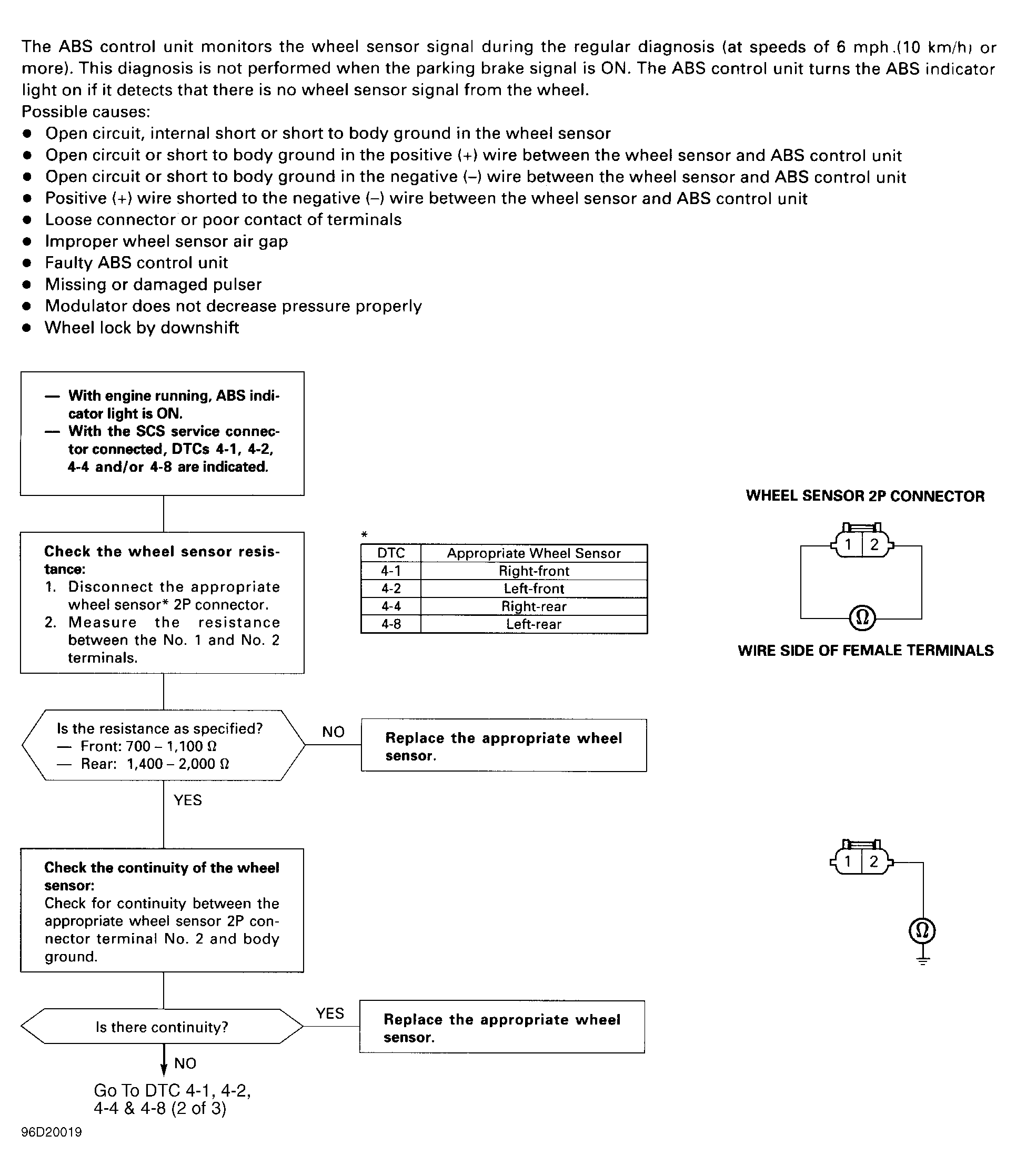

Fig 24: DTC 4-1, DTC 4-2, DTC 4-4 & DTC 4-8: ABS WHEEL SENSOR (1 OF 3)

G96D20019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

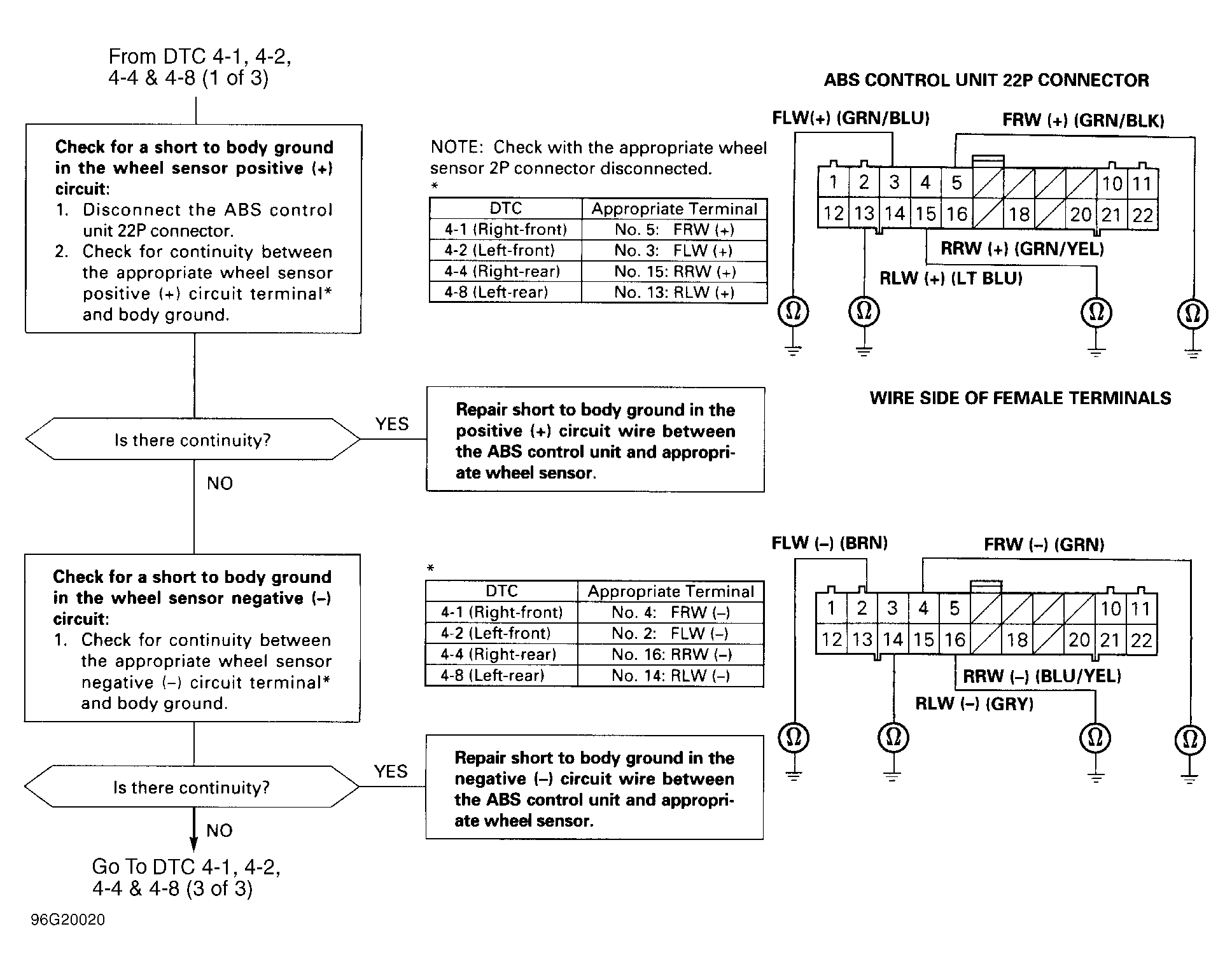

Fig 25: DTC 4-1, DTC 4-2, DTC 4-4 & DTC 4-8: ABS WHEEL SENSOR (2 OF 3)

G96G20020

Courtesy of AMERICAN HONDA MOTOR CO., INC.

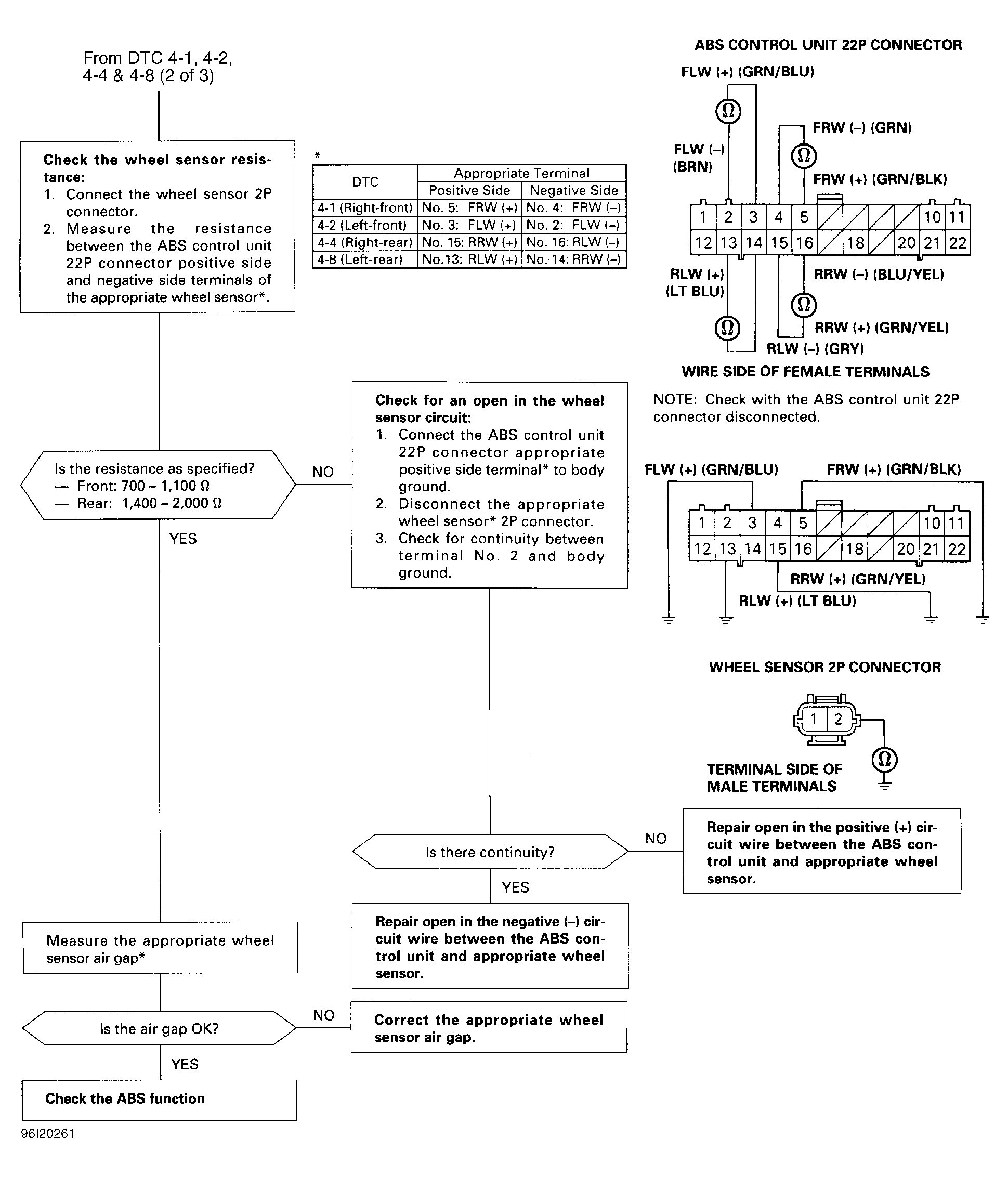

Fig 26: DTC 4-1, DTC 4-2, DTC 4-4 & DTC 4-8: ABS WHEEL SENSOR (3 OF 3)

G96I20261

Courtesy of AMERICAN HONDA MOTOR CO., INC.

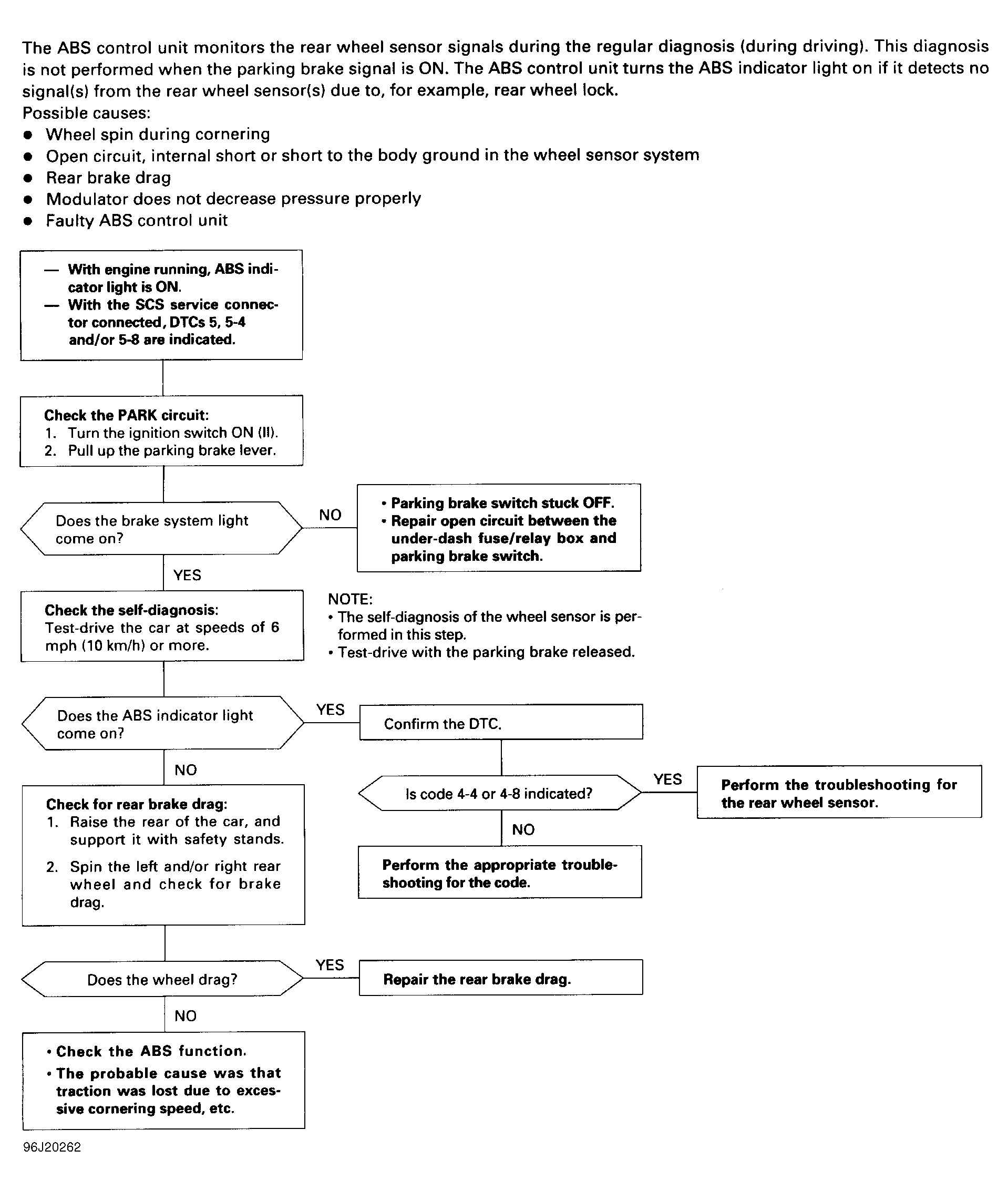

Fig 27: DTC 5, DTC 5-4 & DTC 5-8: REAR WHEEL LOCK

G96J20262

Courtesy of AMERICAN HONDA MOTOR CO., INC.

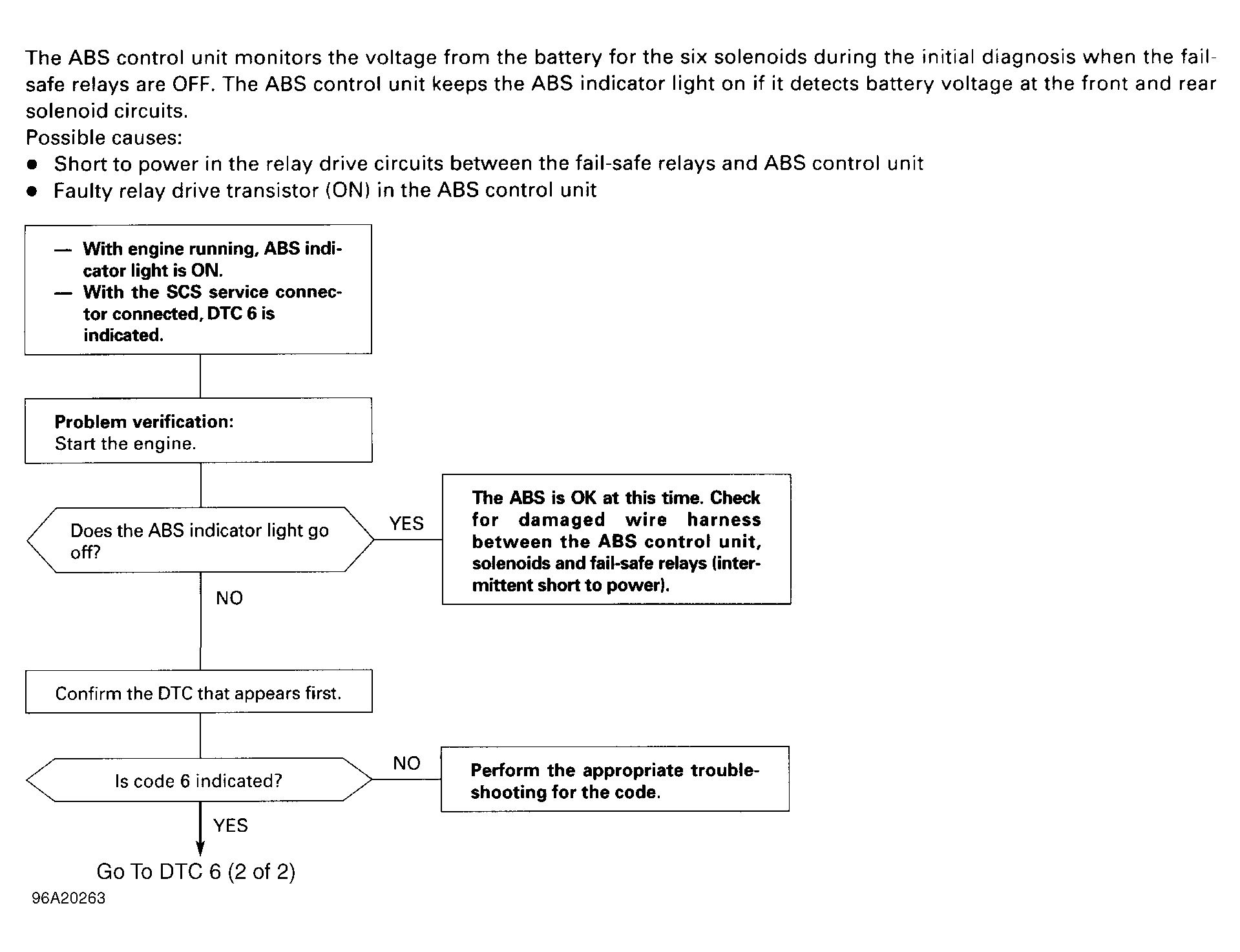

Fig 28: DTC 6: FRONT & REAR FAIL-SAFE RELAYS (1 OF 2)

G96A20263

Courtesy of AMERICAN HONDA MOTOR CO., INC.

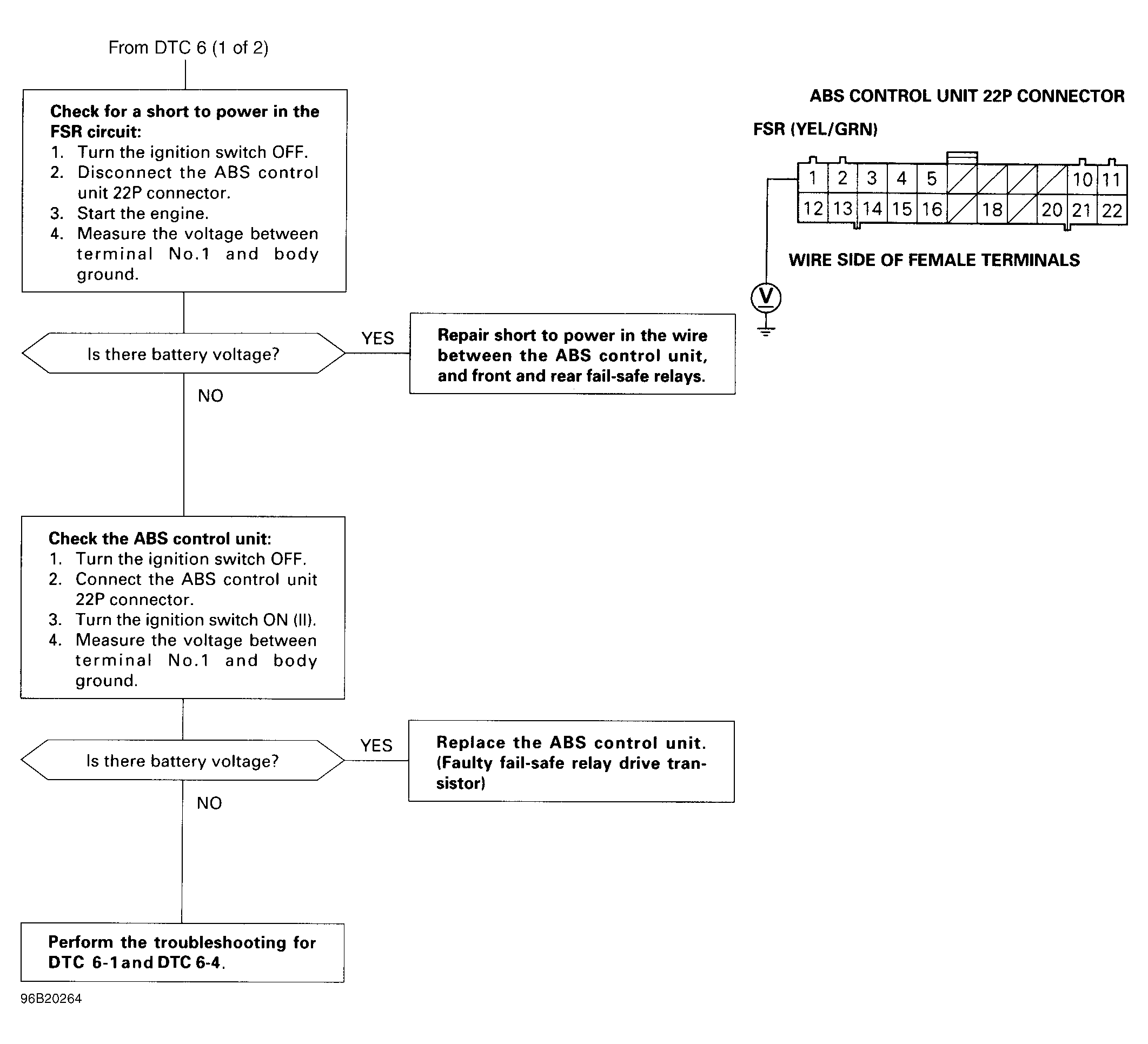

Fig 29: DTC 6: FRONT & REAR FAIL-SAFE RELAYS (2 OF 2)

G96B20264

Courtesy of AMERICAN HONDA MOTOR CO., INC.

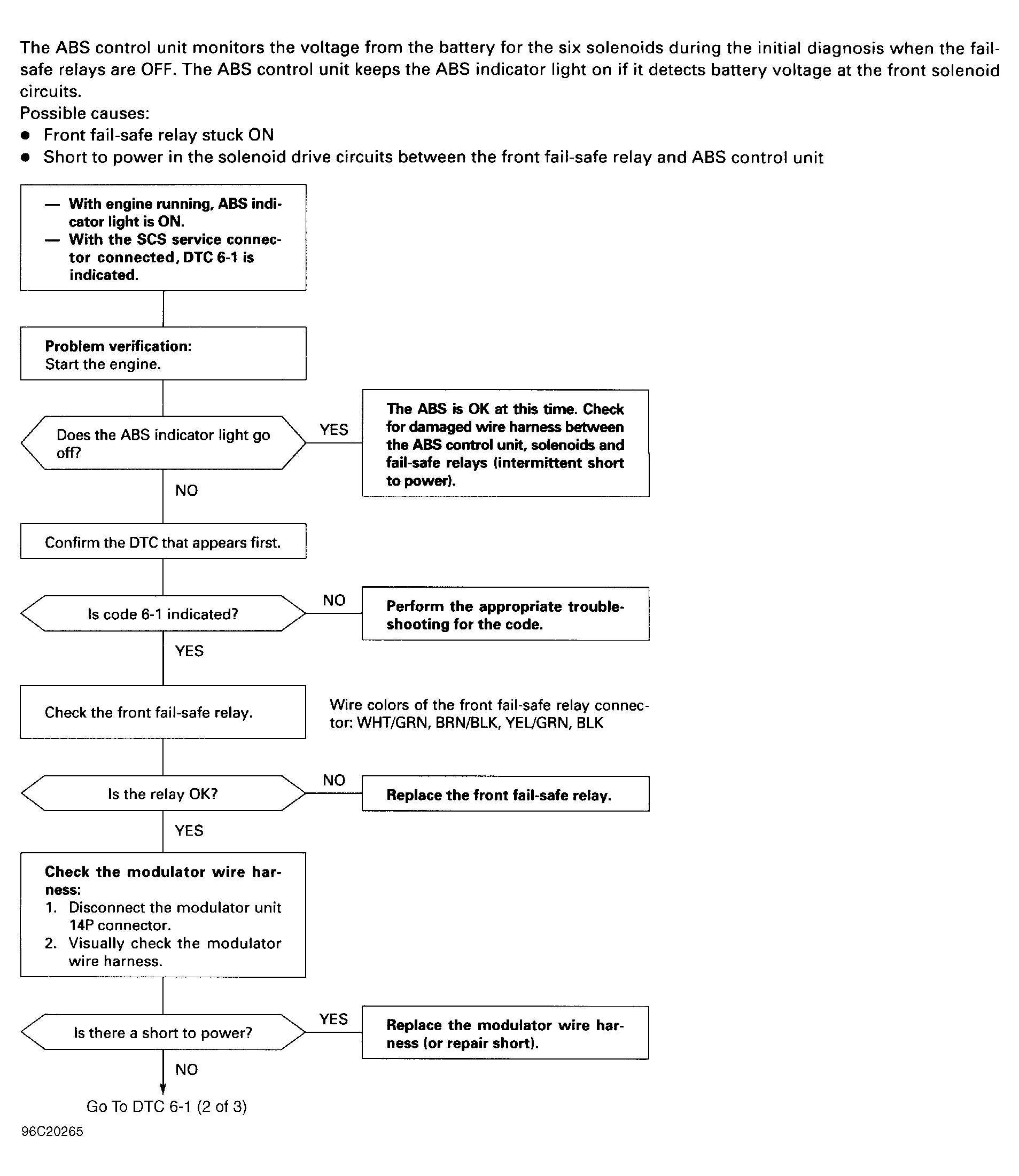

Fig 30: DTC 6-1: FRONT FAIL-SAFE RELAY CIRCUIT (1 OF 3)

G96C20265

Courtesy of AMERICAN HONDA MOTOR CO., INC.

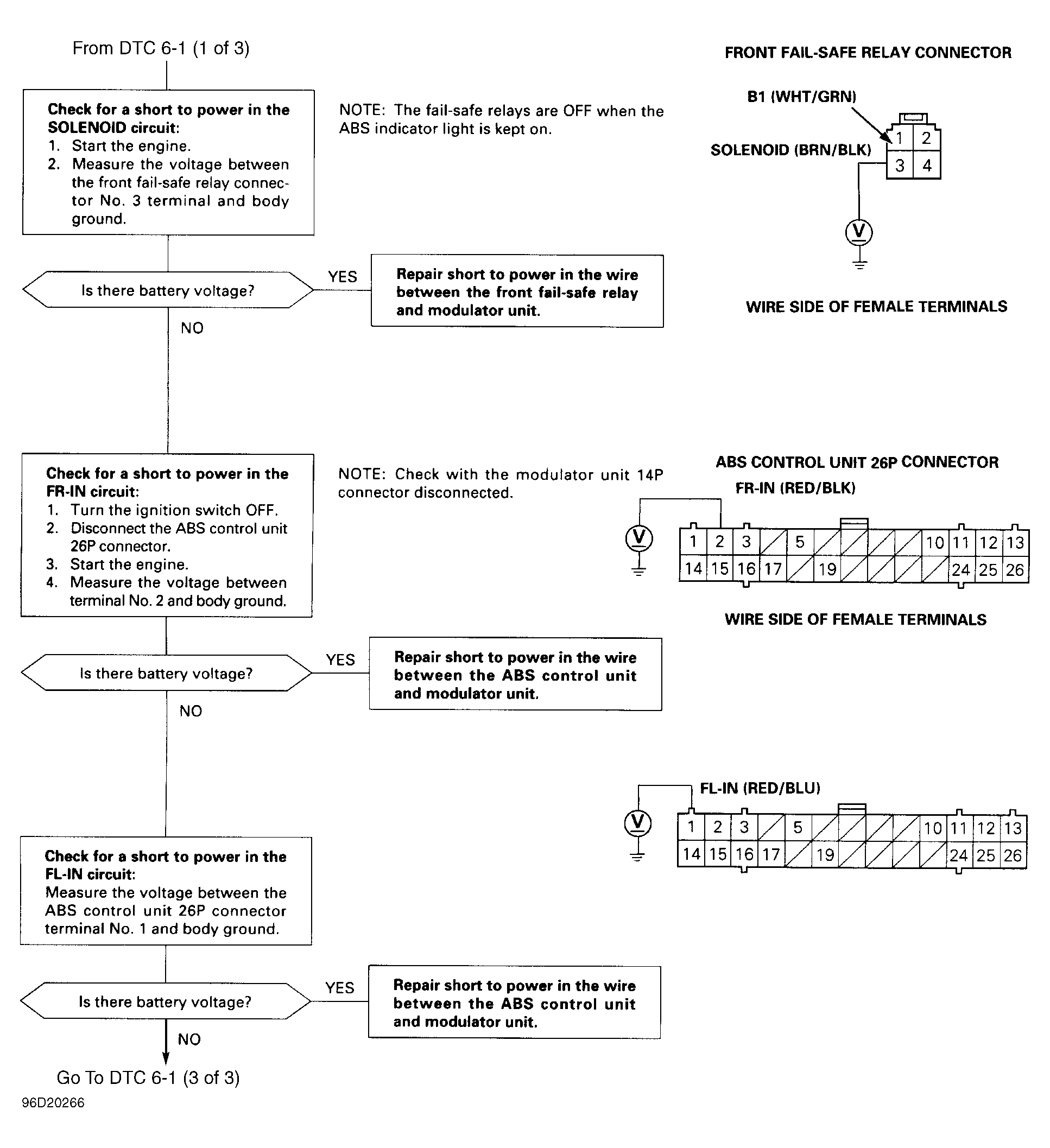

Fig 31: DTC 6-1: FRONT FAIL-SAFE RELAY CIRCUIT (2 OF 3)

G96D20266

Courtesy of AMERICAN HONDA MOTOR CO., INC.

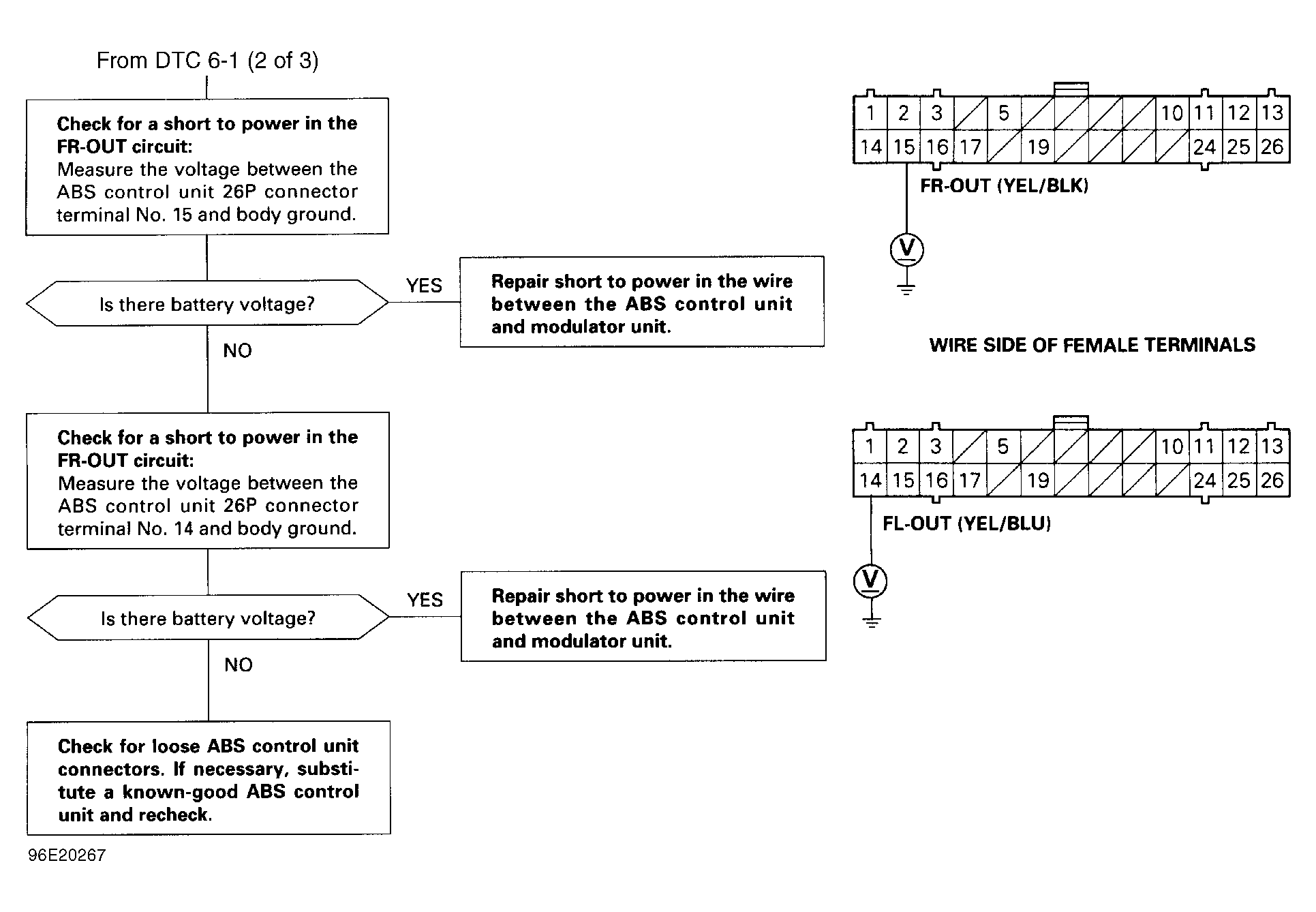

Fig 32: DTC 6-1: FRONT FAIL-SAFE RELAY CIRCUIT (3 OF 3)

G96E20267

Courtesy of AMERICAN HONDA MOTOR CO., INC.

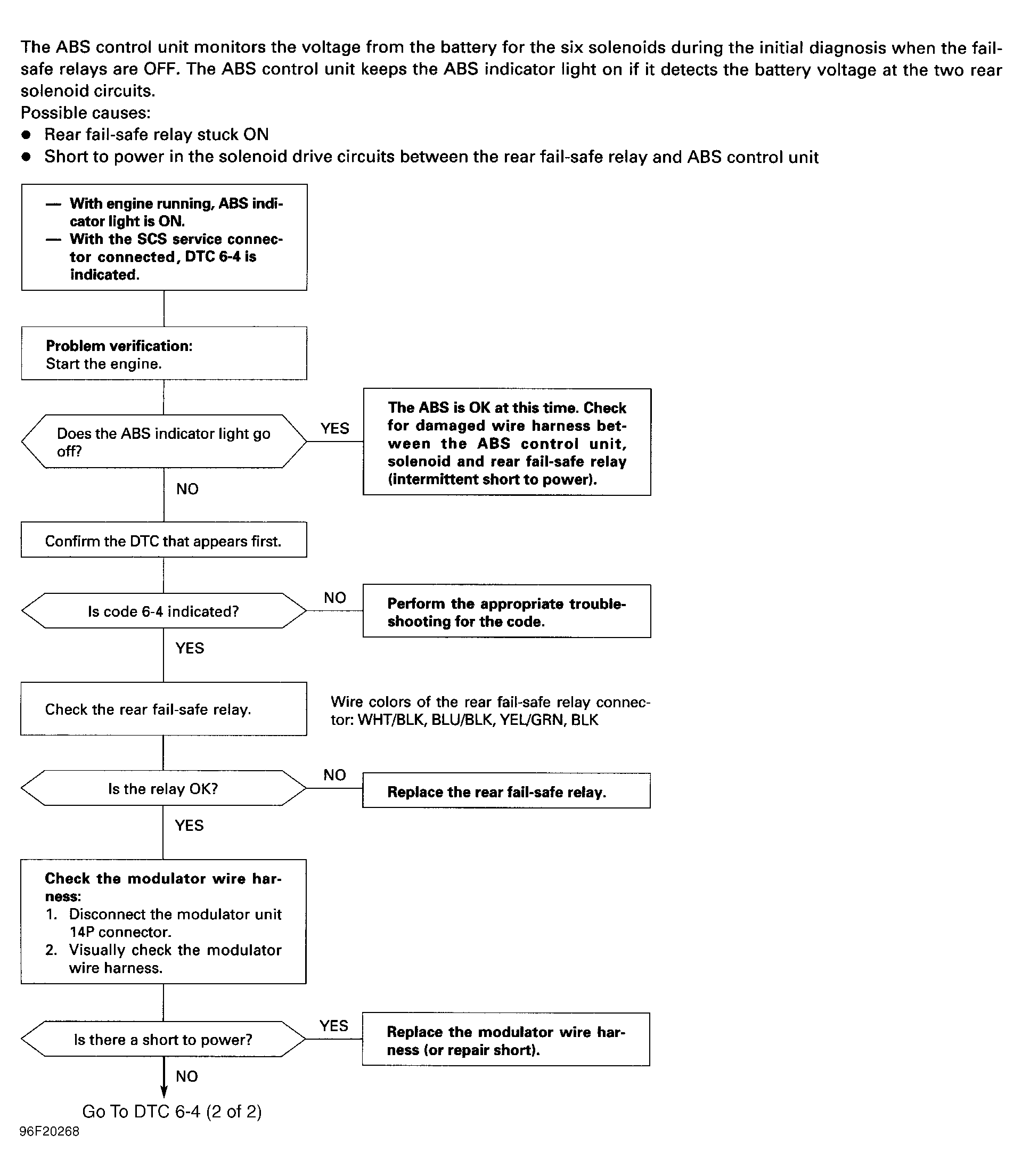

Fig 33: DTC 6-4: REAR FAIL-SAFE RELAY CIRCUIT (1 OF 2)

G96F20268

Courtesy of AMERICAN HONDA MOTOR CO., INC.

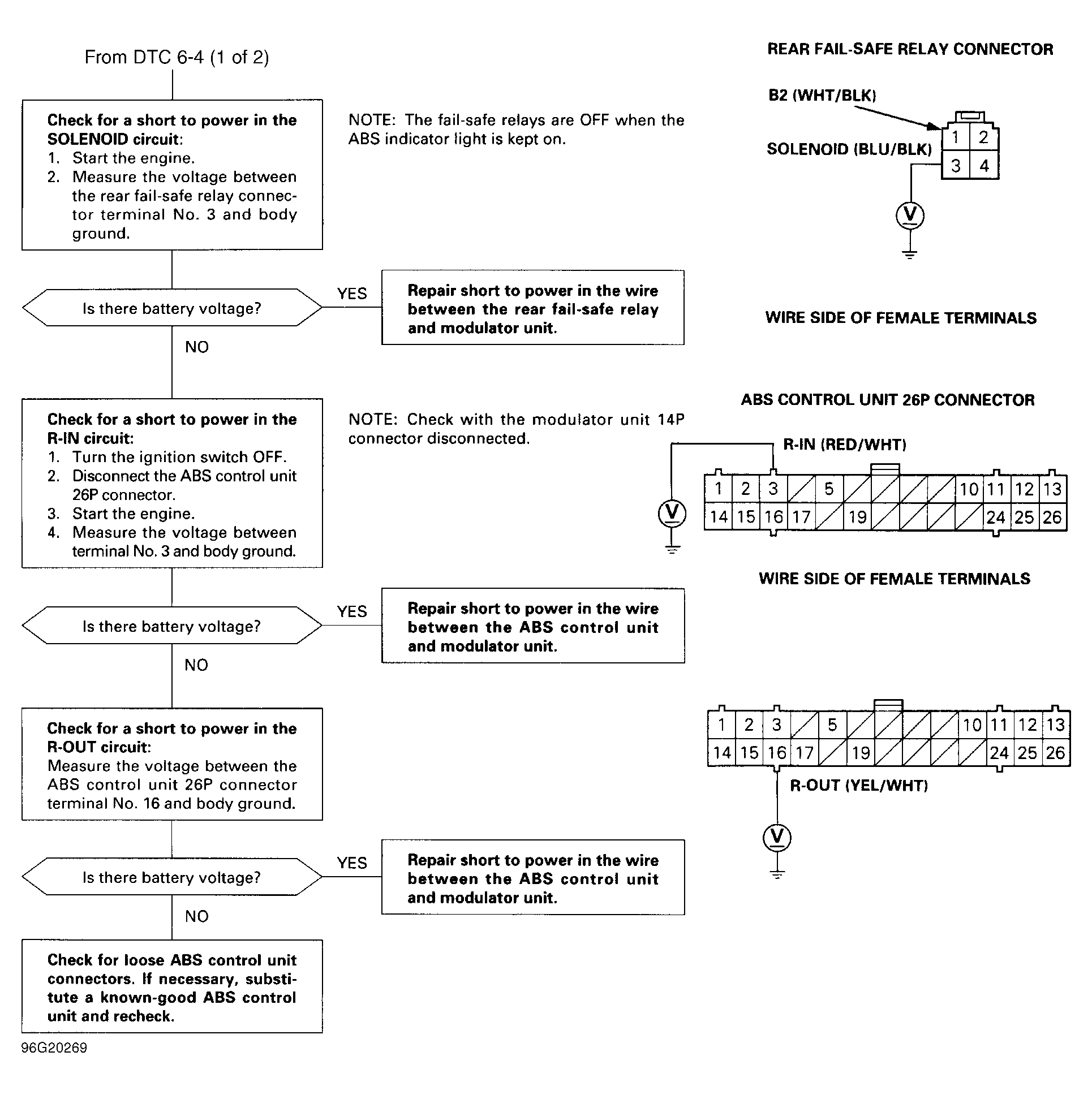

Fig 34: DTC 6-4: REAR FAIL-SAFE RELAY CIRCUIT (2 OF 2)

G96G20269

Courtesy of AMERICAN HONDA MOTOR CO., INC.

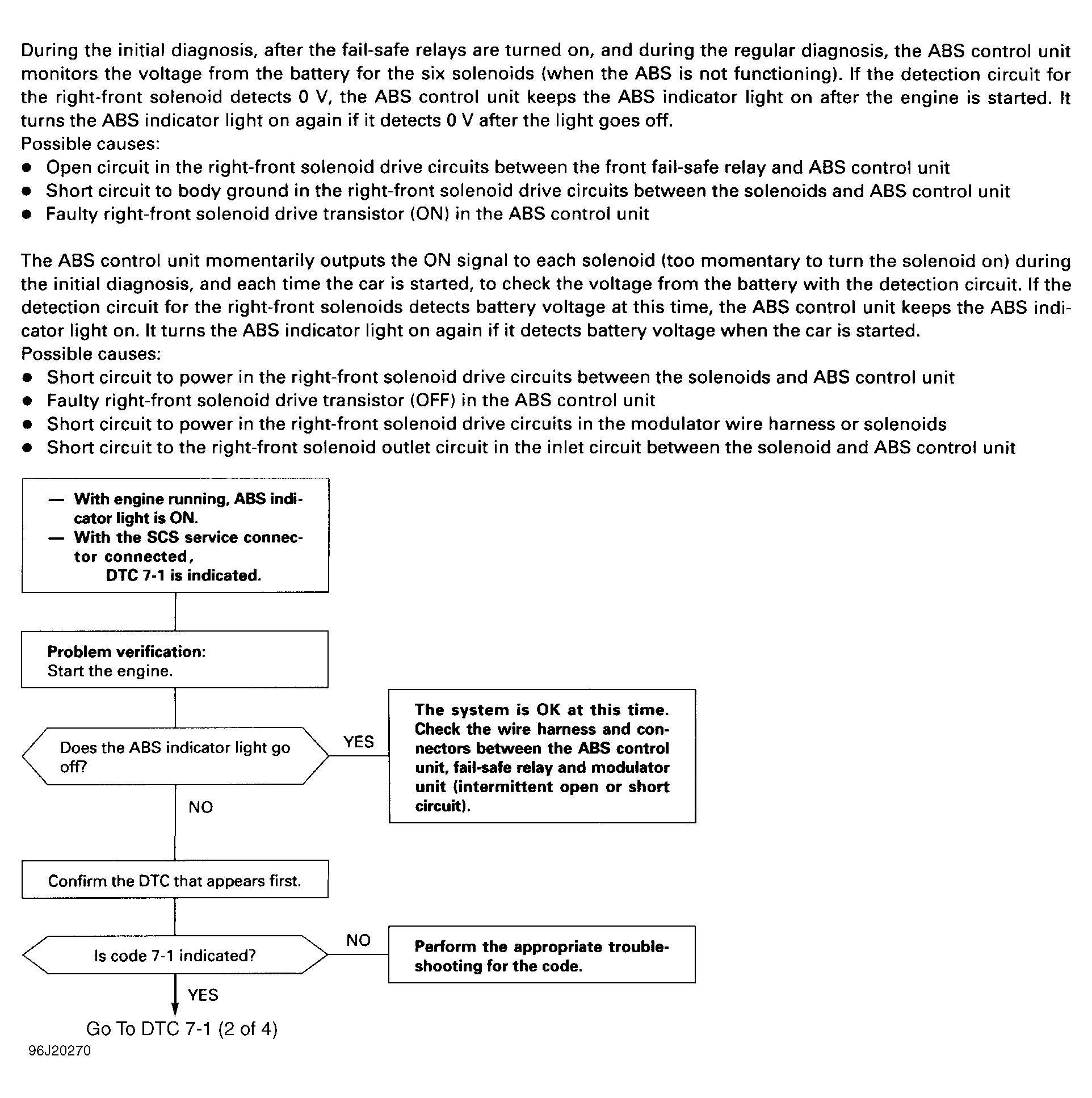

Fig 35: DTC 7-1: RIGHT FRONT SOLENOID (1 OF 4)

G96J20270

Courtesy of AMERICAN HONDA MOTOR CO., INC.

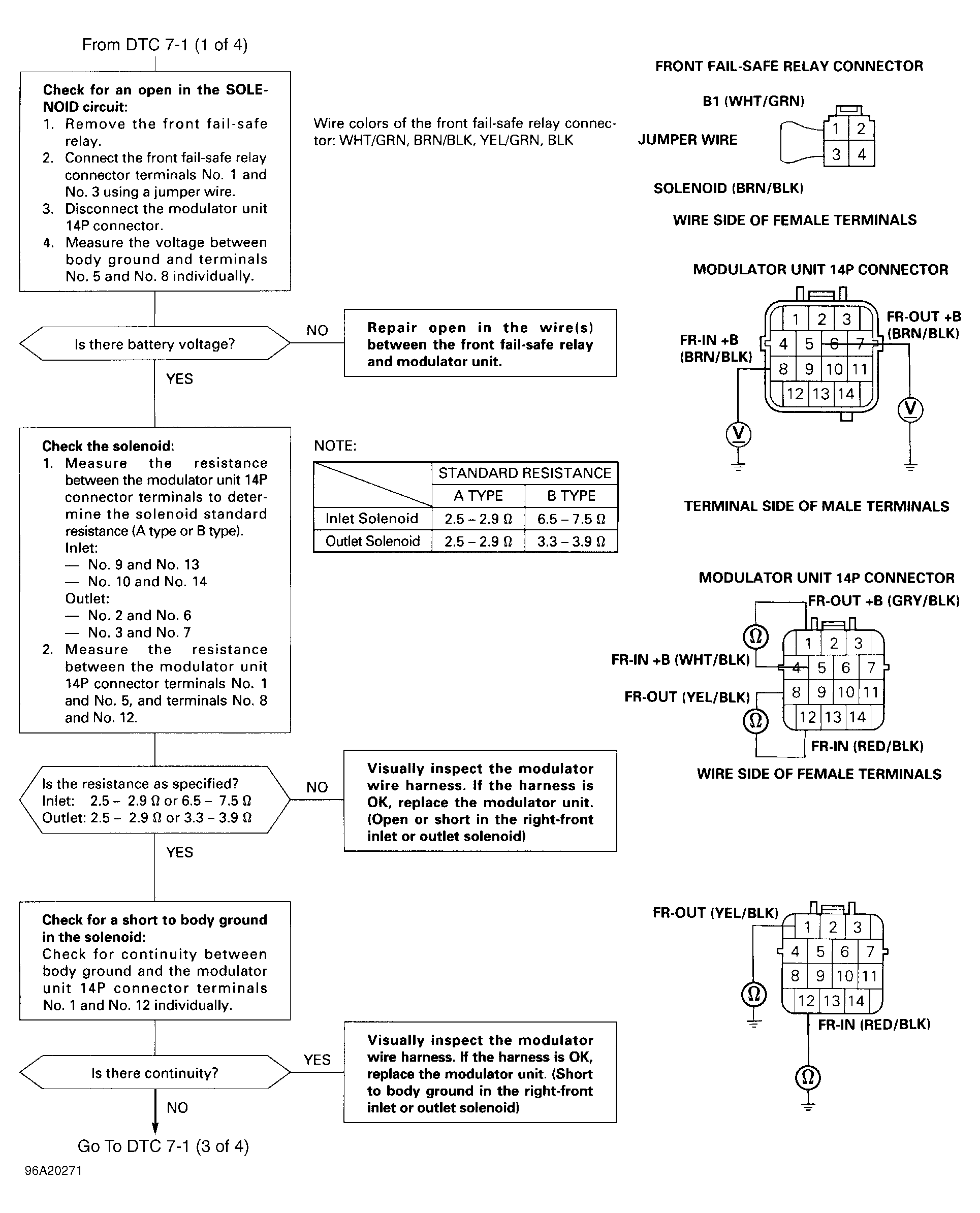

Fig 36: DTC 7-1: RIGHT FRONT SOLENOID (2 OF 4)

G96A20271

Courtesy of AMERICAN HONDA MOTOR CO., INC.

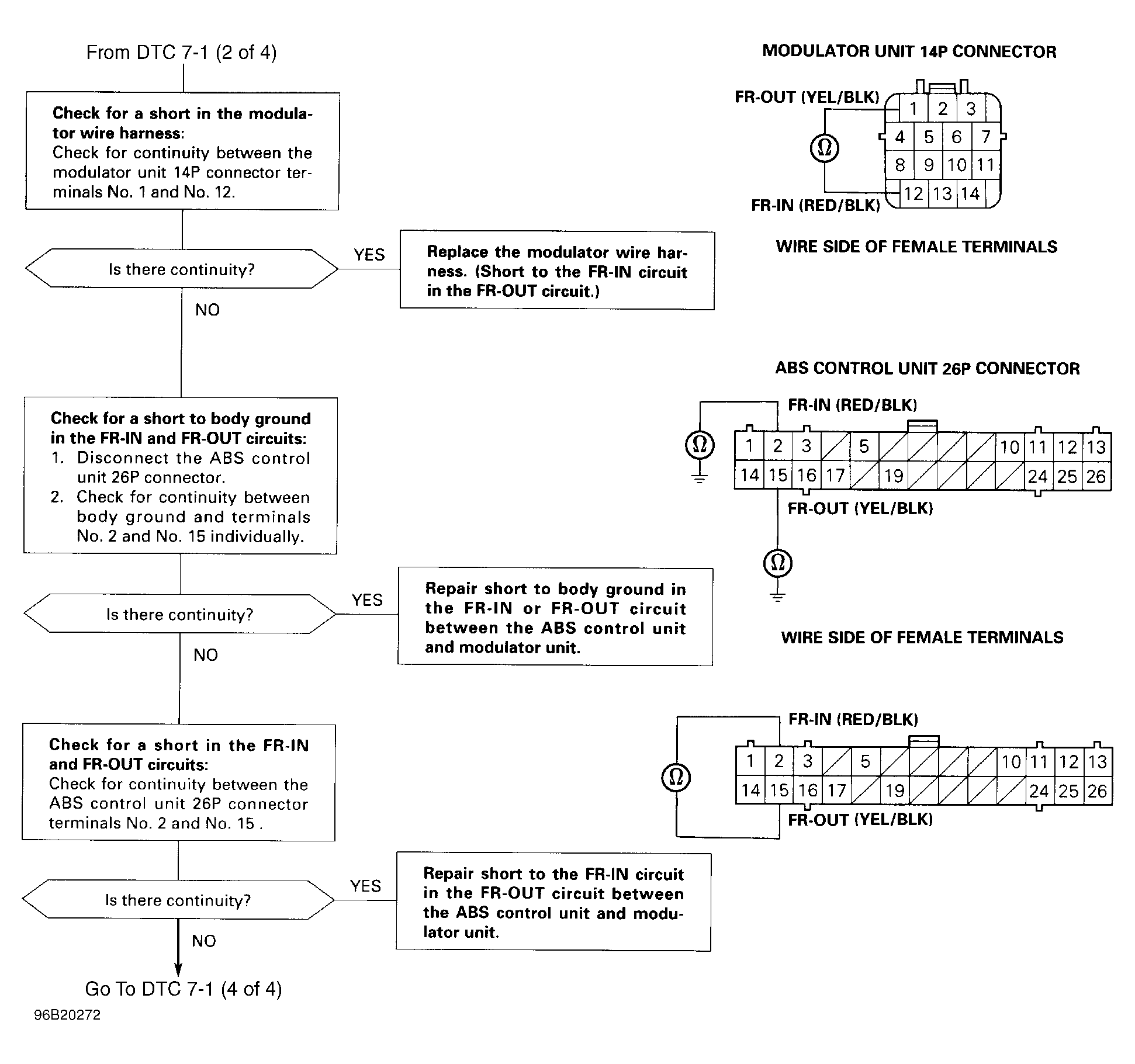

Fig 37: DTC 7-1: RIGHT FRONT SOLENOID (3 OF 4)

G96B20272

Courtesy of AMERICAN HONDA MOTOR CO., INC.

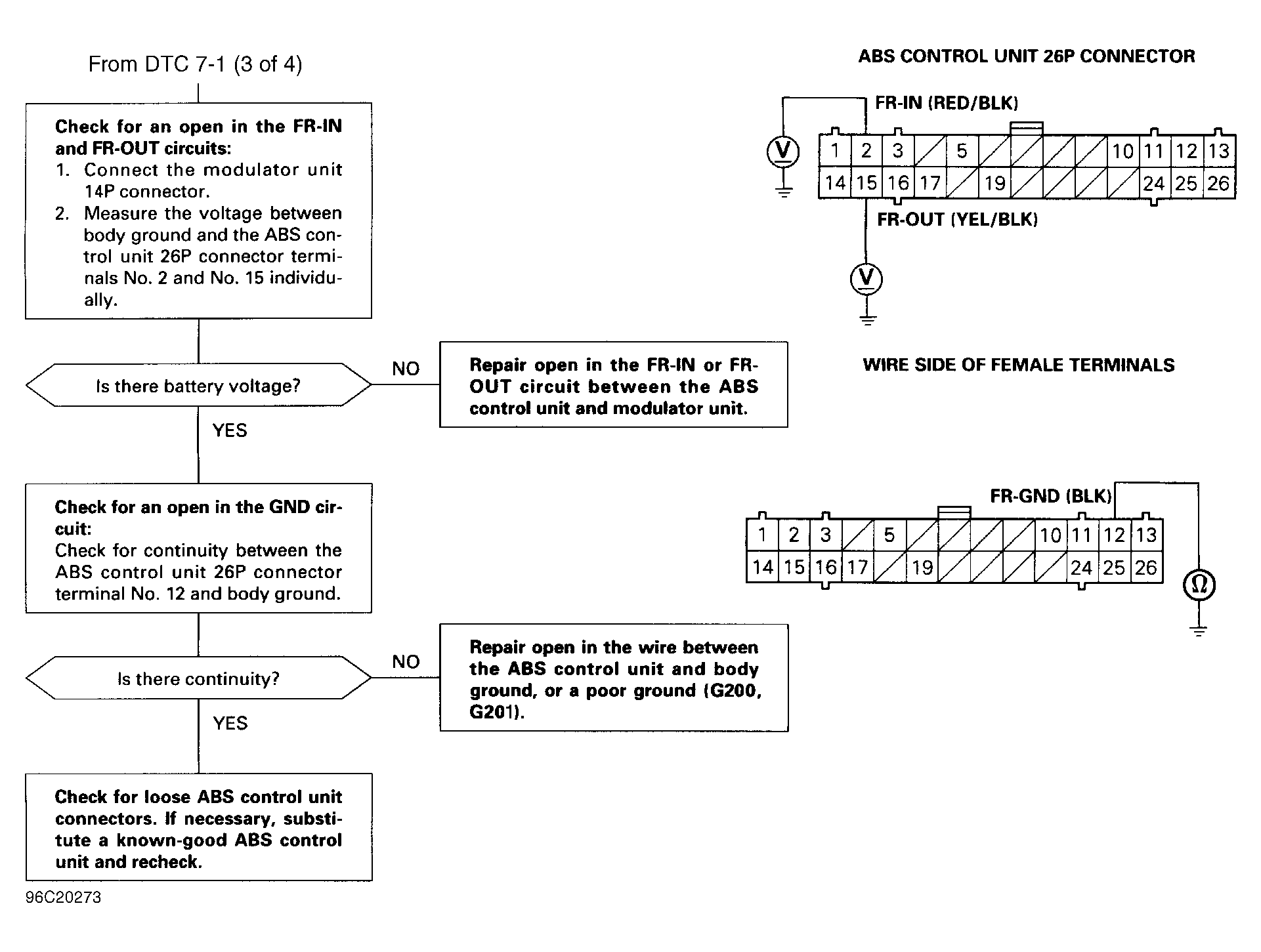

Fig 38: DTC 7-1: RIGHT FRONT SOLENOID (4 OF 4)

G96C20273

Courtesy of AMERICAN HONDA MOTOR CO., INC.

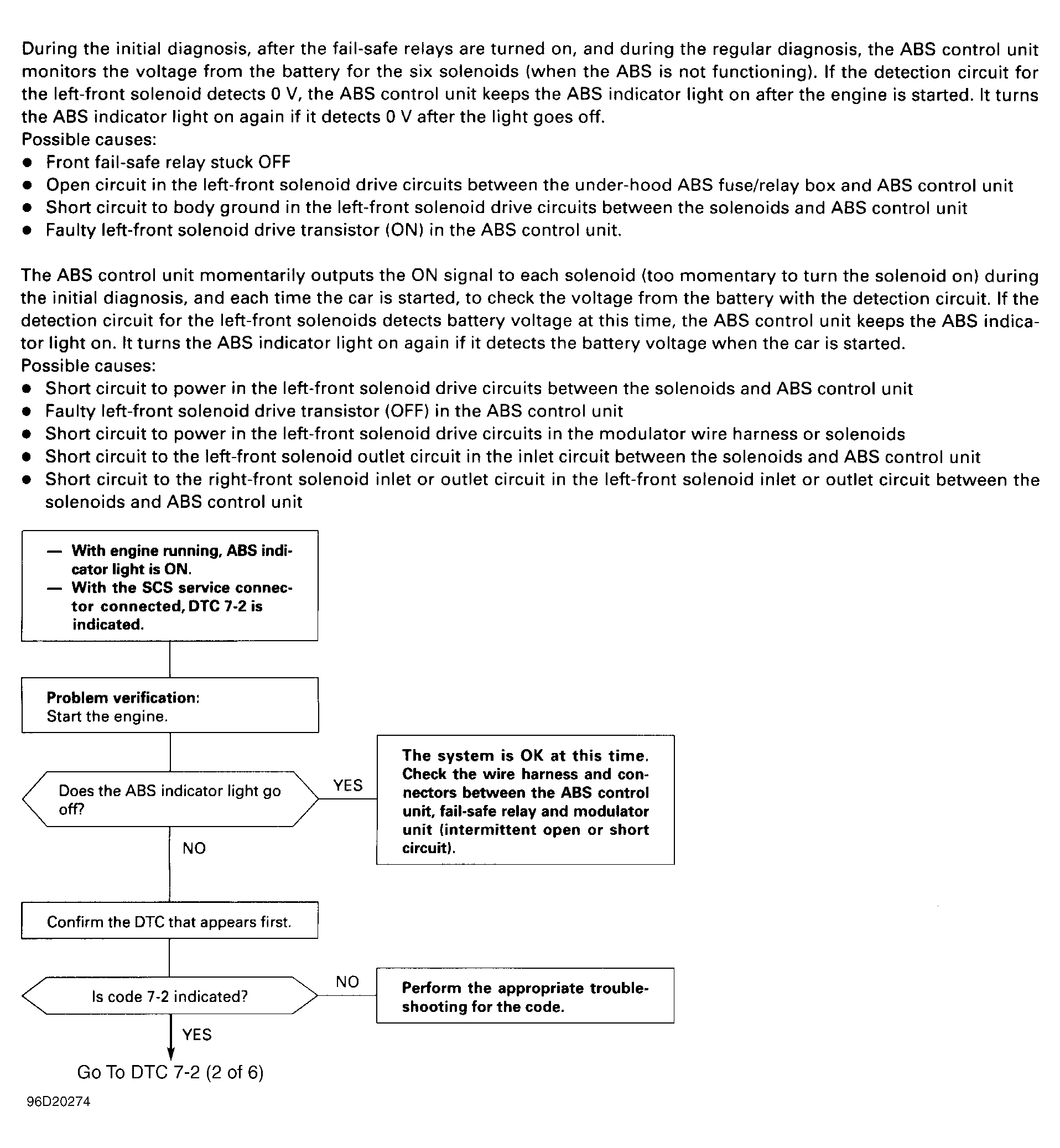

Fig 39: DTC 7-2: LEFT FRONT SOLENOID (1 OF 6)

G96D20274

Courtesy of AMERICAN HONDA MOTOR CO., INC.

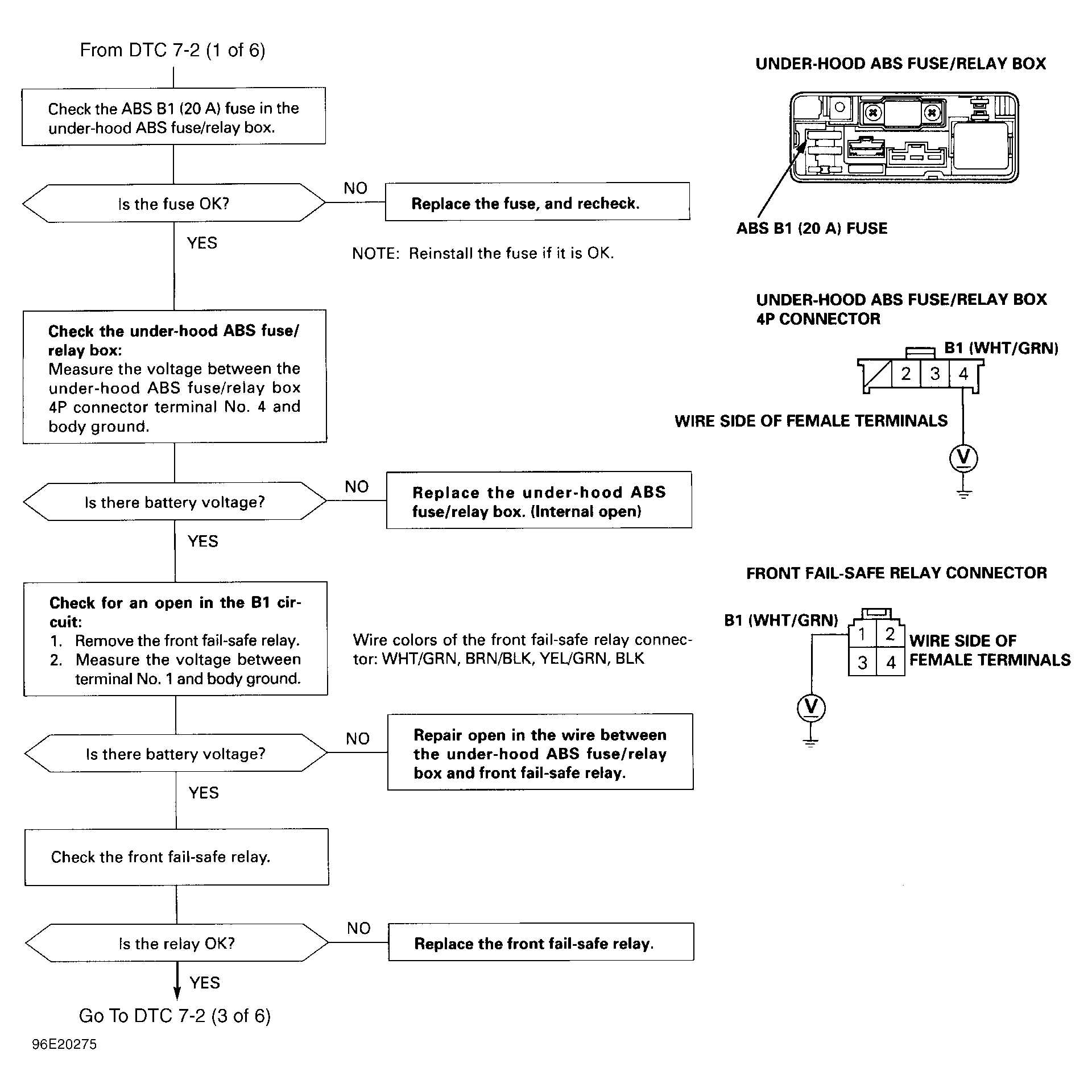

Fig 40: DTC 7-2: LEFT FRONT SOLENOID (2 OF 6)

G96E20275

Courtesy of AMERICAN HONDA MOTOR CO., INC.

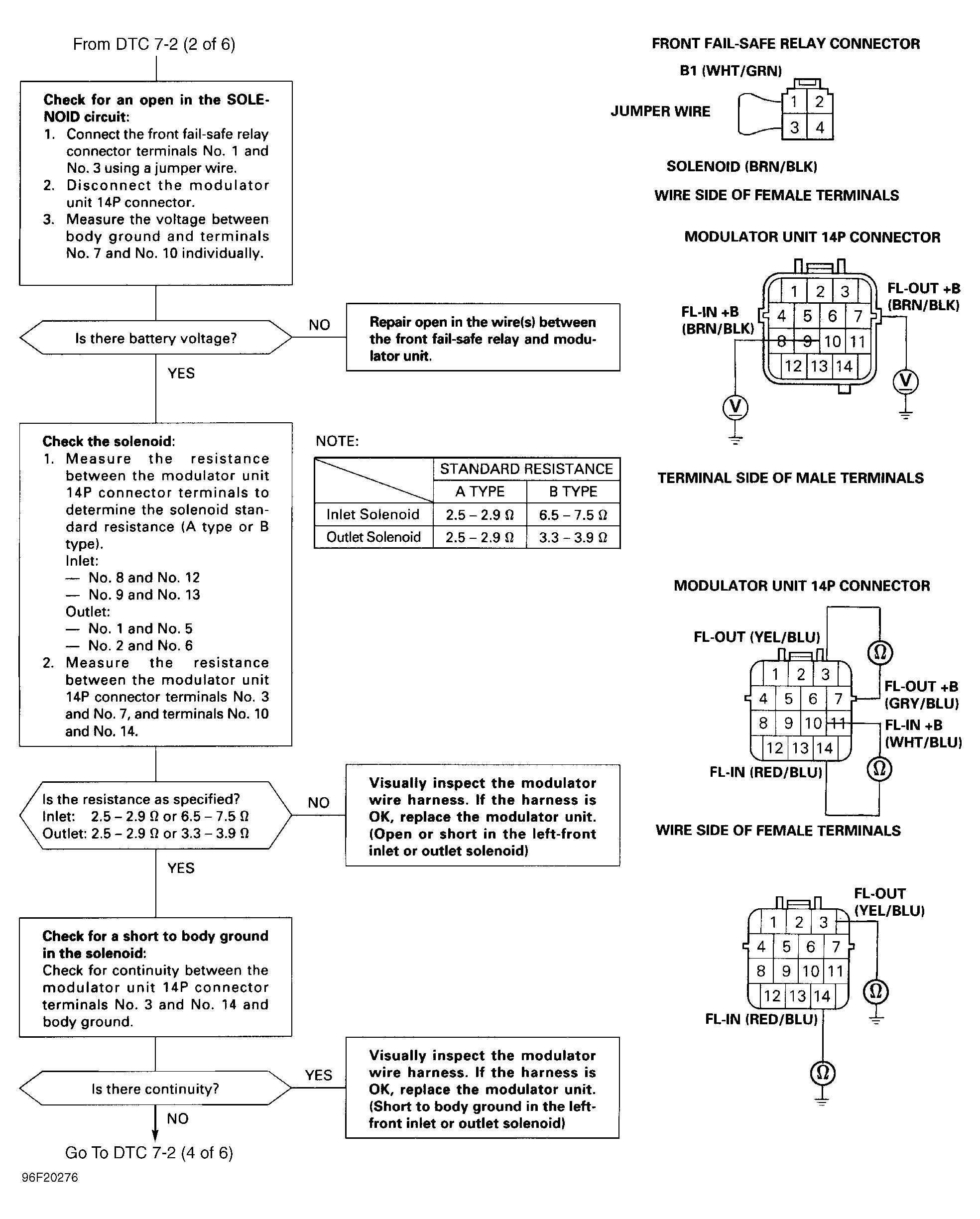

Fig 41: DTC 7-2: LEFT FRONT SOLENOID (3 OF 6)

G96F20276

Courtesy of AMERICAN HONDA MOTOR CO., INC.

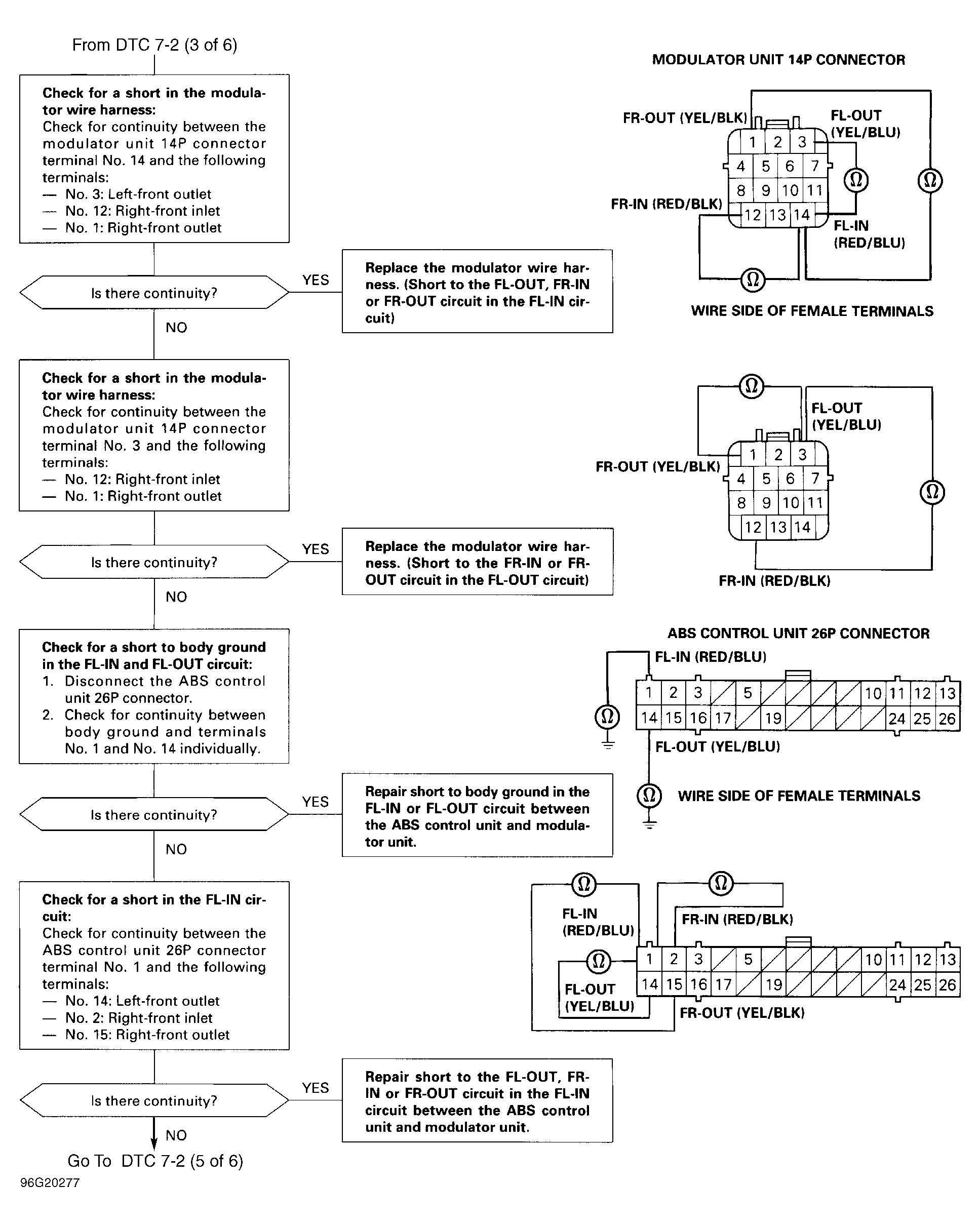

Fig 42: DTC 7-2: LEFT FRONT SOLENOID (4 OF 6)

G96G20277

Courtesy of AMERICAN HONDA MOTOR CO., INC.

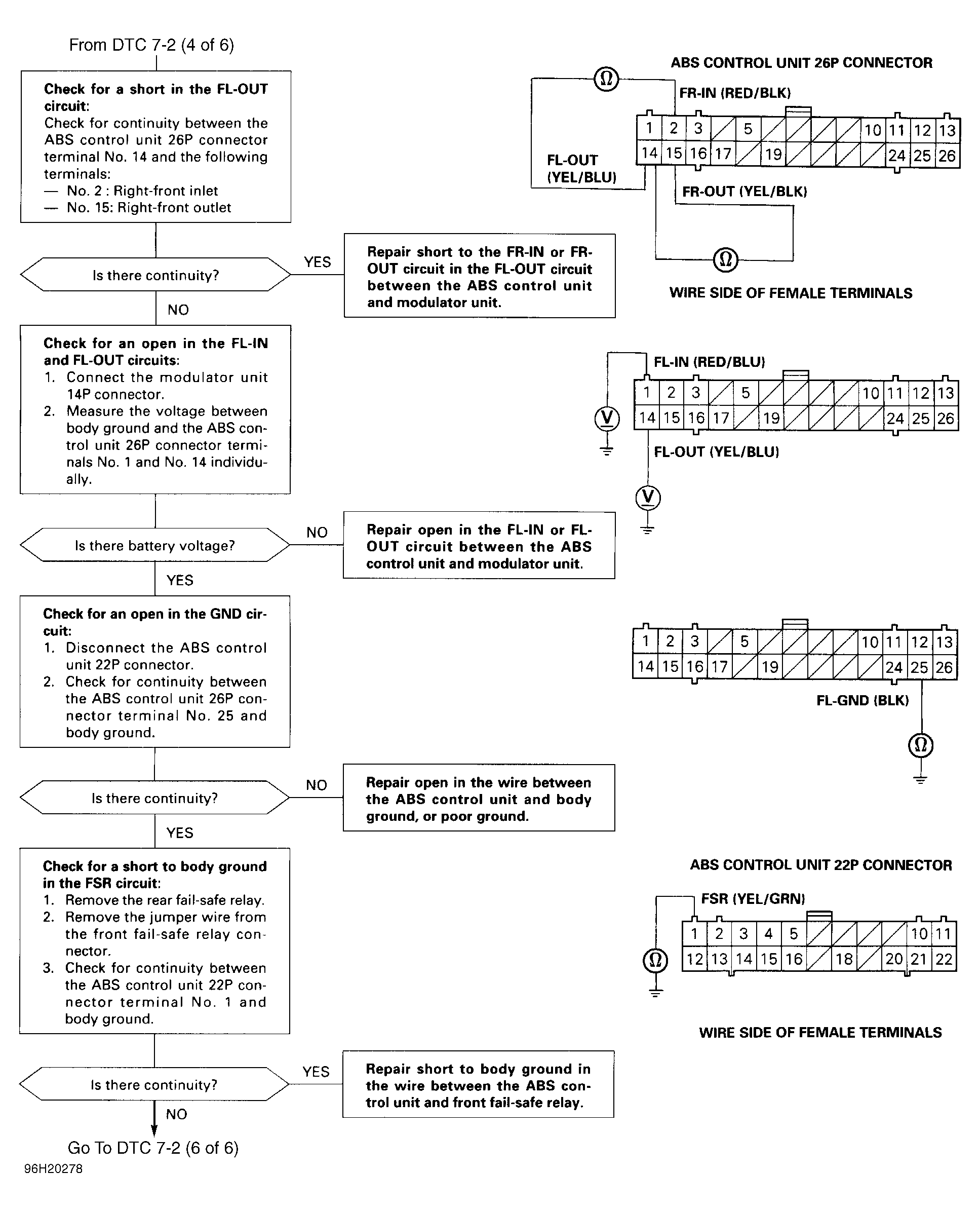

Fig 43: DTC 7-2: LEFT FRONT SOLENOID (5 OF 6)

G96H20278

Courtesy of AMERICAN HONDA MOTOR CO., INC.

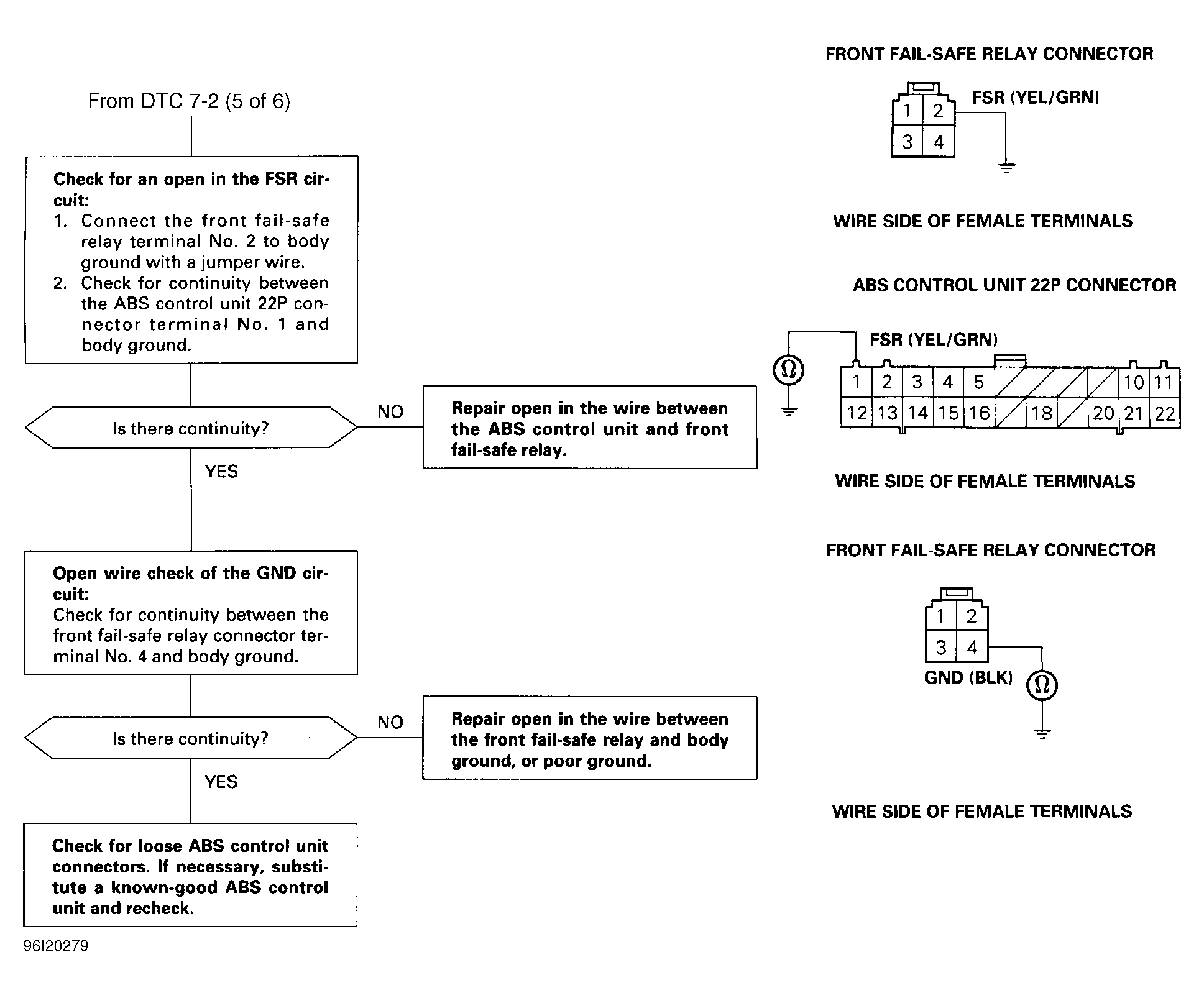

Fig 44: DTC 7-2: LEFT FRONT SOLENOID (6 OF 6)

G96I20279

Courtesy of AMERICAN HONDA MOTOR CO., INC.

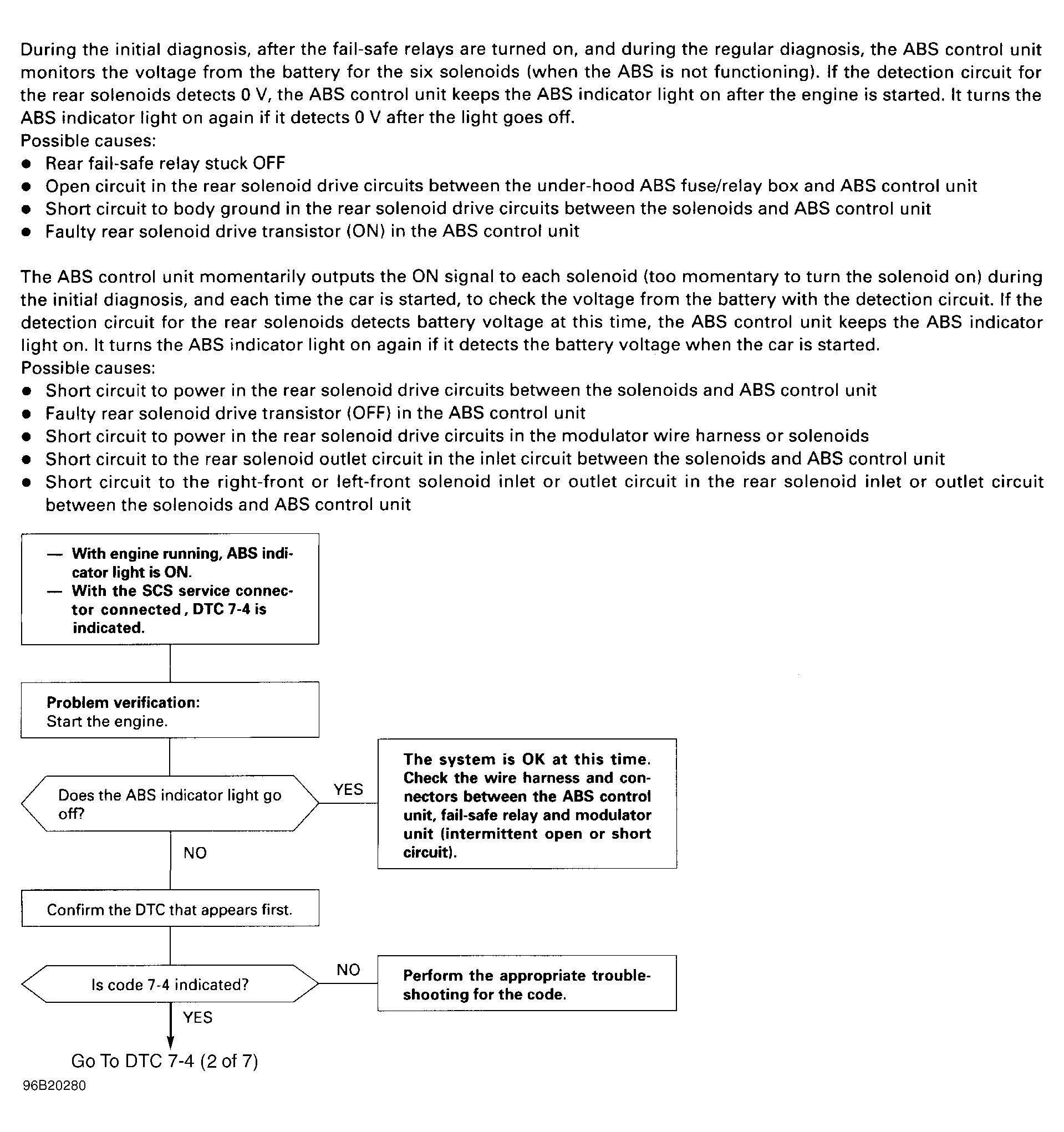

Fig 45: DTC 7-4: REAR SOLENOID (1 OF 7)

G96B20280

Courtesy of AMERICAN HONDA MOTOR CO., INC.

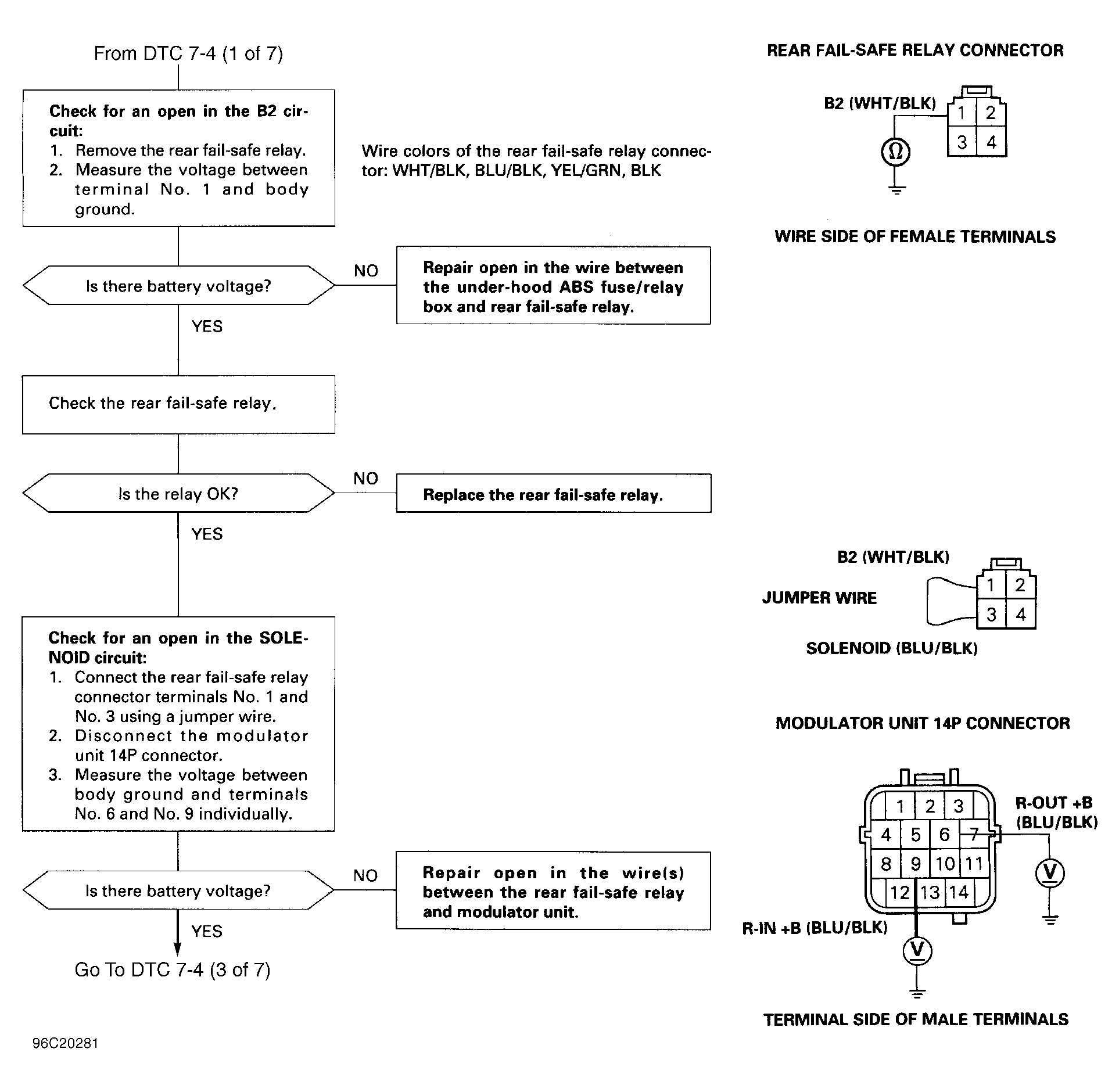

Fig 46: DTC 7-4: REAR SOLENOID (2 OF 7)

G96C20281

Courtesy of AMERICAN HONDA MOTOR CO., INC.

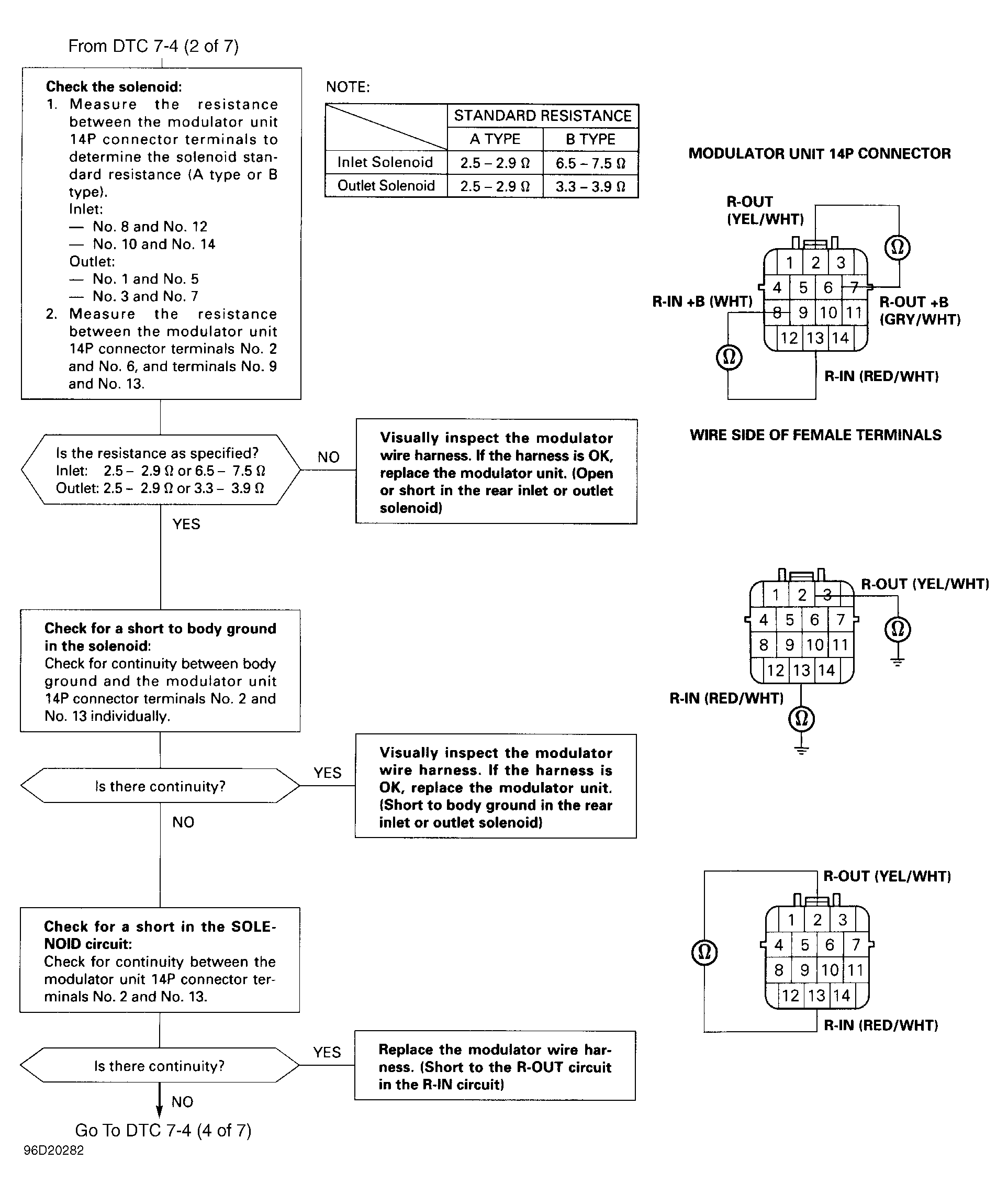

Fig 47: DTC 7-4: REAR SOLENOID (3 OF 7)

G96D20282

Courtesy of AMERICAN HONDA MOTOR CO., INC.

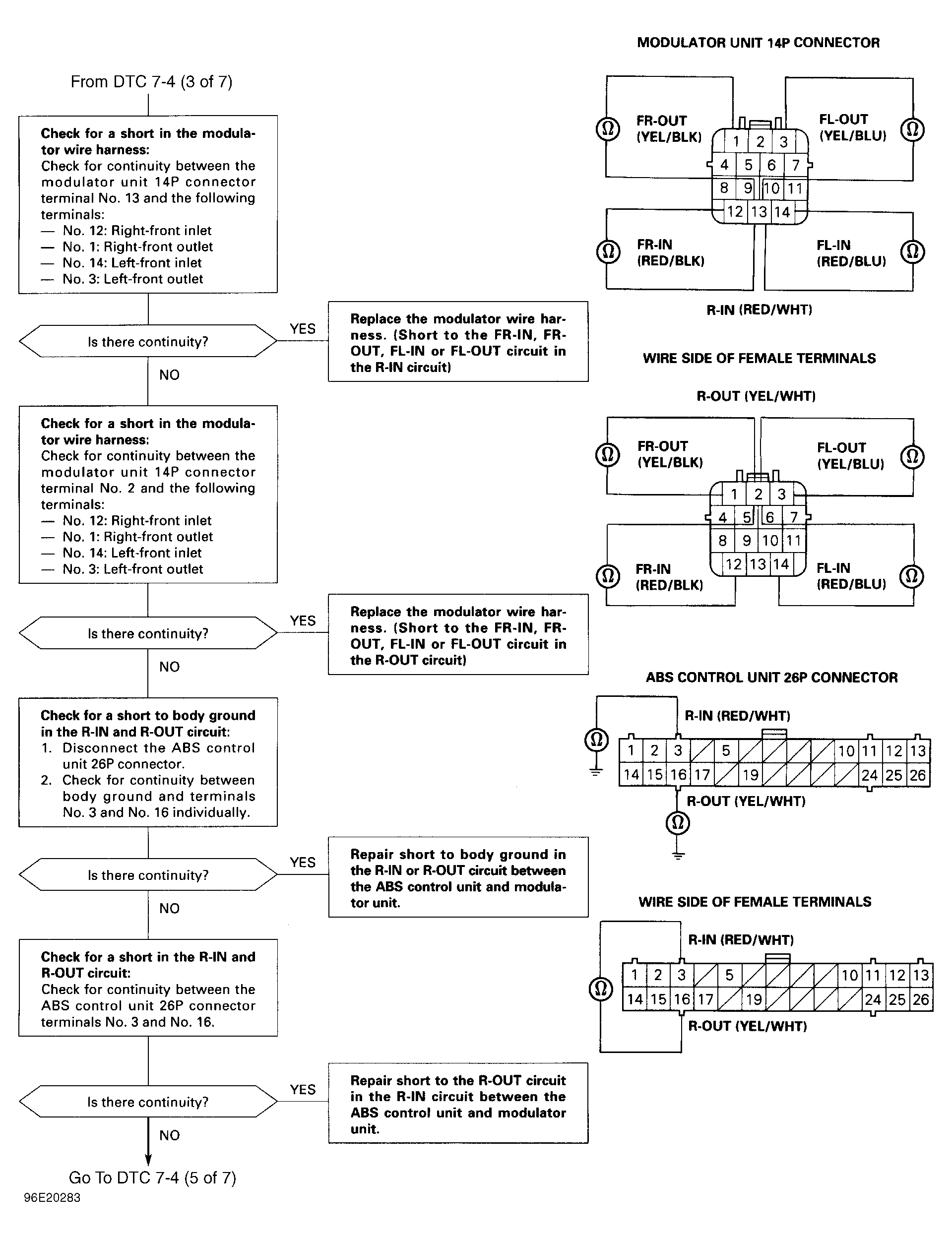

Fig 48: DTC 7-4: REAR SOLENOID (4 OF 7)

G96E20283

Courtesy of AMERICAN HONDA MOTOR CO., INC.

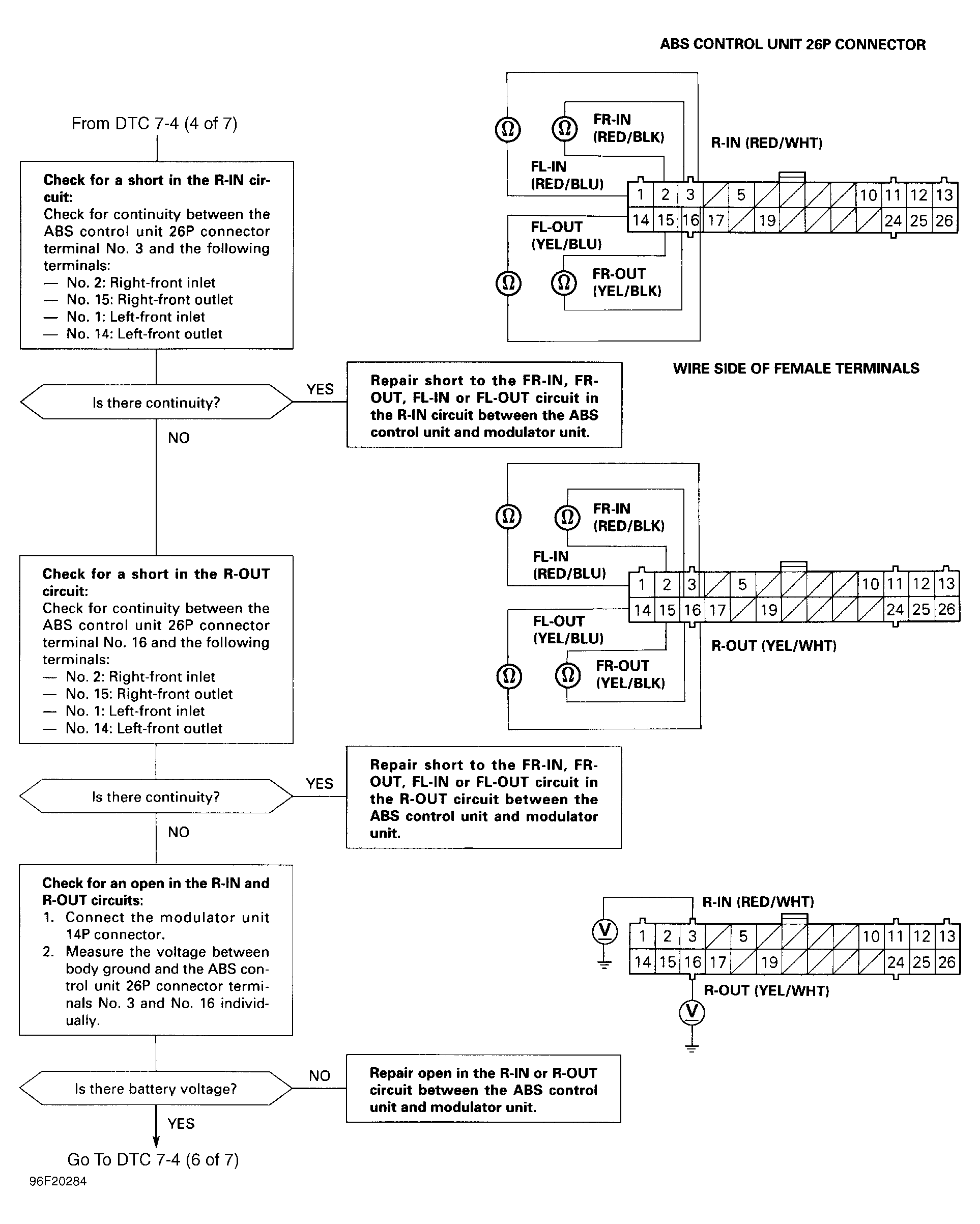

Fig 49: DTC 7-4: REAR SOLENOID (5 OF 7)

G96F20284

Courtesy of AMERICAN HONDA MOTOR CO., INC.

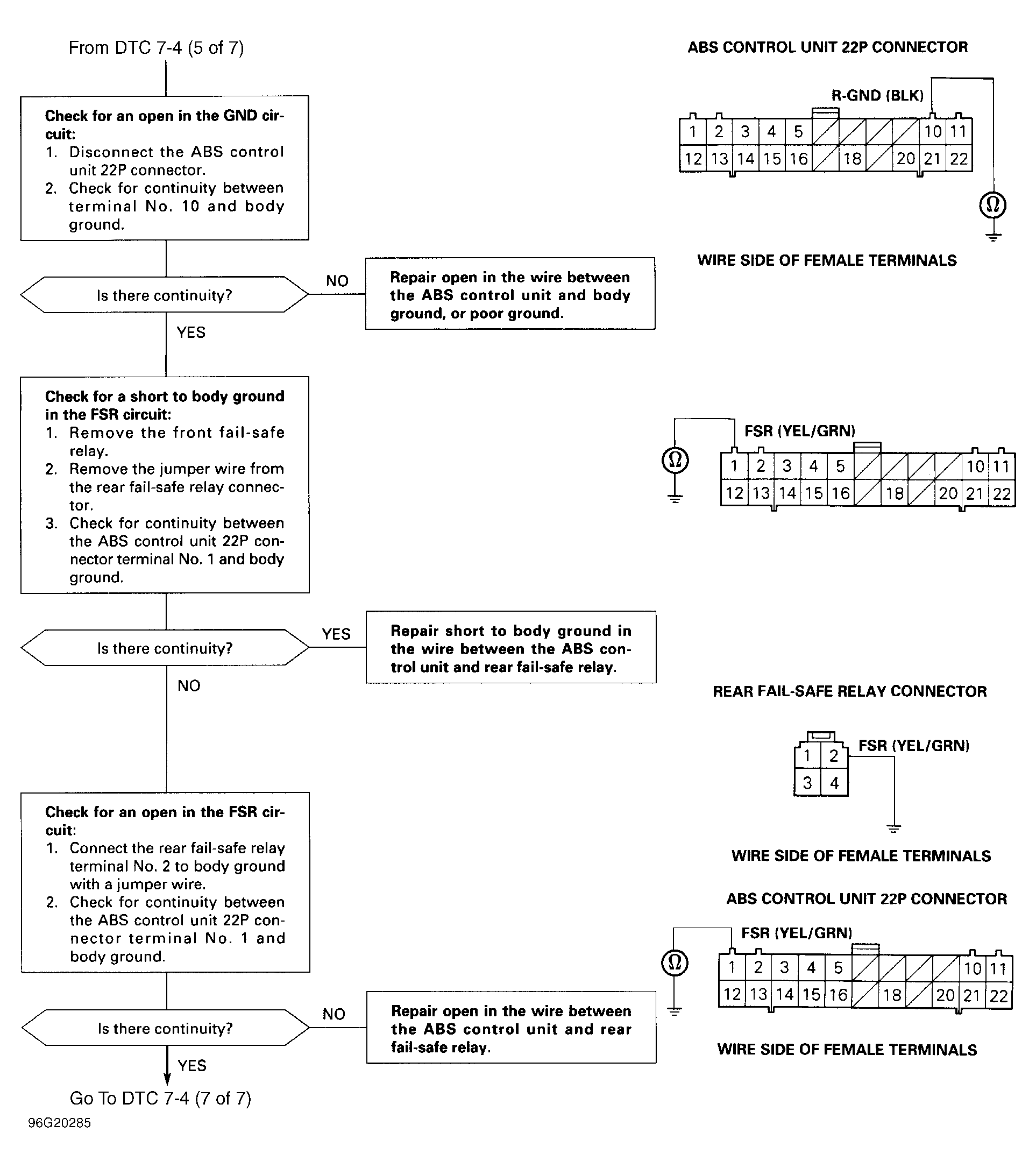

Fig 50: DTC 7-4: REAR SOLENOID (6 OF 7)

G96G20285

Courtesy of AMERICAN HONDA MOTOR CO., INC.

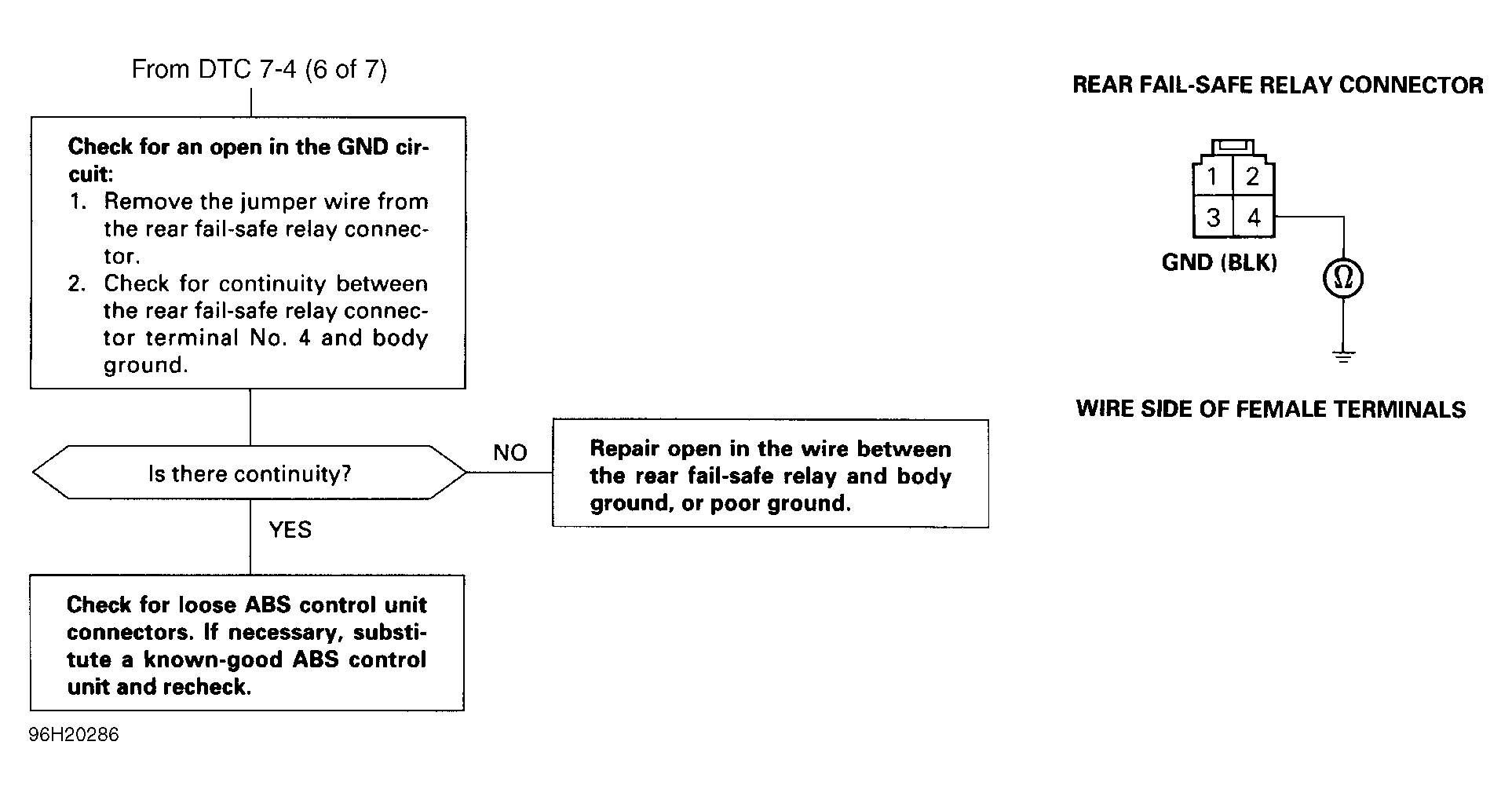

Fig 51: DTC 7-4: REAR SOLENOID (7 OF 7)

G96H20286

Courtesy of AMERICAN HONDA MOTOR CO., INC.

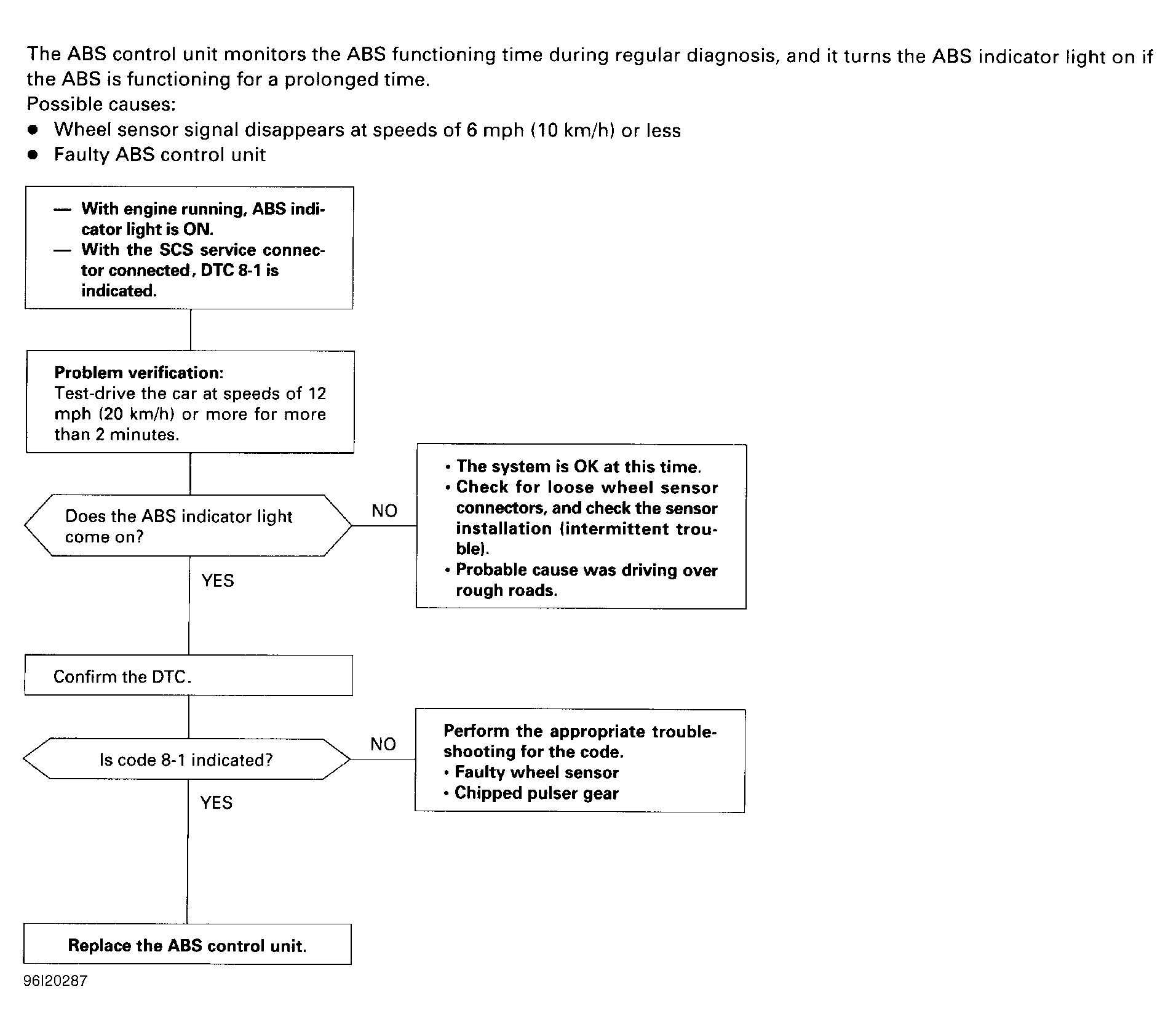

Fig 52: DTC 8-1: ABS FUNCTION DIAGNOSIS

G96I20287

Courtesy of AMERICAN HONDA MOTOR CO., INC.

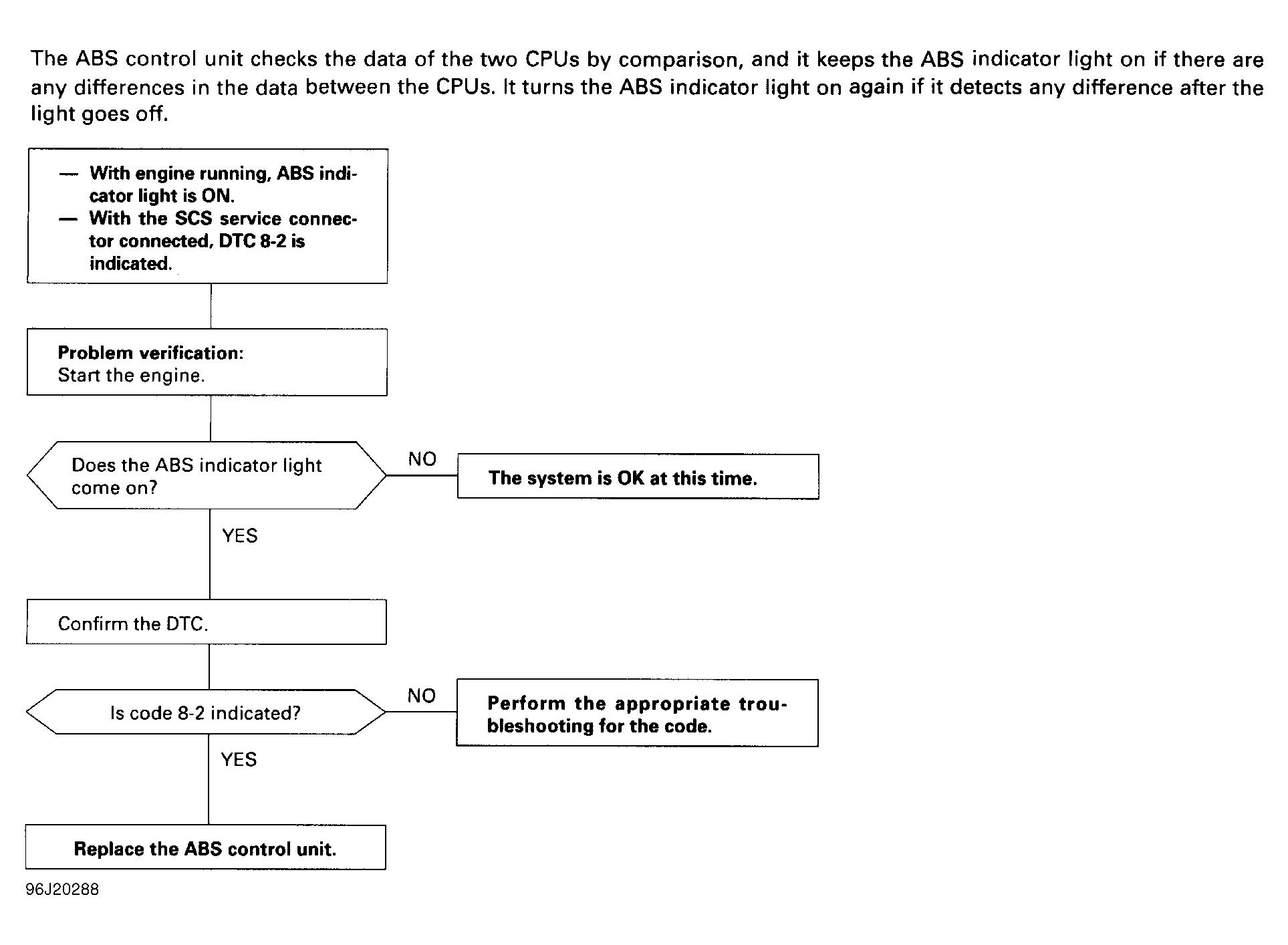

Fig 53: DTC 8-2: ABS CONTROL UNIT (CPU COMPARISON)

G96J20288

Courtesy of AMERICAN HONDA MOTOR CO., INC.

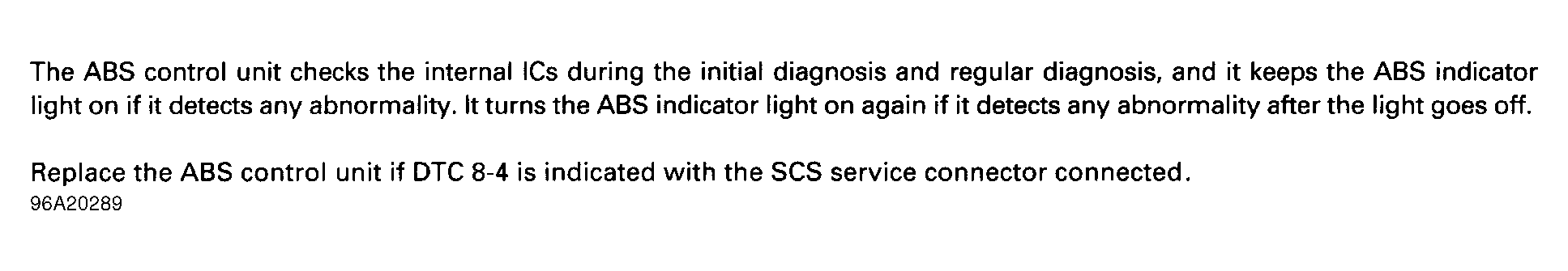

Fig 54: DTC 8-4: INTEGRATED CIRCUIT (IC) DIAGNOSIS

G96A20289

Courtesy of AMERICAN HONDA MOTOR CO., INC.
