Disabling SRS System
WARNING: This page is about a different car, the 1995 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When disconnected, the air bag connector is automatically shorted.

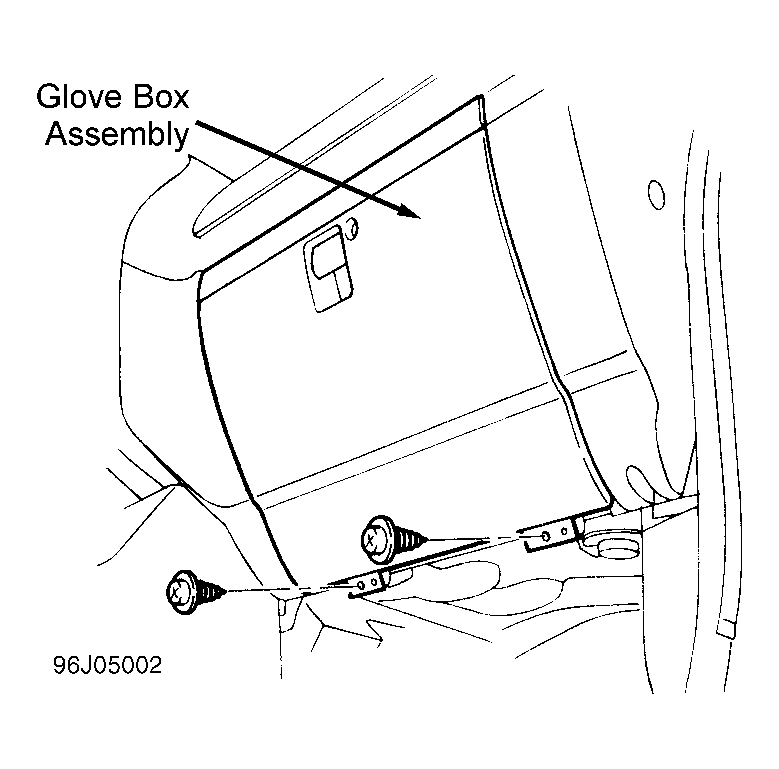

Turn ignition switch to "LOCK" and remove key. Remove SRS fuse C-21, C-22, C-23 and C-24 from left dash side of lower fuse block or disconnect battery. Disconnect Yellow 3-way connector at the base of steering column. Remove glove box assembly. Disconnect Yellow 4-way connector behind glove box assembly. SeeFig 1.
