Relay Layout Identification

See Fig 1 for relay layout.

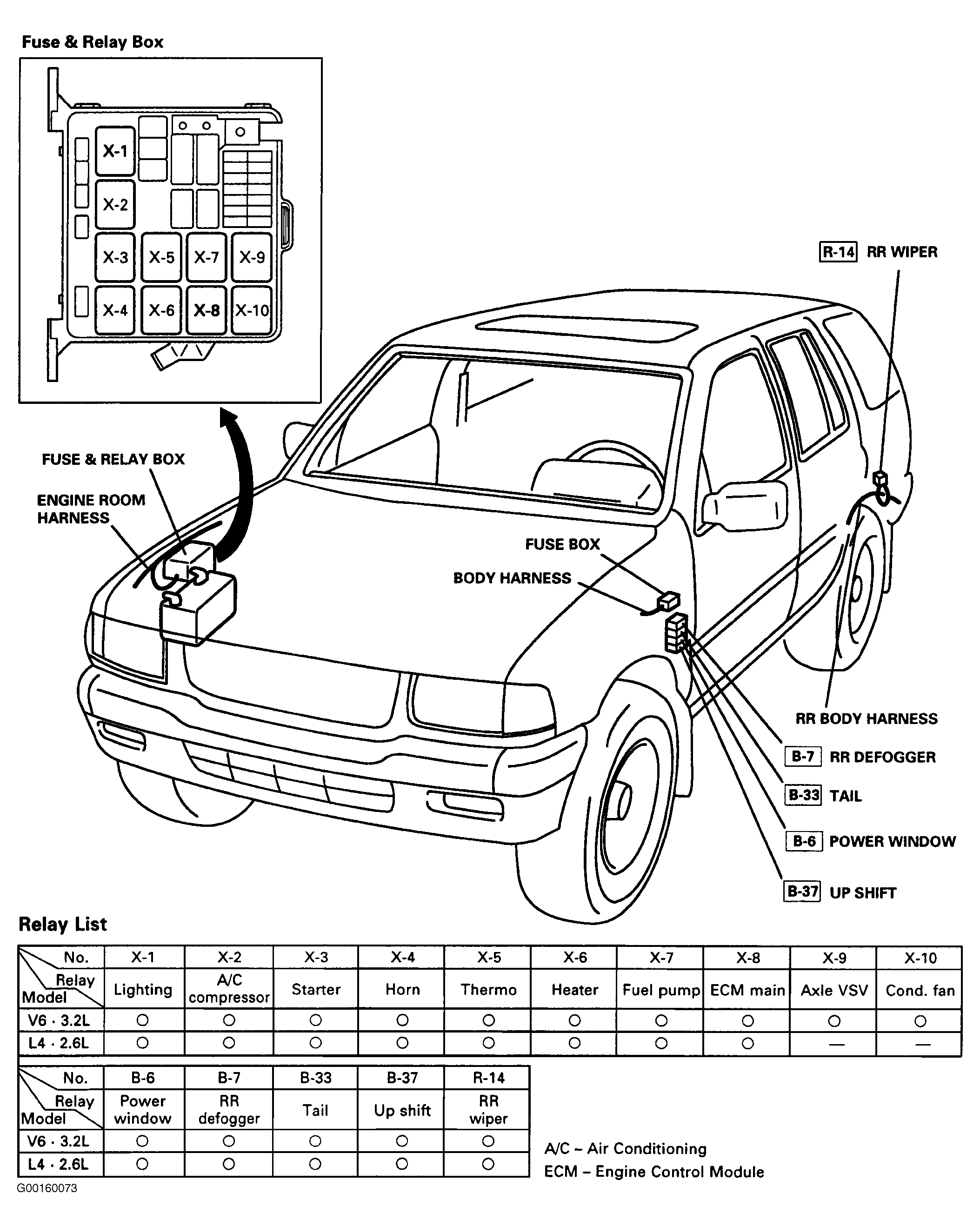

Fig 1: Identifying Relay Locations

G00160073

Courtesy of ISUZU MOTOR CO.
