Fuse Panel & Relay Box Identification

See Fig 1 and Fig 2 for fuse and relay layout.

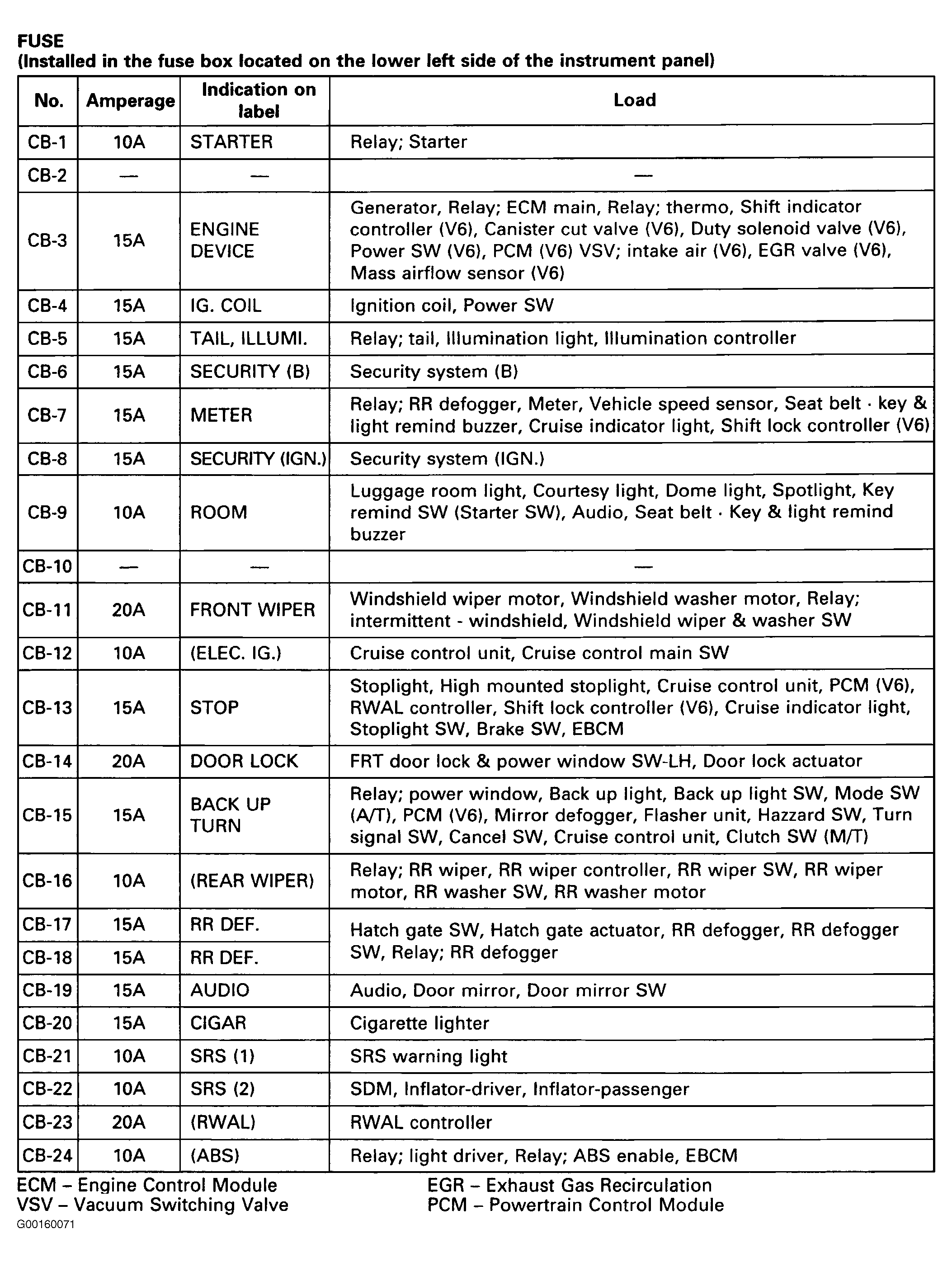

Fig 1: Identifying Instrument Panel Fuse Box Components

Courtesy of ISUZU MOTOR CO.

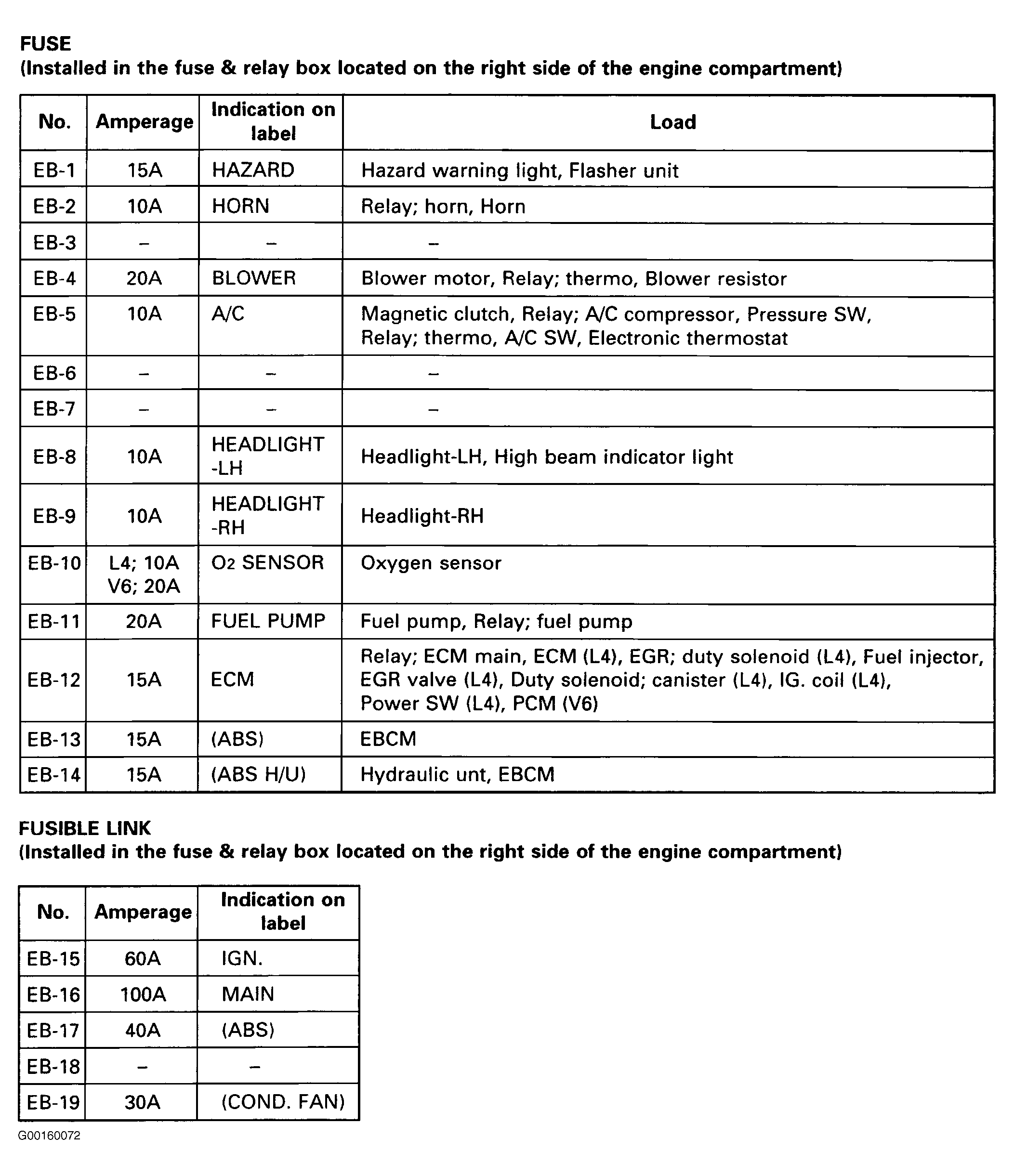

Fig 2: Identifying Under-Hood Fuse & Relay Box Components

Courtesy of ISUZU MOTOR CO.
