Cranking Test

  1. Connect voltmeter and ammeter to battery. See Fig 1 . Ensure battery is fully charged. Disable ignition. Crank engine and observe meters.
  2. Ensure cranking voltage and current draw are within manufacturer specifications. See CRANKING VOLTAGE & CURRENT DRAW  table. If readings are not as specified, repair or replace starter.

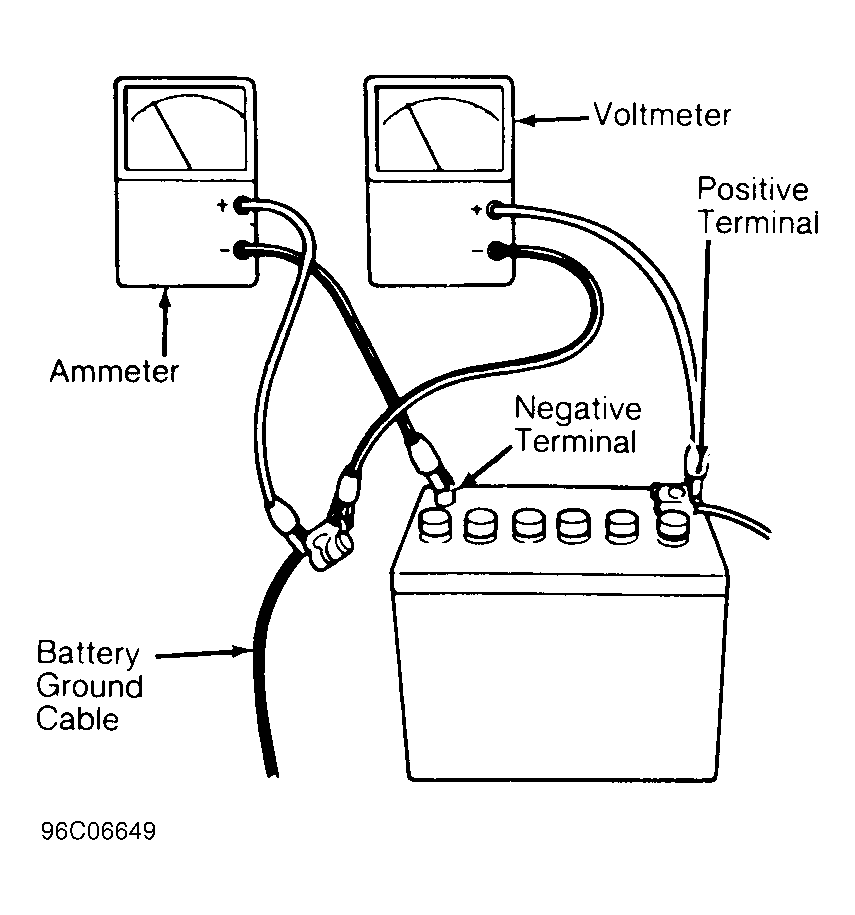

Fig 1: Performing Cranking Starter Test (Typical)
G96C06649Courtesy of GENERAL MOTORS CORP.
CRANKING VOLTAGE & CURRENT DRAW

Application Minimum Volts Maximum Amps
Oasis 8.5 350
