Clearing DTCS

With ignition off, remove ABS fuse No. B2 (15-amp) for at least 3 seconds. Install fuse, and turn ignition on. Observe ABS warning light. DTCs are cleared if ABS warning light goes out after engine is started.

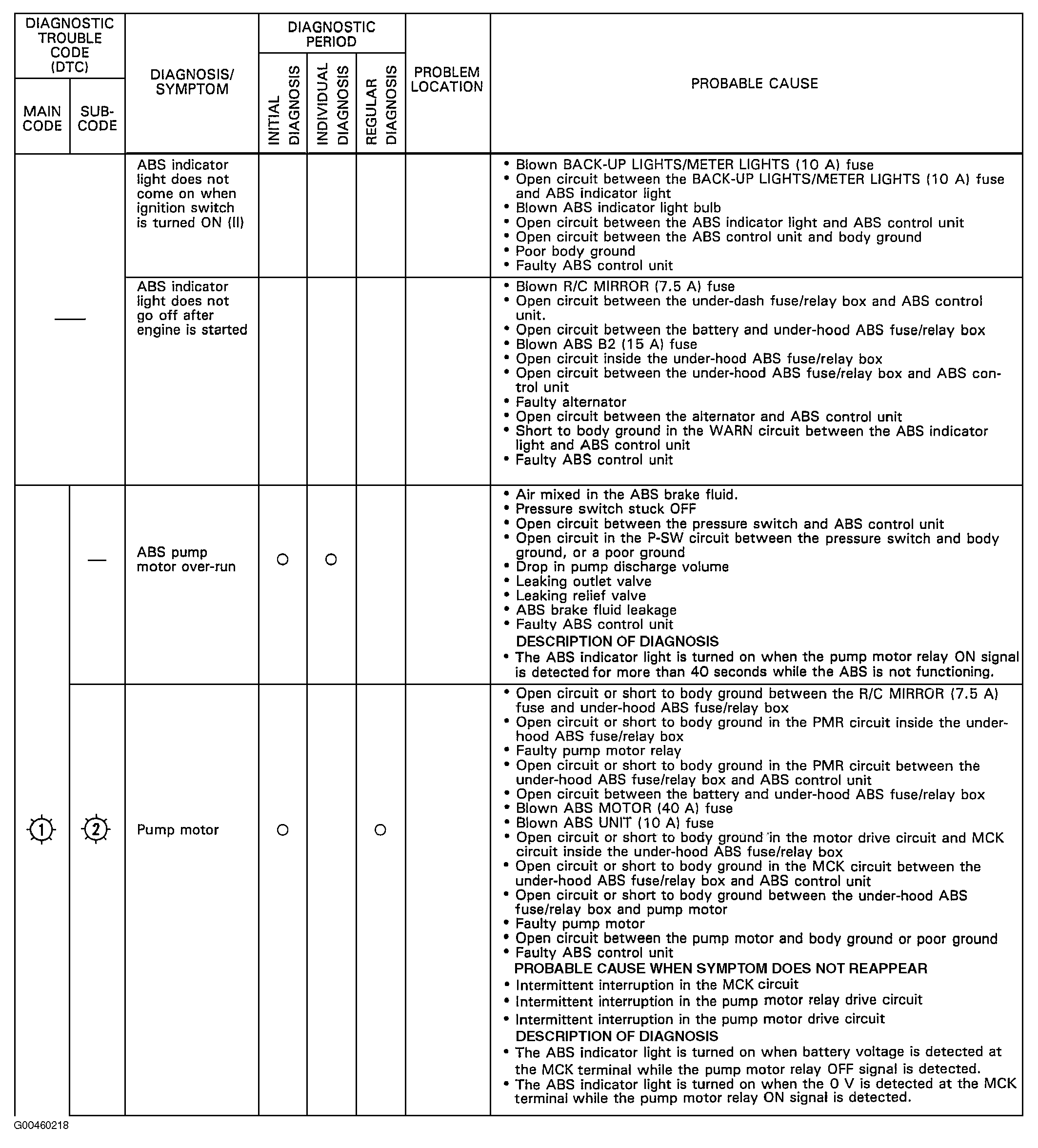

Fig 1: Identifying Diagnostic Trouble Codes (DTCs)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

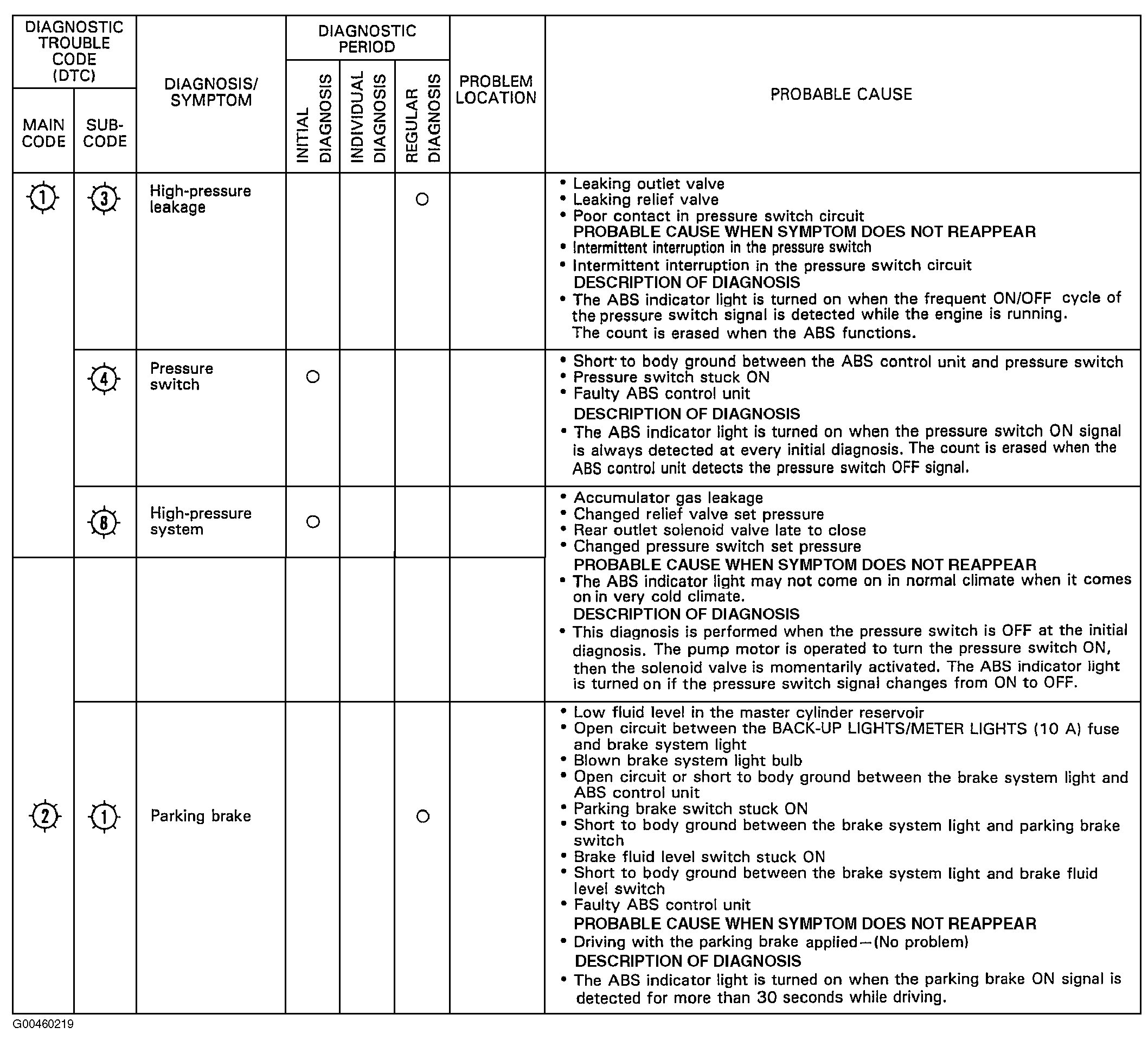

Fig 2: Self-Diagnostics & DTC Diagnosis Chart (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

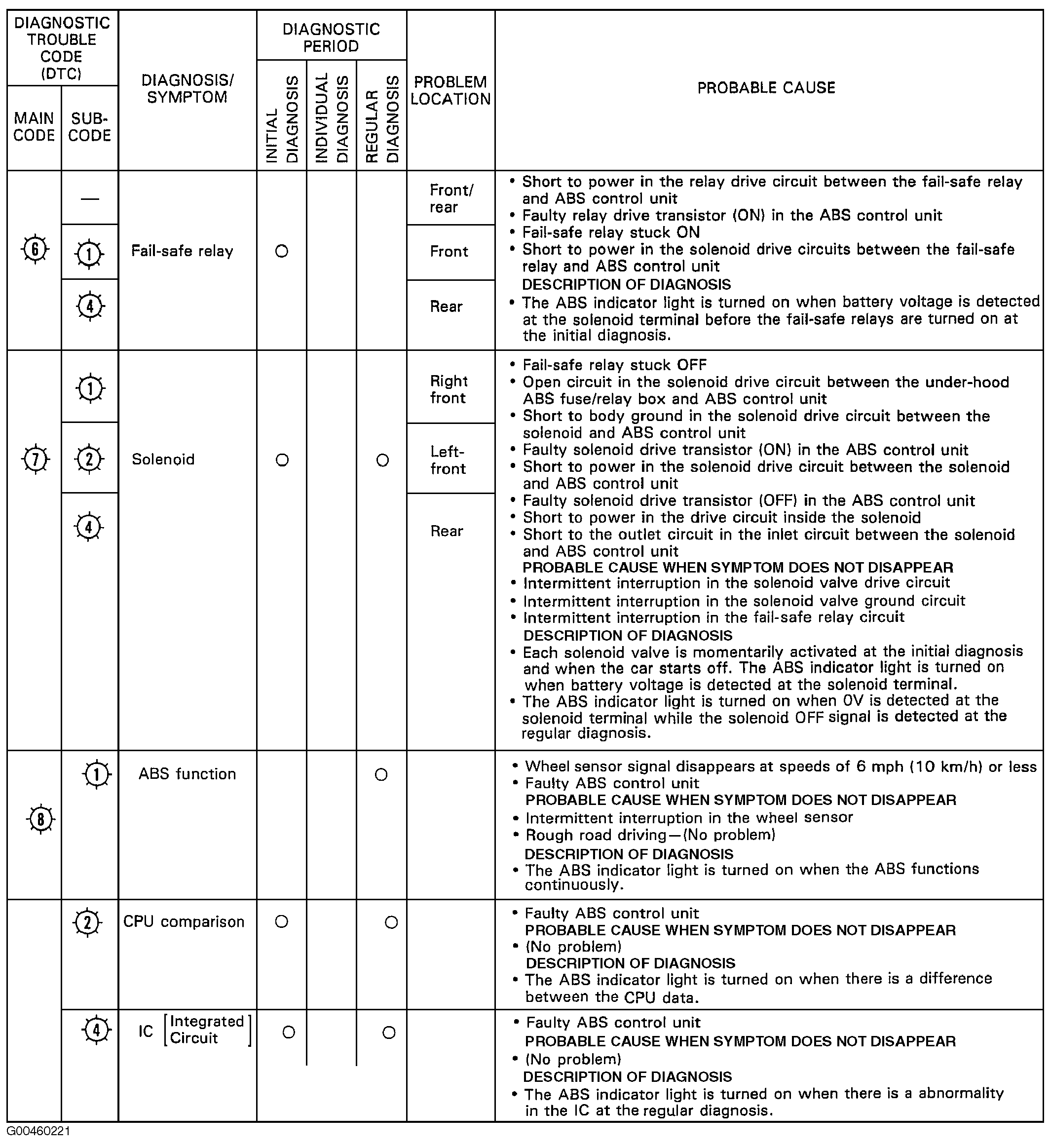

Fig 3: Self-Diagnostics & DTC Diagnosis Chart (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

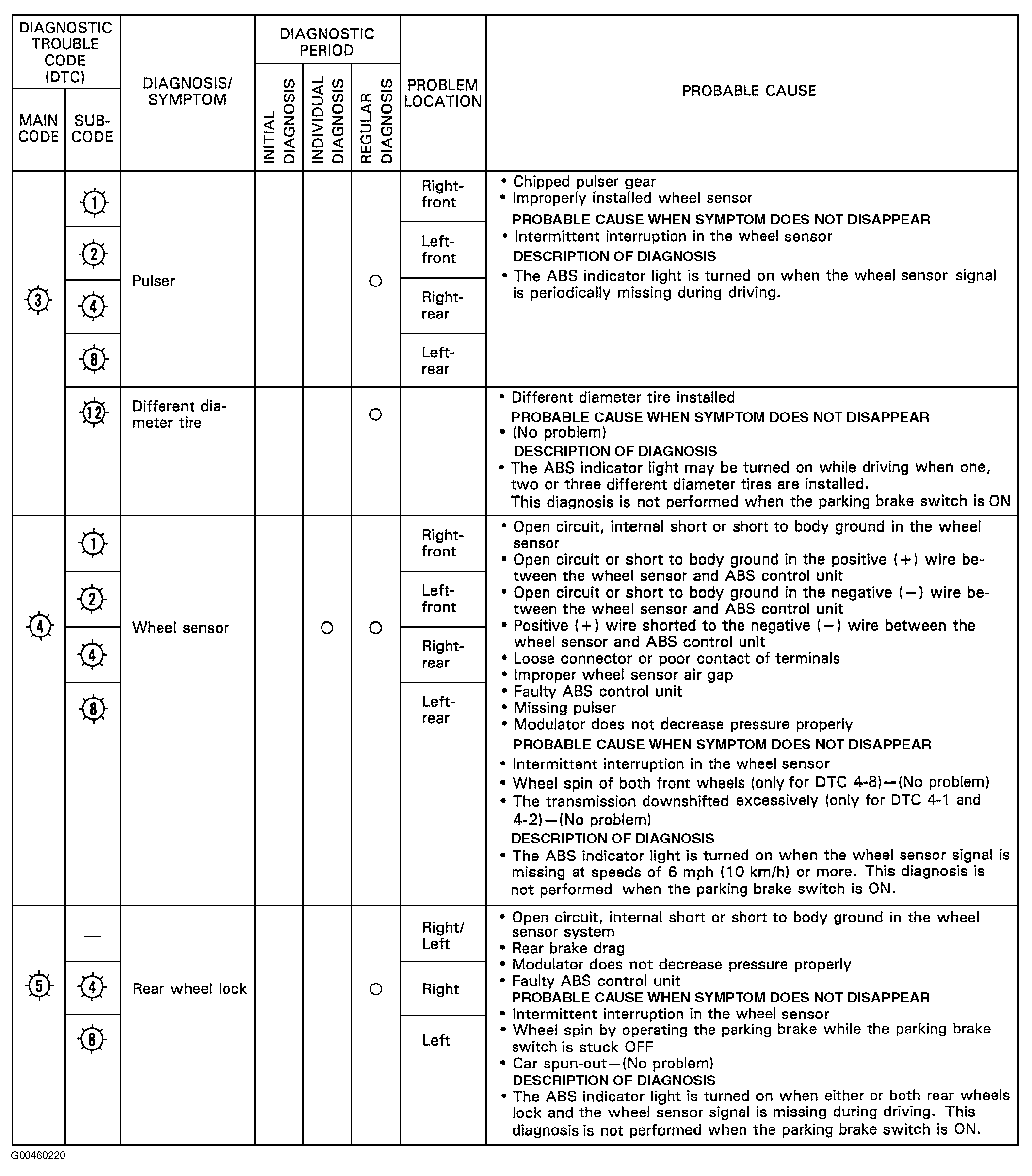

Fig 4: Self-Diagnostics & DTC Diagnosis Chart (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Self-Diagnostics & DTC Diagnosis Chart (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
