Component Testing: Switch

  1. Turn ignition off. Remove driver's seat side cover. Disconnect 5-pin harness connector from power seat up-down switch. Remove power seat switch.
  2. Using an ohmmeter, check for continuity between specified switch terminals while operating switch. See POWER SEAT SWITCH CONTINUITY table. SeeFig 1 . Replace power seat switch if continuity is not as specified.
POWER SEAT SWITCH CONTINUITY

Function Between Terminals No.
UP 1 & 2; 4 & 5
DOWN 1 & 4; 2 & 3

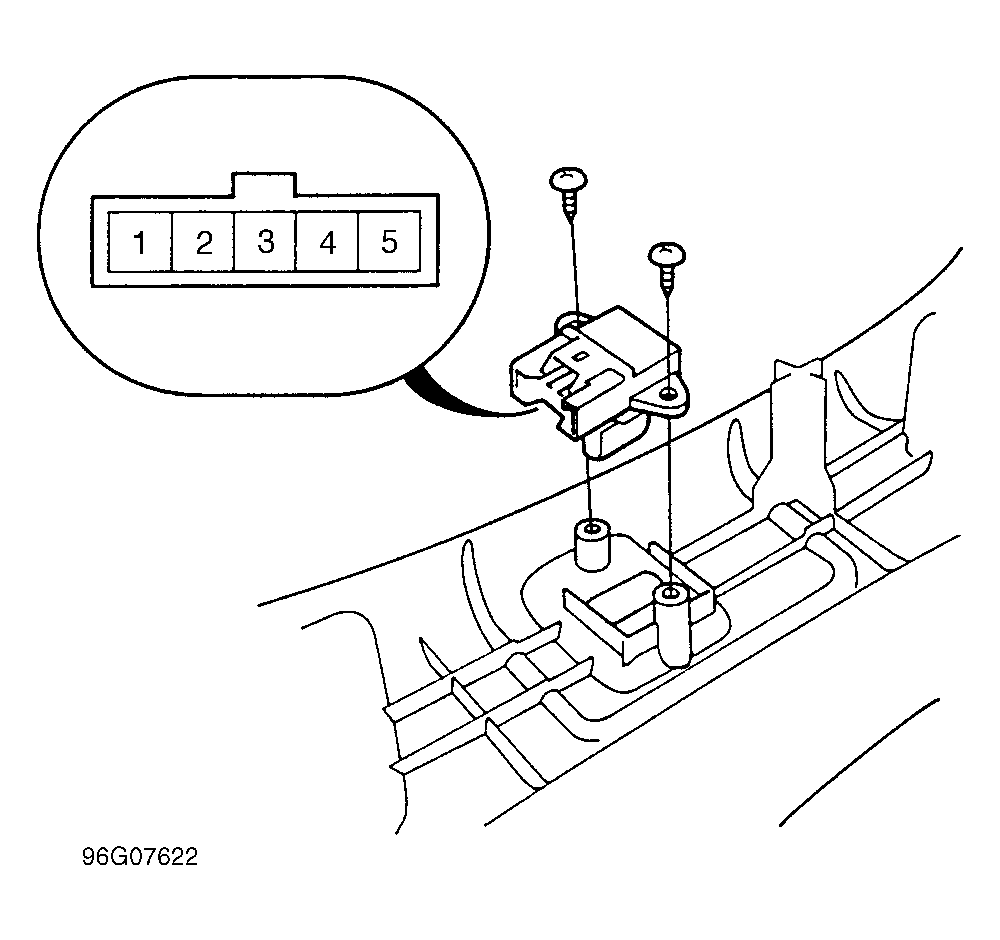

Fig 1: Identifying Power Seat Switch Terminals
G96G07622Courtesy of ISUZU MOTOR CO.
