Control Unit Inputs

Remove left door panel. Using a DVOM, perform power door lock unit input tests. SeeFig 1 , Fig 2 or Fig 3 . If all input test results are okay, inspect connector and terminals for damage and proper fit. If connector is okay and power door lock still malfunctions, replace power door lock control unit.

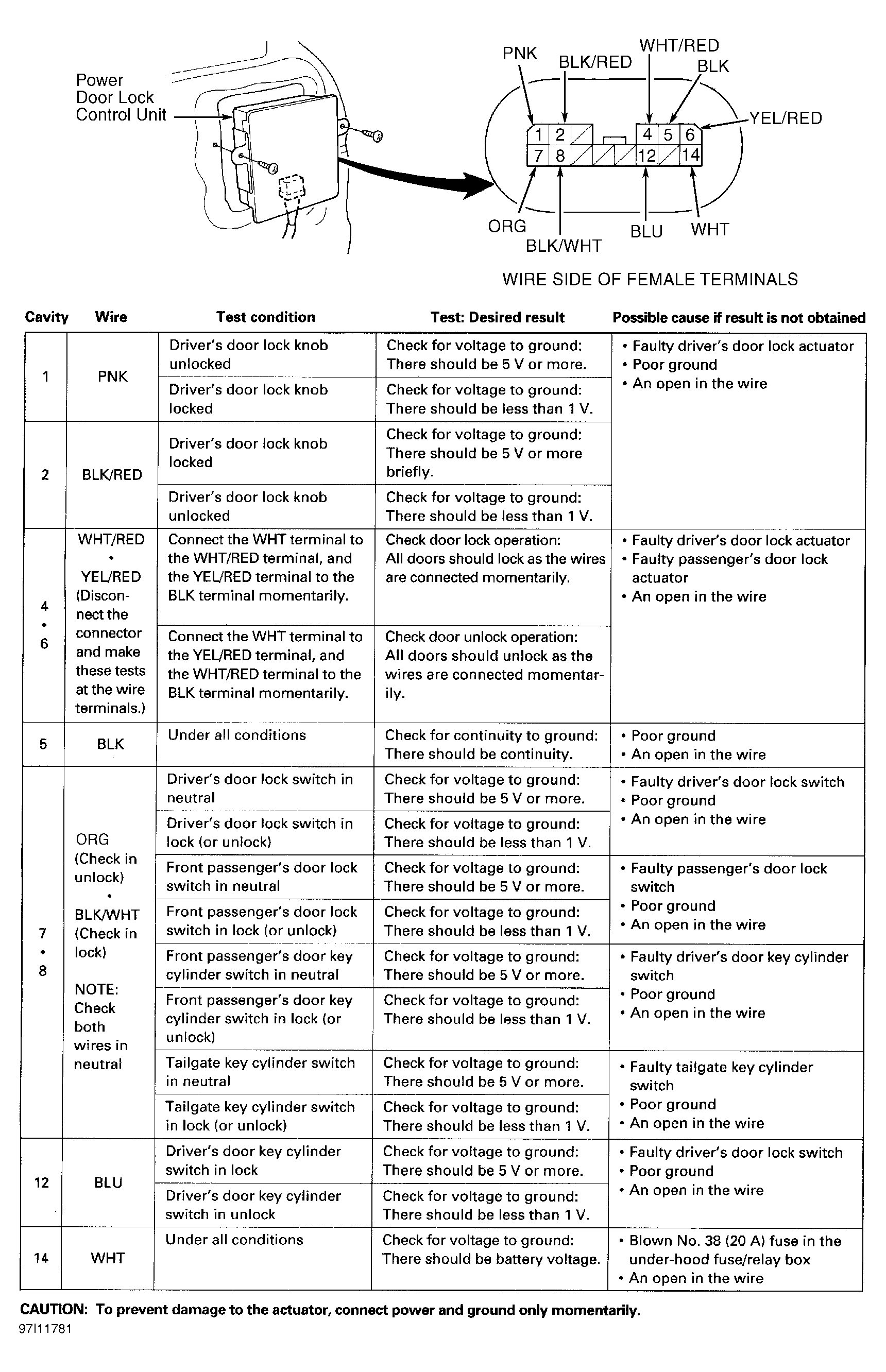

Fig 1: Power Door Locks Control Unit Input Test (Without Keyless Entry System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

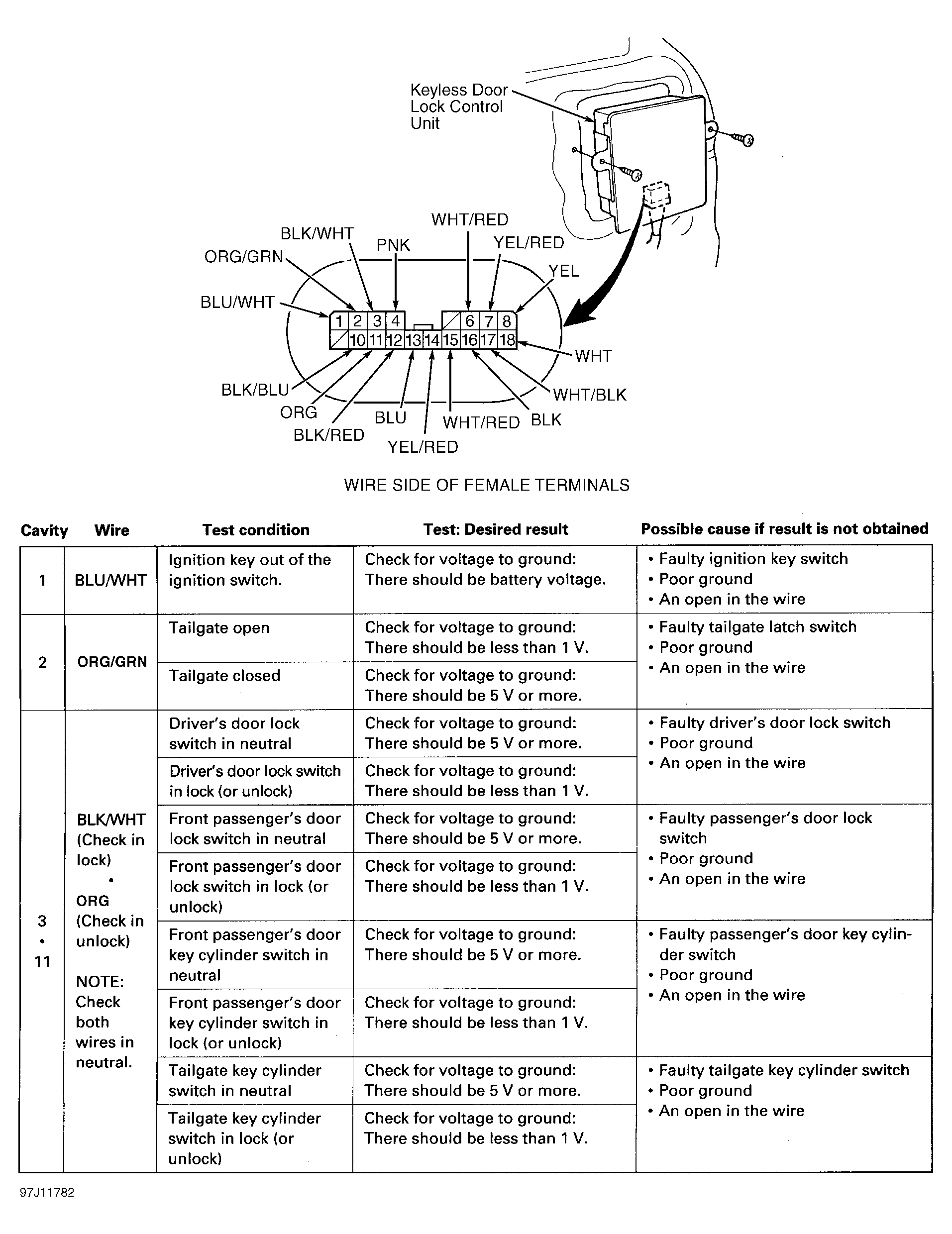

Fig 2: Power Door Locks Control Unit Input Test (With Keyless Entry System - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

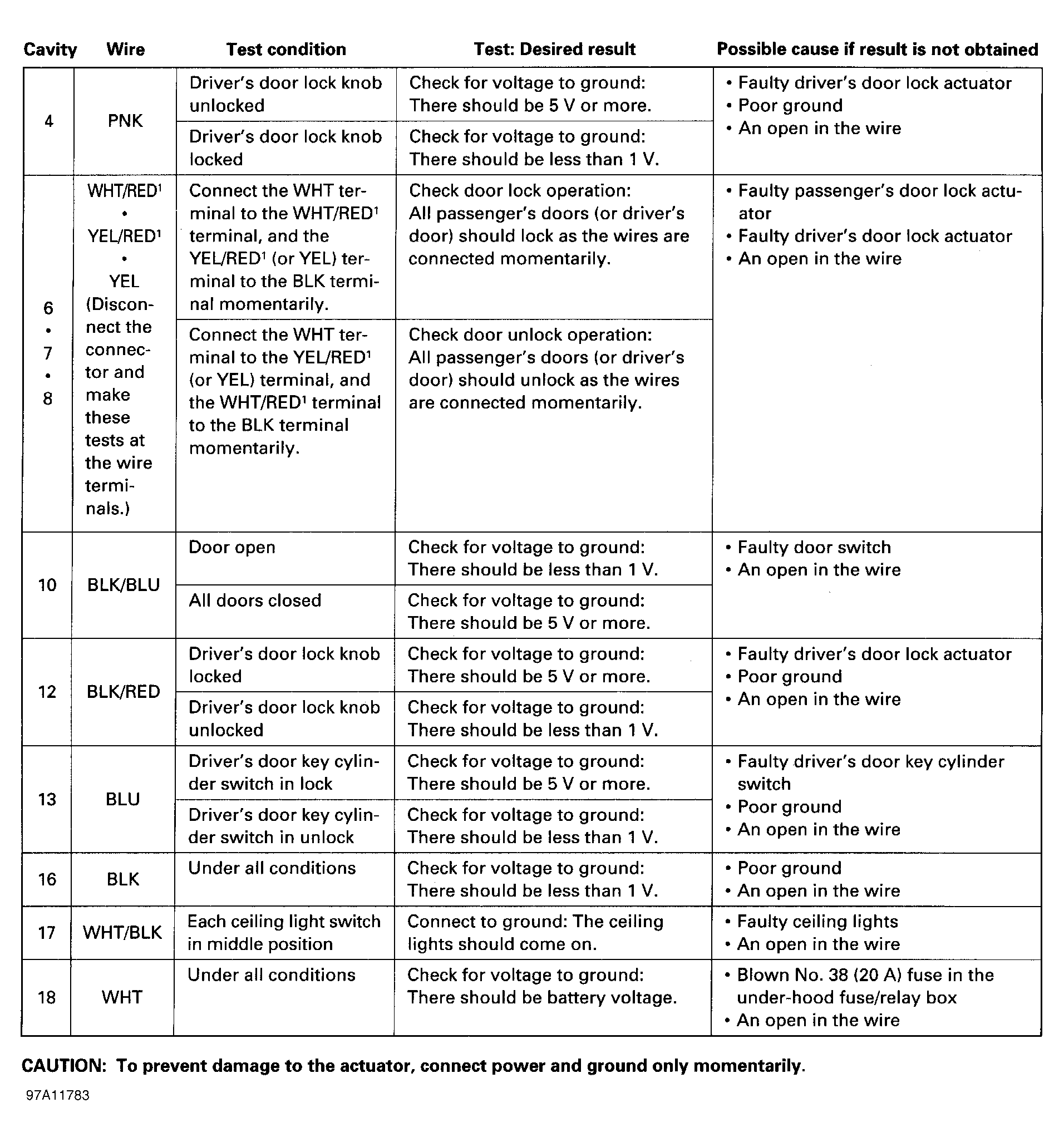

Fig 3: Power Door Locks Control Unit Input Test (With Keyless Entry System - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
