Cruise Control Unit Input
WARNING:
Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEM article. DO NOT
apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.
- Turn ignition off. Remove passenger-side heater lower cover. Cruise control unit is located under center of dash, behind center console. Unplug cruise control unit harness connector.

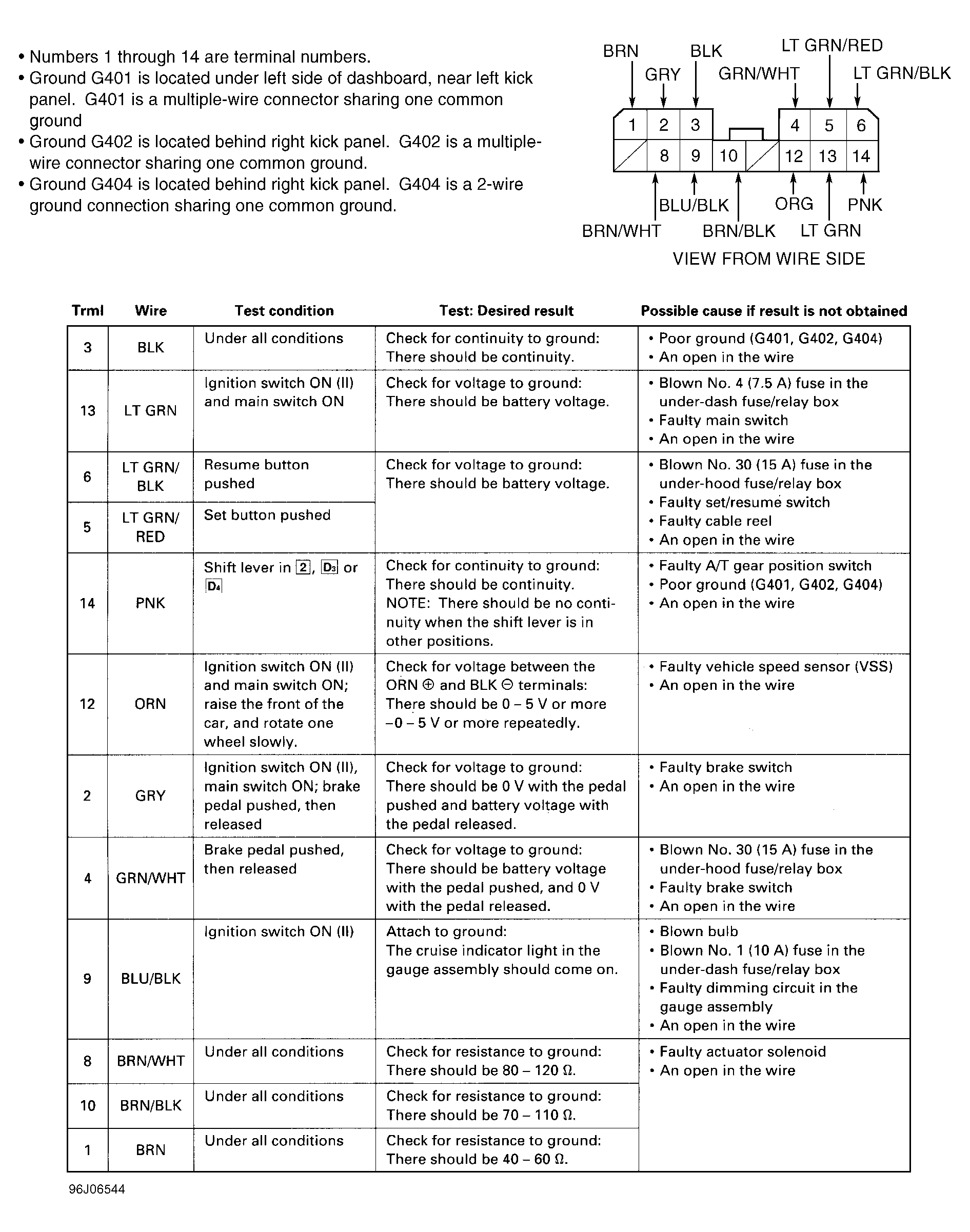

- Using a DVOM, perform cruise control unit input tests. SeeFig 1 . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
