DTC P0530 - A/C Refrigerant Pressure Sensor Circuit: Notes

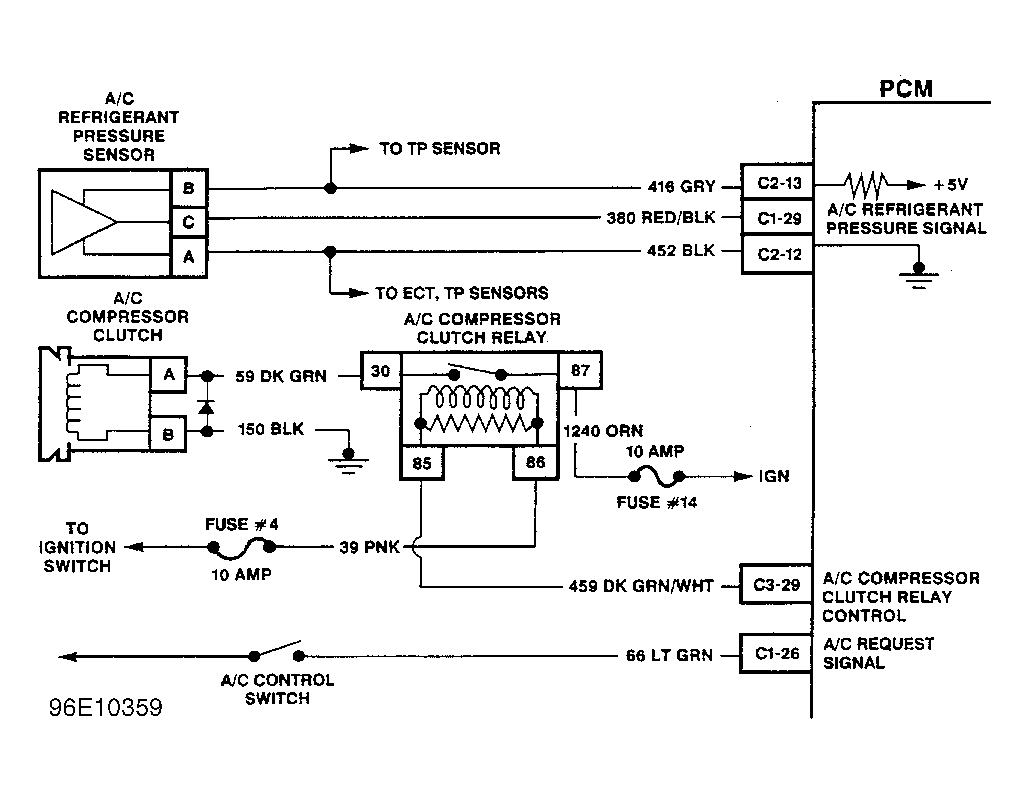

Fig 1: A/C Refrigerant Pressure Sensor Circuit (Hombre)

G96E10359

Courtesy of ISUZU MOTOR CO.
