DTC P0300 - Engine Misfire Detected: Notes

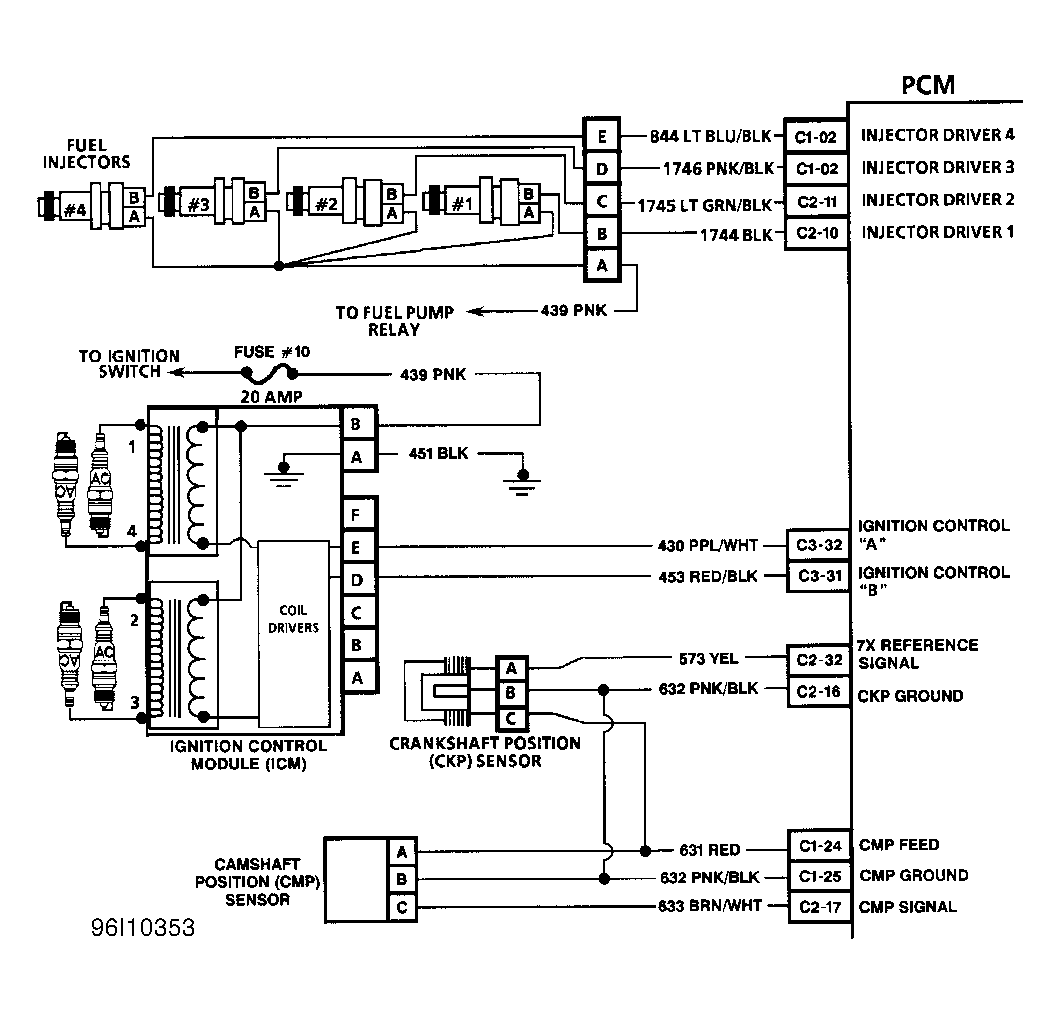

Fig 1: PCM, CKP Sensor & CMP Sensor Circuit (Hombre)

G96I10353

Courtesy of ISUZU MOTOR CO.
