Retrieving DTCS Using Abs Warning Light
- When ABS warning light remains on, EBCM will store DTCs and disable ABS system. If DTCs are not displayed, wiring harness from EBCM to ABS warning light may be disconnected. Check and repair harness if necessary.

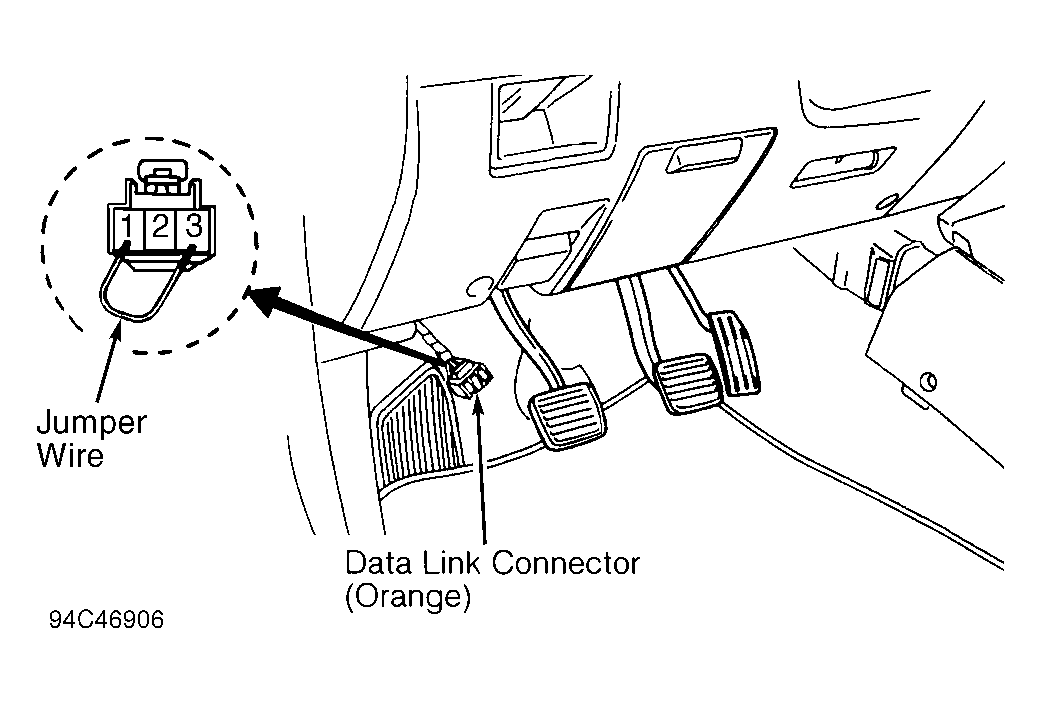

- Ensure ignition is off and brake pedal is released. Using a jumper wire, jumper specified Data Link Connector (DLC) terminals. See DLC SELF-DIAGNOSTIC TERMINALS table. See Fig 1 or Fig 2 . Turn ignition on. DTC will be displayed by flashing ABS warning light.
- A stored DTC will be displayed 3 times, each being separated by a 3.2 second pause. If multiple DTCs are set, second DTC will follow after first DTC is displayed a third time. All DTCs contain 2 digits. First digit of DTC is identified by a series of 0.4 second flashes. After a 1.2 second pause, second digit of DTC will follow in another series of 0.4 second flashes. If no DTCs have been stored, ABS warning light will repeat DTC 12 (system normal).
- Once DTCs are retrieved, proceed to DTC IDENTIFICATION . Identify DTC and perform test procedure specified. See SELF-DIAGNOSTIC TESTS . After repairs, DTCs must be cleared. See CLEARING DIAGNOSTIC TROUBLE CODES .
DLC SELF-DIAGNOSTIC TERMINALS
| Application | Terminals No. |
|---|---|
| 1995 | 1 & 3 |
| 1996 | 4 & 12 |
DTC IDENTIFICATION
| DTC & Component | Possible Malfunction | Go To TEST |
|---|---|---|
| 12 (Start Code) | Normal Display | N/A |
| 14 (EBCM Function) | Abnormality In Input/Output, Operational & Control Circuits | B-3 |
| 15 (Power Voltage Drop) | Power Circuit | B-4 |
| 21 ("G" Sensor) | Disconnected Wire | B-5 |
| 22 (Brakelight Switch) | Disconnected Wire | B-6 |
| 23 (Transmission Input) | Input Abnormality | B-7 |
| 32 (Hydraulic Motor & Motor Relay) | Shorted Or Disconnected Coil | B-8 |
| 41 (Left Front Solenoid Valve) | Shorted Or Disconnected Coil/Wiring | B-9 |
| 42 (Right Front Solenoid Valve) | Shorted Or Disconnected Coil/Wiring | B-9 |
| 44 (Rear Solenoid Valve) | Shorted Or Disconnected Coil/Wiring | B-9 |
| 45 (Solenoid Valve Relay) | Shorted Or Disconnected Coil/Wiring | B-10 |
| 51 (Left Front Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| 52 (Right Front Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| 53 (Left Rear Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| 54 (Right Rear Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| 61 (Left Front Speed Sensor) | Shorted Coil/Wiring | B-12 |
| 62 (Right Front Speed Sensor) | Shorted Coil/Wiring | B-12 |
| 63 (Left Rear Speed Sensor) | Shorted Coil/Wiring | B-12 |
| 64 (Right Rear Speed Sensor) | Shorted Coil/Wiring | B-12 |
| 65 (Sensor Signal Input) | Incorrect Number Of Teeth | B-13 |
