SRS Coil Assembly Centering

Turn SRS coil assembly clockwise to full stop, or until resistance is felt. Return coil about 3 turns and align NEUTRAL marks. See Fig 1 .

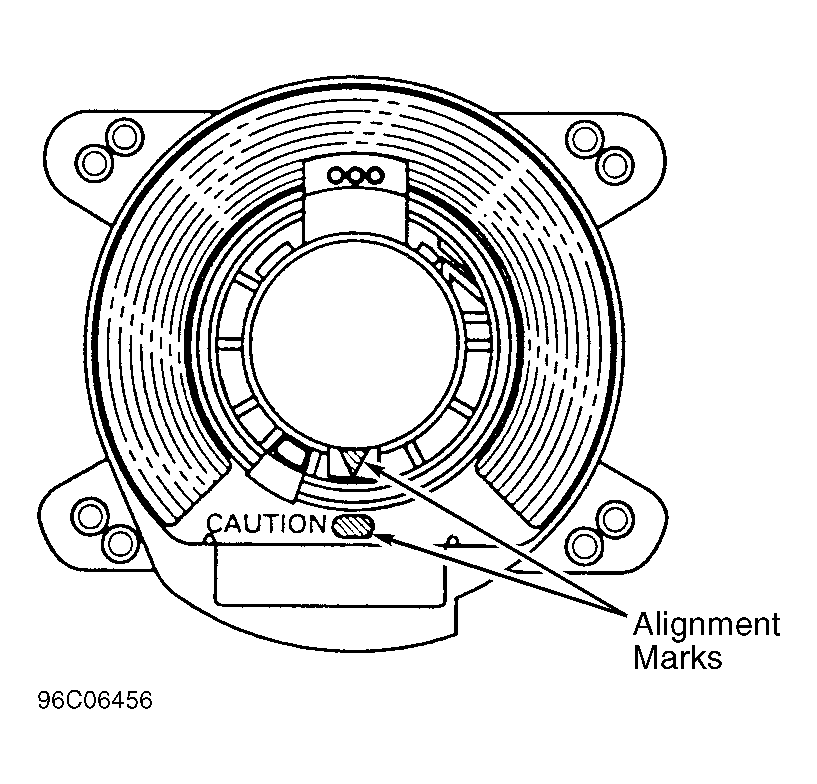

Fig 1: Centering SRS Coil Assembly

Courtesy of ISUZU MOTOR CO.
