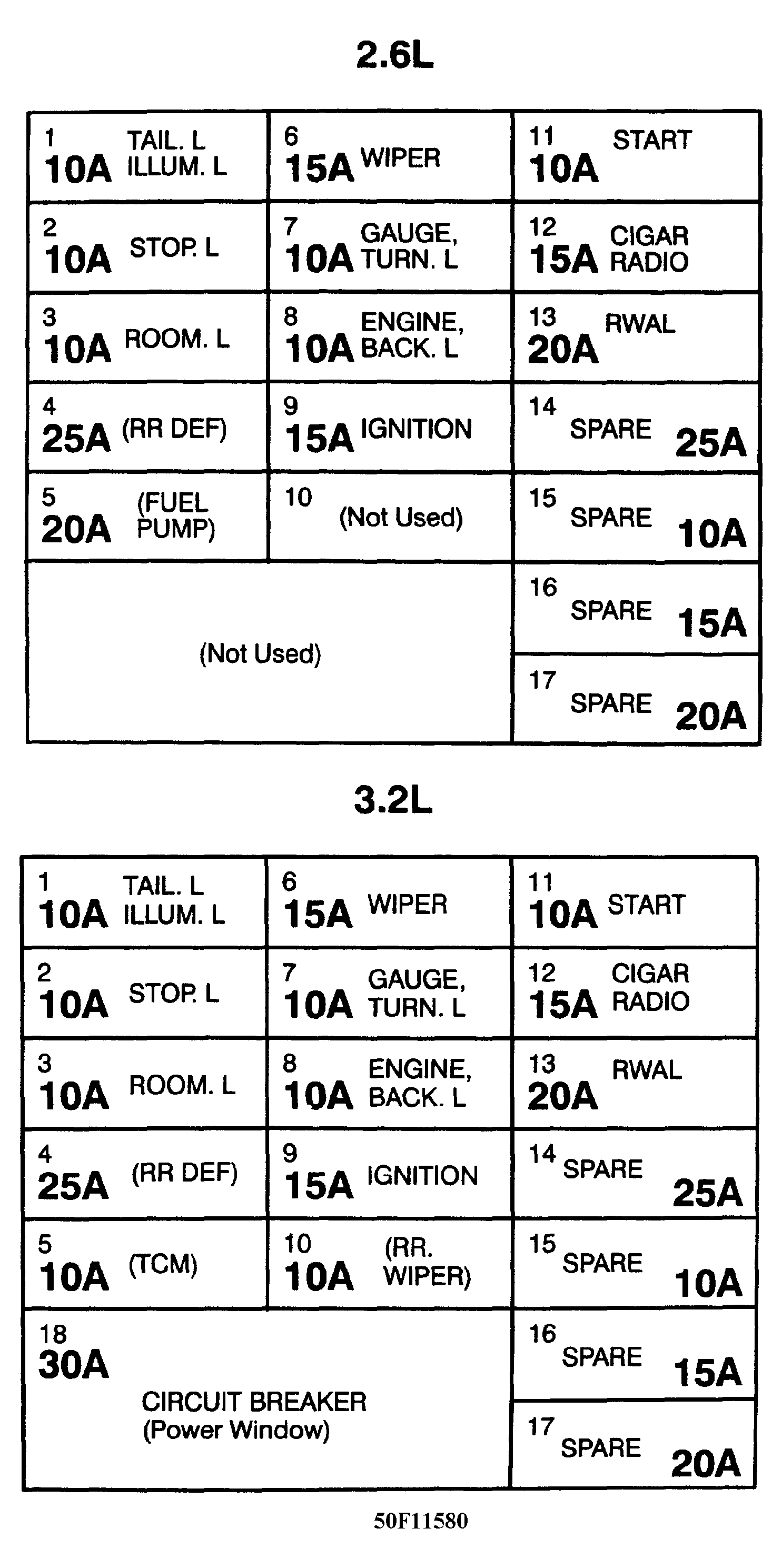

Dash Fuse Panel Identification (1995)
Courtesy of ISUZU MOTOR CO.
- 1 - 10 Amp
Taillights & Side Marker Lights, Parking & License Lights, Instrument Illumination
- 2 - 10 Amp
Stoplight, ECT Computer (4WD A/T)
- 3 - 10 Amp
Interior Lights, Cargo Light, Seat Belt Reminder (Buzzer), ECM Controller (2.6L Engine)
- 4 - 25 Amp
Rear Defogger, Power Door Locks, Tailgate Glass Release
- 5 - 10 Amp (3.2L)
Automatic Transmission Control Module (TCM), Back-up Lights
- 5 - 20 Amp (2.6L)
Fuel Pump, Fuel Injection System
- 6 - 15 Amp
Windshield Washer & Wiper, Mirror Defoggers
- 7 - 10 Amp (3.2L)
Indicators, Gauges, Turn Signal Lights, Power Windows, Vehicle Speed Sensor (VSS)
- 7 - 10 Amp (2.6L)
Indicators, Gauges, Turn Signal Lights, Rear Window Defogger
- 8 - 10 Amp (3.2L)
Charging System, Back-Up Lights, Fuel Injection System Cruise Control, Brake Lights
- 8 - 10 Amp (2.6L)
Charging System, Back-Up Lights, Fuel Injection System
- 9 - 15 Amp
Ignition Coil
- 10 - 10 Amp
Rear Wiper/Washer
- 11 - 10 Amp (3.2L)
Starting System
- 11 - 10 Amp (2.6L)
Starter, Engine Control Module (ECM)
- 12 - 15 Amp
Cigarette Lighter, Radio, Power Mirrors
- 13 - 20 Amp
Rear Wheel Anti-Lock Control
- 14 - 25 Amp (Spare)
- 15 - 10 Amp (Spare)
- 16 - 15 Amp (Spare)
- 17 - 20 Amp (Spare)
- 18 - 30 Amp (Circuit Breaker)
Power Window
