Additional Service Points (Gasoline Engines)

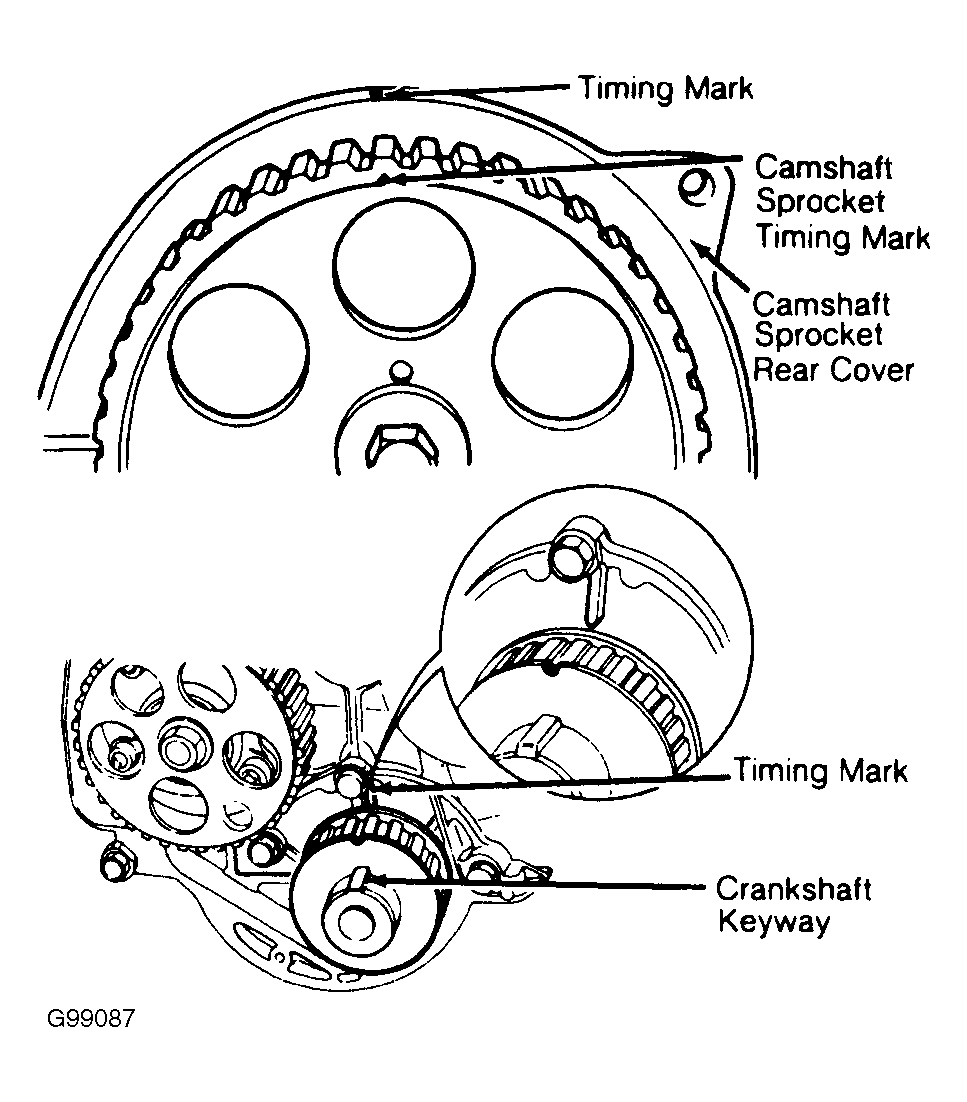

Fig 1: Aligning Camshaft Timing Marks (2.6L SOHC)

Courtesy of ISUZU MOTOR CO.

NOTE: For more information regarding camshaft timing belt service refer to the 2.3L 4-CYL - VIN [L] & 2.6L 4-CYL - VIN [E] article in the ENGINE MECHANICAL section.

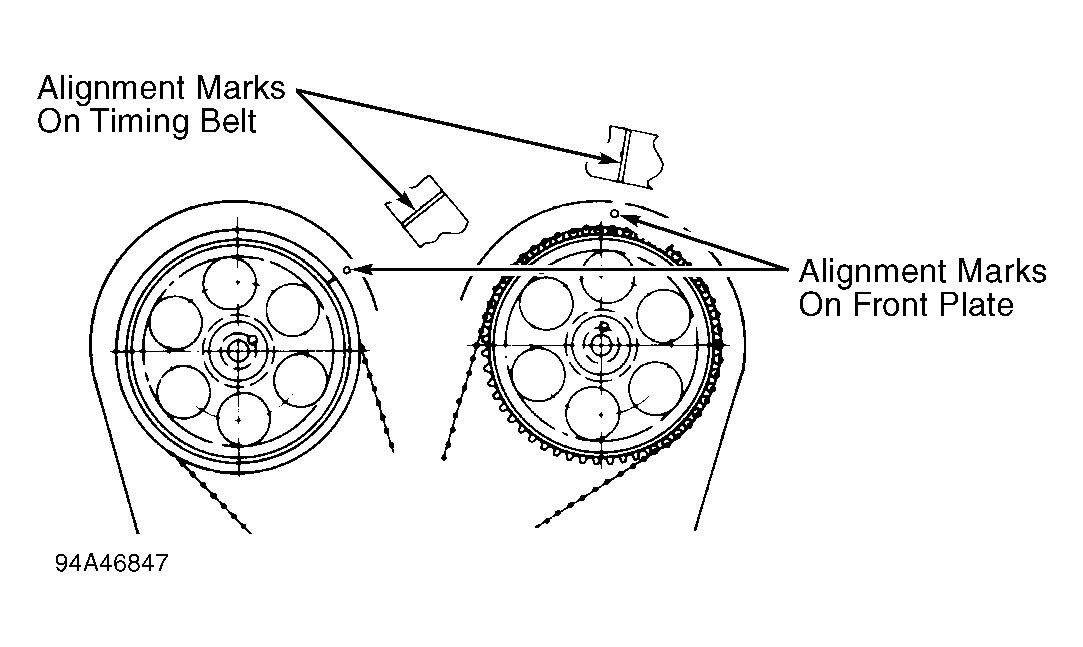

Fig 2: Aligning Camshaft Timing Marks (3.2L SOHC)

Courtesy of ISUZU MOTOR CO.

NOTE: For more information regarding camshaft timing belt service refer to the 3.2L V6 - VINS [V,W] article in the ENGINE MECHANICAL section.

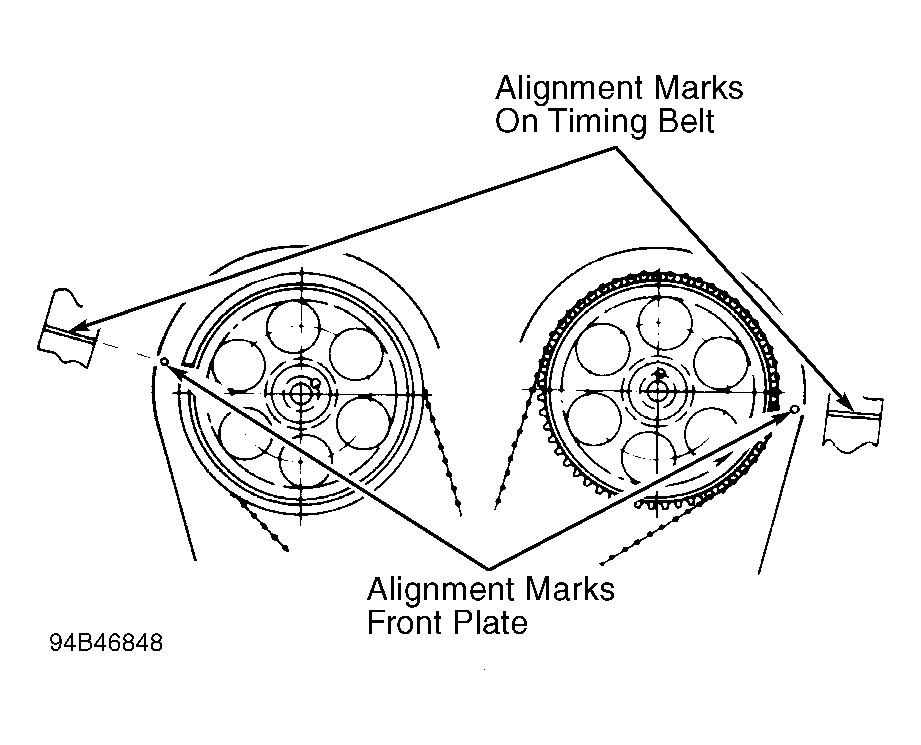

Fig 3: Aligning Camshaft Timing Marks (3.2L DOHC)

Courtesy of ISUZU MOTOR CO.

NOTE: For more information regarding camshaft timing belt service refer to the 3.2L V6 - VINS [V,W] article in the ENGINE MECHANICAL section.
