Temperature Gauge: 2.6L

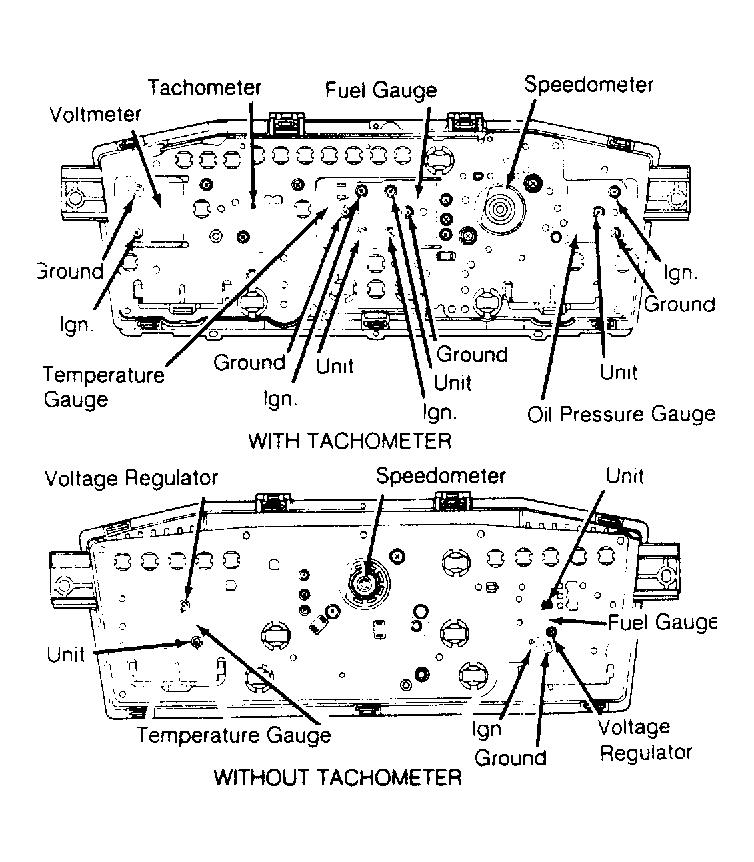

Remove instrument cluster from vehicle. Using an ohmmeter measure resistance between the specified terminals. SeeFigure . See TEMPERATURE GAUGE RESISTANCE . If any resistance is not as specified, replace gauge.
TEMPERATURE GAUGE RESISTANCE
| Measuring Points | Ohms | |
|---|---|---|
| With Tachometer | ||
| IGN & Ground | 197 | |
| IGN & UNIT | 88 | |
| UNIT & Ground | 109 | |
| Without Tachometer Regulator & UNIT | 25 | |
