Rear Wiper Motor

Connect positive battery terminal to terminal No. 4 and negative battery terminal to terminal No. 3 of wiper motor connector. SeeFig 1 . Ensure wiper motor operates.

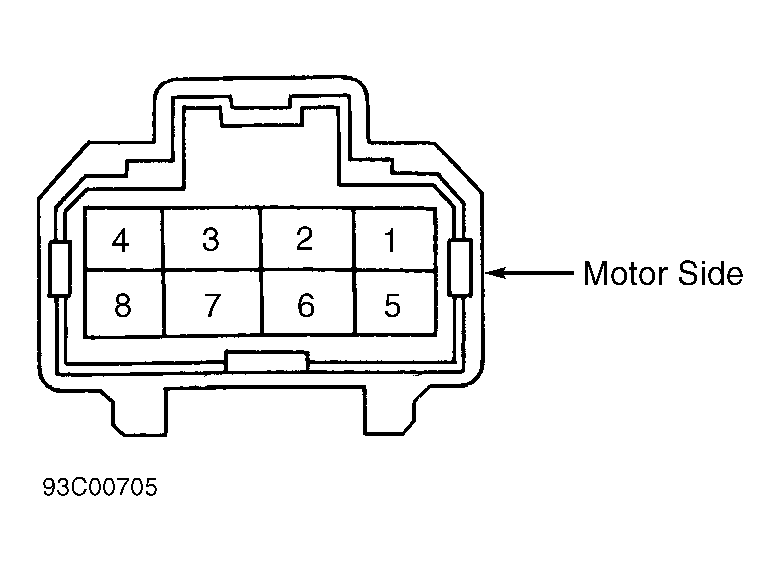

Fig 1: Identifying Rear Wiper Motor Terminals (Rodeo)

Courtesy of ISUZU MOTOR CO.
