Intermittent Relay

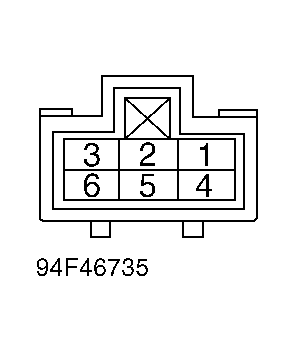

Intermittent relay is located in fuse/relay box in engine compartment, on passenger side. Disconnect intermittent relay connector. Apply battery voltage (positive) to relay terminals No. 3 and 6. SeeFigure . Connect ground to relay terminal No. 1. Using a voltmeter, ensure battery voltage is present (intermittent) at relay terminal No. 2. If battery voltage is not present, replace relay.
