Front Wiper Switch

Disconnect wiper switch connector. Using ohmmeter, check continuity between specified terminals. SeeFig 1 . Replace switch if continuity does not exist between specified terminals.

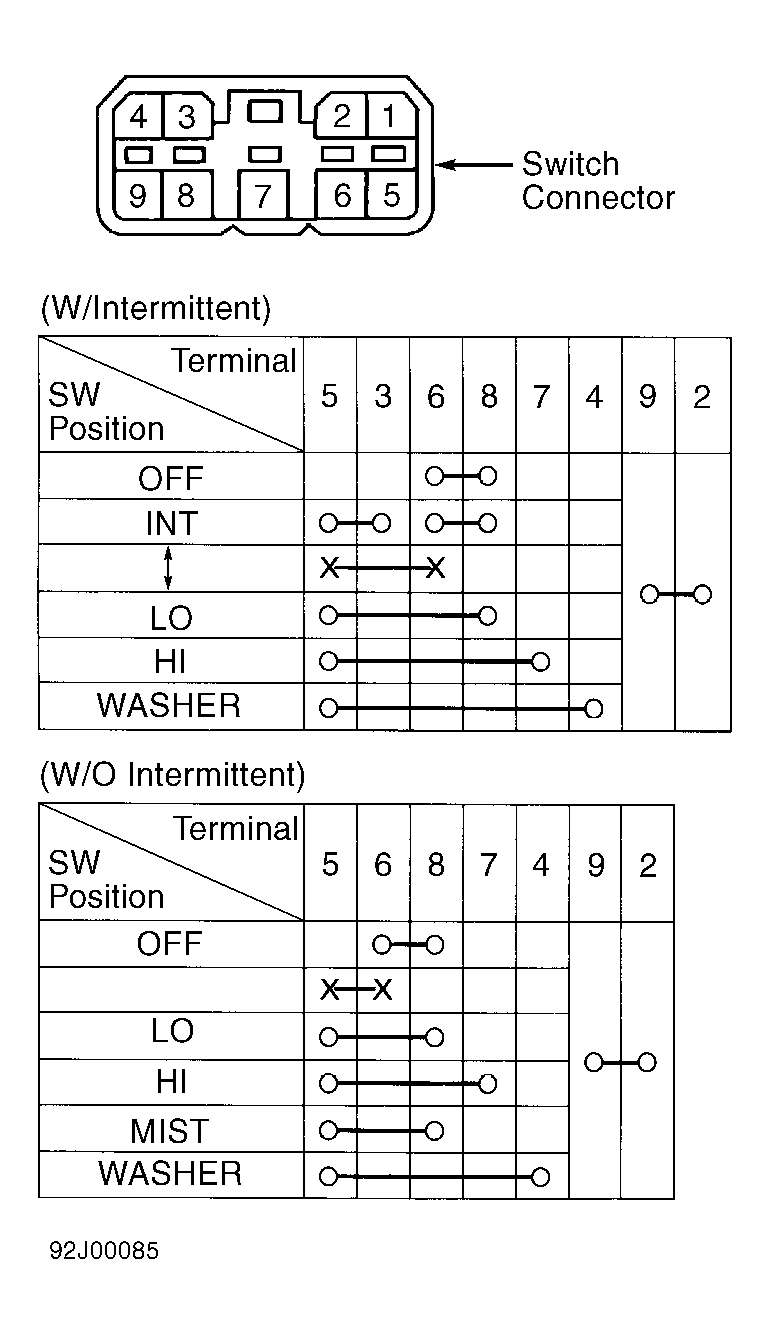

Fig 1: Checking Front Wiper Switch (Rodeo)
G92J00085Courtesy of ISUZU MOTOR CO.
