Alternator & Regulator - HITACHI: Overhaul

Disassemble parts in order of numbered steps shown. Refer to Fig 1. Ensure brushes are not worn beyond limit line or measure brush length. If brush length is less than .21" (5.5 mm), replace brush and brush holder. New brush length is .709" (18 mm). Reverse disassembly procedure for reassembly.

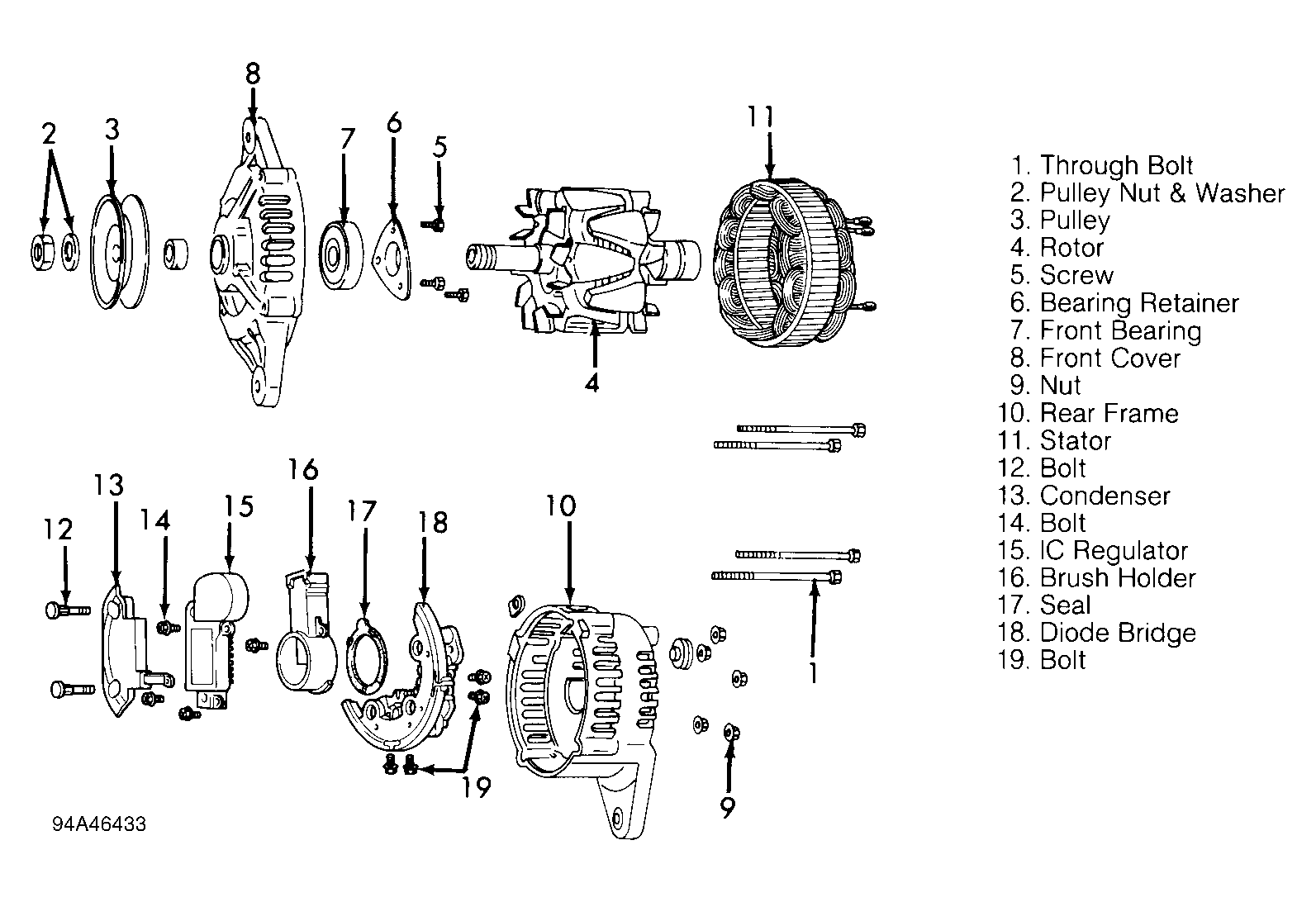

Fig 1: Exploded View Of Hitachi 50 Or 60-Amp Alternator

Courtesy of ISUZU MOTOR CO.
