Test No. 3 - Will Not Flash Code 12

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.
Fig 1: Airflow Sensor Connector
G93E78786Courtesy of ISUZU MOTOR CO.
Fig 2: Data Link Connector
G93F78787Courtesy of ISUZU MOTOR CO.

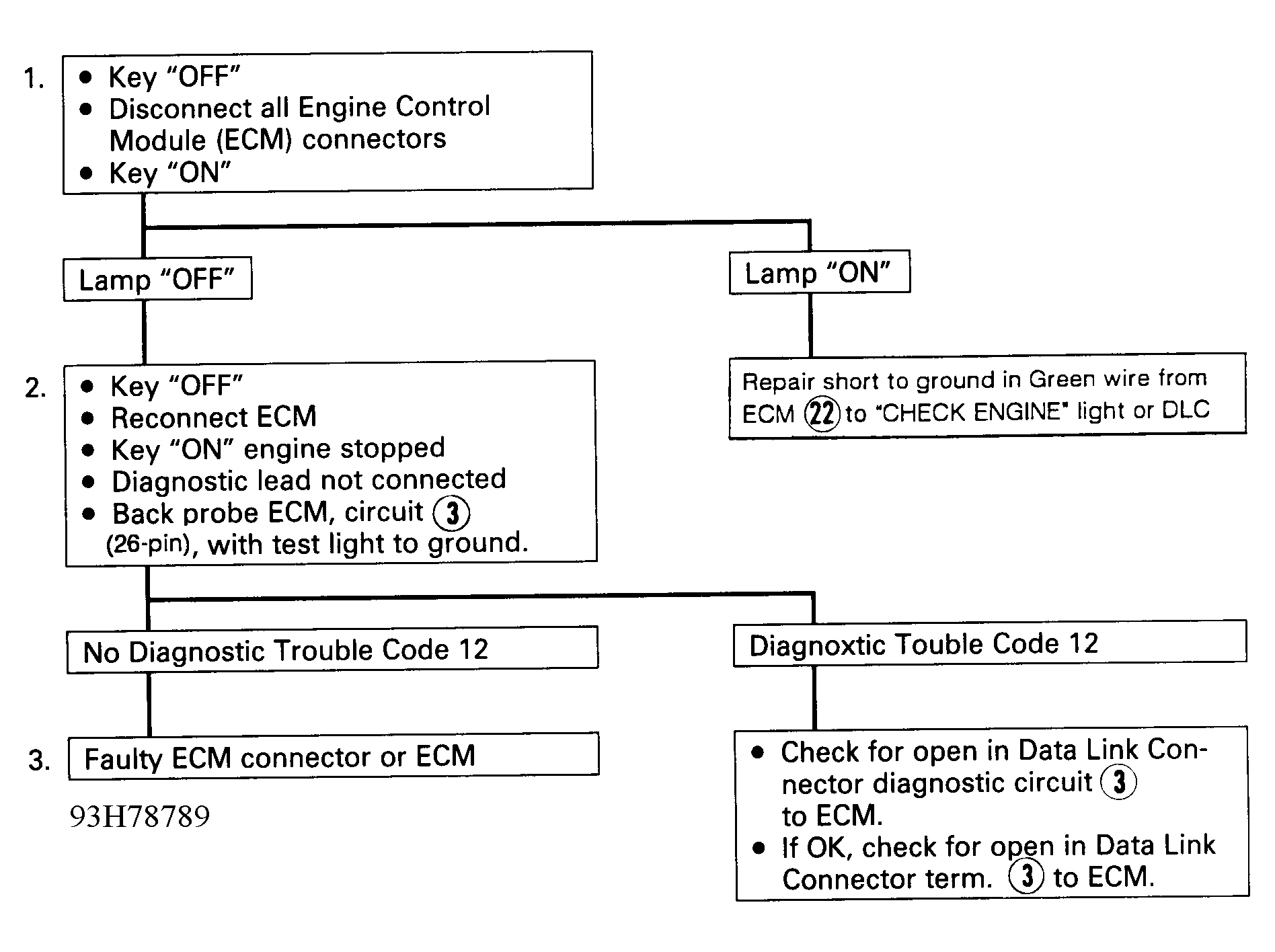

Fig 3: Test No. 3 - Diagnostic Flowchart
G93H78789Courtesy of ISUZU MOTOR CO.
