Code 61 & 62 - Airflow Sensor Signal

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

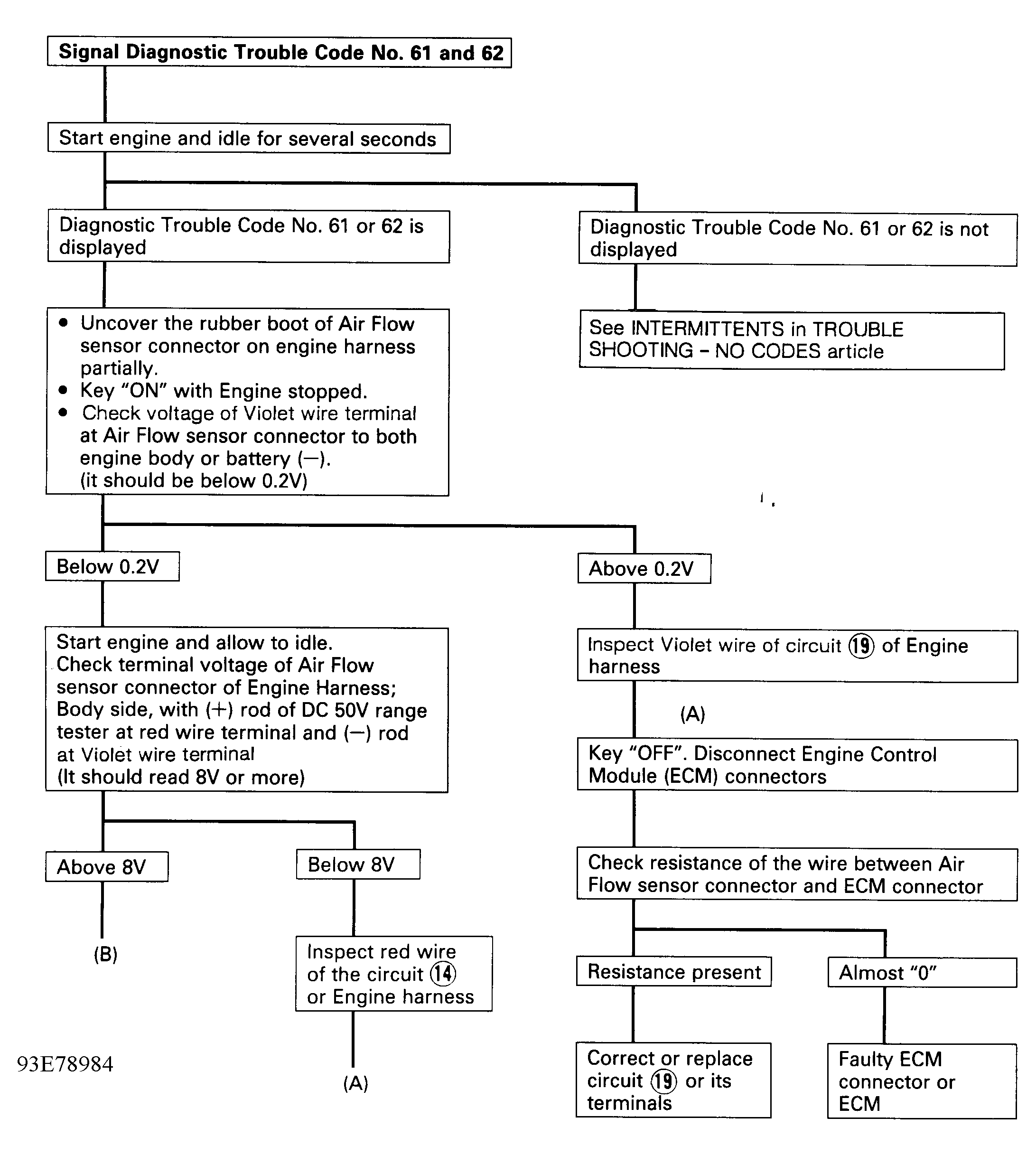

Fig 1: Code 61, 62 - Diagnostic Flowchart (1 Of 2)

Courtesy of ISUZU MOTOR CO.

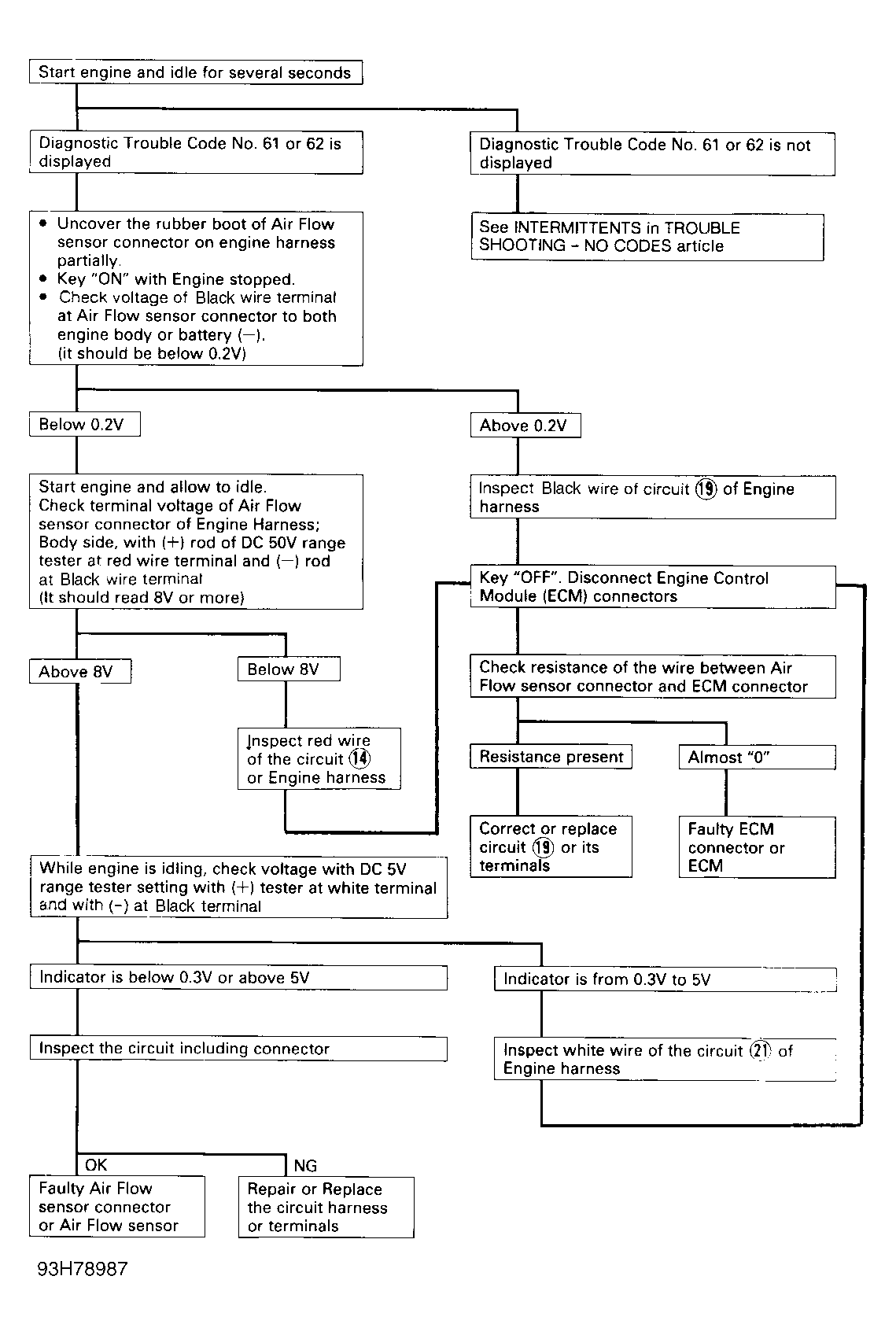

Fig 2: Code 61, 62 - Diagnostic Flowchart (2 Of 2)

Courtesy of ISUZU MOTOR CO.
