Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Under passenger's seat. | |
| Elapsed Timer Module (3.1L) | Under right side of dash. See Figure . | |
| Engine Control Module (ECM) | ||

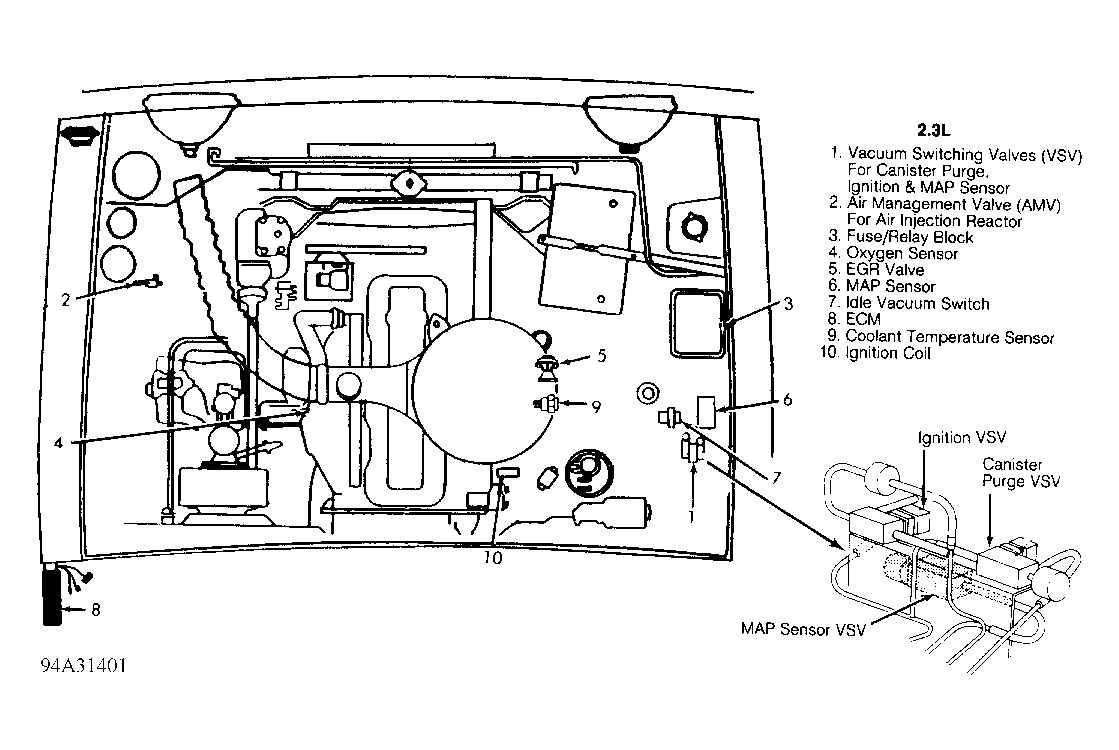

| 2.3L | Behind left kick panel. See Figure . | |

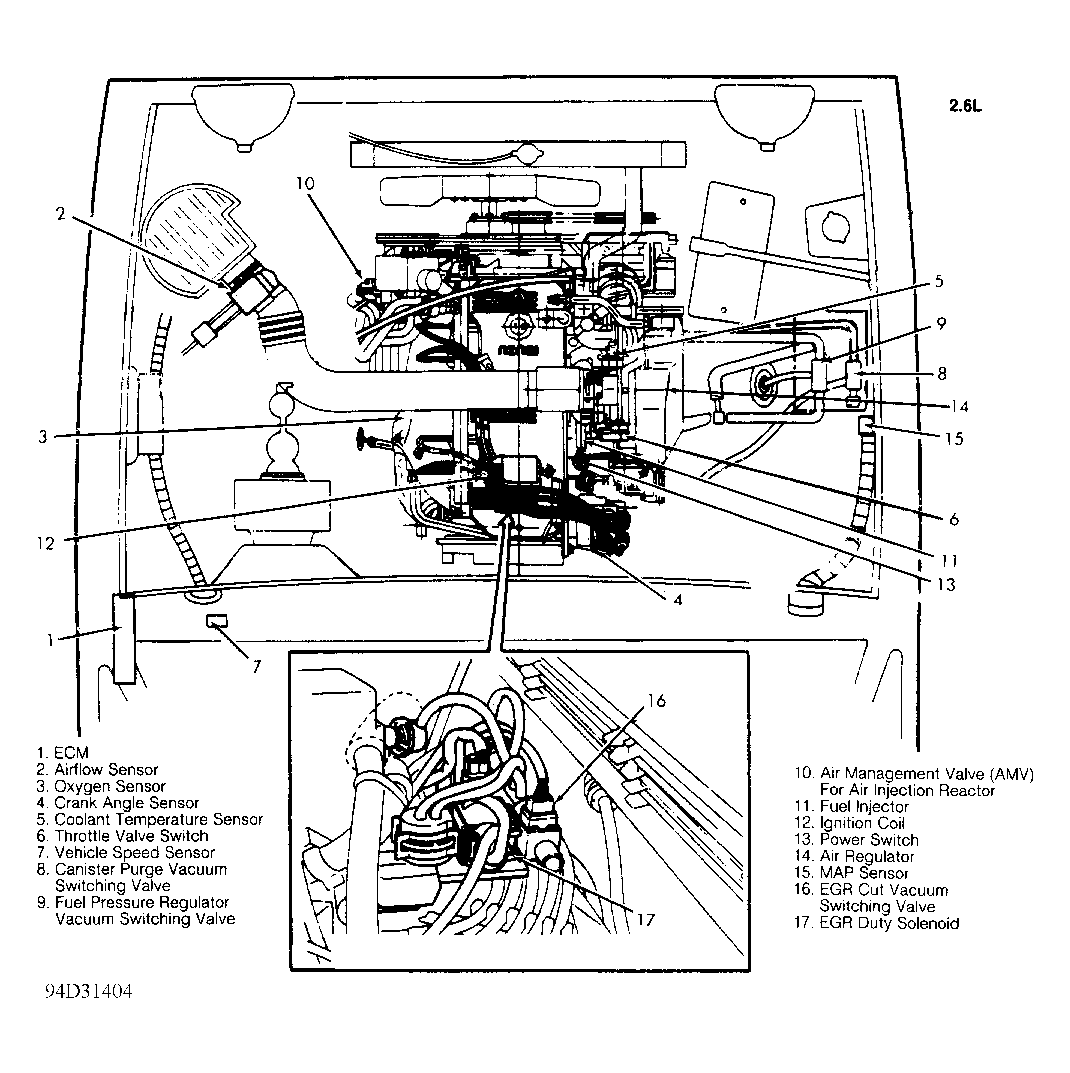

| 2.6L | Behind left kick panel. See Figure & Figure . | |

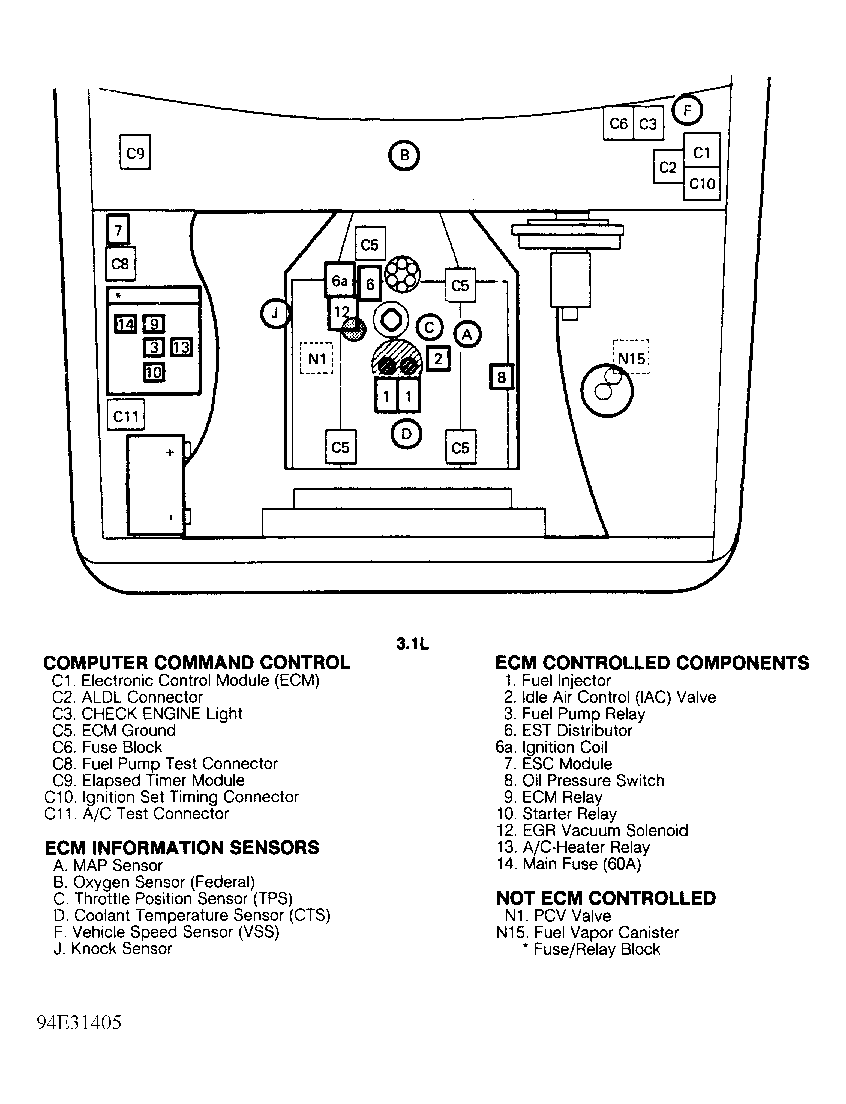

| 3.1L | Behind left kick panel. See Figure . | |
| Ignition Control Module (2.3L & 3.1L) | In distributor. | |
| Knock Sensor Module (3.1L) | On right side of engine compartment, on bracket. See Figure . | |
| Shift Lock Control Unit | Under center console, at base of gear selector. | |
