Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block On left side of dash, behind access panel. See Figure .

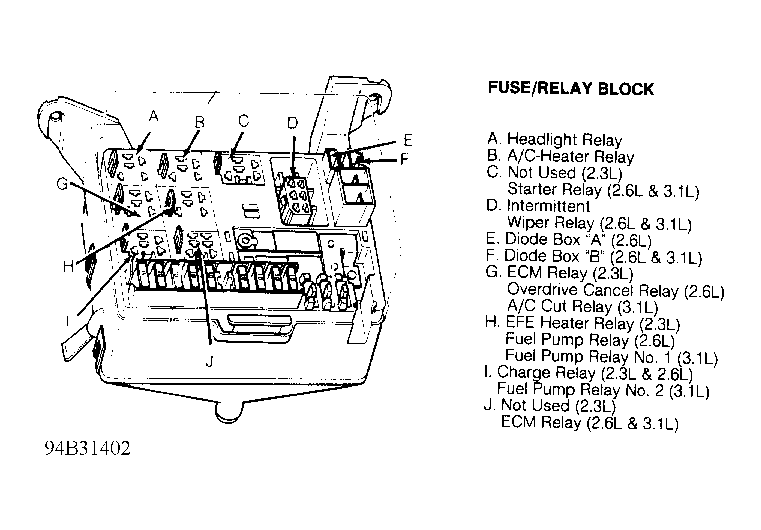

Fuse/Relay Block Location (2.3L) On right side of engine compartment, near battery. See Figure .
Fuse/Relay Block On right side of engine compartment, near battery. See Figure .
Fuse/Relay Block Location (3.1L) On right side of engine compartment, near battery. See Figure .
