Fuel Gauge

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Remove fuel gauge from instrument cluster and connect ohmmeter to fuel gauge terminals. SeeFig 1 . Measure resistance of fuel gauge. See FUEL GAUGE RESISTANCE . If resistance is not as specified, replace gauge.

FUEL GAUGE RESISTANCE

Measuring Points ⁽¹⁾

Ohms

(+) & Fuel "U"

Fuel "U" & (-)

(+) & (-)

⁽²⁾ 105

⁽¹⁾	SeeFig 1 to identify measuring points. All resistance values are plus or minus 10 percent.

⁽²⁾	Resistance value between (+) and (-) include oil pressure meter resistance since these terminals are shared.

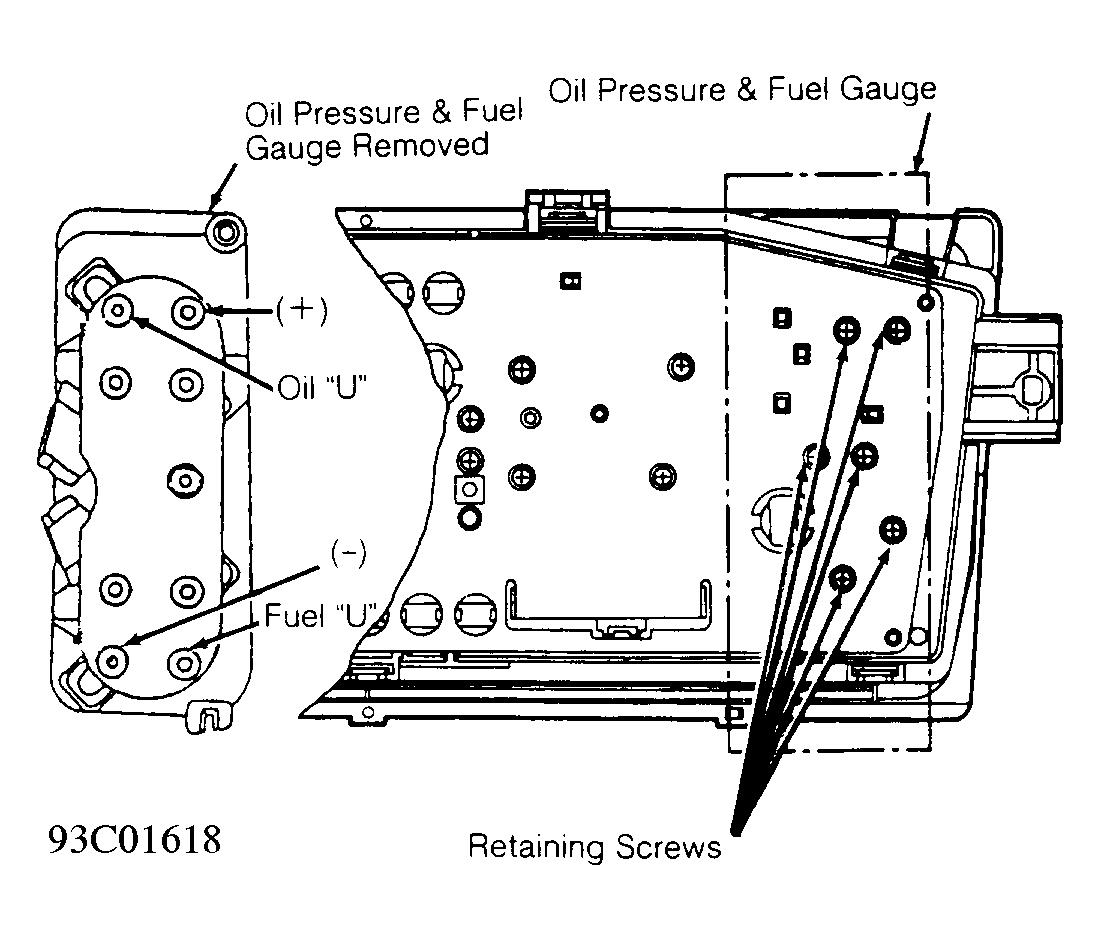

Fig 1: Measuring Oil Pressure & Fuel Gauge Resistance

Courtesy of ISUZU MOTOR CO.
