Ignition Switch/Column Lock Assembly: Installation

1. To install, reverse removal procedure. Install NEW shear bolts and temporarily tighten shear bolts finger tight. Ensure proper operation of steering lock and ignition switch mechanism.
2. With ignition switch in LOCK position, tighten shear bolts until heads break off. Connect ignition switch wiring connectors. Install combination switch (if removed) and tie-strap harnesses to column. Install upper and lower steering column shrouds, steering wheel and horn pad.

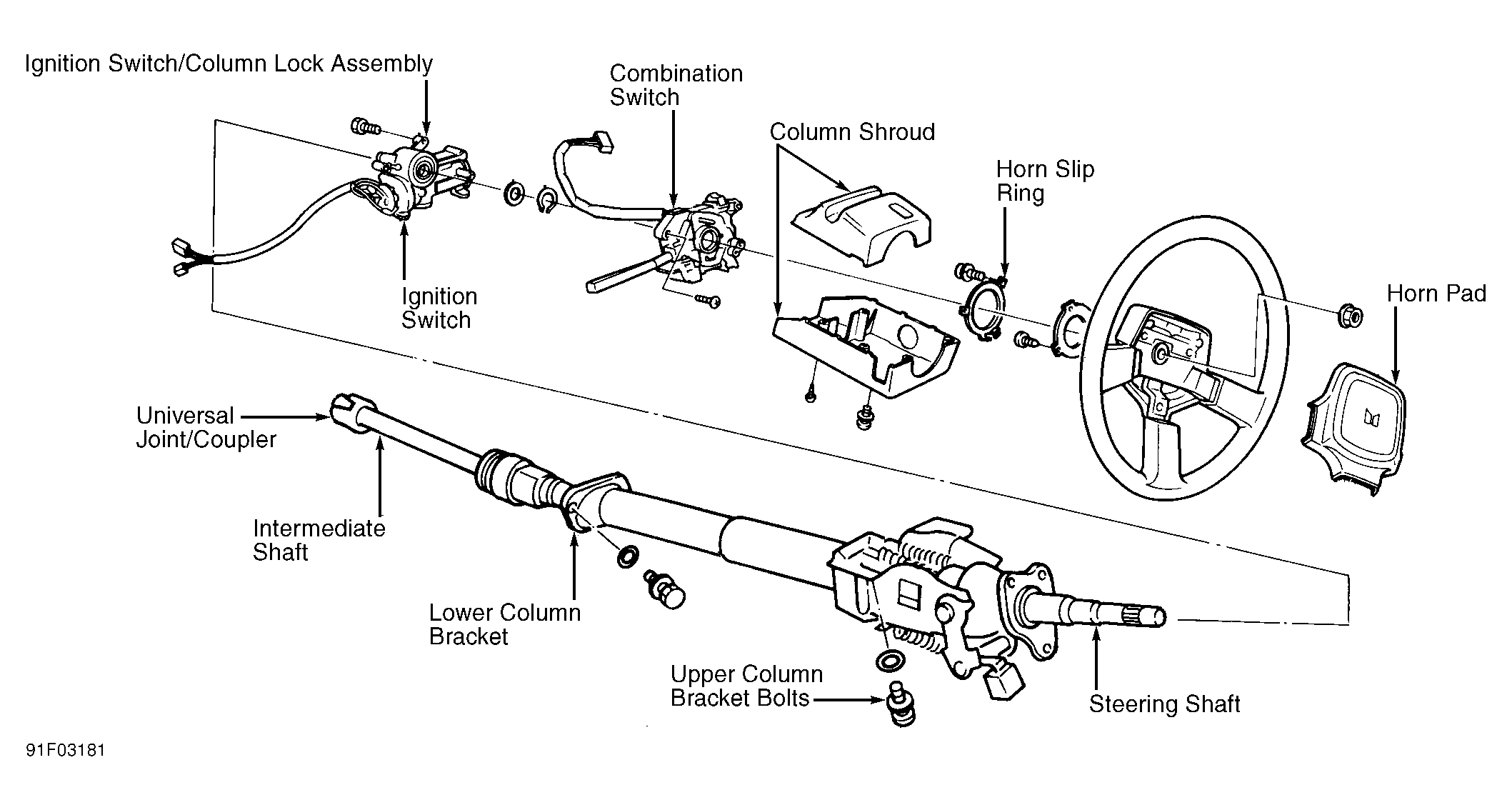

Fig 1: Exploded View Of Steering Column (Typical)

Courtesy of ISUZU MOTOR CO.
