Engine Controls - System/Component Tests - EFI
>>
Idle Control System
>>
Idle Air Control Valve (Pickup 3.1L)
Idle Air Control Valve (Pickup 3.1L)

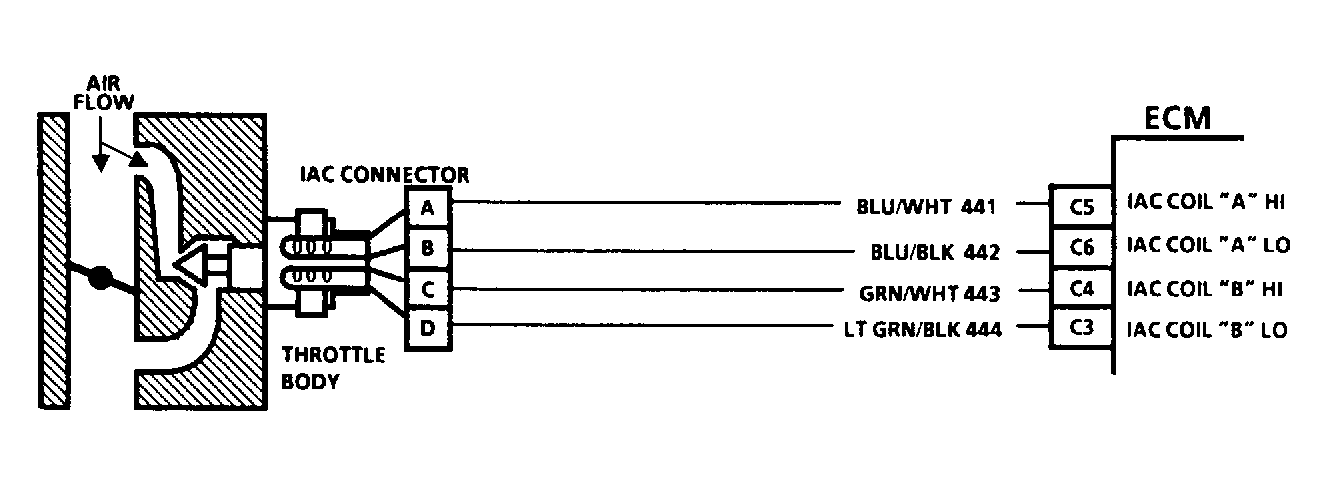

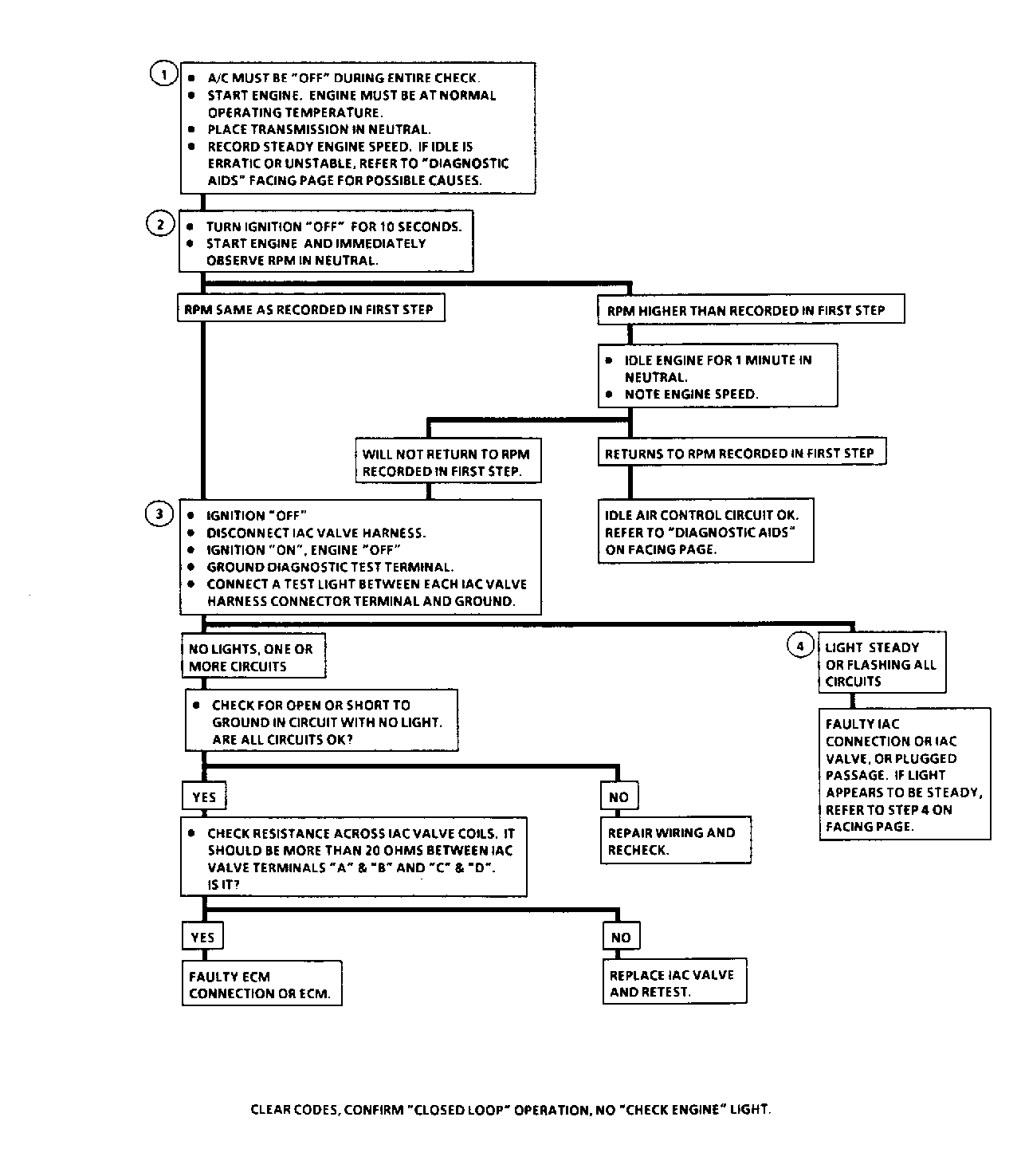

For Idle Air Control (IAC) valve testing, proceed to CHART C-2C. See
Figure
and
Figure
.
