System Function

Disconnect cruise control module connector. For system testing and diagnosis, test from harness side of connector. SeeFig 1 . Ensure ignition switch is in ON position and cruise control main switch is on.

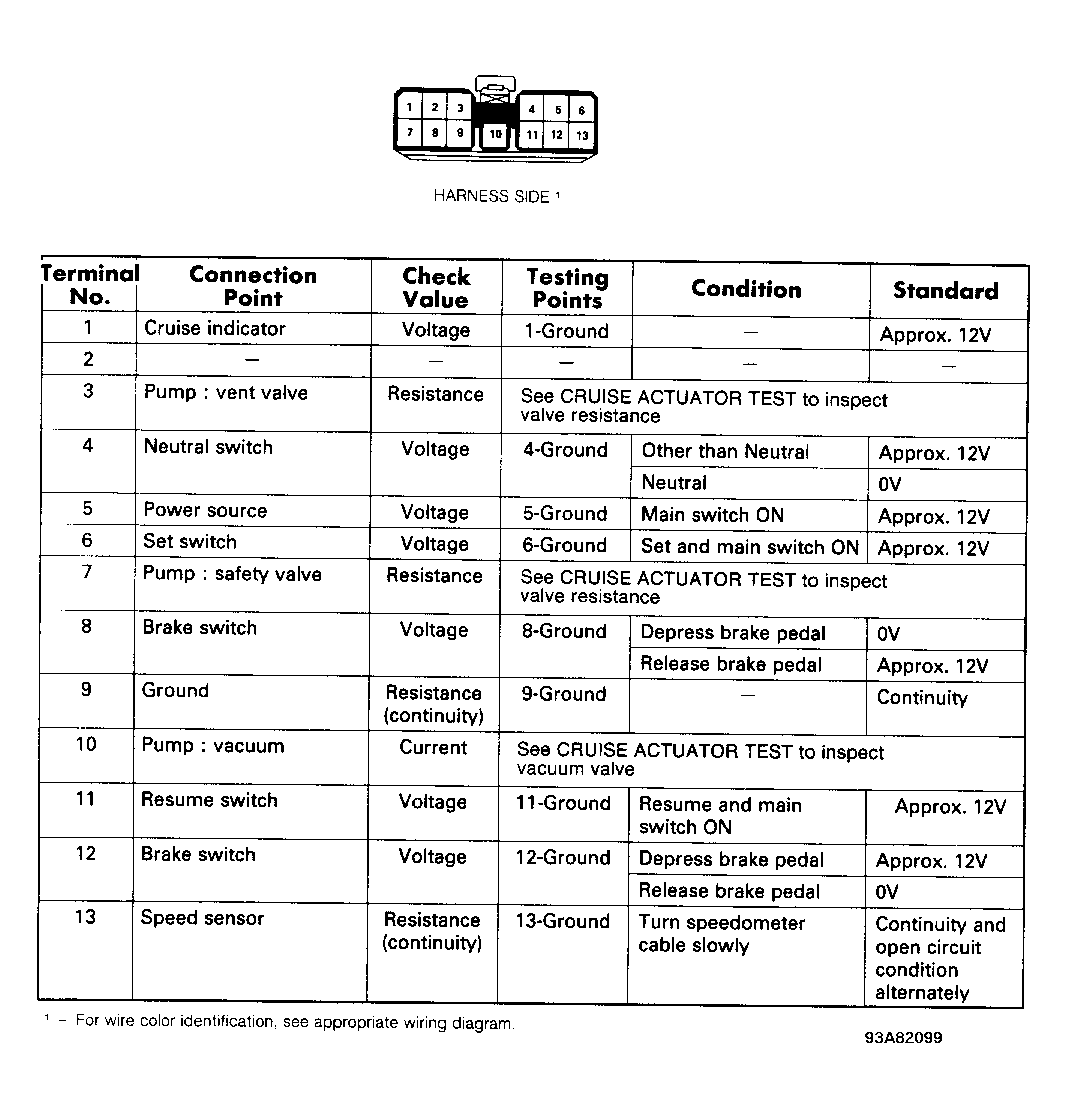

Fig 1: System Function Testing Chart
G93A82099Courtesy of ISUZU MOTOR CO.
