Cruise Control Main Switch

Disconnect cruise control switch harness connector. Test for continuity at appropriate connector terminals. SeeFig 1 .

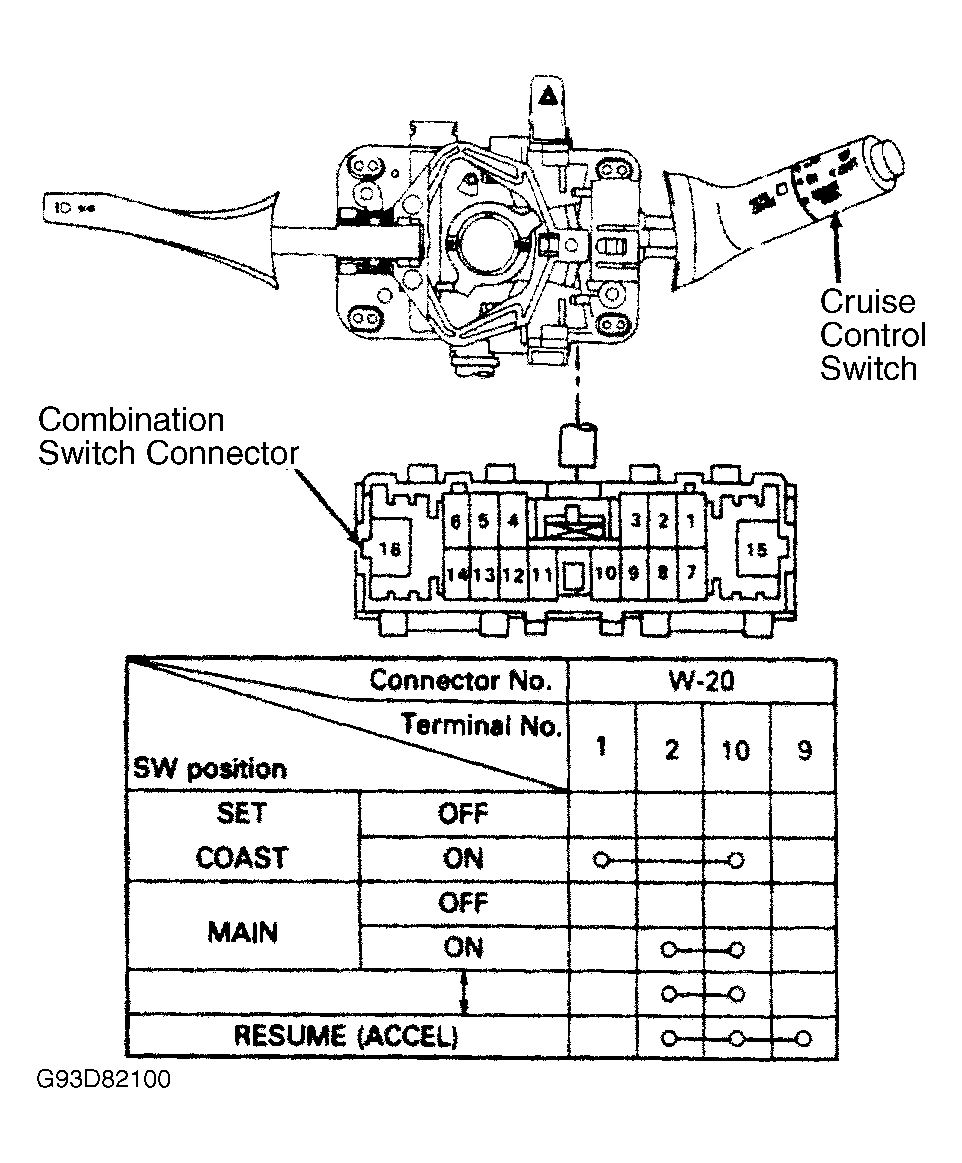

Fig 1: Testing Cruise Control Main Switch
G93D82100Courtesy of ISUZU MOTOR CO.
