Code 4 - Closed Anti-Lock Valve Switch

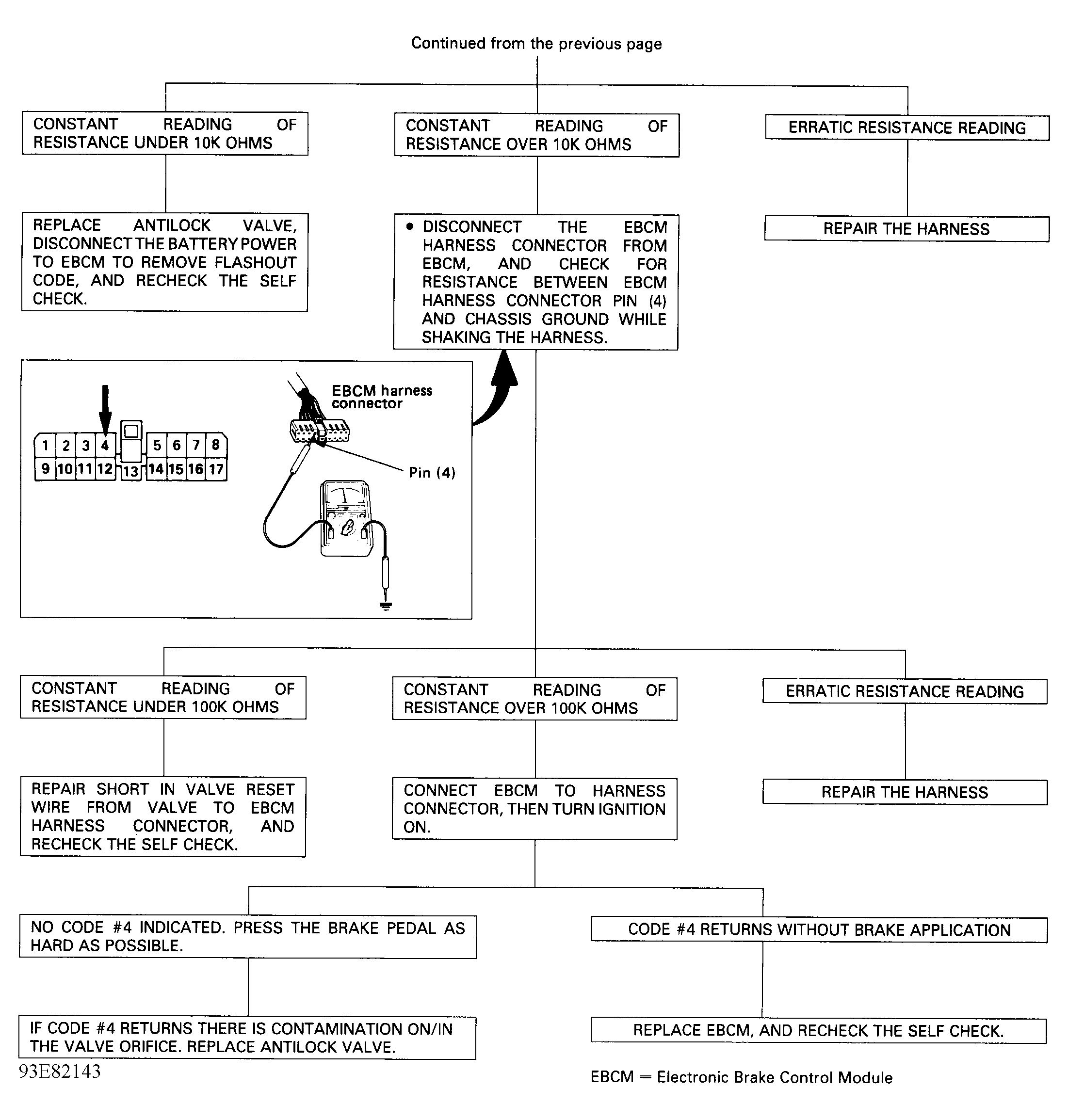

Fig 1: CODE 4 - (1 of 3) Closed Anti-Lock Valve Switch

Courtesy of ISUZU MOTOR CO.

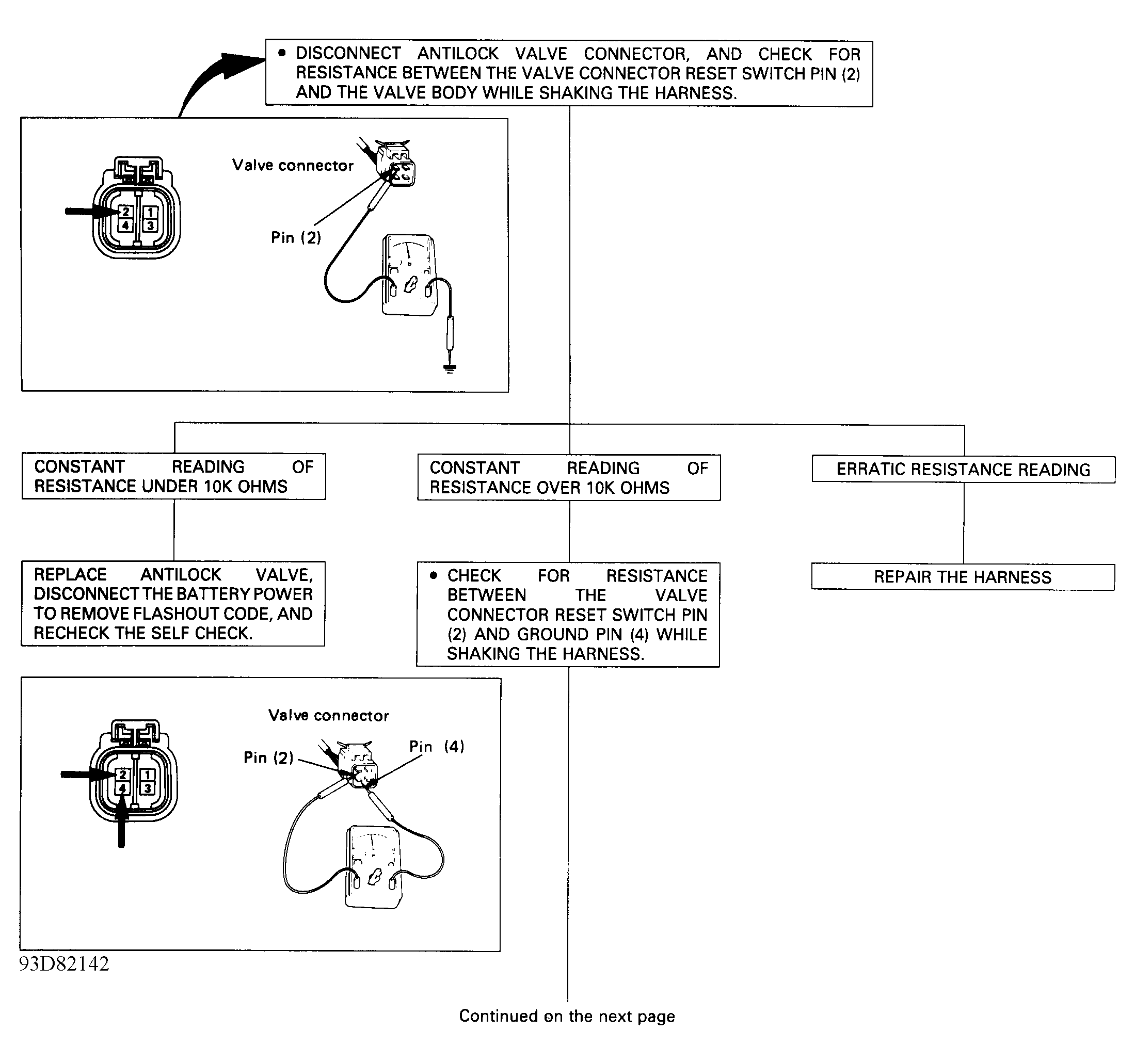

Fig 2: CODE 4 - (2 of 3) Closed Anti-Lock Valve Switch

Courtesy of ISUZU MOTOR CO.

Fig 3: CODE 4 - (3 of 3) Closed Anti-Lock Valve Switch

Courtesy of ISUZU MOTOR CO.
