Home >> Isuzu >> 1993 >> Rodeo LS, 4WD, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Rear Wheel >> Diagnostic Code Charts >> Code 10 - Low Speed Sensor Resistance

Code 10 - Low Speed Sensor Resistance

Fig 1: CODE 10 - (1 of 2) Low Speed Sensor Resistance

G92C01147

Courtesy of ISUZU MOTOR CO.

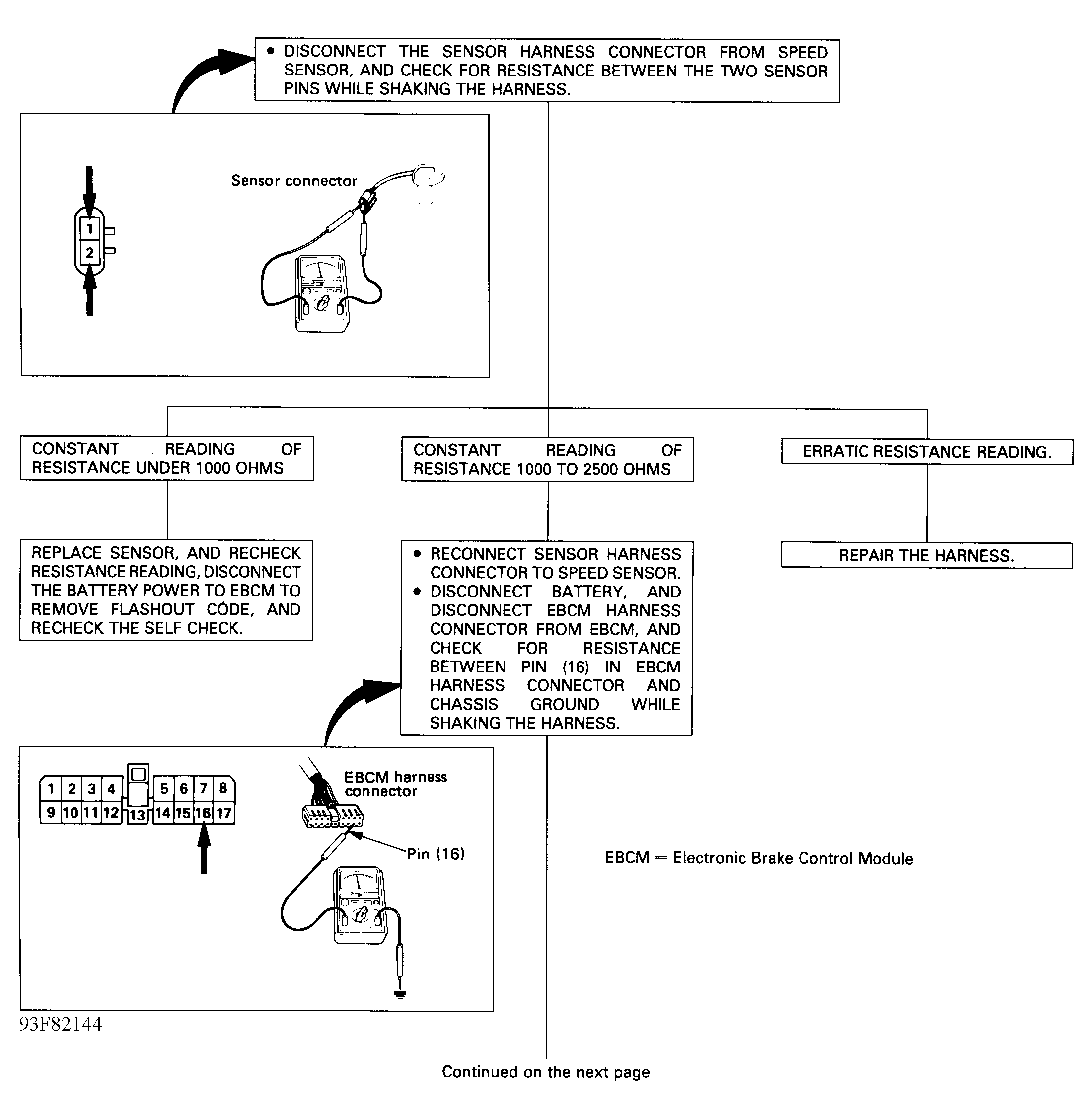

Fig 2: CODE 10 - (2 of 2) Low Speed Sensor Resistance

G93F82144

Courtesy of ISUZU MOTOR CO.
