Code 52 - Faulty ECM Ram

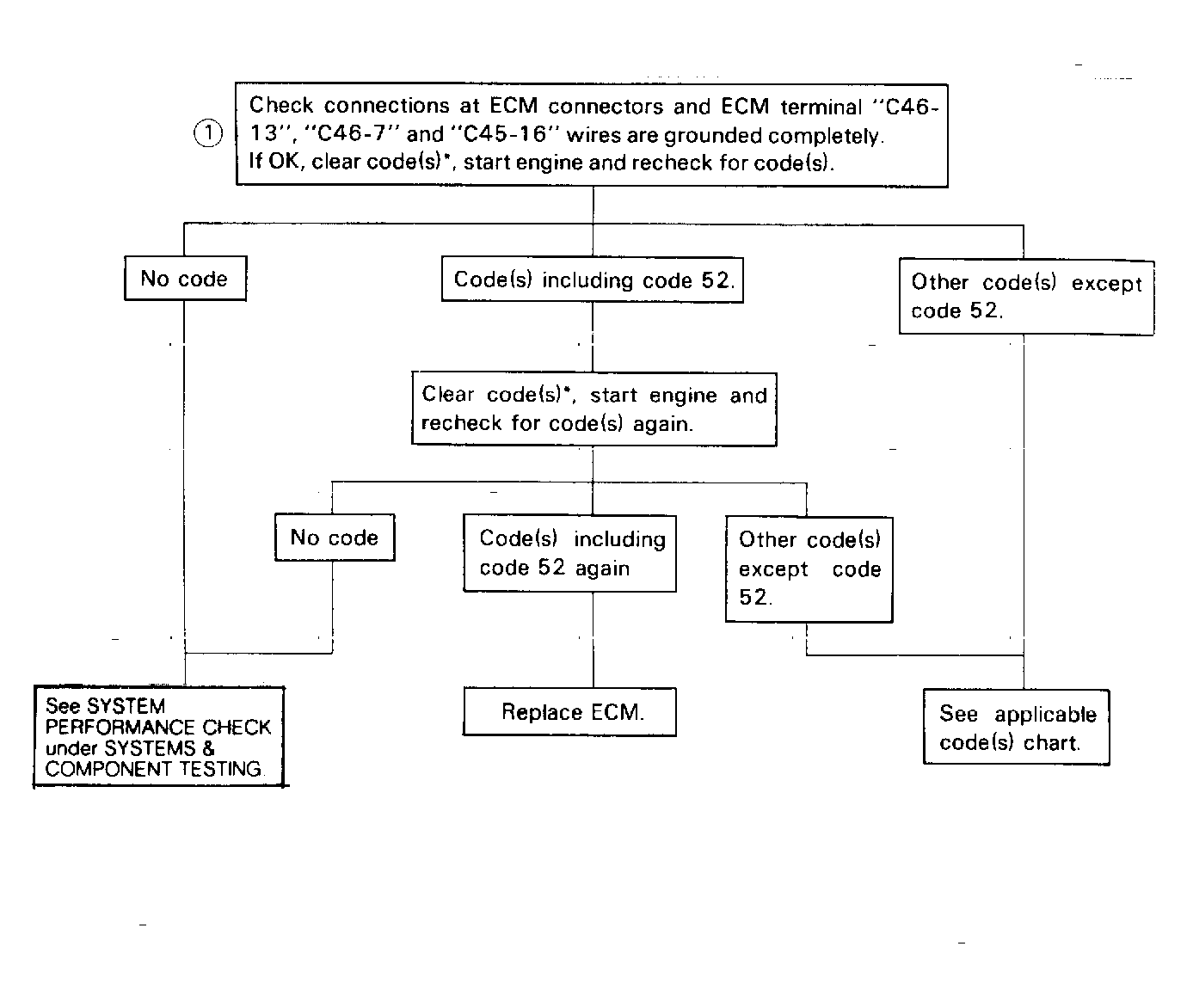

Fig 1: Chart 52 - Diagnostic Flowchart

G122144

Courtesy of ISUZU MOTOR CO.
