Chart No. 6 - Will Not Flash Code 12

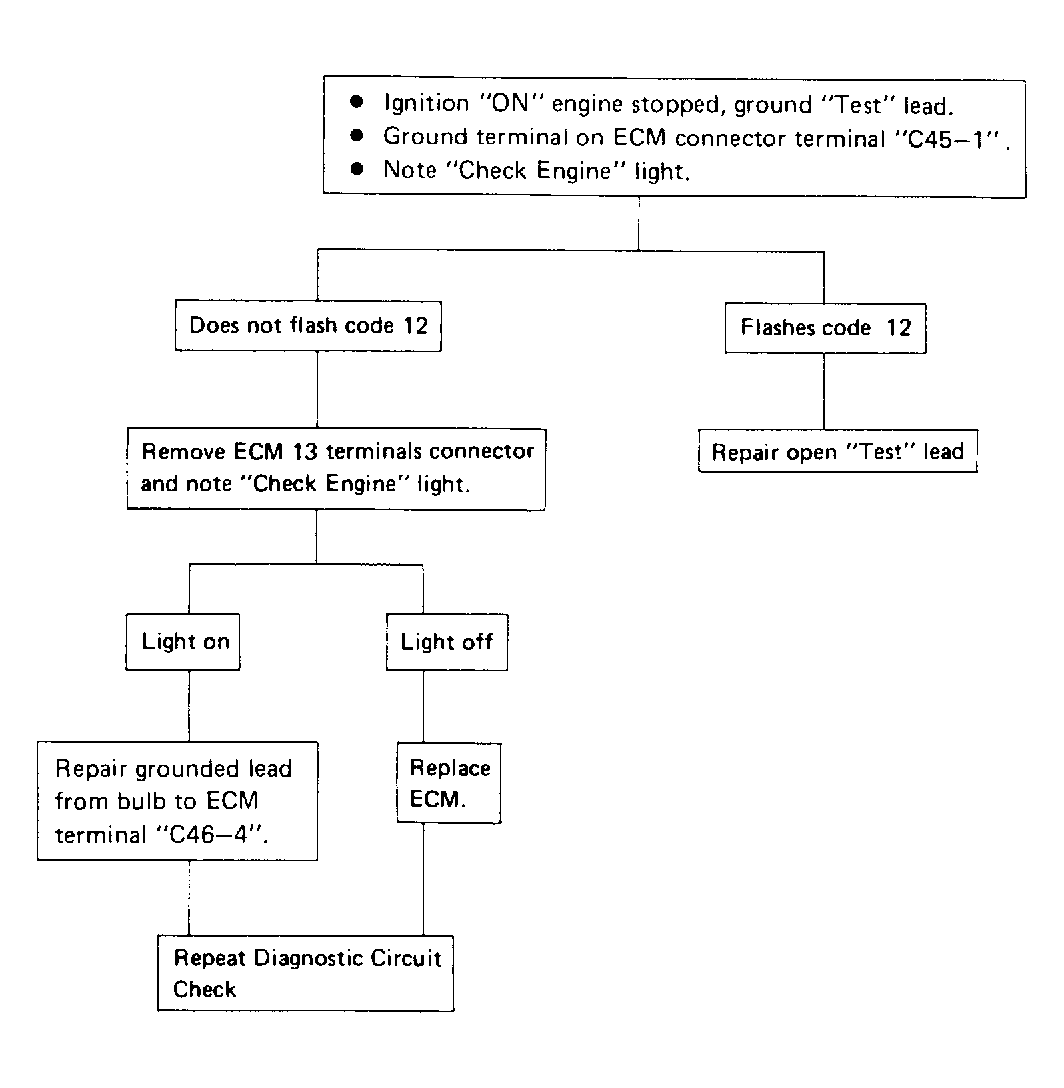

Fig 1: Chart 6 - Diagnostic Flowchart

G91G17505

Courtesy of ISUZU MOTOR CO.
