Removal & Installation (1.6L Turbo - DIS)

Remove negative battery cable. Remove intercooler. Remove wiring connector. Remove cam angle sensor mounting bolt and cam angle sensor. See Fig 1. To install, reverse removal procedure. Tighten bolt to specification. See TORQUE SPECIFICATIONS table at end of article.

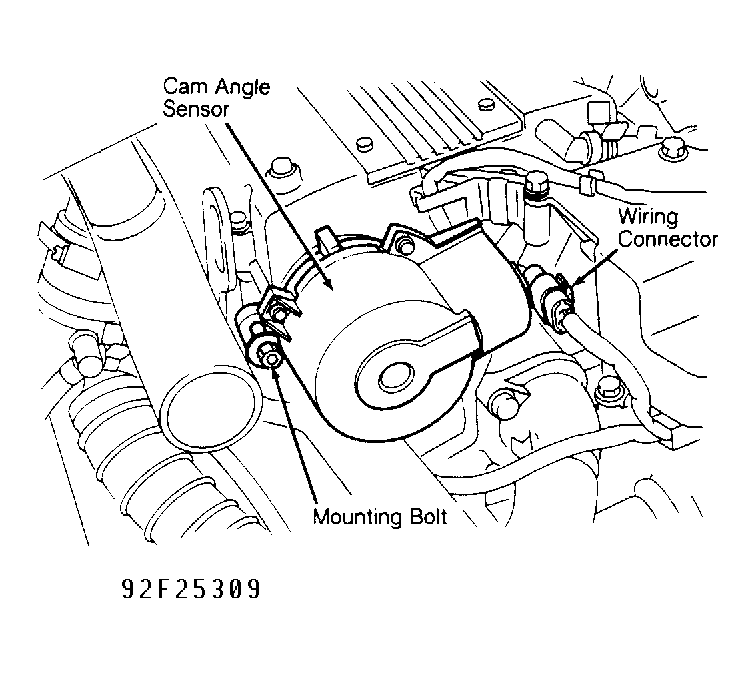

Fig 1: Removing Cam Angle Sensor (1.6L Turbo)

Courtesy of ISUZU MOTOR CO.
