Neutral Switch

Check continuity between switch terminals. See Fig 1. If continuity is not as specified, replace switch.

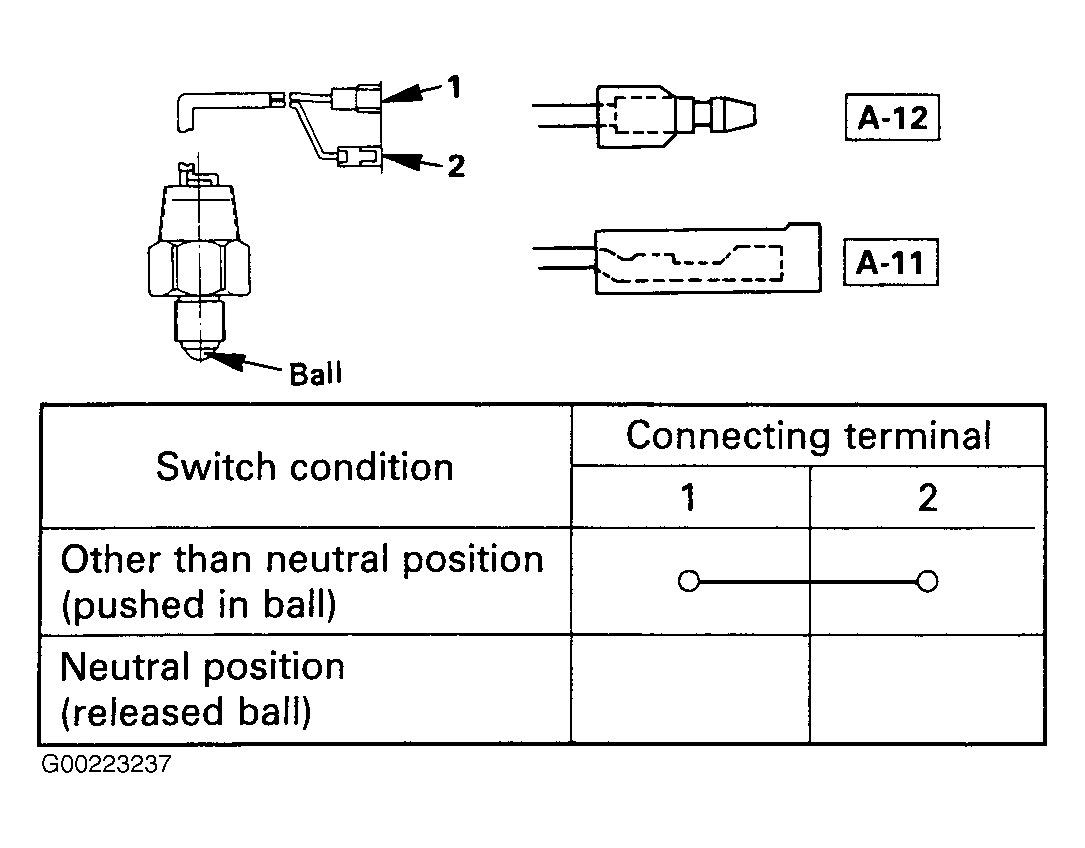

Fig 1: Testing Neutral Switch

G00223237

Courtesy of ISUZU MOTOR CO.
