Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Brake Light Switch | On brake pedal support |
| Clutch Interrupt Switch (M/T Only) | On clutch pedal support |

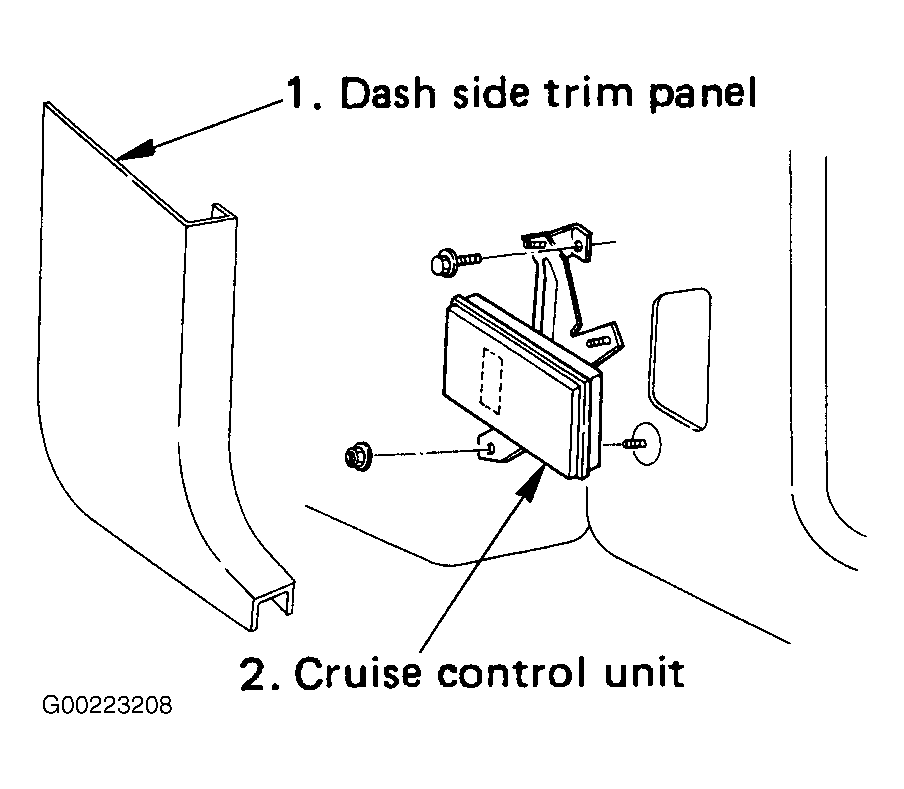

| Cruise Control Unit | In passenger footwell, behind right kick panel. See Figure. |

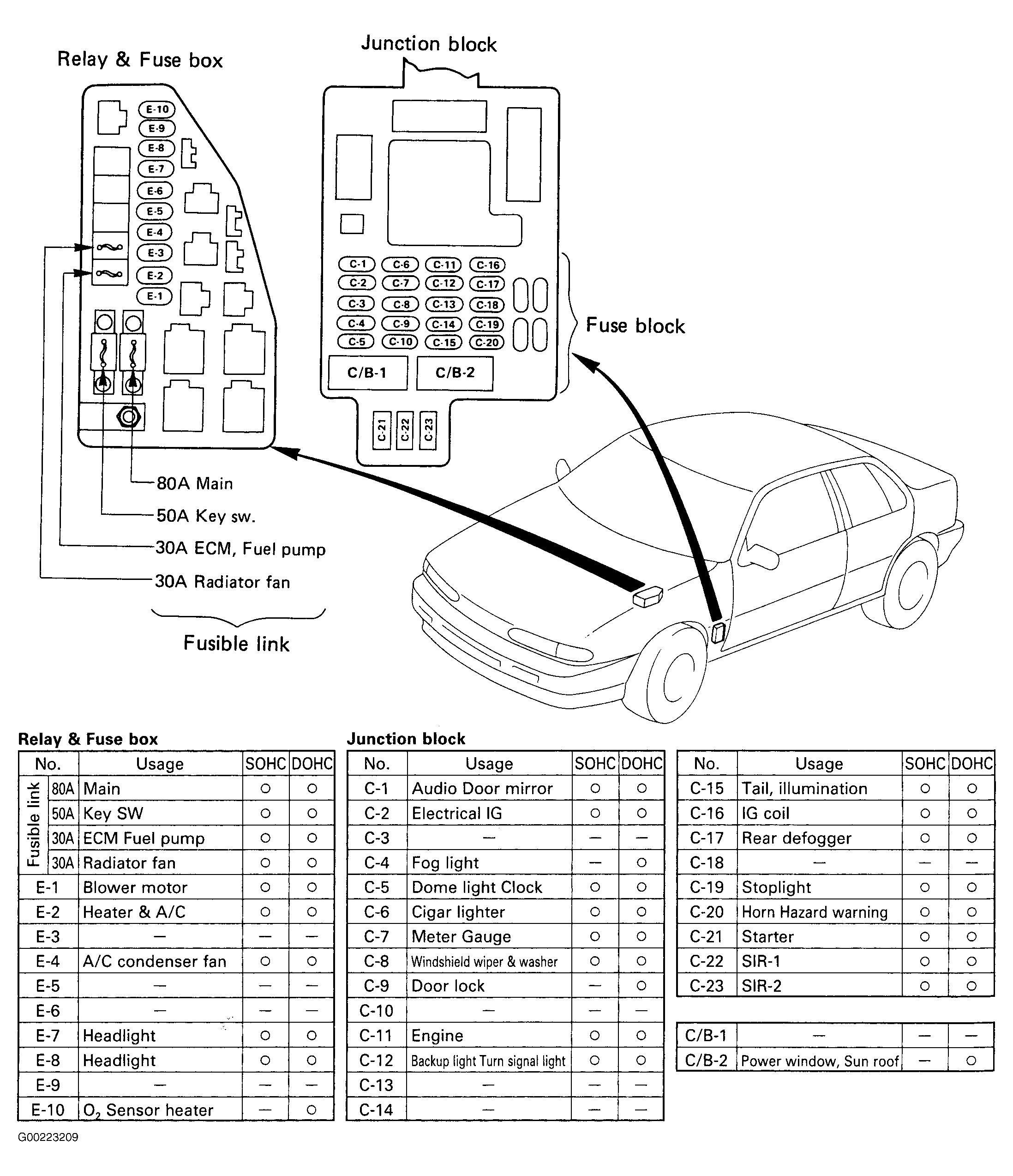

| Dash Fuse Box (Junction Block) | In driver's footwell, behind left kick panel. See Fig 2. |
| Neutral Switch | Lower left side of engine compartment, on top of transaxle |
| Pump Unit | In engine compartment, on front of passenger side shock tower |
| Vehicle Speed Sensor No. 2 | In instrument cluster |

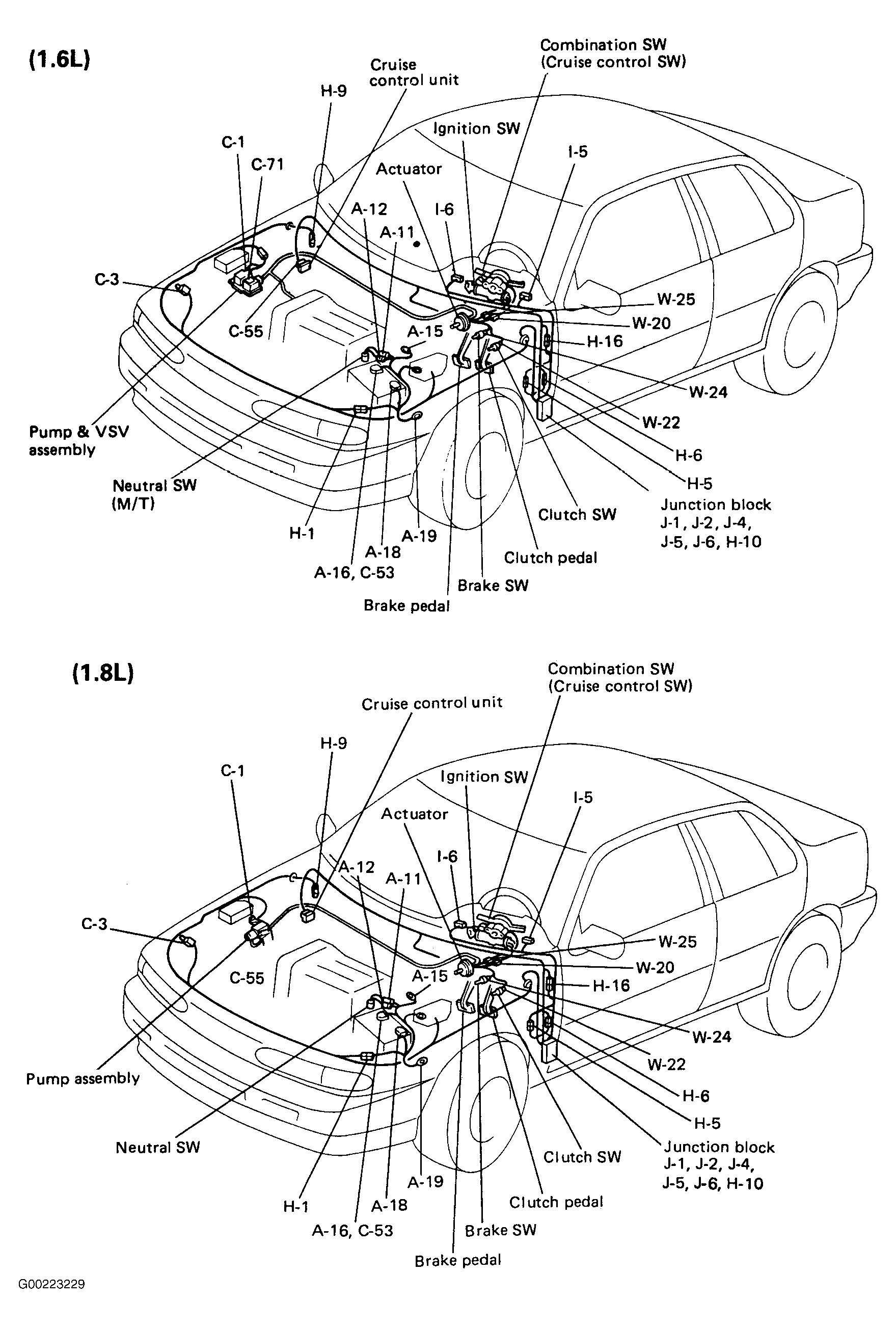

| Ground C3 | Right front corner of engine compartment, behind coolant reservoir bottle. See Fig 1. |
| Ground C53 | Lower left side of engine compartment, on top of transaxle. See Fig 1. |
