Diagnostic Code Charts

Fig 1: Code 2 - Open Isolation Valve Ckt. Wiring Schematic
G92E01134Courtesy of ISUZU MOTOR CO.

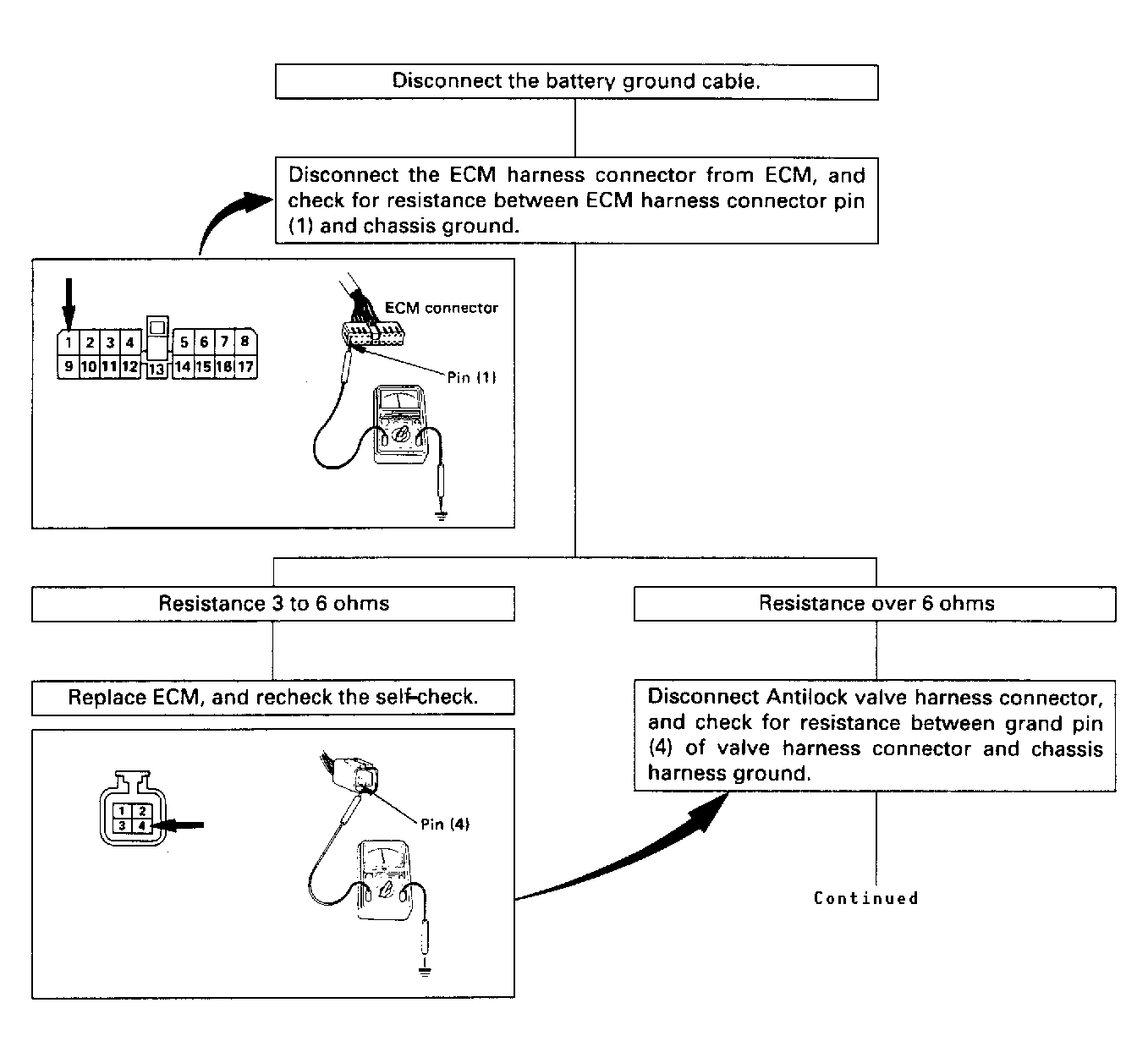

Fig 2: Code 2 - Open Isolation Valve Ckt. Or Malfunctioning ECM Flowchart (1 Of 2)
G92H01135Courtesy of ISUZU MOTOR CO.

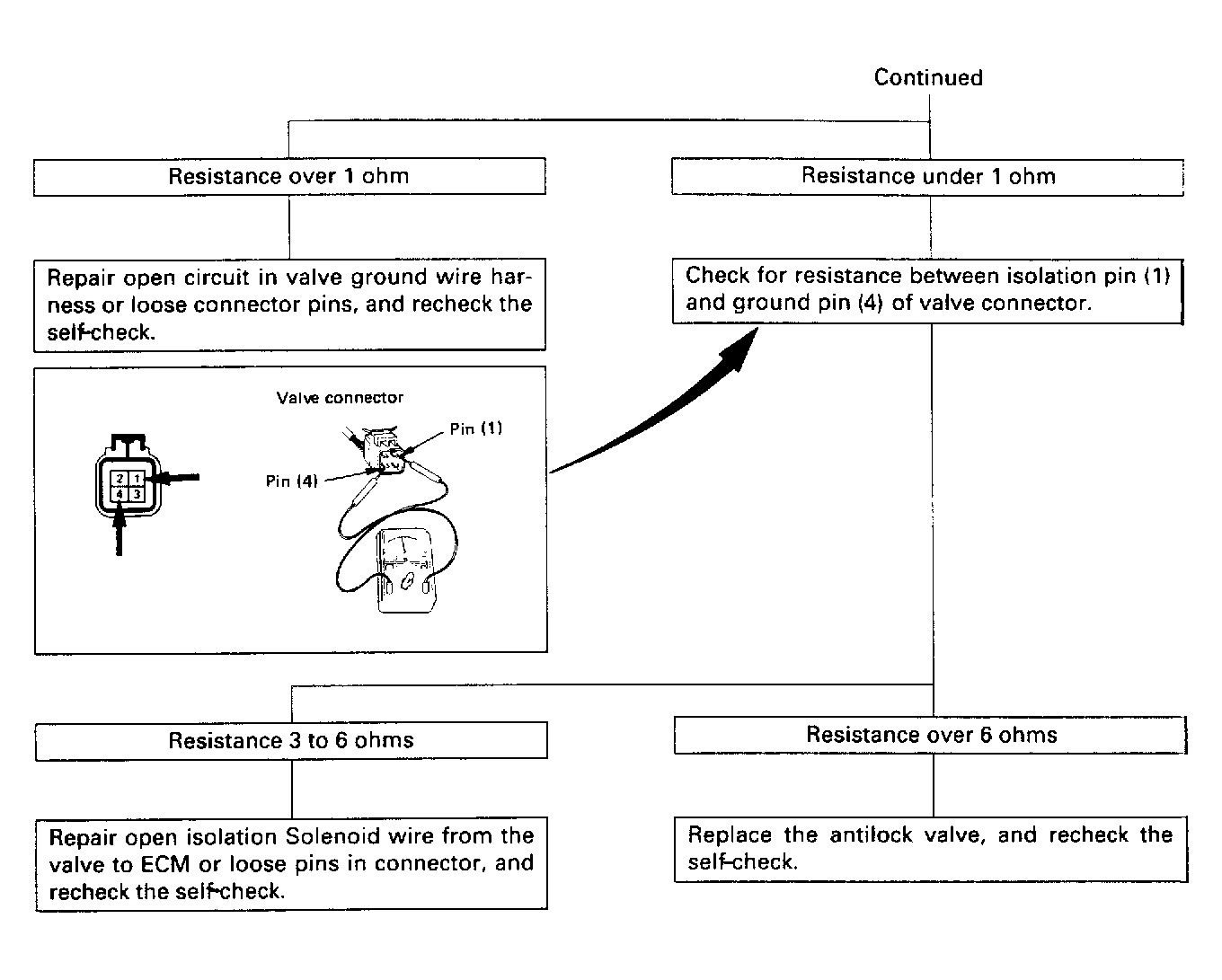

Fig 3: Code 2 - Open Isolation Valve Ckt. Or Malfunctioning ECM Flowchart (2 Of 2)
G92J01136Courtesy of ISUZU MOTOR CO.
Fig 4: Code 3 - Open Dump Valve Ckt. Or Malfunctioning ECM Schematic
G92E01134Courtesy of ISUZU MOTOR CO.
Fig 5: Code 3 - Open Dump Valve Ckt. Or Malfunctioning ECM Flowchart
G92E01134Courtesy of ISUZU MOTOR CO.
Fig 6: Code 4 - Closed Anti-Lock Valve Switch Schematic
G92E01134Courtesy of ISUZU MOTOR CO.

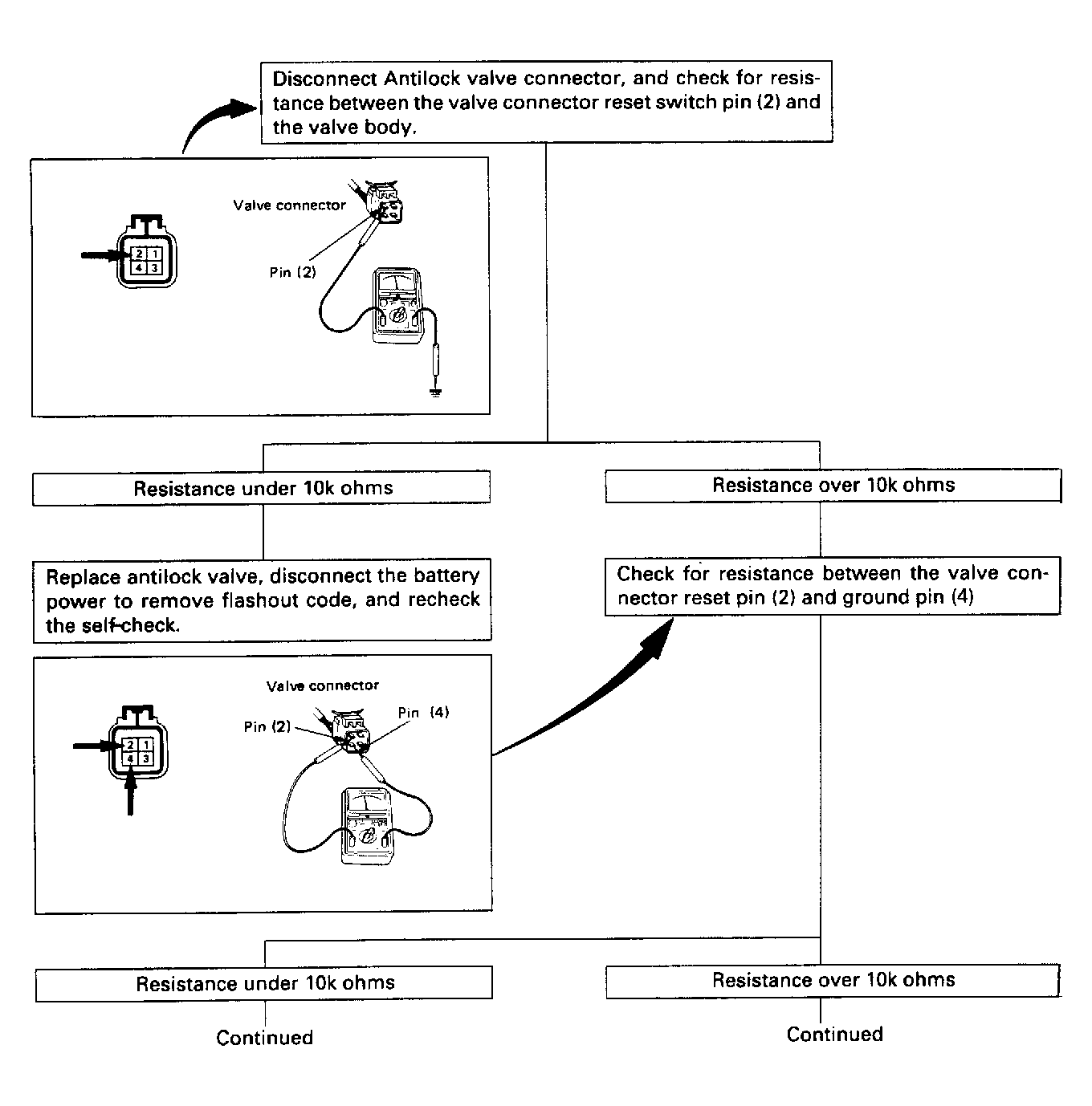

Fig 7: Code 4 - Closed Anti-Lock Valve Switch Flowchart (1 Of 2)
G92D01138Courtesy of ISUZU MOTOR CO.

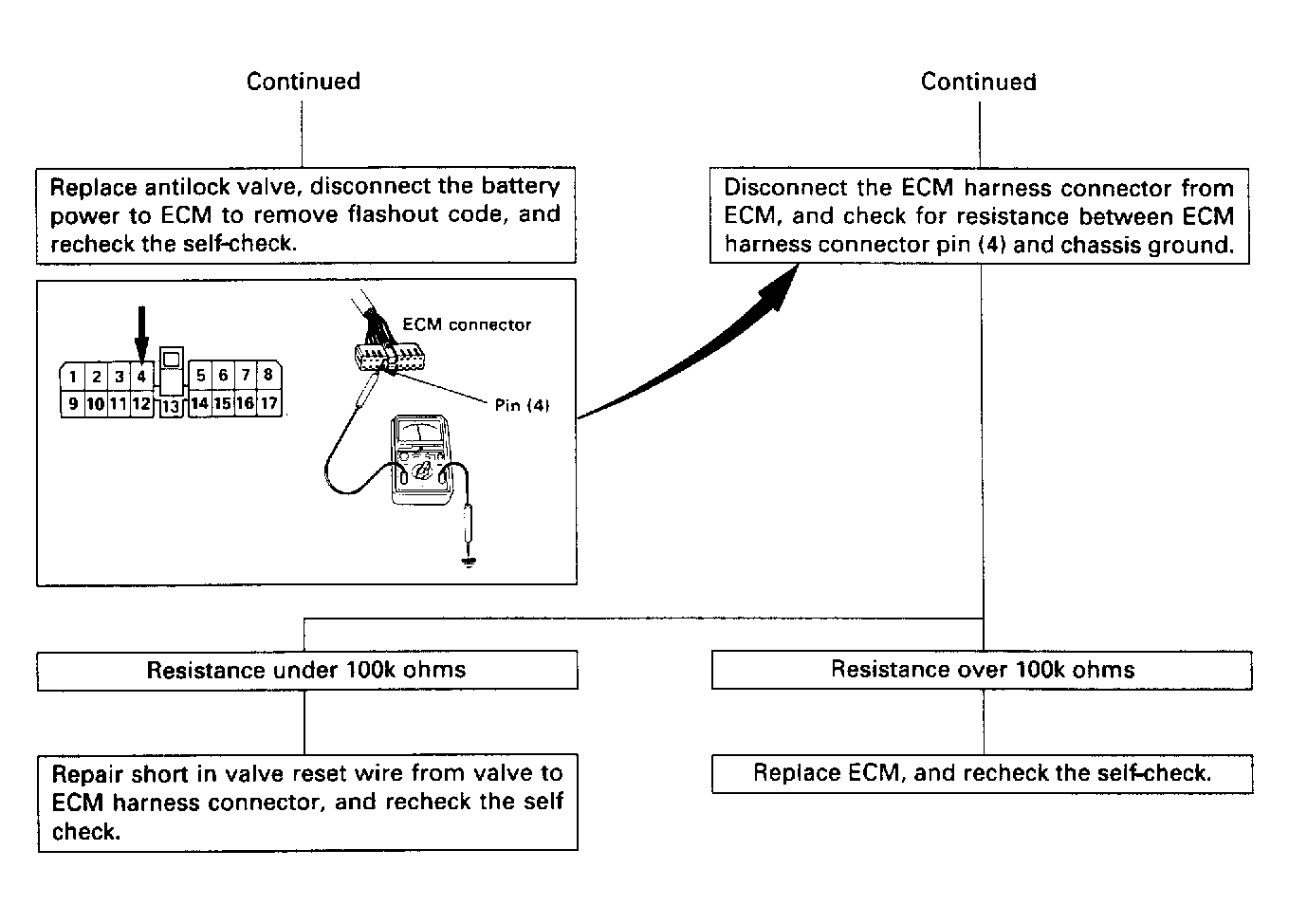

Fig 8: Code 4 - Closed Anti-Lock Valve Switch Flowchart (2 Of 2)
G92F01139Courtesy of ISUZU MOTOR CO.
Fig 9: Code 5 - System Operates Dump Valve Excessively Wiring Schematic
G92H01140Courtesy of ISUZU MOTOR CO.

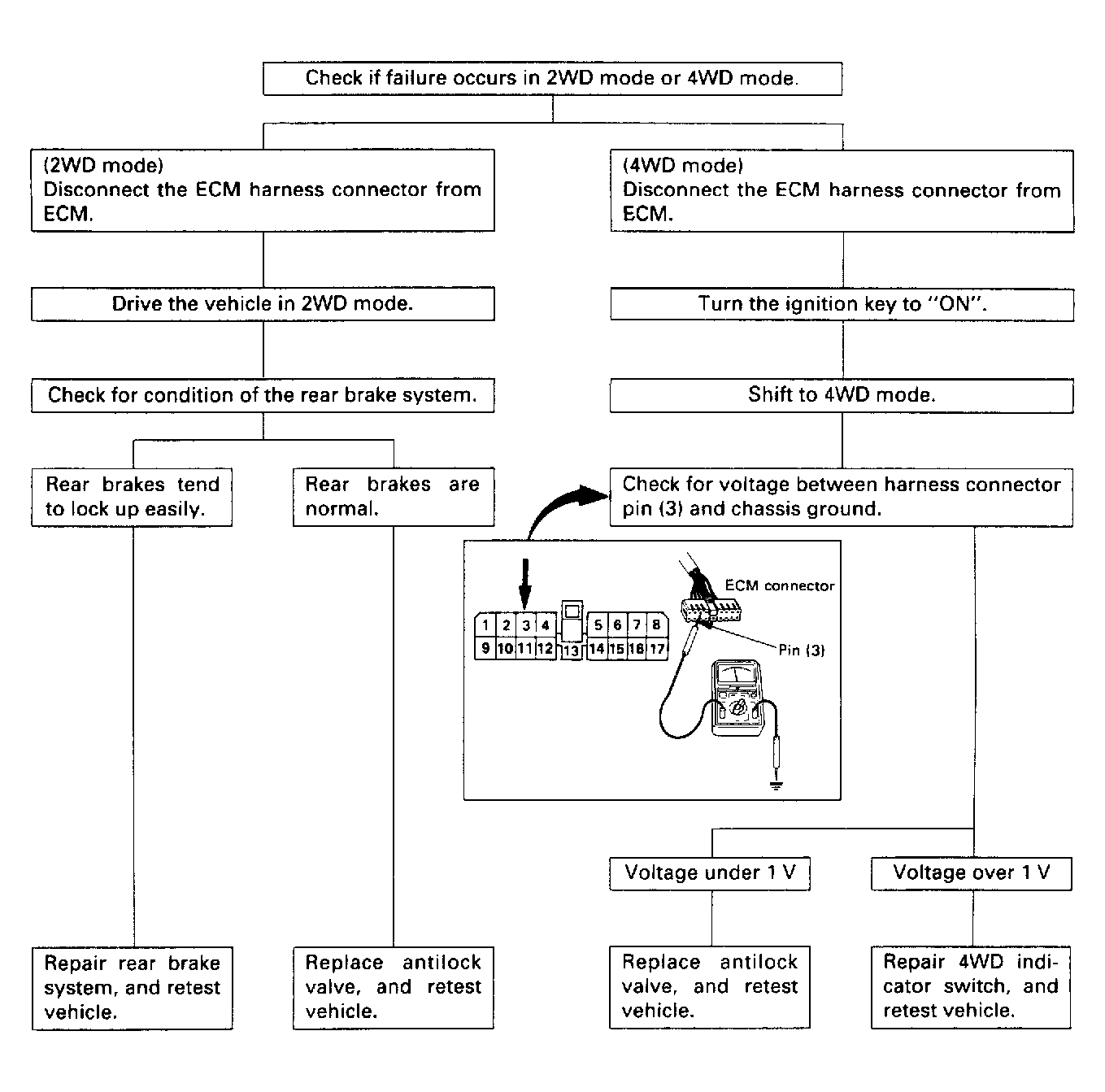

Fig 10: Code 5 - System Operates Dump Valve Excessively Flowchart
G92J01141Courtesy of ISUZU MOTOR CO.
Fig 11: Code 6 - Erratic Speed Sensor Signal Wiring Schematic
G92B01142Courtesy of ISUZU MOTOR CO.

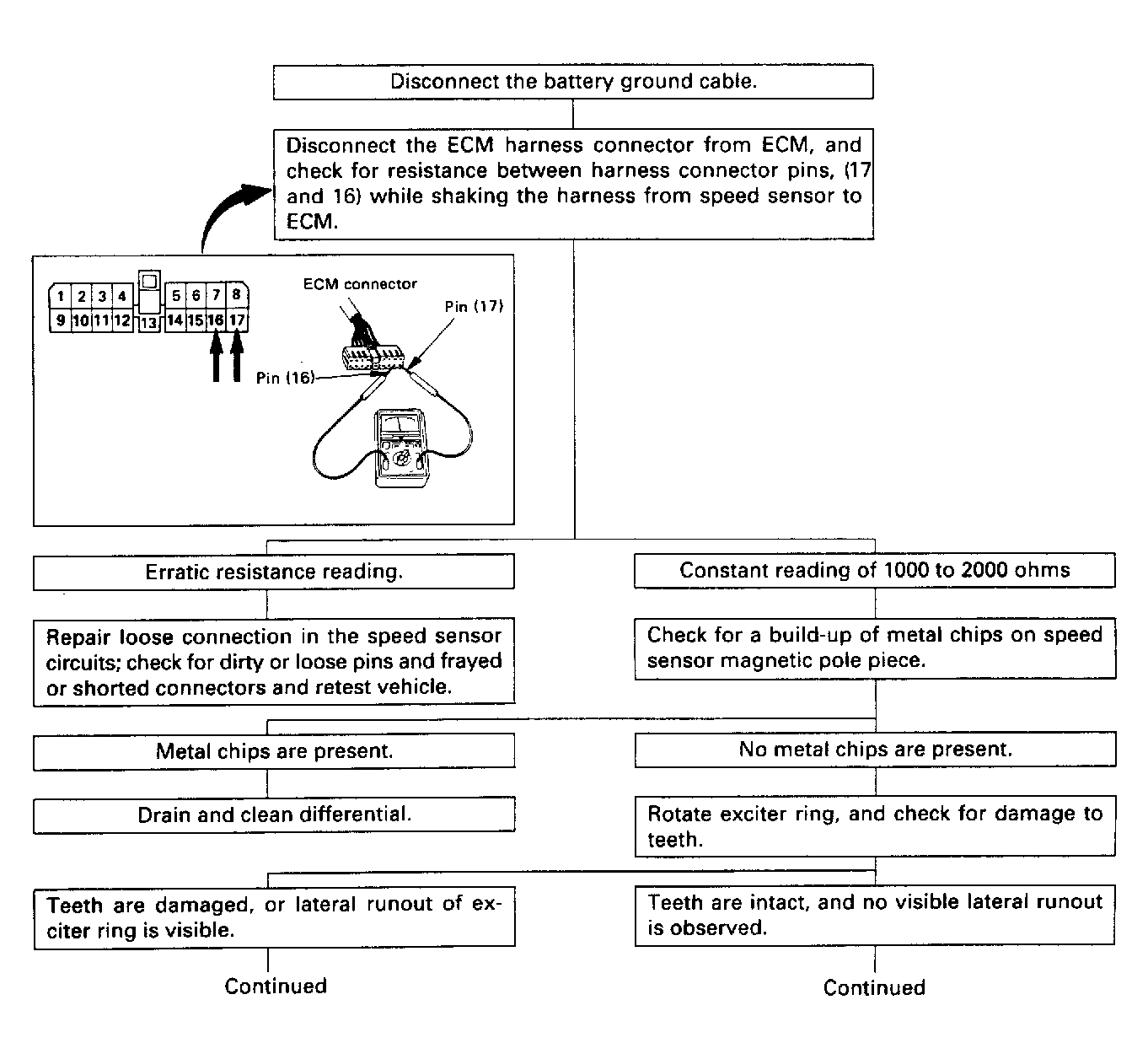

Fig 12: Code 6 - Erratic Speed Sensor Signal Flowchart (1 Of 2)
G92D01143Courtesy of ISUZU MOTOR CO.

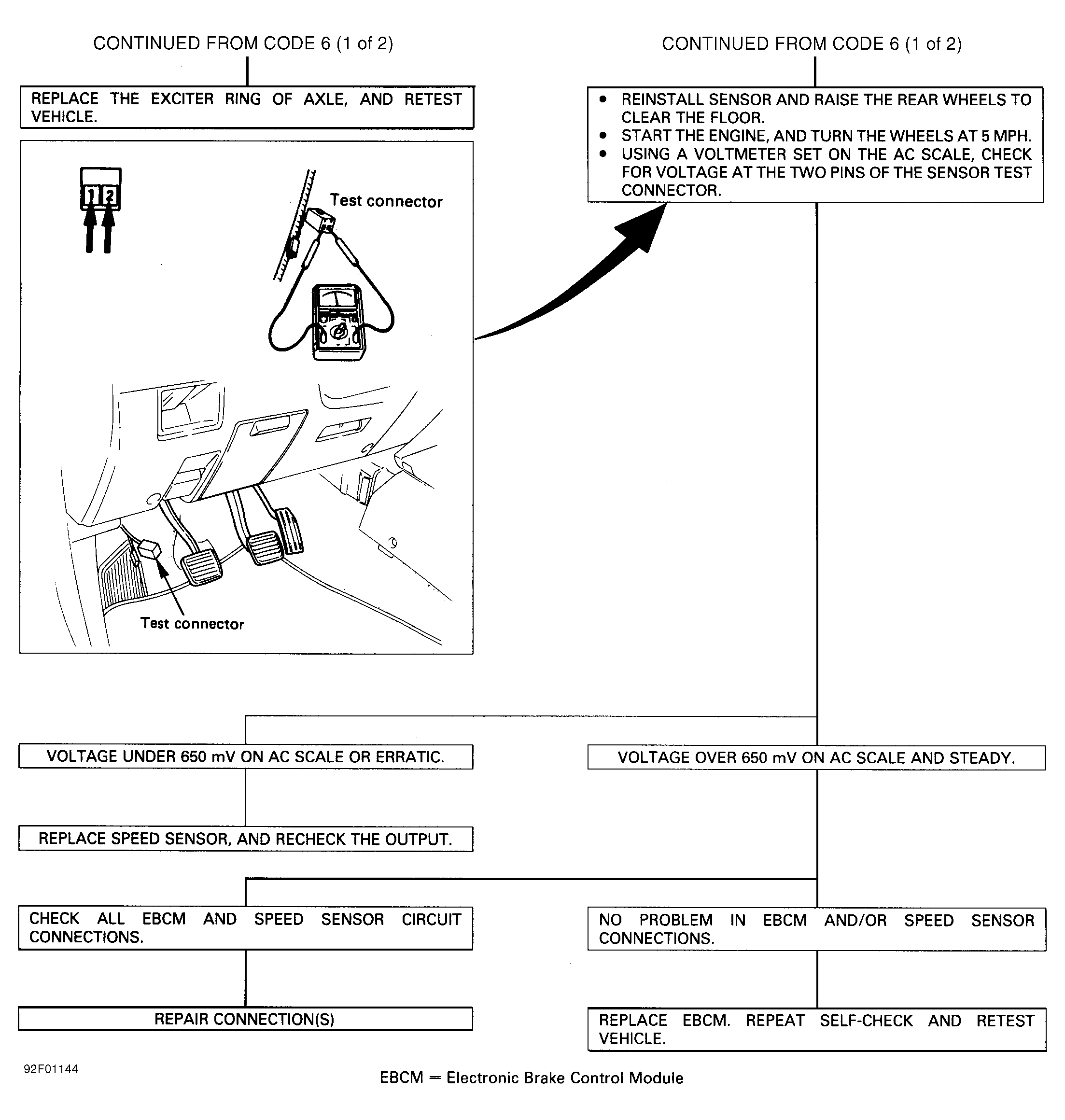

Fig 13: Code 6 - Erratic Speed Sensor Signal Flowchart (2 Of 2)
G92F01144Courtesy of ISUZU MOTOR CO.
Fig 14: Code 7 - Isolation Valve Output Signal Missing Or Defective Anti-Lock Valve Wiring Schematic
G92E01134Courtesy of ISUZU MOTOR CO.

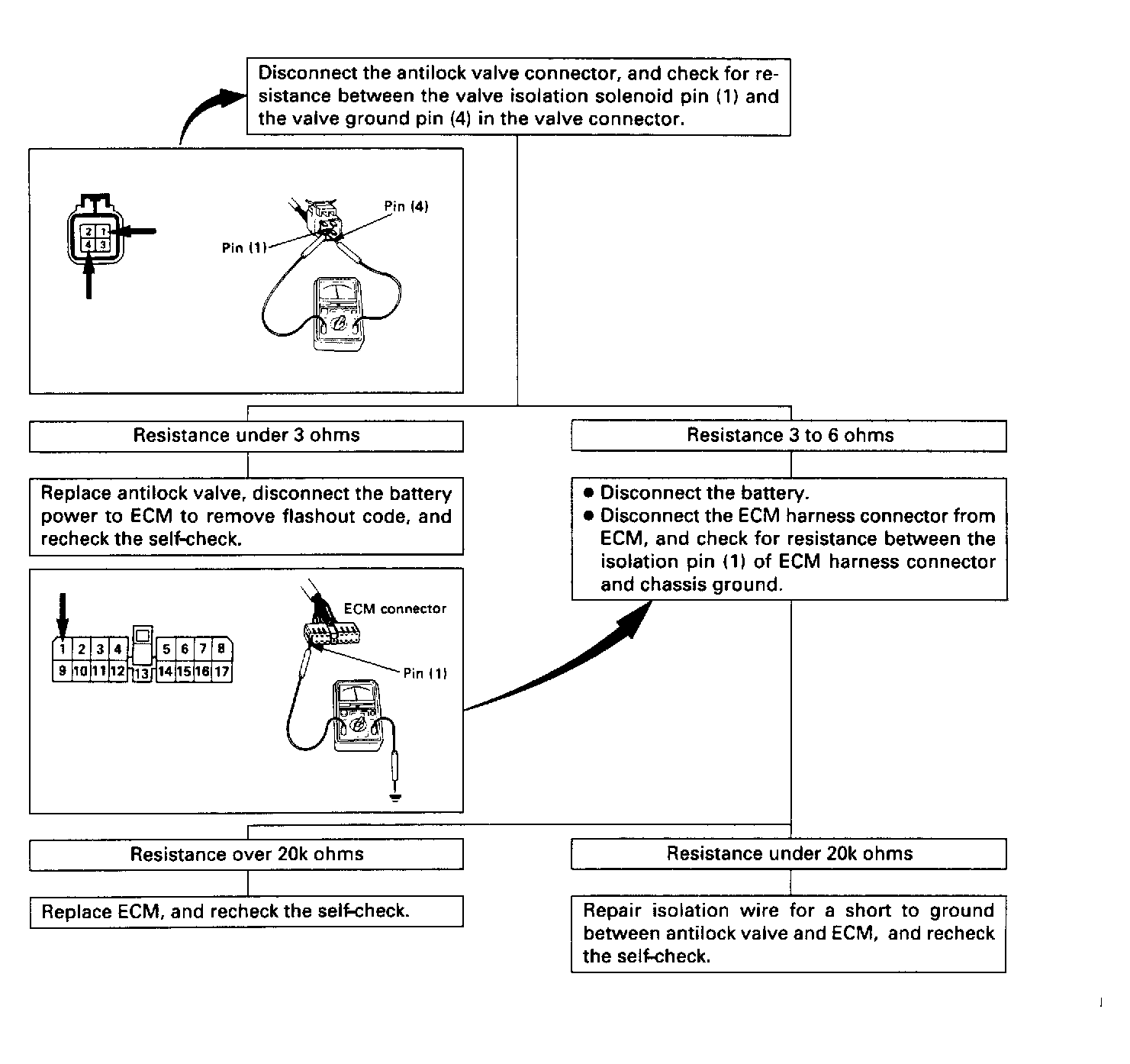

Fig 15: Code 7 - Isolation Valve Output Signal Missing Or Defective Anti-Lock Valve Wiring Flowchart
G92I01145Courtesy of ISUZU MOTOR CO.
Fig 16: Code 8 - Dump Valve Output Signal Missing Or Defective Anti-Lock Valve Wiring Schematic
G92E01134Courtesy of ISUZU MOTOR CO.

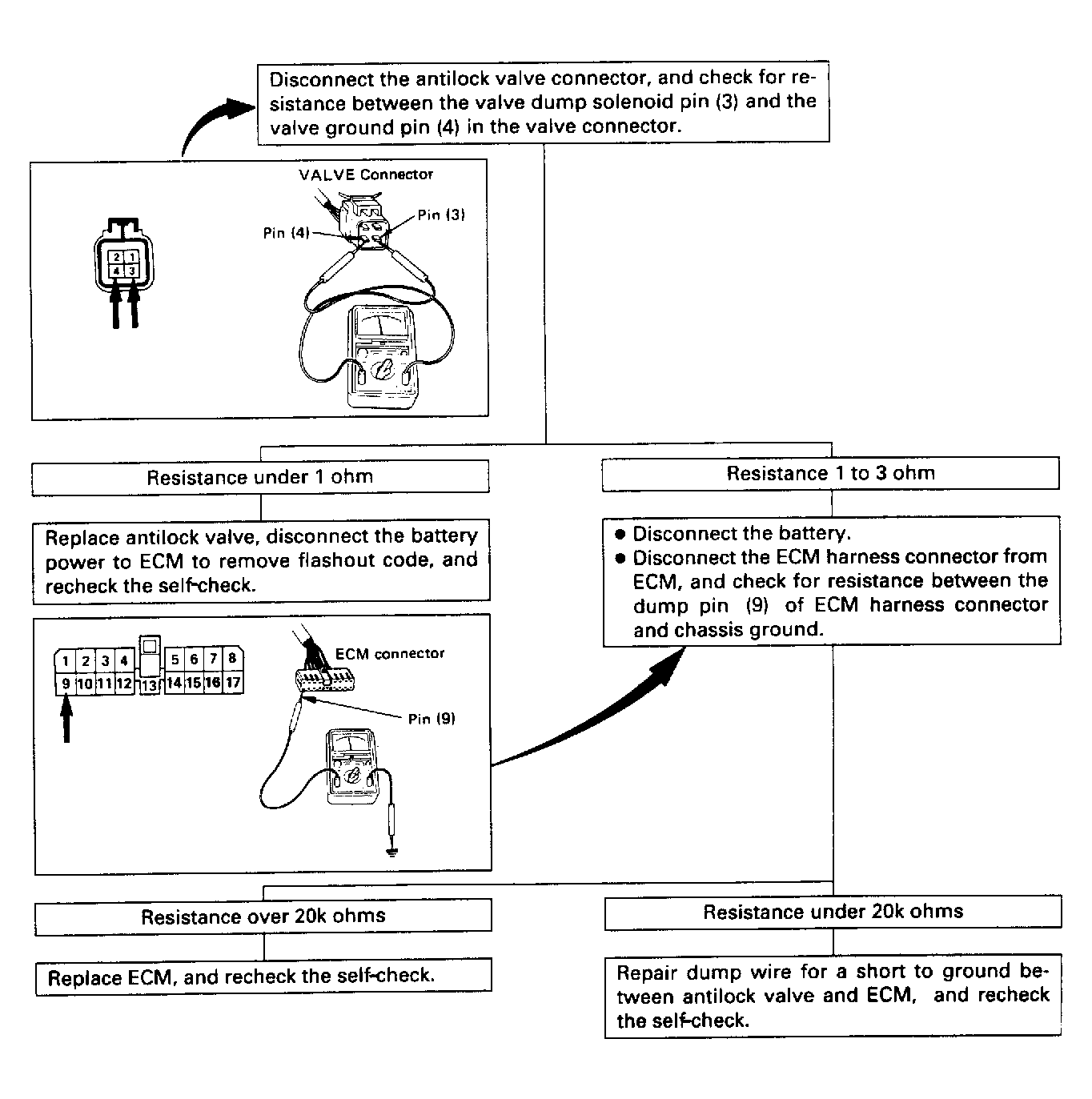

Fig 17: Code 8 - Dump Valve Output Signal Missing Or Defective Anti-Lock Valve Wiring Flowchart
G92A01146Courtesy of ISUZU MOTOR CO.
Fig 18: Code 9 - Speed Sensor (High Resistance) Wiring Schematic
G92C01147Courtesy of ISUZU MOTOR CO.

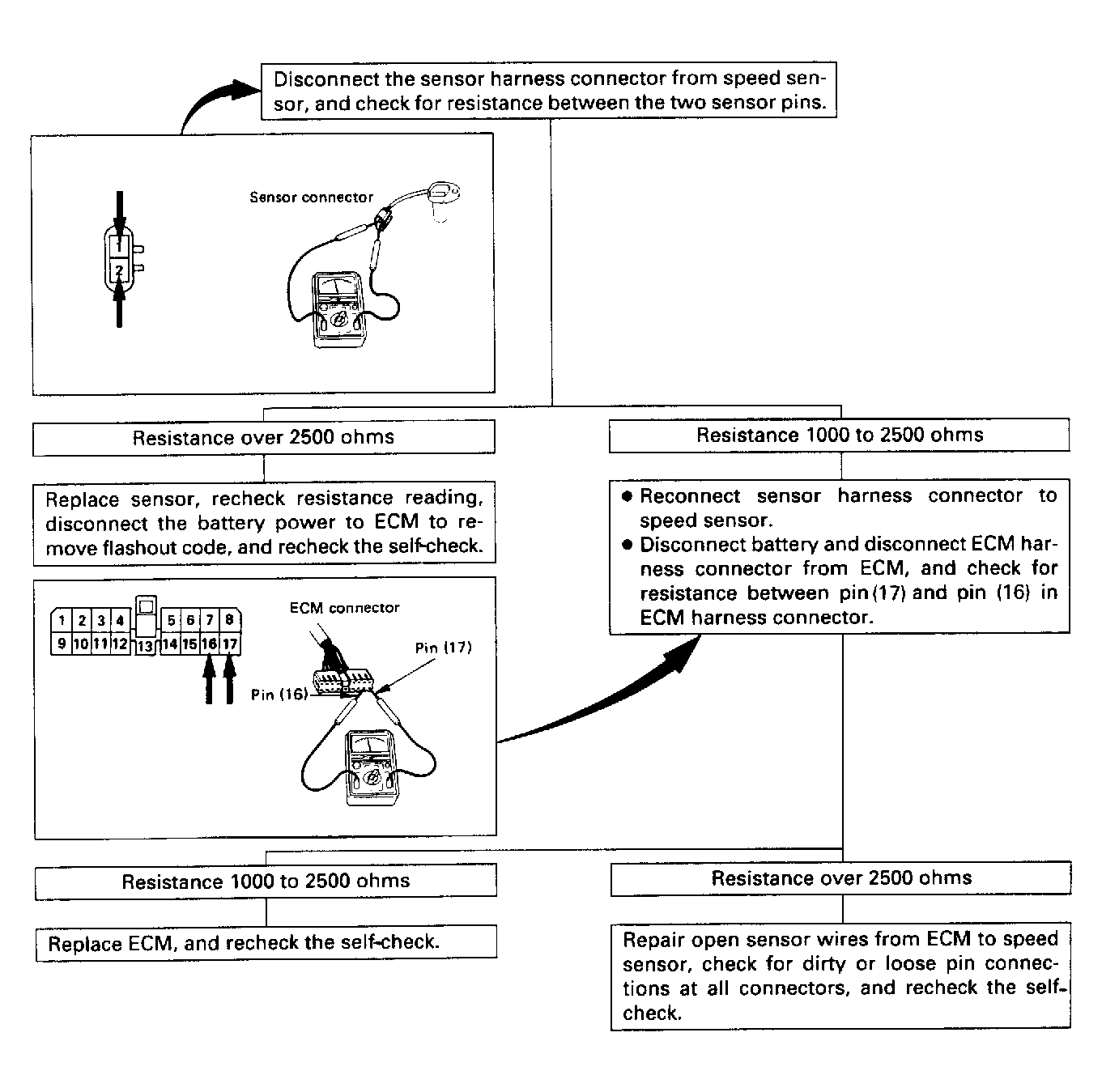

Fig 19: Code 9 - Speed Sensor (High Resistance) Flowchart
G92E01148Courtesy of ISUZU MOTOR CO.
Fig 20: Code 10 - Speed Sensor (Low Resistance) Wiring Schematic
G92C01147Courtesy of ISUZU MOTOR CO.

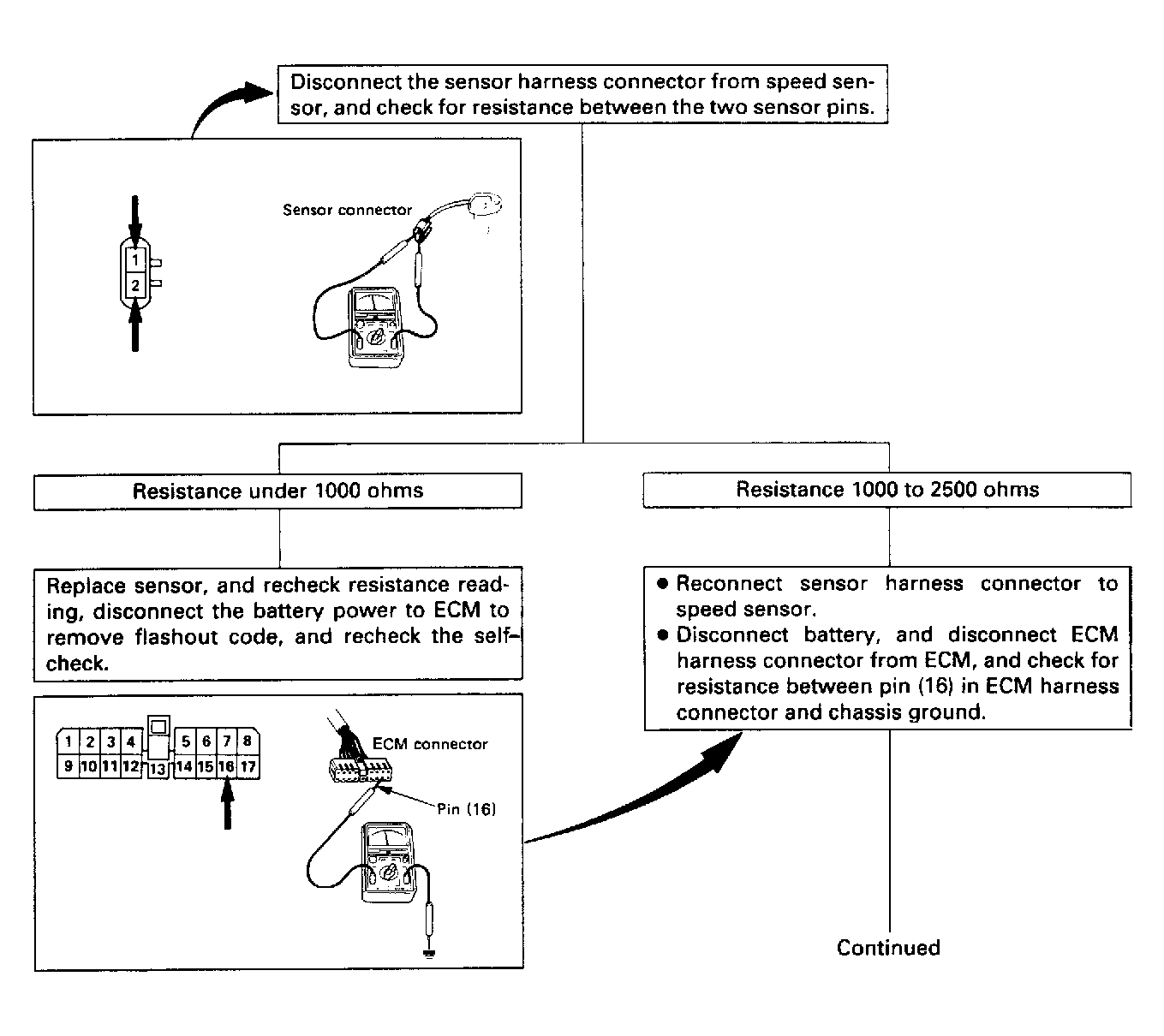

Fig 21: Code 10 - Speed Sensor (Low Resistance) Flowchart(1 Of 2)
G92G01149Courtesy of ISUZU MOTOR CO.

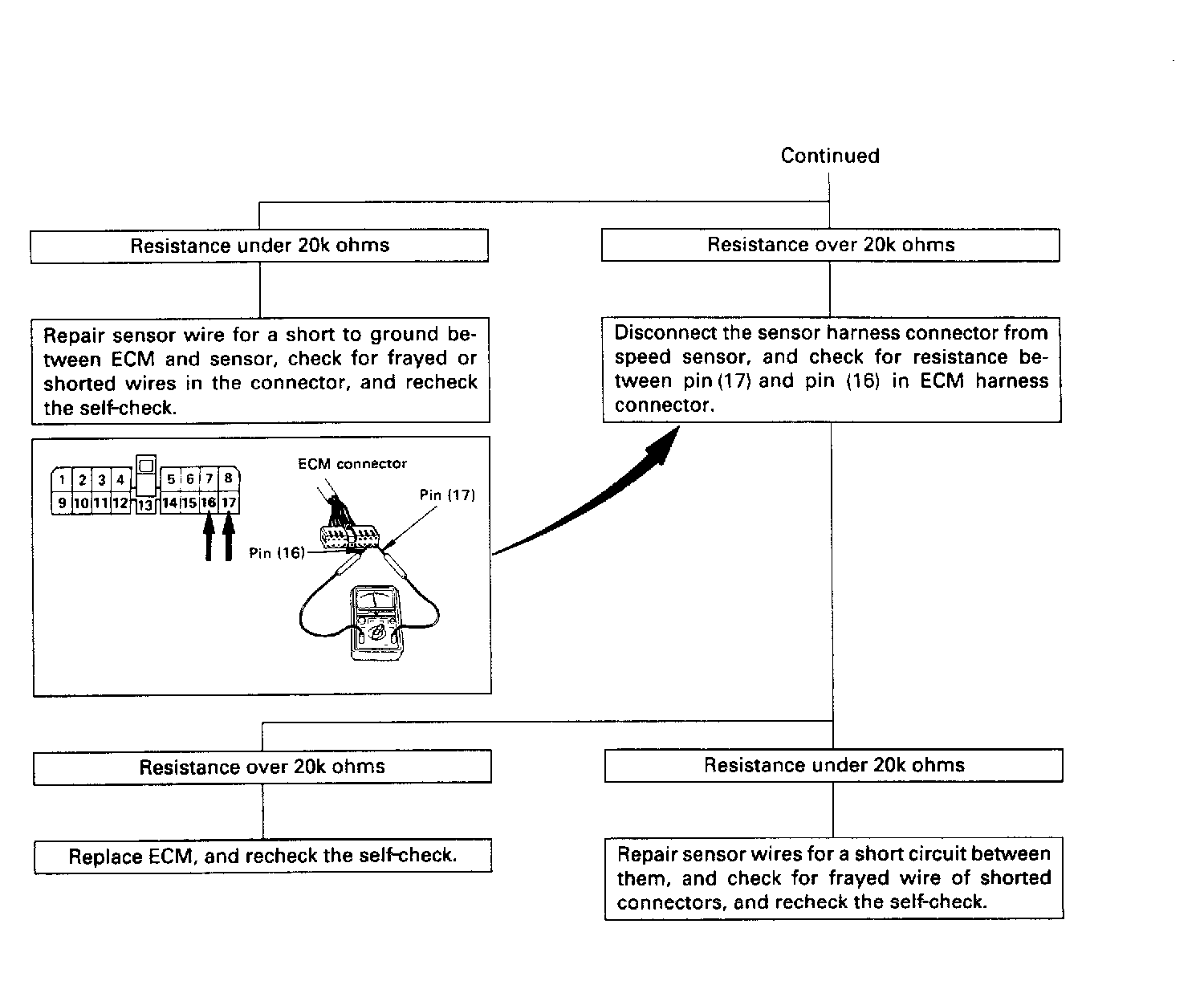

Fig 22: Code 10 - Speed Sensor (Low Resistance) Flowchart(2 Of 2)
G92I01150Courtesy of ISUZU MOTOR CO.
Fig 23: Code 11 - Defective Brakelight Switch Ckt. Flowchart
G93I01188Courtesy of ISUZU MOTOR CO.
