Wiring Diagrams

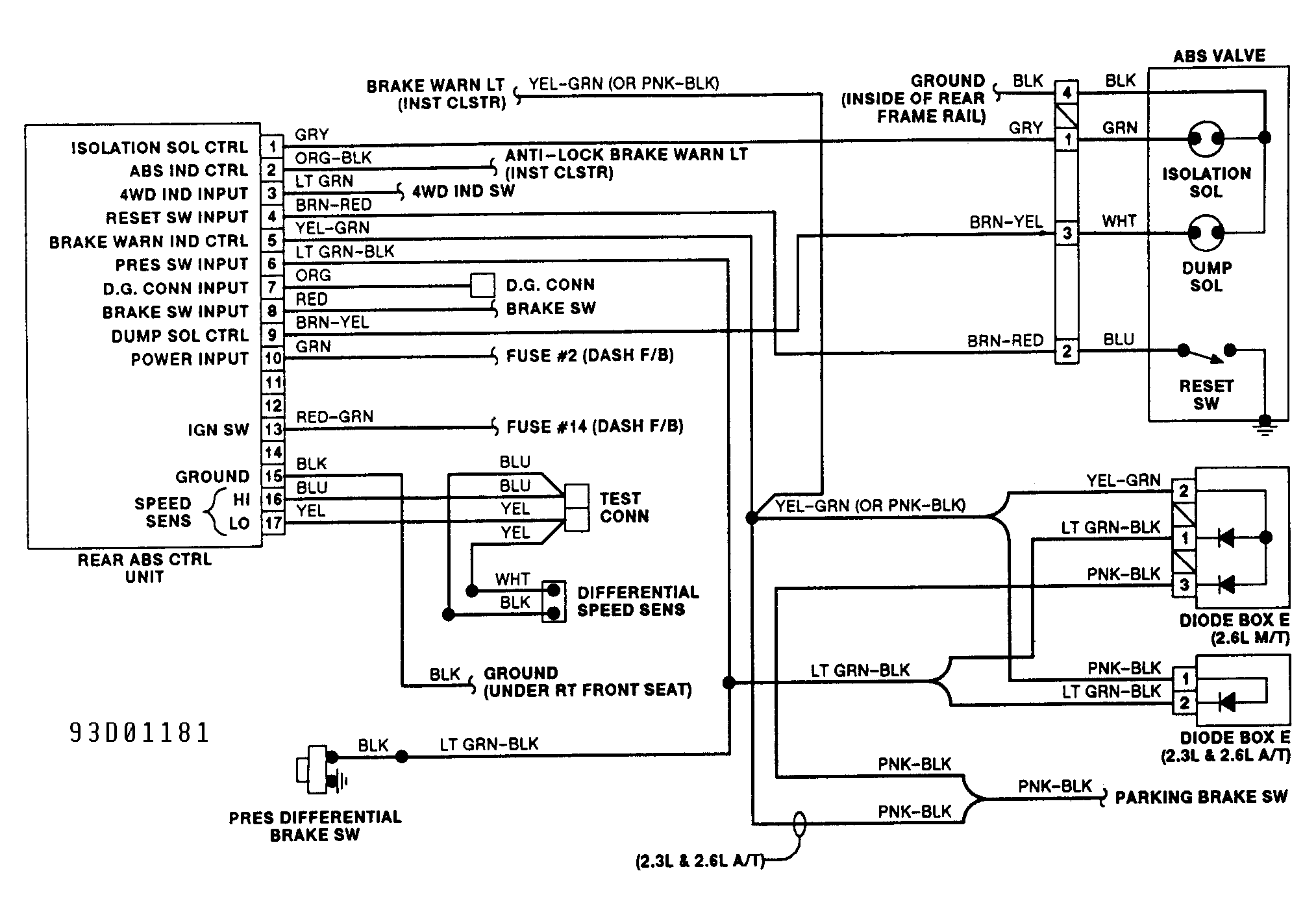

Fig 1: Anti-Lock Brake System Wiring Diagram (Amigo & Pickup)
G93D01181

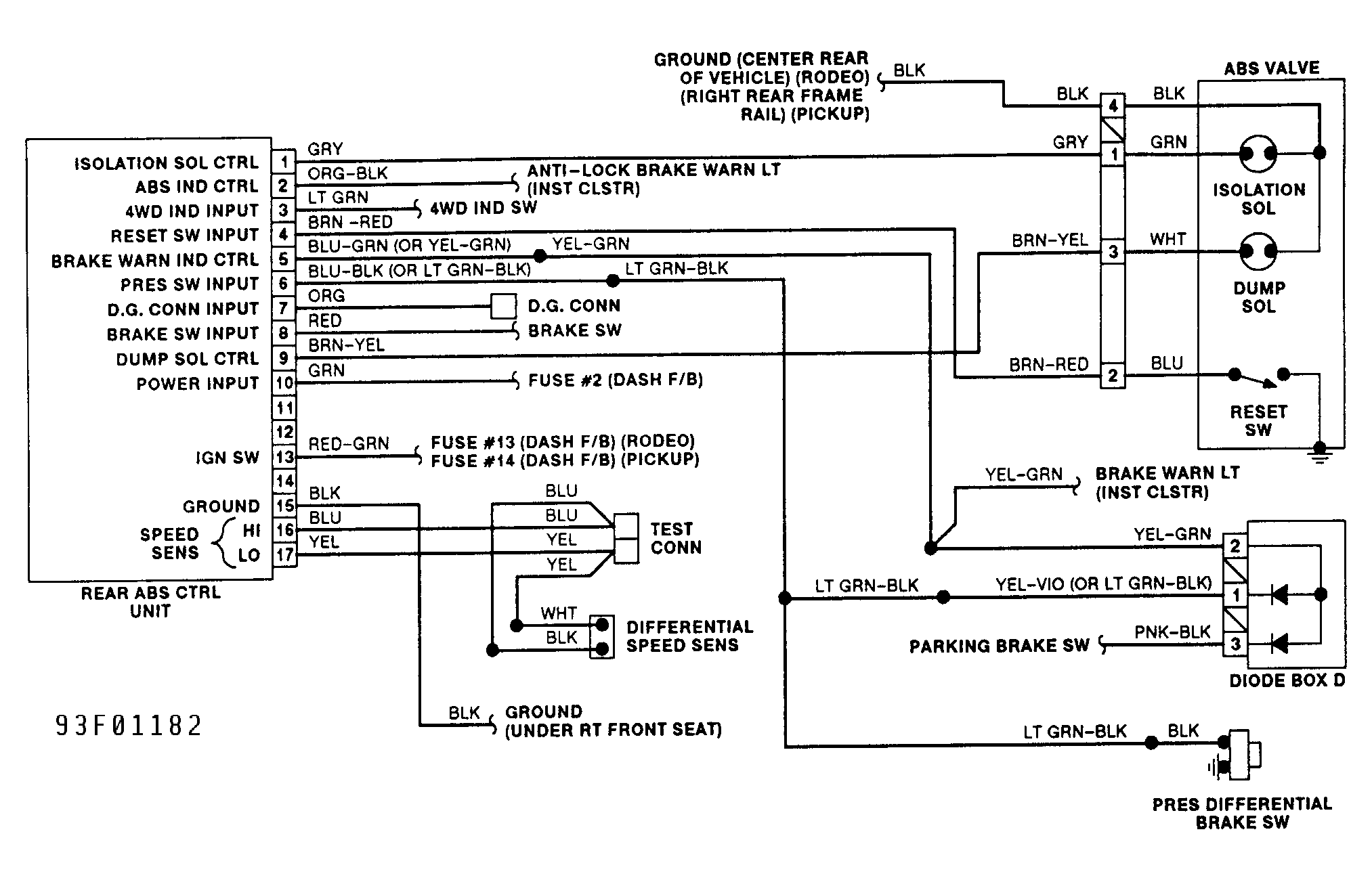

Fig 2: Anti-Lock Brake System Wiring Diagram (Rodeo)
G93F01182

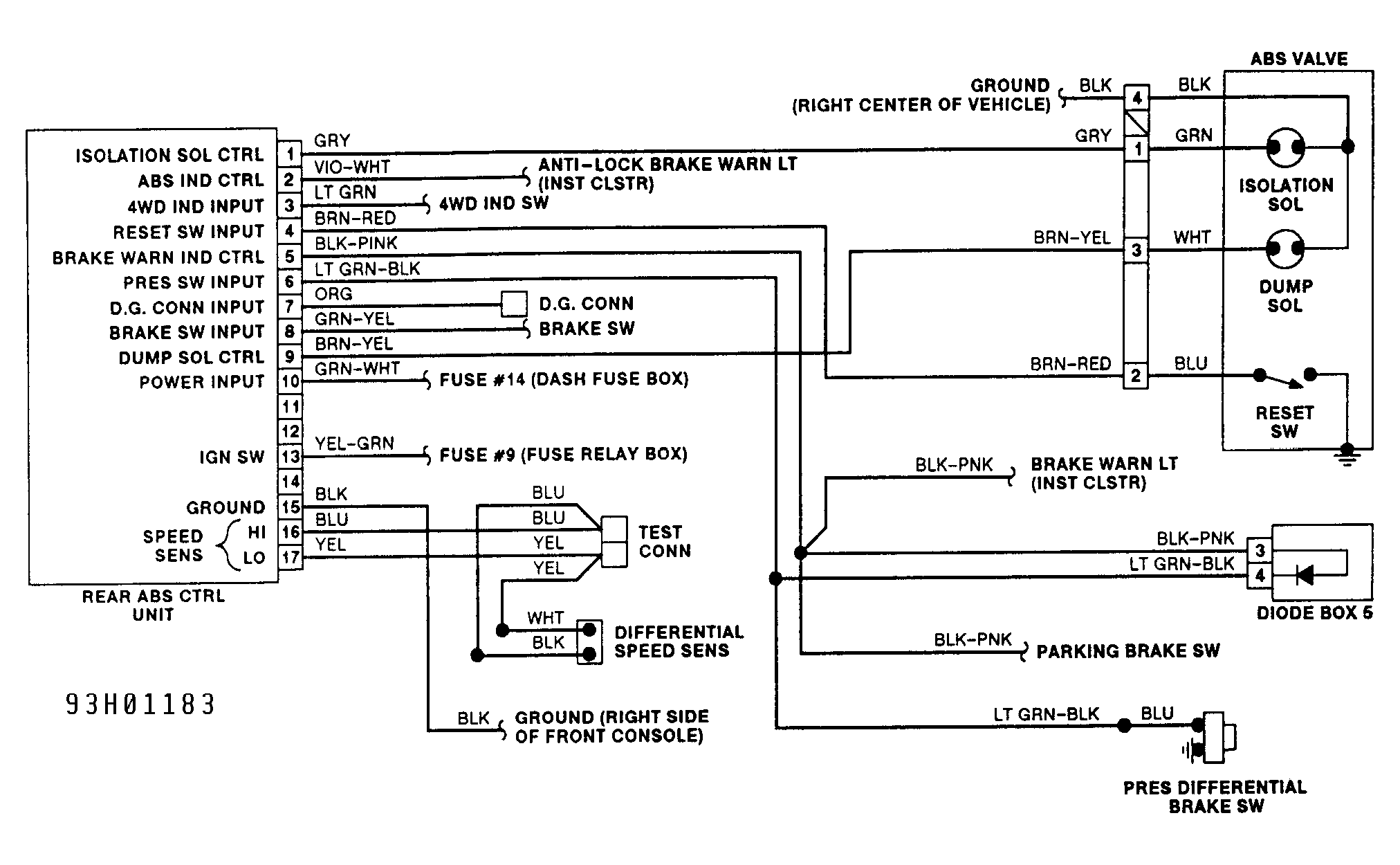

Fig 3: Anti-Lock Brake System Wiring Diagram (Trooper)
G93H01183
Fig 4: Anti-Lock Brake System Wiring Diagram (1991 Pickup)
G92A00588
Fig 5: Anti-Lock Brake System Wiring Diagram (1991 Rodeo)
G92B00589
