Cruise Control Main Switch

Disconnect cruise control switch harness connector. Test for continuity at connector terminals. SeeFig 1 .

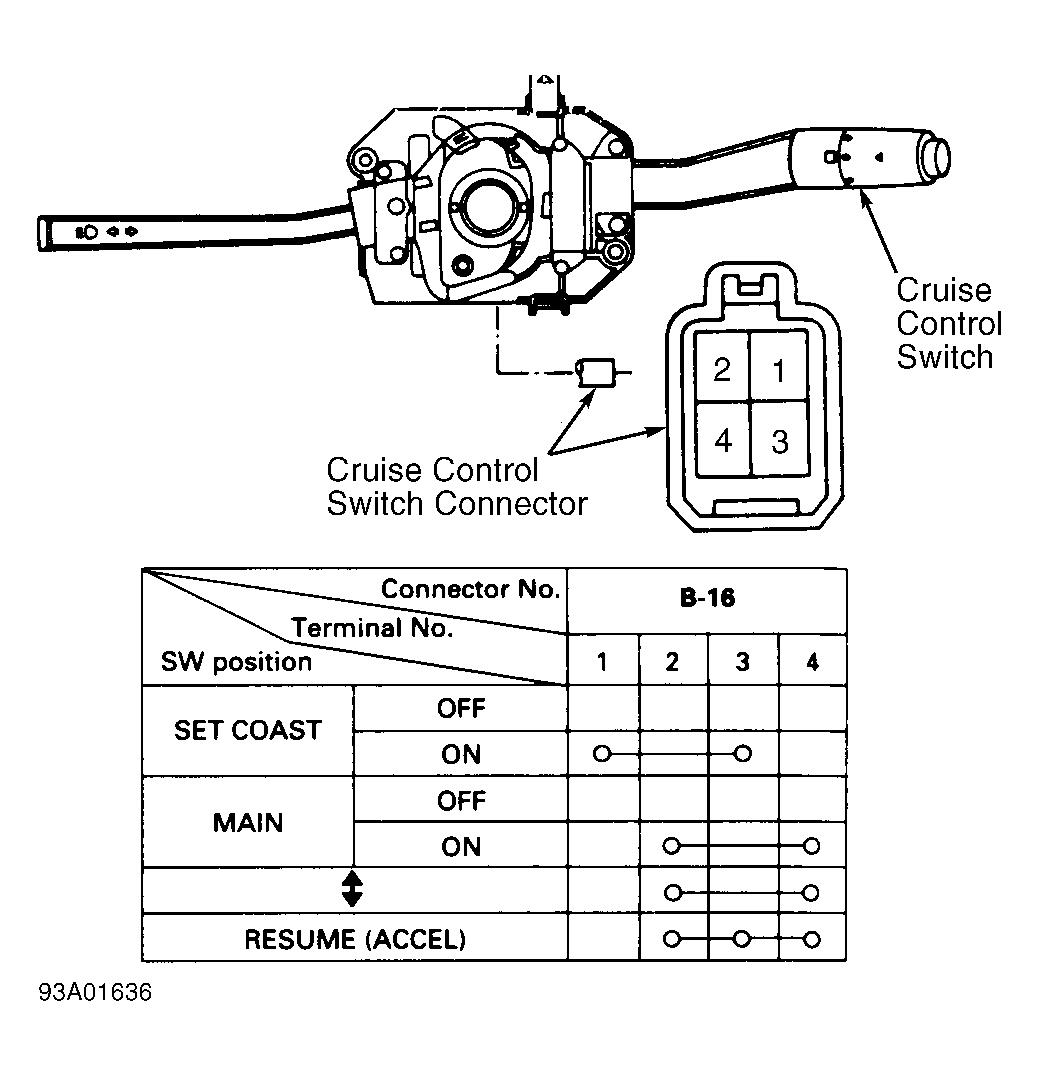

Fig 1: Testing Cruise Control Main Switch
G93A01636Courtesy of ISUZU MOTOR CO.
