Test No. 3 - Will Not Flash Code No. 12

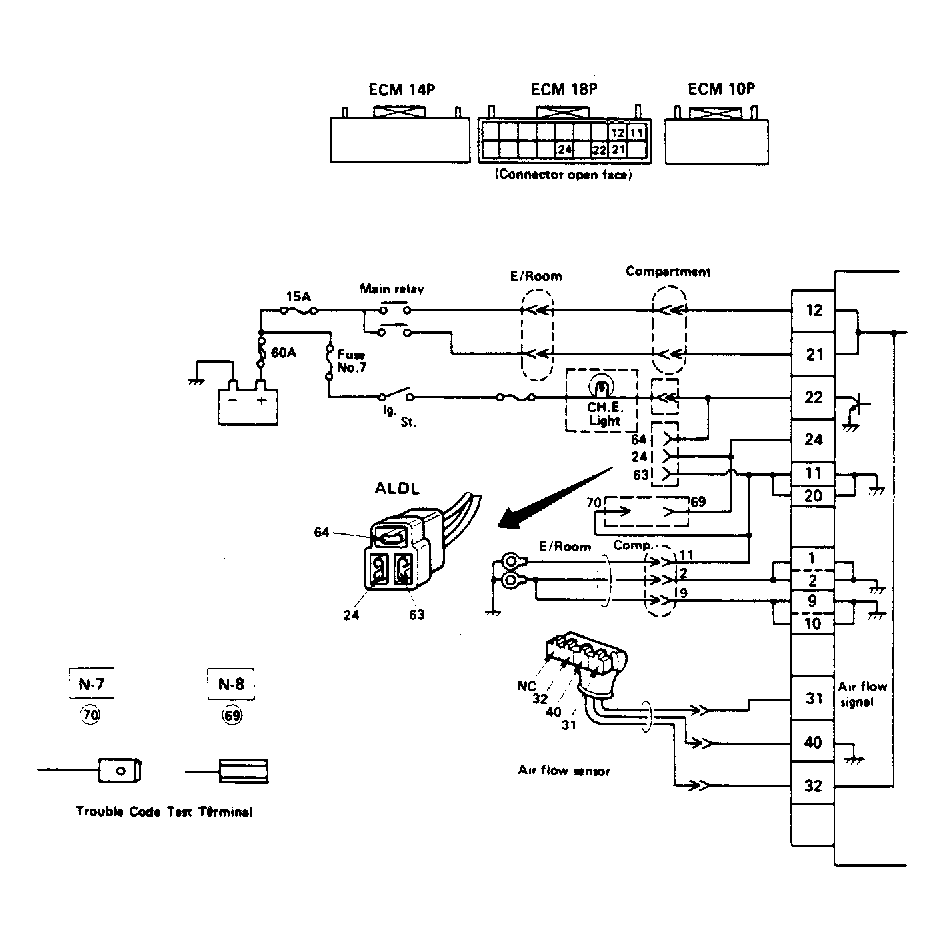

Fig 1: Test No. 3 Schematic, Won't Flash Code No. 12

G91J16930

Courtesy of ISUZU MOTOR CO.

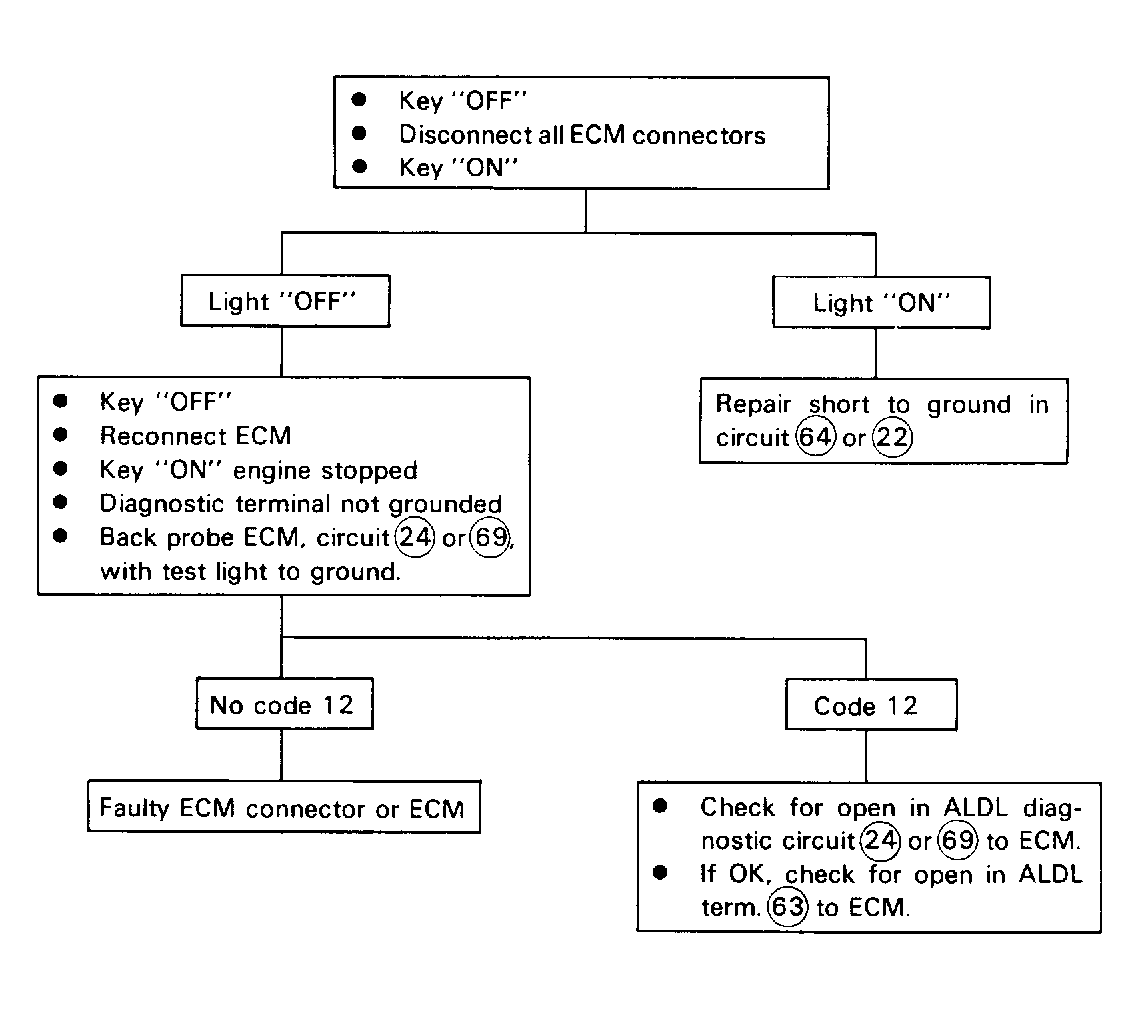

Fig 2: Test No. 3 Flow Chart, Won't Flash Code No. 12

G91A16931

Courtesy of ISUZU MOTOR CO.
