Engine Controls - Tests W/Codes - 2.6L
>>
Code Charts
>>
Code 43 & 65 - Throttle Valve Switch
Code 43 & 65 - Throttle Valve Switch
THROTTLE VALVE SWITCH RESISTANCE
Accelerator Pedal Position
Continuity I - P (Ohms)
Continuity P - F (Ohms)
Not Depressed
0
Infinity
Slightly Depressed
Infinity
Infinity
Fully Depressed
Infinity
0
Fig 1: Code No. 43, 65 Schematic, Throttle Valve Switch
Courtesy of ISUZU MOTOR CO.
Fig 2: Code No. 43, 65 Connector, Throttle Valve Switch
Courtesy of ISUZU MOTOR CO.

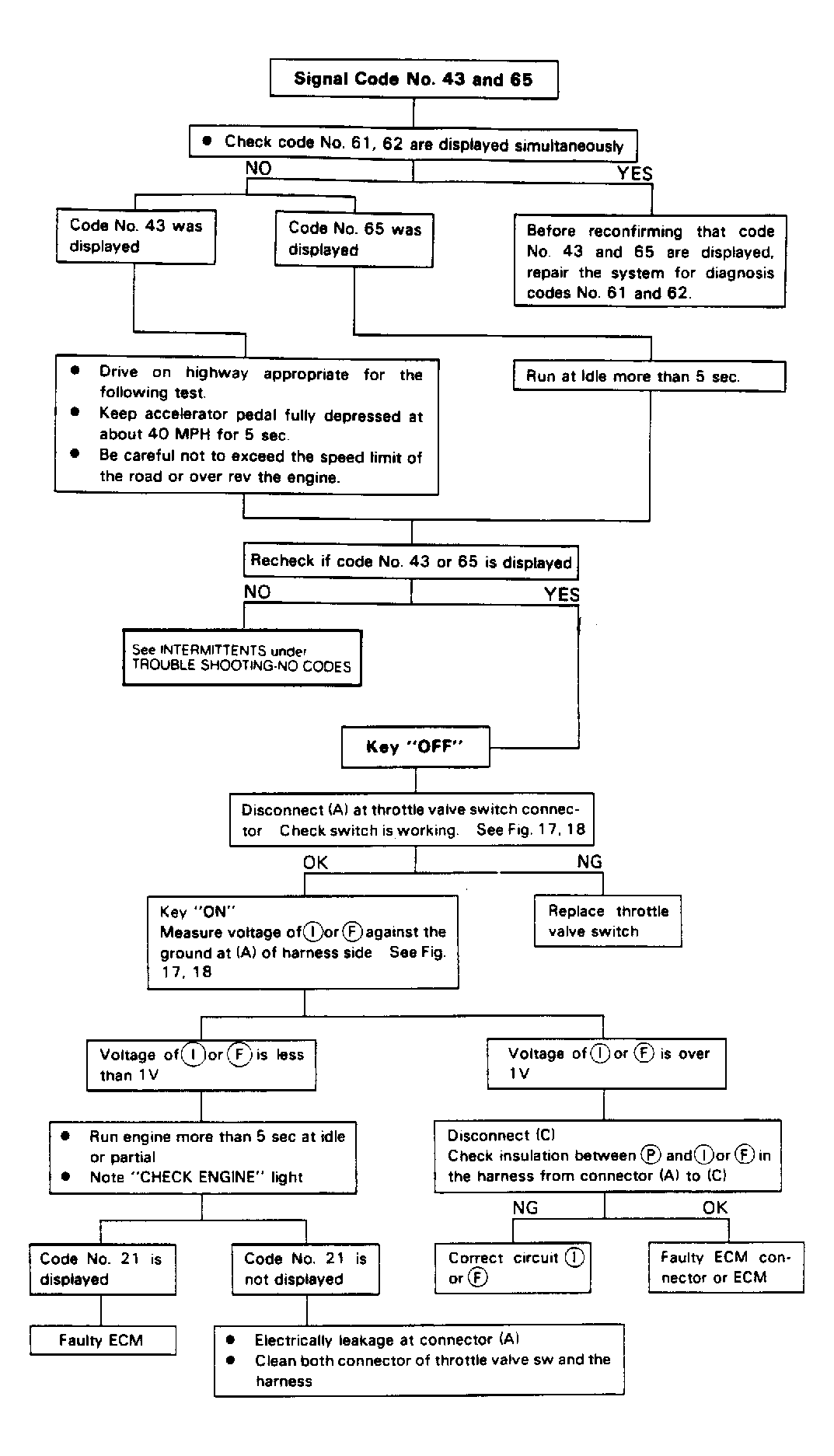

Fig 3: Code No. 43, 65 Flow Chart, Throttle Valve Switch
Courtesy of ISUZU MOTOR CO.
