Code 33 - Fuel Injector Circuit (Open Or Grounded)

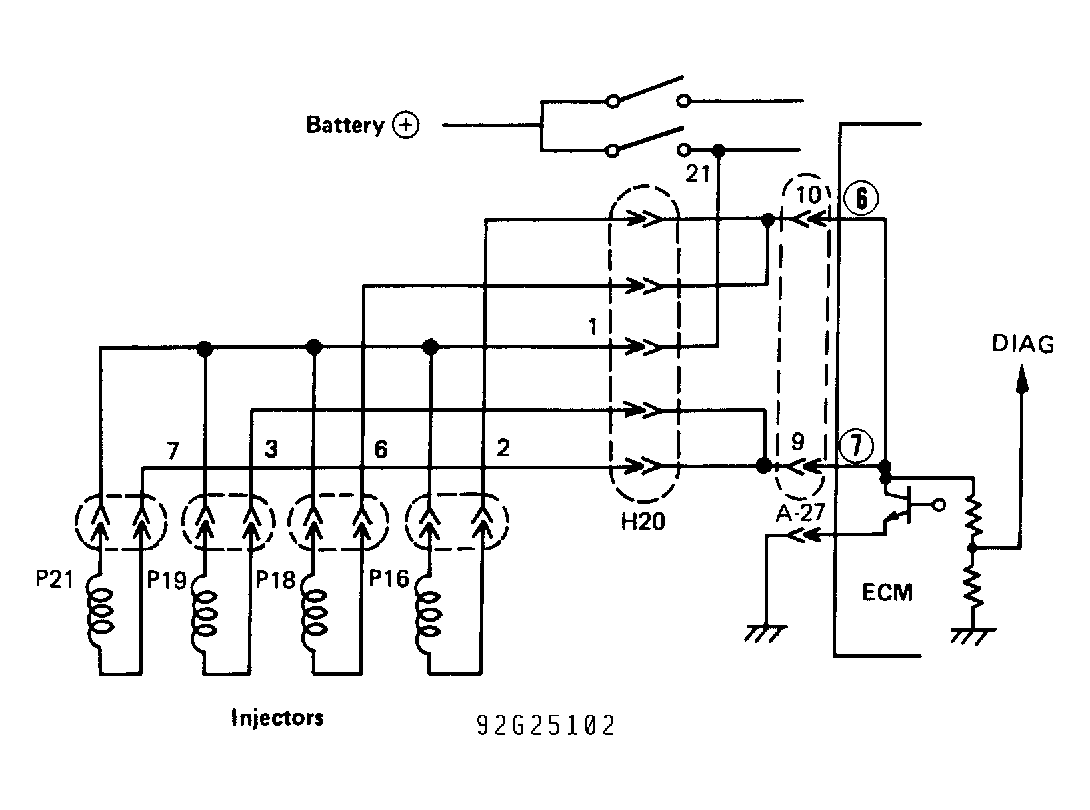

Fig 1: Code No. 33 Schematic, Fuel Injector Circuit

Courtesy of ISUZU MOTOR CO.

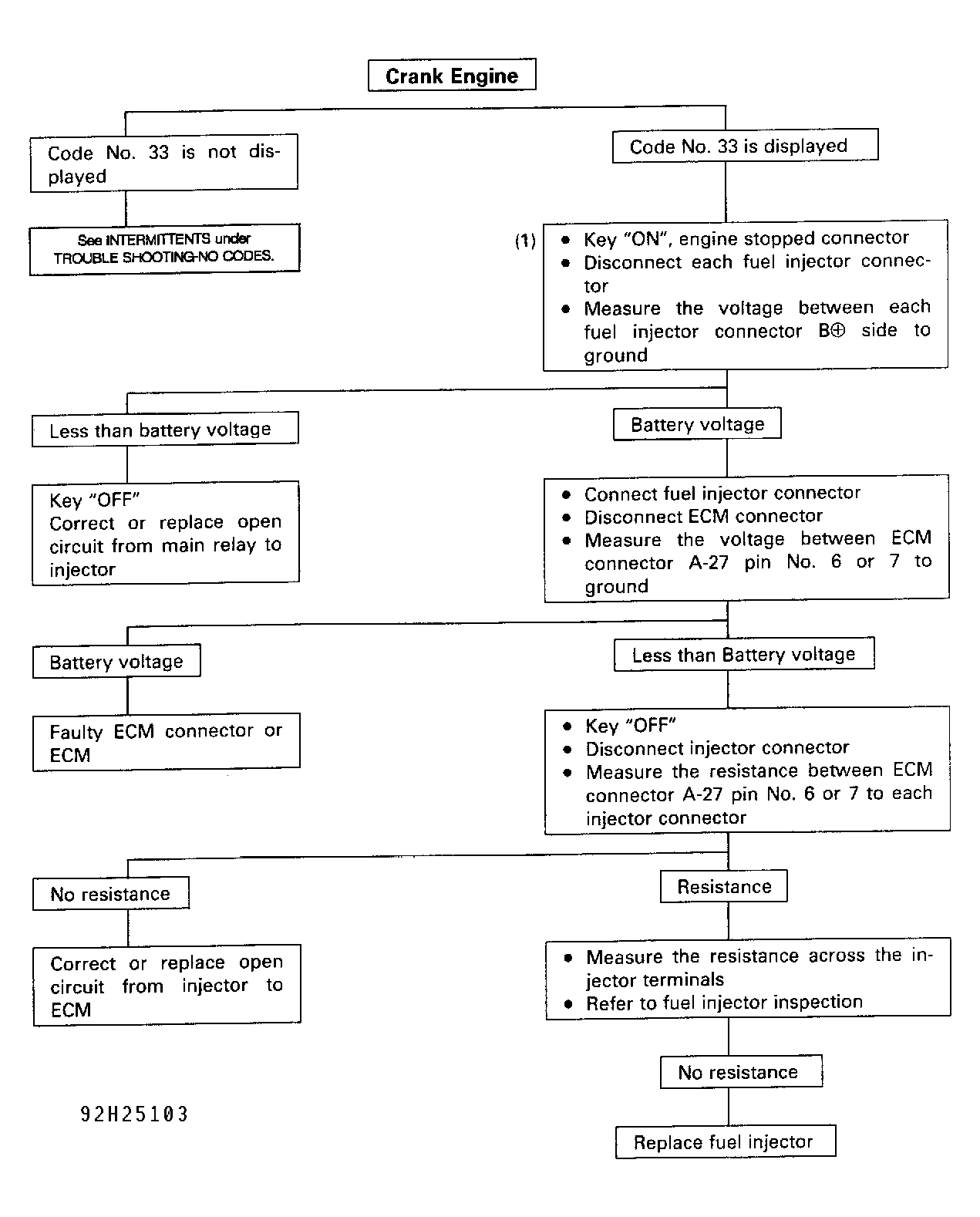

Fig 2: Code No. 33 Flow Chart, Fuel Injector Circuit

Courtesy of ISUZU MOTOR CO.
